WARHEAD-CONTAINING PEPTIDOMIMETIC MACROCYCLES AS MODULATORS OF BFL-1

The disclosed peptidomimetic macrocycles modulate the activity of BFL-1 or a BCL-2 family protein. BFL-1, an anti-apoptotic BCL-2 family member, blocks p53-mediated apoptosis and has oncogenic transforming activity. Peptidomimetic macrocycles, pharmaceutical compositions, and methods disclosed herein can be used for the treatment of disease in which BFL-1 or a BCL-2 family protein is over-expressed, such as cancer. In particular, BFL-1-modulating or a BCL-2 family protein-modulating peptidomimetic macrocycles disclosed herein can be applied in the setting of resistance to BCL-2 family inhibitors, which is often engendered by BFL-1 or BCL-2 family protein over-expression or hyper-activation.

1. A peptidomimetic macrocycle of Formula (Ic):

wherein:

each A, C, D, E, and F is independently a natural or non-natural amino acid;

each B is independently a natural or non-natural amino acid, amino acid analogue,

[—NH-L₃-CO—], [—NH-L₃-SO₂—], or [—NH-L₃-];

WH is an amino acid with an electron accepting group susceptible to attack by a nucleophile;

each L is independently a macrocycle-forming linker;

each L′ is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, or heteroarylene, each being optionally substituted with R₅, or a bond, or together with R₁and the atom to which both R₁and L′ are bound forms a ring;

each L″ is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, or heteroarylene, each being optionally substituted with R₅, or a bond, or together with R₂and the atom to which both R₂and L″ are bound forms a ring;

each R₁is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, cycloalkylalkyl, heteroalkyl, or heterocycloalkyl, each being optionally substituted with halo-, or together with L′ and the atom to which both R₁and L′ are bound forms a ring;

each R₂is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, cycloalkylalkyl, heteroalkyl, or heterocycloalkyl, each being optionally substituted with halo-, or together with L″ and the atom to which both R₂and L″ are bound forms a ring;

each R₃is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, heteroalkyl, cycloalkyl, heterocycloalkyl, cycloalkylalkyl, aryl, or heteroaryl, each being optionally substituted with R₅;

each L₃is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, heteroarylene, or [—R₄—K—R₄-]_n, each being optionally substituted with R₅;

each R₄is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, or heteroarylene;

each K is independently O, S, SO, SO₂, CO, CO₂, or CONR₃;

each n is independently 1, 2, 3, 4, or 5;

each R₅is independently halogen, alkyl, —OR₆, —N(R₆)₂, —SR₆, —SOR₆, —SO₂R₆, —CO₂R₆, a fluorescent moiety, a radioisotope, or a therapeutic agent;

each R₆is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkylalkyl, heterocycloalkyl, a fluorescent moiety, a radioisotope, or a therapeutic agent;

each R₇is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, heteroalkyl, cycloalkylalkyl, heterocycloalkyl, aryl, or heteroaryl, each being optionally substituted with R₅, or part of a cyclic structure with a D residue;

each R₈is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, heteroalkyl, cycloalkylalkyl, heterocycloalkyl, aryl, or heteroaryl, each being optionally substituted with R₅, or part of a cyclic structure with an E residue;

each v and w is independently an integer from 1-1000;

t is 0;

u is 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10; and

each x, y and z is independently 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10, or

a pharmaceutically-acceptable salt thereof.

2. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises two crosslinks, wherein a first crosslink is of a first pair of amino acid residues, and a second crosslink is of a second pair of amino acid residues.

3-4. (canceled)

5. The peptidomimetic macrocycle of claim 1, wherein w is at least 2 and at least two E amino acids are His residues.

6. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises a helix.

7. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises an α-helix.

8-9. (canceled)

10. The peptidomimetic macrocycle of claim 1, wherein v is 8.

11. The peptidomimetic macrocycle of claim 1, wherein w is 6.

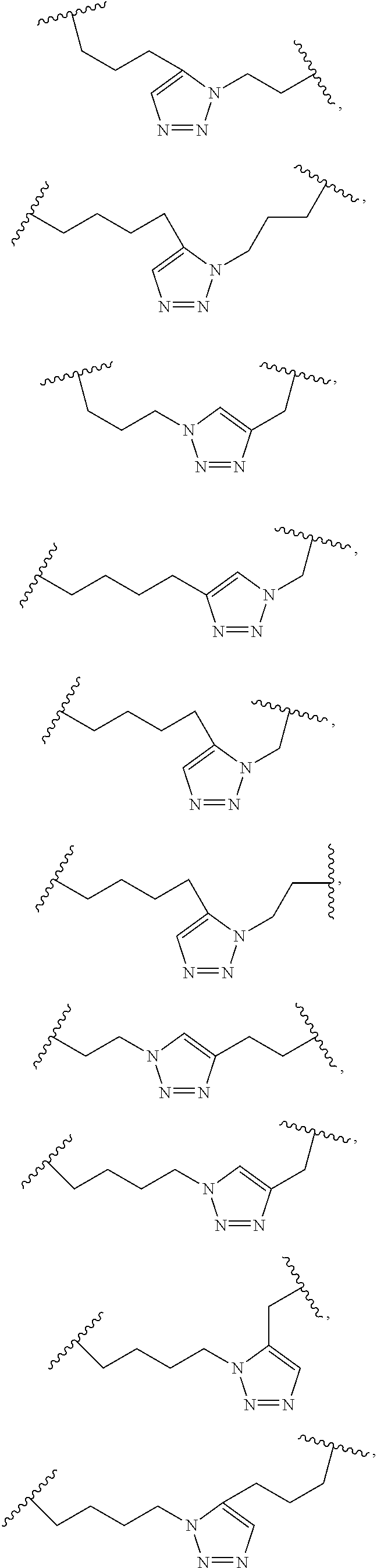

12. The peptidomimetic macrocycle of claim 1, wherein L is

13. (canceled)

14. The peptidomimetic macrocycle of claim 1, wherein R¹and R²are independently alkyl.

15. The peptidomimetic macrocycle of claim 1, wherein R¹and R²are methyl.

16. (canceled)

17. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle exhibits a selectivity ratio of one target over another that is from about 5:1 to about 1000:1.

18. (canceled)

19. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle exhibits a selectivity ratio of one target over another that is from about 100:1 to about 1000:1.

20. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises an amino acid sequence that has at least 60% identity to any one of SEQ ID NOs.: 1-1625.

21. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises an amino acid sequence that has at least 60% identity to any one of SEQ ID NOs.: 2-400.

22. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises an amino acid sequence that has at least 60% identity to any one of SEQ ID NOs.: 707-757.

23. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises an amino acid sequence that has at least 60% identity to any one of SEQ ID NOs.: 912-922.

24. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises an amino acid sequence that has at least 60% identity to any one of SEQ ID NOs.: 1600-1625.

25. The peptidomimetic macrocycle of claim 1, wherein the peptidomimetic macrocycle comprises an amino acid sequence that has at least 60% identity to any one of SEQ ID NOs.: 12, 755, and 920.

26. The peptidomimetic macrocycles of claim 1, wherein WH is an amino acid with a side chain of the formula:

wherein:

X is alkylene, CH, CH₂, NR^α, O, or S, wherein R^αis —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, heteroalkyl, cycloalkylalkyl, heterocycloalkyl, cycloaryl, or heterocycloaryl;

R^ais H, CN, or C(O)CH₃;

R^bis H, methyl, ethyl, allyl, propyl, isopropyl, butyl, or isobutyl;

each R^c, R^d, and R^eis independently —H, C₁-C₄saturated or unsaturated, straight or branched, hydrocarbon chain, or an electron-withdrawing group, wherein at least one of R^c, R^d, and R^eis an electron withdrawing group;

R^fis halogen, a C₂alkynyl or alkenyl side chain optionally substituted with oxo, halogen, NO₂, or CN; and

n′ iso, 1, 2, 3, 4, or 5.

27. The peptidomimetic macrocycles of claim 1, wherein WH is an amino acid with a side chain of the formula:

wherein:

X is alkylene, CH, CH₂, NR^α, O, or S, wherein R^αis —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, heteroalkyl, cycloalkylalkyl, heterocycloalkyl, cycloaryl, or heterocycloaryl; and

each R^c, R^d, and R^eis independently —H, C₁-C₄saturated or unsaturated, straight or branched, hydrocarbon chain, or an electron-withdrawing group, wherein at least one of R^c, R^d, and R^eis an electron withdrawing group.

28. The peptidomimetic macrocycle of claim 27, wherein WH is an amino acid with a side chain of the formula:

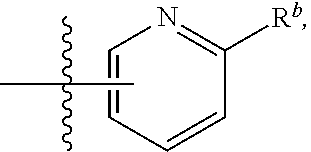

29. The peptidomimetic macrocycles of claim 26, wherein WH is an amino acid with a side chain of the formula:

wherein R^bis H, methyl, ethyl, allyl, propyl, isopropyl, butyl, or isobutyl.

30. The peptidomimetic macrocycles of claim 26, wherein WH is an amino acid with a side chain of the formula:

wherein:

X is alkylene, CH, CH₂, NR^α, O, or S, wherein R^αis —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, heteroalkyl, cycloalkylalkyl, heterocycloalkyl, cycloaryl, or heterocycloaryl;

each R^c, R^d, and R^eis independently —H, C₁-C₄saturated or unsaturated, straight or branched, hydrocarbon chain, or an electron-withdrawing group, wherein at least one of R^c, R^d, and R^eis an electron withdrawing group; and

n′ is 0, 1, 2, 3, 4, or 5.

31. The peptidomimetic macrocycle of claim 26, wherein WH is an amino acid with a side chain of the formula:

wherein each R^c, R^d, and R^eis independently —H, C₁-C₄saturated or unsaturated, straight or branched, hydrocarbon chain, or an electron-withdrawing group, wherein at least one of R^c, R^d, and R^eis an electron withdrawing group; and n′ is 0, 1, 2, 3, 4, or 5.

32-47. (canceled)

This Application claims the benefit of U.S. Provisional Application No. 62/469,460, filed Mar. 9, 2017; U.S. Provisional Application No. 62/473,721, filed Mar. 20, 2017; and U.S. Provisional Application No. 62/477,741, filed Mar. 28, 2017, which are incorporated herein by reference in their entirety.

The instant application contains a Sequence Listing which has been submitted electronically in ASCII format and is hereby incorporated by reference in its entirety. Said ASCII copy, created on Mar. 27, 2018, is named 35224-820_201_SL.txt and is 1,594,927 bytes in size.

Myeloid cell leukemia 1 (MCL-1) is a protein that inhibits cell death by binding and inhibiting pro-death factors, such as BCL-2 interacting mediator (BIM). BFL-1, an anti-apoptotic BCL-2 family member, blocks p53-mediated apoptosis and has oncogenic transforming activity.

All publications, patents, and patent applications mentioned in this specification are herein incorporated by reference in their entirety for all purposes, to the same extent as if each individual publication, patent, or patent application was specifically and individually indicated to be incorporated by reference.

In some embodiments, the invention provides a peptidomimetic macrocycle of Formula (Ic):

wherein:

each A, C, D, E, and F is independently a natural or non-natural amino acid;

each B is independently a natural or non-natural amino acid, amino acid analogue,

[—NH-L₃-CO—], [—NH-L₃-SO₂—], or [—NH-L₃-];

WH is an amino acid with an electron accepting group susceptible to attack by a nucleophile;

each L is independently a macrocycle-forming linker;

each L′ is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, or heteroarylene, each being optionally substituted with R₅, or a bond, or together with R₁and the atom to which both R₁and L″ are bound forms a ring;

each L″ is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, or heteroarylene, each being optionally substituted with R₅, or a bond, or together with R₂and the atom to which both R₂and L″ are bound forms a ring;

each R₁is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, cycloalkylalkyl, heteroalkyl, or heterocycloalkyl, each being optionally substituted with halo-, or together with L′ and the atom to which both R₁and L′ are bound forms a ring;

each R₂is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, cycloalkylalkyl, heteroalkyl, or heterocycloalkyl, each being optionally substituted with halo-, or together with L″ and the atom to which both R₂and L″ are bound forms a ring;

each R₃is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, heteroalkyl, cycloalkyl, heterocycloalkyl, cycloalkylalkyl, aryl, or heteroaryl, each being optionally substituted with R₅;

each L₃is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, heteroarylene, or [—R₄—K—R₄-]_n, each being optionally substituted with R₅;

each R₄is independently alkylene, alkenylene, alkynylene, heteroalkylene, cycloalkylene, heterocycloalkylene, arylene, or heteroarylene;

each K is independently O, S, SO, SO₂, CO, CO₂, or CONR₃;

each n is independently 1, 2, 3, 4, or 5;

each R₅is independently halogen, alkyl, —OR₆, —N(R₆)₂, —SR₆, —SOR₆, —SO₂R₆, —CO₂R₆, a fluorescent moiety, a radioisotope, or a therapeutic agent;

each R₆is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkylalkyl, heterocycloalkyl, a fluorescent moiety, a radioisotope, or a therapeutic agent;

each R₇is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, heteroalkyl, cycloalkylalkyl, heterocycloalkyl, aryl, or heteroaryl, each being optionally substituted with R₅, or part of a cyclic structure with a D residue;

each R₈is independently —H, alkyl, alkenyl, alkynyl, arylalkyl, cycloalkyl, heteroalkyl, cycloalkylalkyl, heterocycloalkyl, aryl, or heteroaryl, each being optionally substituted with R₅, or part of a cyclic structure with an E residue;

each v and w is independently an integer from 1-1000;

t is 0;

u is 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10; and

each x, y and z is independently 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10, or

a pharmaceutically-acceptable salt thereof.

The terminology used herein is for the purpose of describing particular cases only and is not intended to be limiting. As used herein, the singular forms “a”, “an” and “the” are intended to include the plural forms as well, unless the context clearly indicates otherwise. Furthermore, to the extent that the terms “including”, “includes”, “having”, “has”, “with”, or variants thereof are used in either the detailed description or the claims, such terms are intended to be inclusive in a manner similar to the term “comprising”.

The term “about” or “approximately” can mean within an acceptable error range for the particular value as determined by one of ordinary skill in the art, which will depend in part on how the value is measured or determined, i.e., the limitations of the measurement system. For example, “about” can mean within 1 or more than 1 standard deviation, per the practice in the art. Alternatively, “about” can mean a range of up to 20%, up to 10%, up to 5%, or up to 1% of a given value. Alternatively, particularly with respect to biological systems or processes, the term can mean within an order of magnitude, within 5-fold, and more preferably within 2-fold, of a value. Where particular values are described in the application and claims, unless otherwise stated the term “about” meaning within an acceptable error range for the particular value should be assumed. The term “about” has the meaning as commonly understood by one of ordinary skill in the art. In some embodiments, the term “about” refers to ±10%. In some embodiments, the term “about” refers to ±5%.

As used herein, the term “macrocycle” refers to a molecule having a chemical structure including a ring or cycle formed by at least 9 covalently bonded atoms.

As used herein, the term “peptidomimetic macrocycle” or “crosslinked polypeptide” refers to a compound comprising a plurality of amino acid residues joined by a plurality of peptide bonds and at least one macrocycle-forming linker which forms a macrocycle between a first naturally-occurring or non-naturally-occurring amino acid residue (or analogue) and a second naturally-occurring or non-naturally-occurring amino acid residue (or analogue) within the same molecule. Peptidomimetic macrocycles include embodiments where the macrocycle-forming linker connects the α carbon of the first amino acid residue (or analogue) to the α carbon of the second amino acid residue (or analogue). The peptidomimetic macrocycles optionally include one or more non-peptide bonds between one or more amino acid residues or amino acid analogue residues, and optionally include one or more non-naturally-occurring amino acid residues or amino acid analogue residues in addition to any which form the macrocycle. A “corresponding uncrosslinked polypeptide” when referred to in the context of a peptidomimetic macrocycle is understood to relate to a polypeptide of the same length as the macrocycle and comprising the equivalent natural amino acids of the wild-type sequence corresponding to the macrocycle.

As used herein, the term “stability” refers to the maintenance of a defined secondary structure in solution by a peptidomimetic macrocycle of the invention as measured by circular dichroism, NMR or another biophysical measure, or resistance to proteolytic degradation in vitro or in vivo. Non-limiting examples of secondary structures contemplated in this invention are α-helices, 3₁₀helices, β-turns, and β-pleated sheets.

As used herein, the term “helical stability” refers to the maintenance of a helical structure by a peptidomimetic macrocycle of the invention as measured by circular dichroism or NMR. For example, in some embodiments, the peptidomimetic macrocycles of the invention exhibit at least a 1.25, 1.5, 1.75 or 2-fold increase in α-helicity as determined by circular dichroism compared to a corresponding uncrosslinked macrocycle.

The term “amino acid” refers to a molecule containing both an amino group and a carboxyl group. Suitable amino acids include, without limitation, both the D- and L-isomers of the naturally-occurring amino acids, as well as non-naturally occurring amino acids prepared by organic synthesis or other metabolic routes. The term amino acid, as used herein, includes without limitation, α-amino acids, natural amino acids, non-natural amino acids, and amino acid analogues.

The term “α-amino acid” refers to a molecule containing both an amino group and a carboxyl group bound to a carbon which is designated the α-carbon.

The term “β-amino acid” refers to a molecule containing both an amino group and a carboxyl group in a β configuration. The abbreviation “b-” prior to an amino acid represent a beta configuration for the amino acid.

The term “naturally occurring amino acid” refers to any one of the twenty amino acids commonly found in peptides synthesized in nature, and known by the one letter abbreviations A, R, N, C, D, Q, E, G, H, I, L, K, M, F, P, S, T, W, Y and V.

The following Table shows a summary of the properties of natural amino acids:

“Hydrophobic amino acids” include small hydrophobic amino acids and large hydrophobic amino acids. “Small hydrophobic amino acids” are glycine, alanine, proline, and analogues thereof. “Large hydrophobic amino acids” are valine, leucine, isoleucine, phenylalanine, methionine, tryptophan, tyrosine, and analogues thereof. “Polar amino acids” are serine, threonine, asparagine, glutamine, cysteine, and analogues thereof. “Charged amino acids” include positively charged amino acids and negatively charged amino acids. “Positively charged amino acids” include lysine, arginine, histidine, and analogues thereof. “Negatively charged amino acids” include aspartate, glutamate, and analogues thereof.

The term “amino acid analogue” refers to a molecule which is structurally similar to an amino acid and which can be substituted for an amino acid in the formation of a peptidomimetic macrocycle. Amino acid analogues include, without limitation, β-amino acids and amino acids where the amino or carboxy group is substituted by a similarly reactive group (e.g., substitution of the primary amine with a secondary or tertiary amine, or substitution of the carboxy group with an ester).

The term “non-natural amino acid” refers to an amino acid which is not one of the twenty amino acids commonly found in peptides synthesized in nature, and known by the one letter abbreviations A, R, N, C, D, Q, E, G, H, I, L, K, M, F, P, S, T, W, Y and V. Non-natural amino acids or amino acid analogues include, without limitation, structures according to the following:

Amino acid analogues include β-amino acid analogues. Examples of β-amino acid analogues include, but are not limited to, the following: cyclic β-amino acid analogues; β-alanine; (R)-β-phenylalanine; (R)-1,2,3,4-tetrahydro-isoquinoline-3-acetic acid; (R)-3-amino-4-(1-naphthyl)-butyric acid; (R)-3-amino-4-(2,4-dichlorophenyl)butyric acid; (R)-3-amino-4-(2-chlorophenyl)-butyric acid; (R)-3-amino-4-(2-cyanophenyl)-butyric acid; (R)-3-amino-4-(2-fluorophenyl)-butyric acid; (R)-3-amino-4-(2-furyl)-butyric acid; (R)-3-amino-4-(2-methylphenyl)-butyric acid; (R)-3-amino-4-(2-naphthyl)-butyric acid; (R)-3-amino-4-(2-thienyl)-butyric acid; (R)-3-amino-4-(2-trifluoromethylphenyl)-butyric acid; (R)-3-amino-4-(3,4-dichlorophenyl)butyric acid; (R)-3-amino-4-(3,4-difluorophenyl)butyric acid; (R)-3-amino-4-(3-benzothienyl)-butyric acid; (R)-3-amino-4-(3-chlorophenyl)-butyric acid; (R)-3-amino-4-(3-cyanophenyl)-butyric acid; (R)-3-amino-4-(3-fluorophenyl)-butyric acid; (R)-3-amino-4-(3-methylphenyl)-butyric acid; (R)-3-amino-4-(3-pyridyl)-butyric acid; (R)-3-amino-4-(3-thienyl)-butyric acid; (R)-3-amino-4-(3-trifluoromethylphenyl)-butyric acid; (R)-3-amino-4-(4-bromophenyl)-butyric acid; (R)-3-amino-4-(4-chlorophenyl)-butyric acid; (R)-3-amino-4-(4-cyanophenyl)-butyric acid; (R)-3-amino-4-(4-fluorophenyl)-butyric acid; (R)-3-amino-4-(4-iodophenyl)-butyric acid; (R)-3-amino-4-(4-methylphenyl)-butyric acid; (R)-3-amino-4-(4-nitrophenyl)-butyric acid; (R)-3-amino-4-(4-pyridyl)-butyric acid; (R)-3-amino-4-(4-trifluoromethylphenyl)-butyric acid; (R)-3-amino-4-pentafluoro-phenylbutyric acid; (R)-3-amino-5-hexenoic acid; (R)-3-amino-5-hexynoic acid; (R)-3-amino-5-phenylpentanoic acid; (R)-3-amino-6-phenyl-5-hexenoic acid; (S)-1,2,3,4-tetrahydro-isoquinoline-3-acetic acid; (S)-3-amino-4-(1-naphthyl)-butyric acid; (S)-3-amino-4-(2,4-dichlorophenyl)butyric acid; (S)-3-amino-4-(2-chlorophenyl)-butyric acid; (S)-3-amino-4-(2-cyanophenyl)-butyric acid; (S)-3-amino-4-(2-fluorophenyl)-butyric acid; (S)-3-amino-4-(2-furyl)-butyric acid; (S)-3-amino-4-(2-methylphenyl)-butyric acid; (S)-3-amino-4-(2-naphthyl)-butyric acid; (S)-3-amino-4-(2-thienyl)-butyric acid; (S)-3-amino-4-(2-trifluoromethylphenyl)-butyric acid; (S)-3-amino-4-(3,4-dichlorophenyl)butyric acid; (S)-3-amino-4-(3,4-difluorophenyl)butyric acid; (S)-3-amino-4-(3-benzothienyl)-butyric acid; (S)-3-amino-4-(3-chlorophenyl)-butyric acid; (S)-3-amino-4-(3-cyanophenyl)-butyric acid; (S)-3-amino-4-(3-fluorophenyl)-butyric acid; (S)-3-amino-4-(3-methylphenyl)-butyric acid; (S)-3-amino-4-(3-pyridyl)-butyric acid; (S)-3-amino-4-(3-thienyl)-butyric acid; (S)-3-amino-4-(3-trifluoromethylphenyl)-butyric acid; (S)-3-amino-4-(4-bromophenyl)-butyric acid; (S)-3-amino-4-(4-chlorophenyl)-butyric acid; (S)-3-amino-4-(4-cyanophenyl)-butyric acid; (S)-3-amino-4-(4-fluorophenyl)-butyric acid; (S)-3-amino-4-(4-iodophenyl)-butyric acid; (S)-3-amino-4-(4-methylphenyl)-butyric acid; (S)-3-amino-4-(4-nitrophenyl)-butyric acid; (S)-3-amino-4-(4-pyridyl)-butyric acid; (S)-3-amino-4-(4-trifluoromethylphenyl)-butyric acid; (S)-3-amino-4-pentafluoro-phenylbutyric acid; (S)-3-amino-5-hexenoic acid; (S)-3-amino-5-hexynoic acid; (S)-3-amino-5-phenylpentanoic acid; (S)-3-amino-6-phenyl-5-hexenoic acid; 1,2,5,6-tetrahydropyridine-3-carboxylic acid; 1,2,5,6-tetrahydropyridine-4-carboxylic acid; 3-amino-3-(2-chlorophenyl)-propionic acid; 3-amino-3-(2-thienyl)-propionic acid; 3-amino-3-(3-bromophenyl)-propionic acid; 3-amino-3-(4-chlorophenyl)-propionic acid; 3-amino-3-(4-methoxyphenyl)-propionic acid; 3-amino-4,4,4-trifluoro-butyric acid; 3-aminoadipic acid; D-β-phenylalanine; β-leucine; L-β-homoalanine; L-β-homoaspartic acid γ-benzyl ester; L-β-homoglutamic acid δ-benzyl ester; L-β-homoisoleucine; L-β-homoleucine; L-β-homomethionine; L-β-homophenylalanine; L-β-homoproline; L-β-homotryptophan; L-β-homovaline; L-Nω-benzyloxycarbonyl-β-homolysine; Nω-L-β-homoarginine; O-benzyl-L-β-homohydroxyproline; O-benzyl-L-β-homoserine; O-benzyl-L-β-homothreonine; O-benzyl-L-β-homotyrosine; γ-trityl-L-β-homoasparagine; (R)-β-phenylalanine; L-β-homoaspartic acid γ-t-butyl ester; L-β-homoglutamic acid δ-t-butyl ester; L-No)-β-homolysine; Nδ-trityl-L-β-homoglutamine; No)-2,2,4,6,7-pentamethyl-dihydrobenzofuran-5-sulfonyl-L-β-homoarginine; O-t-butyl-L-β-homohydroxy-proline; O-t-butyl-L-β-homoserine; O-t-butyl-L-β-homothreonine; O-t-butyl-L-β-homotyrosine; 2-aminocyclopentane carboxylic acid; and 2-aminocyclohexane carboxylic acid.

Amino acid analogues include analogues of alanine, valine, glycine or leucine. Examples of amino acid analogues of alanine, valine, glycine, and leucine include, but are not limited to, the following: α-methoxyglycine; α-allyl-L-alanine; α-aminoisobutyric acid; α-methyl-leucine; β-(1-naphthyl)-D-alanine; β-(1-naphthyl)-L-alanine; β-(2-naphthyl)-D-alanine; β-(2-naphthyl)-L-alanine; β-(2-pyridyl)-D-alanine; β-(2-pyridyl)-L-alanine; β-(2-thienyl)-D-alanine; β-(2-thienyl)-L-alanine; β-β-benzothienyl)-D-alanine; β-β-benzothienyl)-L-alanine; β-(3-pyridyl)-D-alanine; β-(3-pyridyl)-L-alanine; β-(4-pyridyl)-D-alanine; β-(4-pyridyl)-L-alanine; β-chloro-L-alanine; β-cyano-L-alanin; β-cyclohexyl-D-alanine; β-cyclohexyl-L-alanine; β-cyclopenten-1-yl-alanine; β-cyclopentyl-alanine; β-cyclopropyl-L-Ala-OH.dicyclohexylammonium salt; β-t-butyl-D-alanine; β-t-butyl-L-alanine; γ-aminobutyric acid; L-α,β-diaminopropionic acid; 2,4-dinitro-phenylglycine; 2,5-dihydro-D-phenylglycine; 2-amino-4,4,4-trifluorobutyric acid; 2-fluoro-phenylglycine; 3-amino-4,4,4-trifluoro-butyric acid; 3-fluoro-valine; 4,4,4-trifluoro-valine; 4,5-dehydro-L-leu-OH.dicyclohexylammonium salt; 4-fluoro-D-phenylglycine; 4-fluoro-L-phenylglycine; 4-hydroxy-D-phenylglycine; 5,5,5-trifluoro-leucine; 6-aminohexanoic acid; cyclopentyl-D-Gly-OH.dicyclohexylammonium salt; cyclopentyl-Gly-OH.dicyclohexylammonium salt; D-α,β-diaminopropionic acid; D-α-aminobutyric acid; D-α-t-butylglycine; D-(2-thienyl)glycine; D-(3-thienyl)glycine; D-2-aminocaproic acid; D-2-indanylglycine; D-allylglycine-dicyclohexylammonium salt; D-cyclohexylglycine; D-norvaline; D-phenylglycine; β-aminobutyric acid; β-aminoisobutyric acid; (2-bromophenyl)glycine; (2-methoxyphenyl)glycine; (2-methylphenyl)glycine; (2-thiazoyl)glycine; (2-thienyl)glycine; 2-amino-3-(dimethylamino)-propionic acid; L-α,β-diaminopropionic acid; L-α-aminobutyric acid; L-α-t-butylglycine; L-(3-thienyl)glycine; L-2-amino-3-(dimethylamino)-propionic acid; L-2-aminocaproic acid dicyclohexyl-ammonium salt; L-2-indanylglycine; L-allylglycine-dicyclohexyl ammonium salt; L-cyclohexylglycine; L-phenylglycine; L-propargylglycine; L-norvaline; N-α-aminomethyl-L-alanine; D-α,γ-diaminobutyric acid; L-α,γ-diaminobutyric acid; β-cyclopropyl-L-alanine; (N-β-(2,4-dinitrophenyl))-L-α,β-diaminopropionic acid; (N-β-1-(4,4-dimethyl-2,6-dioxocyclohex-1-ylidene)ethyl)-D-α,β-diaminopropionic acid; (N-β-1-(4,4-dimethyl-2,6-dioxocyclohex-1-ylidene)ethyl)-L-α,β-diaminopropionic acid; (N-β-4-methyltrityl)-L-α,β-diaminopropionic acid; (N-β-allyloxycarbonyl)-L-α,β-diaminopropionic acid; (N-γ-1-(4,4-dimethyl-2,6-dioxocyclohex-1-ylidene)ethyl)-D-α,γ-diaminobutyric acid; (N-γ-1-(4,4-dimethyl-2,6-dioxocyclohex-1-ylidene)ethyl)-L-α,γ-diaminobutyric acid; (N-γ-4-methyltrityl)-D-α,γ-diaminobutyric acid; (N-γ-4-methyltrityl)-L-α,γ-diaminobutyric acid; (N-γ-allyloxycarbonyl)-L-α,γ-diaminobutyric acid; D-α,γ-diaminobutyric acid; 4,5-dehydro-L-leucine; cyclopentyl-D-Gly-OH; cyclopentyl-Gly-OH; D-allylglycine; D-homocyclohexylalanine; L-1-pyrenylalanine; L-2-aminocaproic acid; L-allylglycine; L-homocyclohexylalanine; and N-(2-hydroxy-4-methoxy-Bzl)-Gly-OH.

Amino acid analogues include analogues of arginine or lysine. Examples of amino acid analogues of arginine and lysine include, but are not limited to, the following: citrulline; L-2-amino-3-guanidinopropionic acid; L-2-amino-3-ureidopropionic acid; L-citrulline; Lys(Me)₂-OH; Lys(N₃)—OH; Nδ-benzyloxycarbonyl-L-ornithine; Nω-nitro-D-arginine; Nω-nitro-L-arginine; α-methyl-ornithine; 2,6-diaminoheptanedioic acid; L-ornithine; (Nδ-1-(4,4-dimethyl-2,6-dioxo-cyclohex-1-ylidene)ethyl)-D-ornithine; (Nδ-1-(4,4-dimethyl-2,6-dioxo-cyclohex-1-ylidene)ethyl)-L-ornithine; (Nδ-4-methyltrityl)-D-ornithine; (Nδ-4-methyltrityl)-L-ornithine; D-ornithine; L-ornithine; Arg(Me)(Pbf)-OH; Arg(Me)₂-OH (asymmetrical); Arg(Me)2-OH (symmetrical); Lys(ivDde)-OH; Lys(Me)2-OH.HCl; Lys(Me3)-OH chloride; Nω-nitro-D-arginine; and Nω-nitro-L-arginine.

Amino acid analogues include analogues of aspartic or glutamic acids. Examples of amino acid analogues of aspartic and glutamic acids include, but are not limited to, the following: α-methyl-D-aspartic acid; α-methyl-glutamic acid; α-methyl-L-aspartic acid; γ-methylene-glutamic acid; (N-γ-ethyl)-L-glutamine; [N-α-(4-aminobenzoyl)]-L-glutamic acid; 2,6-diaminopimelic acid; L-α-aminosuberic acid; D-2-aminoadipic acid; D-α-aminosuberic acid; α-aminopimelic acid; iminodiacetic acid; L-2-amino adipic acid; threo-β-methyl-aspartic acid; γ-carboxy-D-glutamic acid γ,γ-di-t-butyl ester; γ-carboxy-L-glutamic acid γ,γ-di-t-butyl ester; Glu(OAll)-OH; L-Asu(OtBu)-OH; and pyroglutamic acid.

Amino acid analogues include analogues of cysteine and methionine. Examples of amino acid analogues of cysteine and methionine include, but are not limited to, Cys(farnesyl)-OH, Cys(farnesyl)-OMe, α-methyl-methionine, Cys(2-hydroxyethyl)-OH, Cys(3-aminopropyl)-OH, 2-amino-4-(ethylthio)butyric acid, buthionine, buthioninesulfoximine, ethionine, methionine methylsulfonium chloride, selenomethionine, cysteic acid, [2-(4-pyridyl)ethyl]-DL-penicillamine, [2-(4-pyridyl)ethyl]-L-cysteine, 4-methoxybenzyl-D-penicillamine, 4-methoxybenzyl-L-penicillamine, 4-methylbenzyl-D-penicillamine, 4-methylbenzyl-L-penicillamine, benzyl-D-cysteine, benzyl-L-cysteine, benzyl-DL-homocysteine, carbamoyl-L-cysteine, carboxyethyl-L-cysteine, carboxymethyl-L-cysteine, diphenylmethyl-L-cysteine, ethyl-L-cysteine, methyl-L-cysteine, t-butyl-D-cysteine, trityl-L-homocysteine, trityl-D-penicillamine, cystathionine, homocystine, L-homocystine, (2-aminoethyl)-L-cysteine, seleno-L-cystine, cystathionine, Cys(StBu)-OH, and acetamidomethyl-D-penicillamine.

Amino acid analogues include analogues of phenylalanine and tyrosine. Examples of amino acid analogues of phenylalanine and tyrosine include β-methyl-phenylalanine, β-hydroxyphenylalanine, α-methyl-3-methoxy-DL-phenylalanine, α-methyl-D-phenylalanine, α-methyl-L-phenylalanine, 1,2,3,4-tetrahydroisoquinoline-3-carboxylic acid, 2,4-dichloro-phenylalanine, 2-(trifluoromethyl)-D-phenylalanine, 2-(trifluoromethyl)-L-phenylalanine, 2-bromo-D-phenylalanine, 2-bromo-L-phenylalanine, 2-chloro-D-phenylalanine, 2-chloro-L-phenylalanine, 2-cyano-D-phenylalanine, 2-cyano-L-phenylalanine, 2-fluoro-D-phenylalanine, 2-fluoro-L-phenylalanine, 2-methyl-D-phenylalanine, 2-methyl-L-phenylalanine, 2-nitro-D-phenylalanine, 2-nitro-L-phenylalanine, 2;4;5-trihydroxy-phenylalanine, 3,4,5-trifluoro-D-phenylalanine, 3,4,5-trifluoro-L-phenylalanine, 3,4-dichloro-D-phenylalanine, 3,4-dichloro-L-phenylalanine, 3,4-difluoro-D-phenylalanine, 3,4-difluoro-L-phenylalanine, 3,4-dihydroxy-L-phenylalanine, 3,4-dimethoxy-L-phenylalanine, 3,5,3′-triiodo-L-thyronine, 3,5-diiodo-D-tyrosine, 3,5-diiodo-L-tyrosine, 3,5-diiodo-L-thyronine, 3-(trifluoromethyl)-D-phenylalanine, 3-(trifluoromethyl)-L-phenylalanine, 3-amino-L-tyrosine, 3-bromo-D-phenylalanine, 3-bromo-L-phenylalanine, 3-chloro-D-phenylalanine, 3-chloro-L-phenylalanine, 3-chloro-L-tyrosine, 3-cyano-D-phenylalanine, 3-cyano-L-phenylalanine, 3-fluoro-D-phenylalanine, 3-fluoro-L-phenylalanine, 3-fluoro-tyrosine, 3-iodo-D-phenylalanine, 3-iodo-L-phenylalanine, 3-iodo-L-tyrosine, 3-methoxy-L-tyrosine, 3-methyl-D-phenylalanine, 3-methyl-L-phenylalanine, 3-nitro-D-phenylalanine, 3-nitro-L-phenylalanine, 3-nitro-L-tyrosine, 4-(trifluoromethyl)-D-phenylalanine, 4-(trifluoromethyl)-L-phenylalanine, 4-amino-D-phenylalanine, 4-amino-L-phenylalanine, 4-benzoyl-D-phenylalanine, 4-benzoyl-L-phenylalanine, 4-bis(2-chloroethyl)amino-L-phenylalanine, 4-bromo-D-phenylalanine, 4-bromo-L-phenylalanine, 4-chloro-D-phenylalanine, 4-chloro-L-phenylalanine, 4-cyano-D-phenylalanine, 4-cyano-L-phenylalanine, 4-fluoro-D-phenylalanine, 4-fluoro-L-phenylalanine, 4-iodo-D-phenylalanine, 4-iodo-L-phenylalanine, homophenylalanine, thyroxine, 3,3-diphenylalanine, thyronine, ethyl-tyrosine, and methyl-tyrosine.

Amino acid analogues include analogues of proline. Examples of amino acid analogues of proline include, but are not limited to, 3,4-dehydro-proline, 4-fluoro-proline, cis-4-hydroxy-proline, thiazolidine-2-carboxylic acid, and trans-4-fluoro-proline.

Amino acid analogues include analogues of serine and threonine. Examples of amino acid analogues of serine and threonine include, but are not limited to, 3-amino-2-hydroxy-5-methylhexanoic acid, 2-amino-3-hydroxy-4-methylpentanoic acid, 2-amino-3-ethoxybutanoic acid, 2-amino-3-methoxybutanoic acid, 4-amino-3-hydroxy-6-methylheptanoic acid, 2-amino-3-benzyloxypropionic acid, 2-amino-3-benzyloxypropionic acid, 2-amino-3-ethoxypropionic acid, 4-amino-3-hydroxybutanoic acid, and α-methylserine.

Amino acid analogues include analogues of tryptophan. Examples of amino acid analogues of tryptophan include, but are not limited to, the following: α-methyl-tryptophan; β-(3-benzothienyl)-D-alanine; β-(3-benzothienyl)-L-alanine; 1-methyl-tryptophan; 4-methyl-tryptophan; 5-benzyloxy-tryptophan; 5-bromo-tryptophan; 5-chloro-tryptophan; 5-fluoro-tryptophan; 5-hydroxy-tryptophan; 5-hydroxy-L-tryptophan; 5-methoxy-tryptophan; 5-methoxy-L-tryptophan; 5-methyl-tryptophan; 6-bromo-tryptophan; 6-chloro-D-tryptophan; 6-chloro-tryptophan; 6-fluoro-tryptophan; 6-methyl-tryptophan; 7-benzyloxy-tryptophan; 7-bromo-tryptophan; 7-methyl-tryptophan; D-1,2,3,4-tetrahydro-norharman-3-carboxylic acid; 6-methoxy-1,2,3,4-tetrahydronorharman-1-carboxylic acid; 7-azatryptophan; L-1,2,3,4-tetrahydro-norharman-3-carboxylic acid; 5-methoxy-2-methyl-tryptophan; and 6-chloro-L-tryptophan.

In some embodiments, amino acid analogues are racemic. In some embodiments, the D isomer of the amino acid analogue is used. In some embodiments, the L isomer of the amino acid analogue is used. In other embodiments, the amino acid analogue comprises chiral centers that are in the R or S configuration. In still other embodiments, the amino group(s) of a β-amino acid analogue is substituted with a protecting group, e.g., tert-butyloxycarbonyl (BOC group), 9-fluorenylmethyloxycarbonyl (FMOC), tosyl, and the like. In yet other embodiments, the carboxylic acid functional group of a β-amino acid analogue is protected, e.g., as its ester derivative. In some embodiments the salt of the amino acid analogue is used.

A “non-essential” amino acid residue is a residue that can be altered from the wild-type sequence of a polypeptide without abolishing or substantially abolishing its essential biological or biochemical activity (e.g., receptor binding or activation). An “essential” amino acid residue is a residue that, when altered from the wild-type sequence of the polypeptide, results in abolishing or substantially abolishing the polypeptide's essential biological or biochemical activity.

A “conservative amino acid substitution” is one in which the amino acid residue is replaced with an amino acid residue having a similar side chain. Families of amino acid residues having similar side chains have been defined in the art. These families include amino acids with basic side chains (e.g., K, R, H), acidic side chains (e.g., D, E), uncharged polar side chains (e.g., G, N, Q, S, T, Y, C), nonpolar side chains (e.g., A, V, L, I, P, F, M, W), beta-branched side chains (e.g., T, V, I) and aromatic side chains (e.g., Y, F, W, H). Thus, a predicted nonessential amino acid residue in a polypeptide, for example, is replaced with another amino acid residue from the same side chain family. Other examples of acceptable substitutions are substitutions based on isosteric considerations (e.g. norleucine for methionine) or other properties (e.g. 2-thienylalanine for phenylalanine).

The term “capping group” refers to the chemical moiety occurring at either the carboxy or amino terminus of the polypeptide chain of the subject peptidomimetic macrocycle. The capping group of a carboxy terminus includes an unmodified carboxylic acid (i.e. —COOH) or a carboxylic acid with a substituent. For example, the carboxy terminus can be substituted with an amino group to yield a carboxamide at the C-terminus. Various substituents include but are not limited to primary and secondary amines, including pegylated secondary amines. Non-limiting representative secondary amine capping groups for the C-terminus include:

The capping group of an amino terminus includes an unmodified amine (i.e. —NH₂) or an amine with a substituent. For example, the amino terminus can be substituted with an acyl group to yield a carboxamide at the N-terminus. Various substituents include but are not limited to substituted acyl groups, including C₁-C₆carbonyls, C₇-C₃₀carbonyls, and pegylated carbamates. Non-limiting representative capping groups for the N-terminus include:

The term “member” as used herein in conjunction with macrocycles or macrocycle-forming linkers refers to the atoms that form or can form the macrocycle, and excludes substituent or side chain atoms. By analogy, cyclodecane, 1,2-difluoro-decane and 1,3-dimethyl cyclodecane are all considered ten-membered macrocycles as the hydrogen or fluoro substituents or methyl side chains do not participate in forming the macrocycle.

The symbol “” when used as part of a molecular structure refers to a single bond or a trans or cis double bond.

The term “amino acid side chain” refers to a moiety attached to the α-carbon (or another backbone atom) in an amino acid. For example, the amino acid side chain for alanine is methyl, the amino acid side chain for phenylalanine is phenylmethyl, the amino acid side chain for cysteine is thiomethyl, the amino acid side chain for aspartate is carboxymethyl, the amino acid side chain for tyrosine is 4-hydroxyphenylmethyl, etc. Other non-naturally occurring amino acid side chains are also included, for example, those that occur in nature (e.g., an amino acid metabolite) or those that are made synthetically (e.g., an α,α di-substituted amino acid).

The term “α,α di-substituted amino” acid refers to a molecule or moiety containing both an amino group and a carboxyl group bound to a carbon (the α-carbon) that is attached to two natural or non-natural amino acid side chains.

The term “polypeptide” encompasses two or more naturally or non-naturally-occurring amino acids joined by a covalent bond (e.g., an amide bond). Polypeptides as described herein include full length proteins (e.g., fully processed proteins) as well as shorter amino acid sequences (e.g., fragments of naturally-occurring proteins or synthetic polypeptide fragments).

The term “macrocyclization reagent” or “macrocycle-forming reagent” as used herein refers to any reagent which may be used to prepare a peptidomimetic macrocycle of the invention by mediating the reaction between two reactive groups. Reactive groups may be, for example, an azide and alkyne, in which case macrocyclization reagents include, without limitation, Cu reagents such as reagents which provide a reactive Cu(I) species, such as CuBr, CuI or CuOTf, as well as Cu(II) salts such as Cu(CO₂CH₃)₂, CuSO₄, and CuCl₂that can be converted in situ to an active Cu(I) reagent by the addition of a reducing agent such as ascorbic acid or sodium ascorbate. Macrocyclization reagents may additionally include, for example, Ru reagents known in the art such as Cp*RuCl(PPh₃)₂, [Cp*RuCl]₄or other Ru reagents which may provide a reactive Ru(II) species. In other cases, the reactive groups are terminal olefins. In such embodiments, the macrocyclization reagents or macrocycle-forming reagents are metathesis catalysts including, but not limited to, stabilized, late transition metal carbene complex catalysts such as Group VIII transition metal carbene catalysts. For example, such catalysts are Ru and Os metal centers having a +2 oxidation state, an electron count of 16 and pentacoordinated. In other examples, catalysts have W or Mo centers. Various catalysts are disclosed in Grubbs et al., “Ring Closing Metathesis and Related Processes in Organic Synthesis” Acc. Chem. Res. 1995, 28, 446-452, and U.S. Pat. No. 5,811,515; U.S. Pat. No. 7,932,397; U.S. Application No. 2011/0065915; U.S. Application No. 2011/0245477; Yu et al., “Synthesis of Macrocyclic Natural Products by Catalyst-Controlled Stereoselective Ring-Closing Metathesis,” Nature 2011, 479, 88; and Peryshkov et al., “Z-Selective Olefin Metathesis Reactions Promoted by Tungsten Oxo Alkylidene Complexes,” J. Am. Chem. Soc. 2011, 133, 20754. In yet other cases, the reactive groups are thiol groups. In such embodiments, the macrocyclization reagent is, for example, a linker functionalized with two thiol-reactive groups such as halogen groups.

The term “halo” or “halogen” refers to fluorine, chlorine, bromine or iodine or a radical thereof.

The term “alkyl” refers to a hydrocarbon chain that is a straight chain or branched chain, containing the indicated number of carbon atoms. For example, C₁-C₁₀indicates that the group has from 1 to 10 (inclusive) carbon atoms in it. In the absence of any numerical designation, “alkyl” is a chain (straight or branched) having 1 to 20 (inclusive) carbon atoms in it.

The term “alkylene” refers to a divalent alkyl (i.e., —R—).

The term “alkenyl” refers to a hydrocarbon chain that is a straight chain or branched chain having one or more carbon-carbon double bonds. The alkenyl moiety contains the indicated number of carbon atoms. For example, C₂-C₁₀indicates that the group has from 2 to 10 (inclusive) carbon atoms in it. The term “lower alkenyl” refers to a C₂-C₆alkenyl chain. In the absence of any numerical designation, “alkenyl” is a chain (straight or branched) having 2 to 20 (inclusive) carbon atoms in it.

The term “alkynyl” refers to a hydrocarbon chain that is a straight chain or branched chain having one or more carbon-carbon triple bonds. The alkynyl moiety contains the indicated number of carbon atoms. For example, C₂-C₁₀indicates that the group has from 2 to 10 (inclusive) carbon atoms in it. The term “lower alkynyl” refers to a C₂-C₆alkynyl chain. In the absence of any numerical designation, “alkynyl” is a chain (straight or branched) having 2 to 20 (inclusive) carbon atoms in it.

The term “aryl” refers to a monocyclic or bicyclic aromatic ring system wherein 0, 1, 2, 3, or 4 atoms of each ring are substituted by a substituent. Examples of aryl groups include phenyl, biphenyl, naphthyl and the like. The term “arylalkoxy” refers to an alkoxy substituted with aryl.

“Arylalkyl” refers to an aryl group, as defined above, wherein one of the aryl group's hydrogen atoms has been replaced with a C₁-C₅alkyl group, as defined above. Representative examples of an arylalkyl group include, but are not limited to, 2-methylphenyl, 3-methylphenyl, 4-methylphenyl, 2-ethylphenyl, 3-ethylphenyl, 4-ethylphenyl, 2-propylphenyl, 3-propylphenyl, 4-propylphenyl, 2-butylphenyl, 3-butylphenyl, 4-butylphenyl, 2-pentylphenyl, 3-pentylphenyl, 4-pentylphenyl, 2-isopropylphenyl, 3-isopropylphenyl, 4-isopropylphenyl, 2-isobutylphenyl, 3-isobutylphenyl, 4-isobutylphenyl, 2-sec-butylphenyl, 3-sec-butylphenyl, 4-sec-butylphenyl, 2-t-butylphenyl, 3-t-butylphenyl and 4-t-butylphenyl.

“Arylamido” refers to an aryl group, as defined above, wherein one of the aryl group's hydrogen atoms has been replaced with one or more —C(O)NH₂groups. Representative examples of an arylamido group include 2-C(O)NH2-phenyl, 3-C(O)NH₂-phenyl, 4-C(O)NH₂-phenyl, 2-C(O)NH₂-pyridyl, 3-C(O)NH₂-pyridyl, and 4-C(O)NH₂-pyridyl,

“Alkylheterocycle” refers to a C₁-C₅alkyl group, as defined above, wherein one of the C₁-C₅alkyl group's hydrogen atoms has been replaced with a heterocycle. Representative examples of an alkylheterocycle group include, but are not limited to, —CH₂CH₂-morpholine, —CH₂CH₂-piperidine, —CH₂CH₂CH₂-morpholine, and —CH₂CH₂CH₂-imidazole.

“Alkylamido” refers to a C₁-C₅alkyl group, as defined above, wherein one of the C₁-C₅alkyl group's hydrogen atoms has been replaced with a —C(O)NH₂group. Representative examples of an alkylamido group include, but are not limited to, —CH₂—C(O)NH₂, —CH₂CH₂—C(O)NH₂, —CH₂CH₂CH₂C(O)NH₂, —CH₂CH₂CH₂CH₂C(O)NH₂, —CH₂CH₂CH₂CH₂CH₂C(O)NH₂, —CH₂CH(C(O)NH₂)CH₃, —CH₂CH(C(O)NH₂)CH₂CH₃, —CH(C(O)NH₂)CH₂CH₃, —C(CH₃)₂CH₂C(O)NH₂, —CH₂—CH₂—NH—C(O)—CH₃, —CH₂—CH₂—NH—C(O)—CH₃—CH3, and —CH₂—CH₂—NH—C(O)—CH═CH₂.

“Alkanol” refers to a C₁-C₅alkyl group, as defined above, wherein one of the C₁-C₅alkyl group's hydrogen atoms has been replaced with a hydroxyl group. Representative examples of an alkanol group include, but are not limited to, —CH₂OH, —CH₂CH₂OH, —CH₂CH₂CH₂OH, —CH₂CH₂CH₂CH₂OH, —CH₂CH₂CH₂CH₂CH₂OH, —CH₂CH(OH)CH₃, —CH₂CH(OH)CH₂CH₃, —CH(OH)CH₃and —C(CH₃)₂CH₂OH.

“Alkylcarboxy” refers to a C₁-C₅alkyl group, as defined above, wherein one of the C₁-C₅alkyl group's hydrogen atoms has been replaced with a —COOH group. Representative examples of an alkylcarboxy group include, but are not limited to, —CH₂COOH, —CH₂CH₂COOH, —CH₂CH₂CH₂COOH, —CH₂CH₂CH₂CH₂COOH, —CH₂CH(COOH)CH₃, —CH₂CH₂CH₂CH₂CH₂COOH, —CH₂CH(COOH)CH₂CH₃, —CH(COOH)CH₂CH₃and —C(CH₃)₂CH₂COOH.

The term “cycloalkyl” as employed herein includes saturated and partially unsaturated cyclic hydrocarbon groups having 3 to 12 carbons, preferably 3 to 8 carbons, and more preferably 3 to 6 carbons, wherein the cycloalkyl group additionally is optionally substituted. Some cycloalkyl groups include, without limitation, cyclopropyl, cyclobutyl, cyclopentyl, cyclopentenyl, cyclohexyl, cyclohexenyl, cycloheptyl, and cyclooctyl.

The term “heteroaryl” refers to an aromatic 5-8 membered monocyclic, 8-12 membered bicyclic, or 11-14 membered tricyclic ring system having 1-3 heteroatoms if monocyclic, 1-6 heteroatoms if bicyclic, or 1-9 heteroatoms if tricyclic, said heteroatoms selected from O, N, or S (e.g., carbon atoms and 1-3, 1-6, or 1-9 heteroatoms of O, N, or S if monocyclic, bicyclic, or tricyclic, respectively), wherein 0, 1, 2, 3, or 4 atoms of each ring are substituted by a substituent. Examples of heteroaryl groups include pyridyl, furyl or furanyl, imidazolyl, benzimidazolyl, pyrimidinyl, thiophenyl or thienyl, quinolinyl, indolyl, thiazolyl, and the like.

The term “heteroarylalkyl” or the term “heteroaralkyl” refers to an alkyl substituted with a heteroaryl. The term “heteroarylalkoxy” refers to an alkoxy substituted with heteroaryl.

The term “heteroarylalkyl” or the term “heteroaralkyl” refers to an alkyl substituted with a heteroaryl. The term “heteroarylalkoxy” refers to an alkoxy substituted with heteroaryl.

The term “heterocyclyl” refers to a nonaromatic 5-8 membered monocyclic, 8-12 membered bicyclic, or 11-14 membered tricyclic ring system having 1-3 heteroatoms if monocyclic, 1-6 heteroatoms if bicyclic, or 1-9 heteroatoms if tricyclic, said heteroatoms selected from O, N, or S (e.g., carbon atoms and 1-3, 1-6, or 1-9 heteroatoms of O, N, or S if monocyclic, bicyclic, or tricyclic, respectively), wherein 0, 1, 2 or 3 atoms of each ring are substituted by a substituent. Examples of heterocyclyl groups include piperazinyl, pyrrolidinyl, dioxanyl, morpholinyl, tetrahydrofuranyl, and the like.

The term “substituent” refers to a group replacing a second atom or group such as a hydrogen atom on any molecule, compound or moiety. Suitable substituents include, without limitation, halo, hydroxy, mercapto, oxo, nitro, haloalkyl, alkyl, alkaryl, aryl, aralkyl, alkoxy, thioalkoxy, aryloxy, amino, alkoxycarbonyl, amido, carboxy, alkanesulfonyl, alkylcarbonyl, and cyano groups.

In some embodiments, the compounds of this invention contain one or more asymmetric centers and thus occur as racemates and racemic mixtures, single enantiomers, individual diastereomers and diastereomeric mixtures. All such isomeric forms of these compounds are included in the present invention unless expressly provided otherwise. In some embodiments, the compounds of this invention are also represented in multiple tautomeric forms, in such instances, the invention includes all tautomeric forms of the compounds described herein (e.g., if alkylation of a ring system results in alkylation at multiple sites, the invention includes all such reaction products). All such isomeric forms of such compounds are included in the present invention unless expressly provided otherwise. All crystal forms of the compounds described herein are included in the present invention unless expressly provided otherwise.

As used herein, the terms “increase” and “decrease” mean, respectively, to cause a statistically significantly (i.e., p<0.1) increase or decrease of at least 5%.

As used herein, the recitation of a numerical range for a variable is intended to convey that the variable is equal to any of the values within that range. Thus, for a variable which is inherently discrete, the variable is equal to any integer value within the numerical range, including the end-points of the range. Similarly, for a variable which is inherently continuous, the variable is equal to any real value within the numerical range, including the end-points of the range. As an example, and without limitation, a variable which is described as having values between 0 and 2 takes the values 0, 1 or 2 if the variable is inherently discrete, and takes the values 0.0, 0.1, 0.01, 0.001, or any other real values ≥0 and ≤2 if the variable is inherently continuous.

As used herein, unless specifically indicated otherwise, the word “or” is used in the inclusive sense of “or” and not the exclusive sense of “either/or.”

The term “on average” represents the mean value derived from performing at least three independent replicates for each data point.

The term “biological activity” encompasses structural and functional properties of a macrocycle of the invention. Biological activity is, for example, structural stability, alpha-helicity, affinity for a target, resistance to proteolytic degradation, cell penetrability, intracellular stability, in vivo stability, or any combination thereof.

The details of one or more particular embodiments of the invention are set forth in the accompanying drawings and the description below. Other features, objects, and advantages of the invention will be apparent from the description and drawings, and from the claims.

The present invention provides pharmaceutical formulations comprising an effective amount of peptidomimetic macrocycles or pharmaceutically acceptable salts thereof. The peptidomimetic macrocycles of the invention are cross-linked (e.g., stapled or stitched) and possess improved pharmaceutical properties relative to their corresponding uncross-linked peptidomimetic macrocycles. These improved properties include improved bioavailability, enhanced chemical and in vivo stability, increased potency, and reduced immunogenicity (i.e., fewer or less severe injection site reactions).

In some embodiments, the peptidomimetic macrocycles of the invention are crosslinked and comprise a warhead, and are used for ligand-directed covalent modification of cysteine- and lysine-containing proteins.

In some embodiments, the peptide sequences are derived from BIM.

In some embodiments, a peptidomimetic macrocycle peptide derived from a human BIM peptide can be a peptide comprising 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, or 22 amino acids from a BIM peptide sequence.

In some embodiments, a peptidomimetic macrocycle peptide derived from a human BIM peptide sequence can be a peptide comprising 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, or 22 amino acids that are different from the selected sequences from which the peptide is derived. In some embodiments, a peptidomimetic macrocycle peptide derived from a human BIM peptide sequence can be a peptide comprising a mutation at amino acid position 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, or 22. In some embodiments, mutations are mutations of non-essential amino acids. In some embodiments, mutations are mutations of essential amino acids. In some embodiments, mutations are mutations of hydrophobic amino acids. In some embodiments, mutations are mutations of naturally occurring amino acids. In some embodiments, mutations are mutations to a conservative amino acid. In some embodiments, a peptidomimetic macrocycle peptide derived from a human BIM peptide sequence can be a peptide comprising 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, or 22 amino acid analogues. In some embodiments, a peptidomimetic macrocycle peptide derived from a human BIM peptide sequence can be a peptide comprising 1 or 2 capping groups.

In some embodiments, the peptidomimetic macrocycle comprises a C-terminal truncation of 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29 or 30 amino acids from an amino acid sequence in Table 1. In some embodiments, the peptidomimetic macrocycle comprises a N-terminal truncation of 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, or 22 amino acids from the sequence of BIM.

A non-limiting list of suitable BIM macrocycles for use in the present disclosure are given in Table 1. In Table 1, at the C-terminus, some peptides possess a carboxamide terminus (shown as —NH₂); some peptides possess a hydroxyl terminus (shown as —OH); some peptides possess a 5-carboxyfluorescein terminus (shown as −5-FAM); some peptides possess a isobutylamide terminus (shown as —NHiBu); some peptides possess a cyclohexylamide terminus (shown as —NHChx); some peptides possess a cyclohexylmethylamide terminus (shown as —NHMeChx); some peptides possess a phenethylamide terminus (shown as —NHPe); some peptides possess a n-butylamide terminus (shown as —NHBu); some peptides possess a sec-butylamide terminus (shown as —NHsBu); and some peptides possess an uncapped terminus (shown as no terminal modification).

In Table 1, at the N-terminus, some peptides possess an acetyl terminus (shown as Ac—); some peptides possess a fluorescein isothiocyanate terminus (shown as FITC-); some peptides possess a single-unit polyethylene glycol terminus (shown as dPEG1-); some peptides possess a five-unit polyethylene glycol terminus (shown as dPEG5-); some peptides possess an eleven-unit polyethylene glycol terminus (shown as dPEG11-); some peptides possess a propyl terminus (shown as Pr—); some peptides possess a biotin terminus (shown as Biotin-); some peptides possess a KLH terminus (shown as KLH-); some peptides possess an ovalbumin terminus (shown as OVA-); some peptides possess an uncapped terminus (shown as H—); some peptides possess a isobutyl terminus (shown as iBu-); some peptides possess a decanoyl terminus (shown as Decac-); some peptides possess a benzyl terminus (shown as Bz-); some peptides possess a cyclohexyl terminus (shown as Chx-); some peptides possess a benzyl terminus (shown as Bz-); some peptides possess a Vrl terminus (shown as Vrl-); some peptides possess a HBS terminus (shown as HBS—); some peptides possess a MeIm terminus (shown as MeImC-); some peptides possess a tert-butyl terminus (shown as t-Bu-U—); some peptides possess a nonanoyl terminus (shown as non-U—); some peptides possess a ethyl terminus (shown as Et-U—); some peptides possess a cyclohexyl terminus (shown as Chx-U—); some peptides possess a isopropyl terminus (shown as iPr-U—); some peptides possess a phenyl terminus (shown as Ph-U—); some peptides possess a uric terminus (shown as NH2CO—); some peptides possess a palmitoyl terminus (shown as Pam-); some peptides possess a heptenoic terminus (shown as Hep-); and some peptides possess a 5-carboxytetramethylrhodamine terminus (shown as 5-TAMRA-).
