Insecticidal proteins and methods for their use

Compositions and methods for controlling pests are provided. The methods involve transforming organisms with a nucleic acid sequence encoding an insecticidal protein. In particular, the nucleic acid sequences are useful for preparing plants and microorganisms that possess insecticidal activity. Thus, transformed bacteria, plants, plant cells, plant tissues and seeds are provided. Compositions are insecticidal nucleic acids and proteins of plant species. The sequences find use in the construction of expression vectors for subsequent transformation into organisms of interest including plants, as probes for the isolation of other homologous (or partially homologous) genes. The pesticidal proteins find use in controlling, inhibiting growth or killing Lepidopteran, Coleopteran, Dipteran, fungal, Hemipteran and nematode pest populations and for producing compositions with insecticidal activity.

1. A DNA construct comprising a heterologous regulatory element and a recombinant polynucleotide encoding an insecticidal polypeptide comprising an amino acid sequence having at least 95% sequence identity to SEQ ID NO: 126, or a fragment thereof having insecticidal activity.

2. The recombinant polynucleotide of claim 1, wherein the polynucleotide has codons optimized for expression in an agriculturally important crop.

3. A transgenic plant comprising the polynucleotide of claim 1.

4. A method of inhibiting growth or killing an insect pest or pest population, comprising contacting the insect pest with an insecticidal polypeptide comprising an amino acid sequence having at least 95% sequence identity to SEQ ID NO: 126 or a fragment thereof having insecticidal activity.

5. A method of inhibiting growth or killing an insect pest or pest population comprising expressing in a plant the polynucleotide of claim 1.

6. A method of controlling insect pest damage to plants comprising providing the insecticidal polypeptide of claim 1 to an insect pest or pest population for ingestion, wherein said insecticidal polypeptide is produced by a transgenic plant and is present in at least one of said plants.

7. A method for controlling pest infestation comprising providing in the diet of the pest the transgenic plant of claim 3, or a part thereof.

8. A method for improving the yield of a crop comprising growing the transgenic plant of claim 3, wherein the yield of the crop is increased in the presence of the insect pest relative to the crop not comprising said transgenic plant.

9. The method of claim 4, wherein the insect pest or pest population is resistant to at least one Cry insecticidal protein.

10. The method of claim 6, wherein the transgenic plant is selected from corn, soybean, wheat, rice, sorghum, sunflower, canola, barley, sugarcane, potatoes, tomatoes, cotton, rape seed, peanut, and alfalfa.

11. The method of claim 4, wherein the insect pest or insect pest population is an agriculturally important species in the Order Lepidoptera.

12. The method of claim 11, wherein the insect pest or insect pest population is selected from corn earworm, European corn borer, fall armyworm, soybean looper, velvet bean caterpillar, and diamondback moth.

This Application is a continuation application of U.S. patent application Ser. No. 16/611,962, filed Nov. 8, 2019, granted as U.S. Pat. No. 11,555,203, which is a National Stage application of International Patent Application number PCT/US2018/031746, which claims the benefit of priority to U.S. Provisional Application No. 62/504,650 filed on May 11, 2017, the disclosures of each of which are incorporated herein by reference in their entireties.

The official copy of the sequence listing is submitted electronically via EFS-Web as an ASCII formatted sequence listing with a file named “7440 WO_PCT_Sequence_Listing” created on May 2, 2018, and having a size of 334 kilobytes and is filed concurrently with the specification. The sequence listing contained in this ASCII formatted document is part of the specification and is herein incorporated by reference in its entirety.

This disclosure relates to the field of molecular biology. Provided are novel genes that encode pesticidal proteins. These pesticidal proteins and the nucleic acid sequences that encode them are useful in preparing pesticidal formulations and in the production of transgenic pest-resistant plants.

Biological control of insect pests of agricultural significance using a microbial agent, such as fungi, bacteria or another species of insect affords an environmentally friendly and commercially attractive alternative to synthetic chemical pesticides. Generally speaking, the use of biopesticides presents a lower risk of pollution and environmental hazards and biopesticides provide greater target specificity than is characteristic of traditional broad-spectrum chemical insecticides. In addition, biopesticides often cost less to produce and thus improve economic yield for a wide variety of crops.

Certain species of microorganisms of the genus Bacillus are known to possess pesticidal activity against a range of insect pests including Lepidoptera, Diptera, Coleoptera, Hemiptera and others. Bacillus thuringiensis (Bt) and Bacillus popilliae are among the most successful biocontrol agents discovered to date. Insect pathogenicity has also been attributed to strains of B. larvae, B. lentimorbus, B. sphaericus and B. cereus. Microbial insecticides, particularly those obtained from Bacillus strains, have played an important role in agriculture as alternatives to chemical pest control.

Crop plants have been developed with enhanced insect resistance by genetically engineering crop plants to produce pesticidal proteins from Bacillus. For example, corn and cotton plants have been genetically engineered to produce pesticidal proteins isolated from strains of Bacillus thuringiensis. These genetically engineered crops are now widely used in agriculture and have provided the farmer with an environmentally friendly alternative to traditional insect-control methods. While they have proven to be very successful commercially, these genetically engineered, insect-resistant crop plants may provide resistance to only a narrow range of the economically important insect pests. In some cases, insects can develop resistance to different insecticidal compounds, which raises the need to identify alternative biological control agents for pest control.

Accordingly, there remains a need for new pesticidal proteins with different ranges of insecticidal activity against insect pests, e.g., insecticidal proteins which are active against a variety of insects in the order Lepidoptera and the order Coleoptera, including but not limited to insect pests that have developed resistance to existing insecticides.

In one aspect compositions and methods for conferring pesticidal activity to bacteria, plants, plant cells, tissues and seeds are provided. Compositions include nucleic acid molecules encoding sequences for pesticidal and insecticidal polypeptides, vectors comprising those nucleic acid molecules, and host cells comprising the vectors. Compositions also include the pesticidal polypeptide sequences and antibodies to those polypeptides. Compositions also comprise transformed bacteria, plants, plant cells, tissues and seeds.

In another aspect isolated or recombinant nucleic acid molecules are provided encoding IPD121 polypeptides including amino acid substitutions, deletions, insertions, and fragments thereof. Provided are isolated or recombinant nucleic acid molecules capable of encoding IPD121 polypeptides of SEQ ID NOS: 124-234, as well as amino acid substitutions, deletions, insertions, fragments thereof, and combinations thereof. Nucleic acid sequences that are complementary to a nucleic acid sequence of the embodiments or that hybridize to a sequence of the embodiments are also encompassed. The nucleic acid sequences can be used in DNA constructs or expression cassettes for transformation and expression in organisms, including microorganisms and plants. The nucleotide or amino acid sequences may be synthetic sequences that have been designed for expression in an organism including, but not limited to, a microorganism or a plant.

In another aspect IPD121 polypeptides are encompassed. Also provided are isolated or recombinant IPD121 polypeptides of SEQ ID NO: 124-234, as well as amino acid substitutions, deletions, insertions, fragments thereof and combinations thereof.

In another aspect, methods are provided for producing the polypeptides and for using those polypeptides for controlling or killing a Lepidopteran, Coleopteran, nematode, fungi, and/or Dipteran pests. The transgenic plants of the embodiments express one or more of the pesticidal sequences disclosed herein. In various embodiments, the transgenic plant further comprises one or more additional genes for insect resistance, for example, one or more additional genes for controlling Coleopteran, Lepidopteran, Hemipteran or nematode pests. It will be understood by one of skill in the art that the transgenic plant may comprise any gene imparting an agronomic trait of interest.

In another aspect, methods for detecting the nucleic acids and polypeptides of the embodiments in a sample are also included. A kit for detecting the presence of an IPD121 polypeptide or detecting the presence of a polynucleotide encoding an IPD121 polypeptide in a sample is provided. The kit may be provided along with all reagents and control samples necessary for carrying out a method for detecting the intended agent, as well as instructions for use.

In another aspect the compositions and methods of the embodiments are useful for the production of organisms with enhanced pest resistance or tolerance. These organisms and compositions comprising the organisms are desirable for agricultural purposes. The compositions of the embodiments are also useful for generating altered or improved proteins that have pesticidal activity or for detecting the presence of IPD121 polypeptides.

As used herein the singular forms “a”, “and”, and “the” include plural referents unless the context clearly dictates otherwise. Thus, for example, reference to “a cell” includes a plurality of such cells and reference to “the protein” includes reference to one or more proteins and equivalents thereof, and so forth. All technical and scientific terms used herein have the same meaning as commonly understood to one of ordinary skill in the art to which this disclosure belongs unless clearly indicated otherwise.

The present disclosure is drawn to compositions and methods for controlling pests. The methods involve transforming organisms with nucleic acid sequences encoding IPD121 polypeptides. In particular, the nucleic acid sequences of the embodiments are useful for preparing plants and microorganisms that possess pesticidal activity. Thus, transformed bacteria, plants, plant cells, plant tissues and seeds are provided. The compositions include pesticidal nucleic acids and proteins of bacterial species. The nucleic acid sequences find use in the construction of expression vectors for subsequent transformation into organisms of interest, as probes for the isolation of other homologous (or partially homologous) genes, and for the generation of altered IPD121 polypeptides by methods known in the art, such as site directed mutagenesis, domain swapping or DNA shuffling. The IPD121 polypeptides find use in controlling or killing Lepidopteran, Coleopteran, Dipteran, fungal, Hemipteran and/or nematode pest populations and for producing compositions with pesticidal activity. Insect pests of interest include, but are not limited to, Lepidoptera species including but not limited to: Corn Earworm, (CEW) (Helicoverpa zea), European Corn Borer (ECB) (Ostrinia nubialis), Fall Armyworm (FAW), (Spodoptera frugiperda), soybean looper (SBL), e.g., Pseudoplusia includens Walker; and velvet bean caterpillar (VBC), e.g., Anticarsia gemmatalis Hubner.

By “pesticidal toxin” or “pesticidal protein” is used herein to refer to a toxin that has toxic activity against one or more pests. For example, pests may include members of the Lepidoptera, Diptera, Hemiptera and Coleoptera orders or the Nematoda phylum or a protein that has homology to such a protein. Pesticidal proteins have been isolated from organisms including, for example, Bacillus sp., Pseudomonas sp., Photorhabdus sp., Xenorhabdus sp., Clostridium bifermentans and Paenibacillus popilliae.

In some embodiments the IPD121 polypeptide includes an amino acid sequence deduced from the full-length nucleic acid sequence disclosed herein and amino acid sequences that are shorter than the full-length sequences, either due to the use of an alternate downstream start site or due to processing that produces a shorter protein having pesticidal activity. Processing may occur in the organism the protein is expressed in or in the pest after ingestion of the protein.

Thus, provided herein are isolated or recombinant nucleic acid sequences conferring pesticidal activity. Also provided are the amino acid sequences of IPD121 polypeptides. The polypeptides resulting from translation of these IPD121 genes allows cells to control or kill pests that ingest it.

IPD121 Proteins and Variants and Fragments Thereof

IPD121 polypeptides are encompassed by the disclosure. “IPD121 polypeptide”, and “IPD121 protein” as used herein interchangeably refers to a polypeptide(s) having insecticidal activity including but not limited to insecticidal activity against one or more insect pests of the Lepidoptera and/or Coleoptera orders, and is sufficiently homologous to the IPD121Aa polypeptide of SEQ ID NO: 124. A variety of IPD121 polypeptides are contemplated. Sources of IPD121 polypeptides or related proteins include plant species selected from but not limited to Polystichum, Davallia, Didymochlaena, Humata, Onoclea, and Tectaria species. Alignment of the amino acid sequences of IPD121 polypeptide homologs (for example, see FIGS. 1A-1C), allows for the identification of residues that are highly conserved amongst the natural homologs of this family.

“Sufficiently identical” is used herein to refer to an amino acid sequence that has at least about 70%, 71%, 72%, 73%, 74%, 75%, 76%, 77%, 78%, 79%, 80%, 81%, 82%, 83%, 84%, 85%, 86%, 87%, 88%, 89%, 90%, 91%, 92%, 93%, 94%, 95%, 96%, 97%, 98%, 99% or greater sequence identity. In one embodiment the IPD121 polypeptide has at least about 40%, 45%, 50%, 51%, 52%, 53%, 54%, 55%, 56%, 57%, 58%, 59%, 60%, 61%, 62%, 63%, 64%, 65%, 66%, 67%, 68%, 69%, 70%, 71%, 72%, 73%, 74%, 75%, 76%, 77%, 78%, 79%, 80%, 81%, 82%, 83%, 84%, 85%, 86%, 87%, 88%, 89%, 90%, 91%, 92%, 93%, 94%, 95%, 96%, 97%, 98%, 99% or greater sequence identity compared to any one of SEQ ID NOS: 124-234. In some embodiments the sequence identity is against the full length sequence of an IPD121 polypeptide. The term “about” when used herein in context with percent sequence identity means+/−1.0%.

A “recombinant protein” is used herein to refer to a protein that is no longer in its natural environment, for example in vitro or in a recombinant bacterial or plant host cell.

“Substantially free of cellular material” as used herein refers to a polypeptide including preparations of protein having less than about 30%, 20%, 10% or 5% (by dry weight) of non-pesticidal protein (also referred to herein as a “contaminating protein”).

“Fragments” or “biologically active portions” include polypeptide fragments comprising amino acid sequences sufficiently identical to an IPD121 polypeptide and that exhibit insecticidal activity. “Fragments” or “biologically active portions” of IPD121 polypeptides includes fragments comprising amino acid sequences sufficiently identical to the amino acid sequence set forth in any one of SEQ ID NOS: 124-234 wherein the IPD121 polypeptide has insecticidal activity. Such biologically active portions can be prepared by recombinant techniques and evaluated for insecticidal activity. In some embodiments, the IPD121 polypeptide fragment is an N-terminal and/or a C-terminal truncation of at least 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31 or more amino acids from the N-terminus and/or C-terminus relative to any one of SEQ ID NOS: 124-234, e.g., by proteolysis, by insertion of a start codon, by deletion of the codons encoding the deleted amino acids and concomitant insertion of a start codon, and/or insertion of a stop codon. In some embodiments, the IPD121 polypeptide fragment is an N-terminal truncation of at least 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 amino acids from the N-terminus of any one of SEQ ID NOS: 124-234. In some embodiments, the IPD121 polypeptide fragment is an N-terminal and/or a C-terminal truncation of at least 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34 or more amino acids from the N-terminus and/or C-terminus relative to any one of SEQ ID NOS: 124-234.

“Variants” as used herein refers to proteins or polypeptides having an amino acid sequence that is at least about 50%, 55%, 60%, 65%, 70%, 75%, 80%, 81%, 82%, 83%, 84%, 85%, 86%, 87%, 88%, 89%, 90%, 91%, 92%, 93%, 94%, 95%, 96%, 97%, 98%, 99% or greater identical to the parental amino acid sequence.

In some embodiments an IPD121 polypeptide comprises an amino acid sequence having at least about 40%, 45%, 50%, 51%, 52%, 53%, 54%, 55%, 56%, 57%, 58%, 59%, 60%, 61%, 62%, 63%, 64%, 65%, 66%, 67%, 68%, 69%, 70%, 71%, 72%, 73%, 74%, 75%, 76%, 77%, 78%, 79%, 80%, 81%, 82%, 83%, 84%, 85%, 86%, 87%, 88%, 89%, 90%, 91%, 92%, 93%, 94%, 95%, 96%, 97%, 98%, 99% or greater identity to the full length or a fragment of the amino acid sequence of any one of SEQ ID NOS: 124-234, wherein the IPD121 polypeptide has insecticidal activity.

In some embodiments an IPD121 polypeptide comprises an amino acid sequence of any one or more of SEQ ID NOS: 124-234 having 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 or more amino acid substitutions compared to the amino acid at the corresponding position of any one or more of the respective SEQ ID NOS: 124-234.

Methods for such manipulations are generally known in the art. For example, amino acid sequence variants of an IPD121 polypeptide can be prepared by mutations in the DNA. This may also be accomplished by one of several forms of mutagenesis, such as for example site-specific double strand break technology, and/or in directed evolution. In some aspects, the changes encoded in the amino acid sequence will not substantially affect the function of the protein. Such variants will possess the desired pesticidal activity. However, it is understood that the ability of an IPD121 polypeptide to confer pesticidal activity may be improved by the use of such techniques upon the compositions of this disclosure.

Conservative amino acid substitutions may be made at one or more predicted nonessential amino acid residues. A “nonessential” amino acid residue is a residue that can be altered from the wild-type sequence of an IPD121 polypeptide without altering the biological activity. A “conservative amino acid substitution” is one in which the amino acid residue is replaced with an amino acid residue having a similar side chain. Families of amino acid residues having similar side chains have been defined in the art. These families include: amino acids with basic side chains (e.g., lysine, arginine, histidine); acidic side chains (e.g., aspartic acid, glutamic acid); polar, negatively charged residues and their amides (e.g., aspartic acid, asparagine, glutamic, acid, glutamine; uncharged polar side chains (e.g., glycine, asparagine, glutamine, serine, threonine, tyrosine, cysteine); small aliphatic, nonpolar or slightly polar residues (e.g., Alanine, serine, threonine, proline, glycine); nonpolar side chains (e.g., alanine, valine, leucine, isoleucine, proline, phenylalanine, methionine, tryptophan); large aliphatic, nonpolar residues (e.g., methionine, leucine, isoleucine, valine, cystine); beta-branched side chains (e.g., threonine, valine, isoleucine); aromatic side chains (e.g., tyrosine, phenylalanine, tryptophan, histidine); large aromatic side chains (e.g., tyrosine, phenylalanine, tryptophan).

Amino acid substitutions may be made in nonconserved regions that retain function. In general, such substitutions would not be made for conserved amino acid residues or for amino acid residues residing within a conserved motif, where such residues are essential for protein activity. Examples of residues that are conserved and that may be essential for protein activity include, for example, residues that are identical between all proteins contained in an alignment of similar or related toxins to the sequences of the embodiments (e.g., residues that are identical in an alignment of homologous proteins). Examples of residues that are conserved but that may allow conservative amino acid substitutions and still retain activity include, for example, residues that have only conservative substitutions between all proteins contained in an alignment of similar or related toxins to the sequences of the embodiments (e.g., residues that have only conservative substitutions between all proteins contained in the alignment homologous proteins). However, one of skill in the art would understand that functional variants may have minor conserved or nonconserved alterations in the conserved residues.

Alternatively, alterations may be made to the protein sequence of many proteins at the amino or carboxy terminus without substantially affecting activity. This can include insertions, deletions or alterations introduced by modern molecular methods, such as PCR, including PCR amplifications that alter or extend the protein coding sequence by virtue of inclusion of amino acid encoding sequences in the oligonucleotides utilized in the PCR amplification. Alternatively, the protein sequences added can include entire protein-coding sequences, such as those used commonly in the art to generate protein fusions. Such fusion proteins are often used to (1) increase expression of a protein of interest (2) introduce a binding domain, enzymatic activity or epitope to facilitate either protein purification, protein detection or other experimental uses known in the art (3) target secretion or translation of a protein to a subcellular organelle, such as the periplasmic space of Gram-negative bacteria, mitochondria or chloroplasts of plants or the endoplasmic reticulum of eukaryotic cells, the latter of which often results in glycosylation of the protein.

1.) Shuffling

Variant nucleotide and amino acid sequences of the disclosure also encompass sequences derived from mutagenic and recombinogenic procedures such as DNA shuffling. With such a procedure, one or more different IPD121 polypeptide coding regions can be used to create a new IPD121 polypeptide possessing the desired properties. In this manner, libraries of recombinant polynucleotides are generated from a population of related sequence polynucleotides comprising sequence regions that have substantial sequence identity and can be homologously recombined in vitro or in vivo. For example, using this approach, sequence motifs encoding a domain of interest may be shuffled between a pesticidal gene and other known pesticidal genes to obtain a new gene coding for a protein with an improved property of interest, such as an increased insecticidal activity. Strategies for such DNA shuffling are known in the art. See, for example, Stemmer, (1994) Proc. Natl. Acad. Sci. USA 91:10747-10751; Stemmer, (1994) Nature 370:389-391; and U.S. Pat. Nos. 5,605,793 and 5,837,458.

Domain swapping as shuffling is another mechanism for generating altered IPD121 polypeptides. Domains may be swapped between IPD121 polypeptides resulting in hybrid or chimeric toxins with improved insecticidal activity or target spectrum. Methods for generating recombinant proteins and testing them for pesticidal activity are well known in the art (see, for example, Naimov, et al., (2001) Appl. Environ. Microbiol. 67:5328-5330; de Maagd, et al., (1996) Appl. Environ. Microbiol. 62:1537-1543; Ge, et al., (1991) J. Biol. Chem. 266:17954-17958; Schnepf, et al., (1990) J. Biol. Chem. 265:20923-21010; Rang, et al., 91999) Appl. Environ. Microbiol. 65:2918-2925).

Phylogenetic, Sequence Motif, and Structural Analyses of Insecticidal Protein Families.

A sequence and structure analysis method can be employed, which is composed of four components: phylogenetic tree construction, protein sequence motifs finding, secondary structure prediction, and alignment of protein sequences and secondary structures. Details about each component are illustrated below.

1) Phylogenetic Tree Construction

The phylogenetic analysis can be performed using the software MEGA5. Protein sequences can be subjected to ClustalW version 2 analysis (Larkin M. A et al (2007) Bioinformatics 23(21): 2947-2948) for multiple sequence alignment. The evolutionary history is then inferred by the Maximum Likelihood method based on the ITT matrix-based model. The tree with the highest log likelihood is obtained, exported in Newick format, and further processed to extract the sequence IDs in the same order as they appeared in the tree. A few clades representing sub-families can be manually identified for each insecticidal protein family.

2) Protein Sequence Motifs Finding

Protein sequences are re-ordered according to the phylogenetic tree built previously, and fed to the MOTIF analysis tool MEME (Multiple EM for MOTIF Elicitation) (Bailey T. L., and Elkan C., Proceedings of the Second International Conference on Intelligent Systems for Molecular Biology, pp. 28-36, AAAI Press, Menlo Park, California, 1994.) for identification of key sequence motifs. MEME is setup as follows: Minimum number of sites 2, Minimum motif width 5, and Maximum number of motifs 30. Sequence motifs unique to each sub-family were identified by visual observation. The distribution of MOTIFs across the entire gene family could be visualized in HTML webpage. The MOTIFs are numbered relative to the ranking of the E-value for each MOTIF.

3) Secondary Structure Prediction

PSIPRED, top ranked secondary structure prediction method (Jones D T. (1999) J. Mol. Biol. 292: 195-202), can be used for protein secondary structure prediction. The tool provides accurate structure prediction using two feed-forward neural networks based on the PSI-BLAST output. The PSI-BLAST database is created by removing low-complexity, transmembrane, and coiled-coil regions in Uniref100. The PSIPRED results contain the predicted secondary structures (Alpha helix: H, Beta strand: E, and Coil: C) and the corresponding confidence scores for each amino acid in a given protein sequence.

4) Alignment of Protein Sequences and Secondary Structures

A script can be developed to generate gapped secondary structure alignment according to the multiple protein sequence alignment from step 1 for all proteins. All aligned protein sequences and structures are concatenated into a single FASTA file, and then imported into MEGA for visualization and identification of conserved structures.

In some embodiments the IPD121 polypeptide has a modified physical property. As used herein, the term “physical property” refers to any parameter suitable for describing the physical-chemical characteristics of a protein. As used herein, “physical property of interest” and “property of interest” are used interchangeably to refer to physical properties of proteins that are being investigated and/or modified. Examples of physical properties include, but are not limited to, net surface charge and charge distribution on the protein surface, net hydrophobicity and hydrophobic residue distribution on the protein surface, surface charge density, surface hydrophobicity density, total count of surface ionizable groups, surface tension, protein size and its distribution in solution, melting temperature, heat capacity, and second virial coefficient. Examples of physical properties also include, IPD121 polypeptide having increased expression, increased solubility, decreased phytotoxicity, and digestibility of proteolytic fragments in an insect gut. Models for digestion by simulated gastric fluids are known to one skilled in the art (Fuchs, R. L. and J. D. Astwood. Food Technology 50: 83-88, 1996; Astwood, J. D., et al Nature Biotechnology 14: 1269-1273, 1996; Fu T J et al J. Agric Food Chem. 50: 7154-7160, 2002).

In some embodiments variants include polypeptides that differ in amino acid sequence due to mutagenesis. Variant proteins encompassed by the disclosure are biologically active, that is they continue to possess the desired biological activity (i.e. pesticidal activity) of the native protein. In some embodiment the variant will have at least about 10%, at least about 30%, at least about 50%, at least about 70%, at least about 80% or more of the insecticidal activity of the native protein. In some embodiments, the variants may have improved activity over the native protein.

Bacterial genes quite often possess multiple methionine initiation codons in proximity to the start of the open reading frame. Often, translation initiation at one or more of these start codons will lead to generation of a functional protein. These start codons can include ATG codons. However, bacteria such as Bacillus sp. also recognize the codon GTG as a start codon, and proteins that initiate translation at GTG codons contain a methionine at the first amino acid. On rare occasions, translation in bacterial systems can initiate at a TTG codon, though in this event the TTG encodes a methionine. Furthermore, it is not often determined a priori which of these codons are used naturally in the bacterium. Thus, it is understood that use of one of the alternate methionine codons may also lead to generation of pesticidal proteins. These pesticidal proteins are encompassed in the present disclosure and may be used in the methods of the present disclosure. It will be understood that, when expressed in plants, it will be necessary to alter the alternate start codon to ATG for proper translation.

In some embodiments an IPD121 polypeptide comprises the amino acid sequence of any one or more of SEQ ID NOS: 124-234.

In some embodiments, chimeric polypeptides are provided comprising regions of at least two different IPD121 polypeptides of the disclosure.

In some embodiments, chimeric polypeptides are provided comprising regions of at least two different IPD121 polypeptides selected from any one or more of SEQ ID NOS: 124-234.

In some embodiments, chimeric IPD121 polypeptide(s) are provided comprising an N-terminal Region of a first IPD121 polypeptide of the disclosure operably fused to a C-terminal Region of a second IPD121 polypeptide of the disclosure.

In other embodiments the IPD121 polypeptide may be expressed as a precursor protein with an intervening sequence that catalyzes multi-step, post translational protein splicing. Protein splicing involves the excision of an intervening sequence from a polypeptide with the concomitant joining of the flanking sequences to yield a new polypeptide (Chong, et al., (1996) 1 Biol. Chem., 271:22159-22168). This intervening sequence or protein splicing element, referred to as inteins, which catalyze their own excision through three coordinated reactions at the N-terminal and C-terminal splice junctions: an acyl rearrangement of the N-terminal cysteine or serine; a transesterfication reaction between the two termini to form a branched ester or thioester intermediate and peptide bond cleavage coupled to cyclization of the intein C-terminal asparagine to free the intein (Evans, et al., (2000) J Biol. Chem., 275:9091-9094).

In another embodiment fusion proteins are provided that include within its amino acid sequence an amino acid sequence comprising an IPD121 polypeptide of the disclosure. Methods for design and construction of fusion proteins (and polynucleotides encoding same) are known to those of skill in the art. Polynucleotides encoding an IPD121 polypeptide may be fused to signal sequences which will direct the localization of the IPD121 polypeptide to particular compartments of a prokaryotic or eukaryotic cell and/or direct the secretion of the IPD121 polypeptide of the embodiments from a prokaryotic or eukaryotic cell. For example, in E. coli, one may wish to direct the expression of the protein to the periplasmic space. Examples of signal sequences or proteins (or fragments thereof) to which the IPD121 polypeptide may be fused in order to direct the expression of the polypeptide to the periplasmic space of bacteria include, but are not limited to, the pelB signal sequence, the maltose binding protein (MBP) signal sequence, MBP, the ompA signal sequence, the signal sequence of the periplasmic E. coli heat-labile enterotoxin B-subunit and the signal sequence of alkaline phosphatase. Several vectors are commercially available for the construction of fusion proteins which will direct the localization of a protein, such as the pMAL series of vectors (particularly the pMAL-p series) available from New England Biolabs. In a specific embodiment, the IPD121 polypeptide may be fused to the pelB pectate lyase signal sequence to increase the efficiency of expression and purification of such polypeptides in Gram-negative bacteria (see, U.S. Pat. Nos. 5,576,195 and 5,846,818).

Plant plastid transit peptide/polypeptide fusions are well known in the art. Apoplast transit peptides such as rice or barley alpha-amylase secretion signal are also well known in the art. The plastid transit peptide is generally fused N-terminal to the polypeptide to be targeted (e.g., the fusion partner). In one embodiment, the fusion protein consists essentially of the plastid transit peptide and the IPD121 polypeptide to be targeted. In another embodiment, the fusion protein comprises the plastid transit peptide and the polypeptide to be targeted. In such embodiments, the plastid transit peptide is preferably at the N-terminus of the fusion protein. However, additional amino acid residues may be N-terminal to the plastid transit peptide providing that the fusion protein is at least partially targeted to a plastid. In a specific embodiment, the plastid transit peptide is in the N-terminal half, N-terminal third or N-terminal quarter of the fusion protein. Most or all of the plastid transit peptide is generally cleaved from the fusion protein upon insertion into the plastid. The position of cleavage may vary slightly between plant species, at different plant developmental stages, as a result of specific intercellular conditions or the particular combination of transit peptide/fusion partner used. In one embodiment, the plastid transit peptide cleavage is homogenous such that the cleavage site is identical in a population of fusion proteins. In another embodiment, the plastid transit peptide is not homogenous, such that the cleavage site varies by 1-10 amino acids in a population of fusion proteins. The plastid transit peptide can be recombinantly fused to a second protein in one of several ways. In some embodiments the IPD121 polypeptide is fused to a heterologous signal peptide or heterologous transit peptide.

In some embodiments fusion proteins are provide comprising an IPD121 polypeptide or chimeric IPD121 polypeptide of the disclosure represented by a formula selected from the group consisting of:
R¹-L-R², R²-L-R¹, R¹—R²or R²—R¹

wherein R¹is an IPD121 polypeptide or chimeric IPD121 polypeptide of the disclosure and R²is a protein of interest. In some embodiments R¹and R²are an IPD121 polypeptide or chimeric IPD121 polypeptide of the disclosure. The R¹polypeptide is fused either directly or through a linker (L) segment to the R²polypeptide. The term “directly” defines fusions in which the polypeptides are joined without a peptide linker. Thus “L” represents a chemical bound or polypeptide segment to which both R¹and R²are fused in frame, most commonly L is a linear peptide to which R¹and R²are bound by amide bonds linking the carboxy terminus of R¹to the amino terminus of L and carboxy terminus of L to the amino terminus of R². By “fused in frame” is meant that there is no translation termination or disruption between the reading frames of R¹and R². The linking group (L) is generally a polypeptide of between 1 and 500 amino acids in length. The linkers joining the two molecules are preferably designed to (1) allow the two molecules to fold and act independently of each other, (2) not have a propensity for developing an ordered secondary structure which could interfere with the functional domains of the two proteins, (3) have minimal hydrophobic or charged characteristic which could interact with the functional protein domains and (4) provide steric separation of R¹and R²such that R¹and R²could interact simultaneously with their corresponding receptors on a single cell. Typically surface amino acids in flexible protein regions include Gly, Asn and Ser. Virtually any permutation of amino acid sequences containing Gly, Asn and Ser would be expected to satisfy the above criteria for a linker sequence. Other neutral amino acids, such as Thr and Ala, may also be used in the linker sequence. Additional amino acids may also be included in the linkers due to the addition of unique restriction sites in the linker sequence to facilitate construction of the fusions.

In some embodiments the linkers comprise sequences selected from the group of formulas: (Gly₃Ser)_n, (Gly₄Ser)_n, (Gly₅Ser)_n, (Gly_nSer)_nor (AlaGlySer)_nwhere n is an integer. One example of a highly-flexible linker is the (GlySer)-rich spacer region present within the pIII protein of the filamentous bacteriophages, e.g. bacteriophages M13 or fd (Schaller, et al., 1975). This region provides a long, flexible spacer region between two domains of the pIII surface protein. Also included are linkers in which an endopeptidase recognition sequence is included. Such a cleavage site may be valuable to separate the individual components of the fusion to determine if they are properly folded and active in vitro. Examples of various endopeptidases include, but are not limited to, Plasmin, Enterokinase, Kallikerin, Urokinase, Tissue Plasminogen activator, clostripain, Chymosin, Collagenase, Russell's Viper Venom Protease, Postproline cleavage enzyme, V8 protease, Thrombin and factor Xa. In some embodiments the linker comprises the amino acids EEKKN (SEQ ID NO:249) from the multi-gene expression vehicle (MGEV), which is cleaved by vacuolar proteases as disclosed in US Patent Application Publication Number US 2007/0277263. In other embodiments, peptide linker segments from the hinge region of heavy chain immunoglobulins IgG, IgA, IgM, IgD or IgE provide an angular relationship between the attached polypeptides. Especially useful are those hinge regions where the cysteines are replaced with serines. Linkers of the present disclosure include sequences derived from murine IgG gamma 2b hinge region in which the cysteines have been changed to serines. The fusion proteins are not limited by the form, size or number of linker sequences employed and the only requirement of the linker is that functionally it does not interfere adversely with the folding and function of the individual molecules of the fusion.

Nucleic Acid Molecules, and Variants and Fragments Thereof

Isolated or recombinant nucleic acid molecules comprising nucleic acid sequences encoding IPD121 polypeptides or biologically active portions thereof, as well as nucleic acid molecules sufficient for use as hybridization probes to identify nucleic acid molecules encoding proteins with regions of sequence homology are provided. As used herein, the term “nucleic acid molecule” refers to DNA molecules (e.g., recombinant DNA, cDNA, genomic DNA, plastid DNA, mitochondrial DNA) and RNA molecules (e.g., mRNA) and analogs of the DNA or RNA generated using nucleotide analogs. The nucleic acid molecule can be single-stranded or double-stranded, but preferably is double-stranded DNA.

An “isolated” nucleic acid molecule (or DNA) is used herein to refer to a nucleic acid sequence (or DNA) that is no longer in its natural environment, for example in vitro. A “recombinant” nucleic acid molecule (or DNA) is used herein to refer to a nucleic acid sequence (or DNA) that is in a recombinant bacterial or plant host cell. In some embodiments, an “isolated” or “recombinant” nucleic acid is free of sequences (preferably protein encoding sequences) that naturally flank the nucleic acid (i.e., sequences located at the 5′ and 3′ ends of the nucleic acid) in the genomic DNA of the organism from which the nucleic acid is derived. For purposes of the disclosure, “isolated” or “recombinant” when used to refer to nucleic acid molecules excludes isolated chromosomes. For example, in various embodiments, the recombinant nucleic acid molecules encoding IPD121 polypeptides can contain less than about 5 kb, 4 kb, 3 kb, 2 kb, 1 kb, 0.5 kb or 0.1 kb of nucleic acid sequences that naturally flank the nucleic acid molecule in genomic DNA of the cell from which the nucleic acid is derived.

In some embodiments an isolated nucleic acid molecule encoding IPD121 polypeptides has one or more change in the nucleic acid sequence compared to the native or genomic nucleic acid sequence. In some embodiments the change in the native or genomic nucleic acid sequence includes but is not limited to: changes in the nucleic acid sequence due to the degeneracy of the genetic code; changes in the nucleic acid sequence due to the amino acid substitution, insertion, deletion and/or addition compared to the native or genomic sequence; removal of one or more intron; deletion of one or more upstream or downstream regulatory regions; and deletion of the 5′ and/or 3′ untranslated region associated with the genomic nucleic acid sequence. In some embodiments the nucleic acid molecule encoding an IPD121 polypeptide is a non-genomic sequence.

A variety of polynucleotides that encode IPD121 polypeptides or related proteins are contemplated. Such polynucleotides are useful for production of IPD121 polypeptides in host cells when operably linked to a suitable promoter, transcription termination and/or polyadenylation sequences. Such polynucleotides are also useful as probes for isolating homologous or substantially homologous polynucleotides that encode IPD121 polypeptides or related proteins.

Polynucleotides Encoding IPD121 Polypeptides

One source of polynucleotides that encode IPD121 polypeptides or related proteins is a Polystichum, Davallia, Didymochlaena, Humata, Onoclea, or Tectaria species which may contain an IPD121 polynucleotide of any one of SEQ ID NOs: 1-123, encoding an IPD121 polypeptide of SEQ ID NOs: 124-234. The polynucleotides of any one or more of SEQ ID NOS: 1-123, can be used to express IPD121 polypeptides in recombinant bacterial hosts that include but are not limited to Agrobacterium, Bacillus, Escherichia, Salmonella, Lysinibacillus, Acetobacter, Pseudomonas and Rhizobium bacterial host cells. The polynucleotides are also useful as probes for isolating homologous or substantially homologous polynucleotides encoding IPD121 polypeptides or related proteins. Such probes can be used to identify homologous or substantially homologous polynucleotides derived from Polystichum, Davallia, Didymochlaena, Humata, Onoclea, and Tectaria species.

Polynucleotides encoding IPD121 polypeptides can also be synthesized de novo from an IPD121 polypeptide sequence. The sequence of the polynucleotide gene can be deduced from an IPD121 polypeptide sequence through use of the genetic code. Computer programs such as “BackTranslate” (GCG™ Package, Acclerys, Inc. San Diego, Calif.) can be used to convert a peptide sequence to the corresponding nucleotide sequence encoding the peptide. Examples of IPD121 polypeptide sequences that can be used to obtain corresponding nucleotide encoding sequences include, but are not limited to the IPD121 polypeptides of SEQ ID NOS: 124-234. Furthermore, synthetic IPD121 polynucleotide sequences of the disclosure can be designed so that they will be expressed in plants.

In one embodiment, the polypeptide of SEQ ID NO: 124 is encoded by SEQ ID NO: 1; the polypeptide of SEQ ID NO: 125 is encoded by SEQ ID NO: 2; the polypeptide of SEQ ID NO: 126 is encoded by SEQ ID NO: 3; the polypeptide of SEQ ID NO: 127 is encoded by SEQ ID NO: 4; the polypeptide of SEQ ID NO: 128 in encoded by SEQ ID NO: 5; the polypeptide of SEQ ID NO: 129 is encoded by SEQ ID NO: 6; the polypeptide of SEQ ID NO: 130 is encoded by SEQ ID NO: 7; the polypeptide of SEQ ID NO: 131 is encoded by SEQ ID NO: 8; the polypeptide of SEQ ID NO: 132 is encoded by SEQ ID NO: 9 and SEQ ID NO: 81; the polypeptide of SEQ ID NO: 133 is encoded by SEQ ID NO: 10; the polypeptide of SEQ ID NO: 134 is encoded by SEQ ID NO: 11; the polypeptide of SEQ ID NO: 135 is encoded by SEQ ID NO: 12; the polypeptide of SEQ ID NO: 136 is encoded by SEQ ID NO: 13; the polypeptide of SEQ ID NO: 137 is encoded by SEQ ID NO: 14; the polypeptide of SEQ ID NO: 138 is encoded by SEQ ID NO: 15 and SEQ ID NO: 20; the polypeptide of SEQ ID NO: 139 is encoded by SEQ ID NO: 16; the polypeptide of SEQ ID NO: 140 is encoded by SEQ ID NO: 17; the polypeptide of SEQ ID NO: 141 is encoded by SEQ ID NO: 18; the polypeptide of SEQ ID NO: 142 is encoded by SEQ ID NO: 19; the polypeptide of SEQ ID NO: 143 is encoded by SEQ ID NO: 21; the polypeptide of SEQ ID NO: 144 is encoded by SEQ ID NO: 22; the polypeptide of SEQ ID NO: 145 is encoded by SEQ ID NO: 23; the polypeptide of SEQ ID NO: 146 is encoded by SEQ ID NO: 24 and SEQ ID NO: 78; the polypeptide of SEQ ID NO: 147 is encoded by SEQ ID NO: 25 and SEQ ID NO: 82; the polypeptide of SEQ ID NO: 148 is encoded by SEQ ID NO: 26; the polypeptide of SEQ ID NO: 149 is encoded by SEQ ID NO: 27; the polypeptide of SEQ ID NO: 150 is encoded by SEQ ID NO: 28; the polypeptide of SEQ ID NO: 151 is encoded by SEQ ID NO: 29; the polypeptide of SEQ ID NO: 152 is encoded by SEQ ID NO: 30; the polypeptide of SEQ ID NO: 153 is encoded by SEQ ID NO: 31 and SEQ ID NO: 37; the polypeptide of SEQ ID NO: 154 is encoded by SEQ ID NO: 32; the polypeptide of SEQ ID NO: 155 is encoded by SEQ ID NO: 33; the polypeptide of SEQ ID NO: 156 is encoded by SEQ ID NO: 34; the polypeptide of SEQ ID NO: 157 is encoded by SEQ ID NO: 35; the polypeptide of SEQ ID NO: 158 is encoded by SEQ ID NO: 36; the polypeptide of SEQ ID NO: 159 is encoded by SEQ ID NO: 38; the polypeptide of SEQ ID NO: 160 is encoded by SEQ ID NO: 39; the polypeptide of SEQ ID NO: 161 is encoded by SEQ ID NO: 40; the polypeptide of SEQ ID NO: 162 is encoded by SEQ ID NO: 41; the polypeptide of SEQ ID NO: 163 is encoded by SEQ ID NO: 42; the polypeptide of SEQ ID NO: 164 is encoded by SEQ ID NO: 43; the polypeptide of SEQ ID NO: 165 is encoded by SEQ ID NO: 44, SEQ ID NO: 47, SEQ ID NO: 49 and SEQ ID NO: 53; the polypeptide of SEQ ID NO: 166 is encoded by SEQ ID NO: 45; the polypeptide of SEQ ID NO: 167 is encoded by SEQ ID NO: 46; the polypeptide of SEQ ID NO: 168 is encoded by SEQ ID NO: 48; the polypeptide of SEQ ID NO: 169 is encoded by SEQ ID NO: 50; the polypeptide of SEQ ID NO: 170 is encoded by SEQ ID NO: 51; the polypeptide of SEQ ID NO: 171 is encoded by SEQ ID NO: 52; the polypeptide of SEQ ID NO: 172 is encoded by SEQ ID NO: 54; the polypeptide of SEQ ID NO: 173 is encoded by SEQ ID NO: 55; the polypeptide of SEQ ID NO: 174 is encoded by SEQ ID NO: 56 and SEQ ID NO: 109; the polypeptide of SEQ ID NO: 175 is encoded by SEQ ID NO: 57; the polypeptide of SEQ ID NO: 176 is encoded by SEQ ID NO: 58; the polypeptide of SEQ ID NO: 177 is encoded by SEQ ID NO: 59; the polypeptide of SEQ ID NO: 178 is encoded by SEQ ID NO: 60; the polypeptide of SEQ ID NO: 179 is encoded by SEQ ID NO: 61; the polypeptide of SEQ ID NO: 180 is encoded by SEQ ID NO: 62; the polypeptide of SEQ ID NO: 181 is encoded by SEQ ID NO: 63; the polypeptide of SEQ ID NO: 182 is encoded by SEQ ID NO: 64; the polypeptide of SEQ ID NO: 183 is encoded by SEQ ID NO: 65; the polypeptide of SEQ ID NO: 184 is encoded by SEQ ID NO: 66; the polypeptide of SEQ ID NO: 185 is encoded by SEQ ID NO: 67; the polypeptide of SEQ ID NO: 186 is encoded by SEQ ID NO: 68; the polypeptide of SEQ ID NO: 187 is encoded by SEQ ID NO: 69; the polypeptide of SEQ ID NO: 188 is encoded by SEQ ID NO: 70; the polypeptide of SEQ ID NO: 189 is encoded by SEQ ID NO: 71; the polypeptide of SEQ ID NO: 190 is encoded by SEQ ID NO: 72; the polypeptide of SEQ ID NO: 191 is encoded by SEQ ID NO: 73; the polypeptide of SEQ ID NO: 192 is encoded by SEQ ID NO: 74; the polypeptide of SEQ ID NO: 193 is encoded by SEQ ID NO: 75; the polypeptide of SEQ ID NO: 194 is encoded by SEQ ID NO: 76; the polypeptide of SEQ ID NO: 195 is encoded by SEQ ID NO: 77; the polypeptide of SEQ ID NO: 196 is encoded by SEQ ID NO: 79; the polypeptide of SEQ ID NO: 197 is encoded by SEQ ID NO: 80; the polypeptide of SEQ ID NO: 198 is encoded by SEQ ID NO: 83; the polypeptide of SEQ ID NO: 199 is encoded by SEQ ID NO: 84; the polypeptide of SEQ ID NO: 200 is encoded by SEQ ID NO: 85; the polypeptide of SEQ ID NO: 201 is encoded by SEQ ID NO: 88; the polypeptide of SEQ ID NO: 202 is encoded by SEQ ID NO: 89 and SEQ ID NO: 92; the polypeptide of SEQ ID NO: 203 is encoded by SEQ ID NO: 90; the polypeptide of SEQ ID NO: 204 is encoded by SEQ ID NO: 91; the polypeptide of SEQ ID NO: 205 is encoded by SEQ ID NO: 93; the polypeptide of SEQ ID NO: 206 is encoded by SEQ ID NO: 94; the polypeptide of SEQ ID NO: 207 is encoded by SEQ ID NO: 95; the polypeptide of SEQ ID NO: 208 is encoded by SEQ ID NO: 96; the polypeptide of SEQ ID NO: 209 is encoded by SEQ ID NO: 97; the polypeptide of SEQ ID NO: 210 is encoded by SEQ ID NO: 98; the polypeptide of SEQ ID NO: 211 is encoded by SEQ ID NO: 99; the polypeptide of SEQ ID NO: 212 is encoded by SEQ ID NO: 100; the polypeptide of SEQ ID NO: 213 is encoded by SEQ ID NO: 101; the polypeptide of SEQ ID NO: 214 is encoded by SEQ ID NO: 102; the polypeptide of SEQ ID NO: 215 is encoded by SEQ ID NO: 103; the polypeptide of SEQ ID NO: 216 is encoded by SEQ ID NO: 104; the polypeptide of SEQ ID NO: 217 is encoded by SEQ ID NO: 105; the polypeptide of SEQ ID NO: 218 is encoded by SEQ ID NO: 106; the polypeptide of SEQ ID NO: 219 is encoded by SEQ ID NO: 107; the polypeptide of SEQ ID NO: 220 is encoded by SEQ ID NO: 108; the polypeptide of SEQ ID NO: 221 is encoded by SEQ ID NO: 110; the polypeptide of SEQ ID NO: 222 is encoded by SEQ ID NO: 111; the polypeptide of SEQ ID NO: 223 is encoded by SEQ ID NO: 112; the polypeptide of SEQ ID NO: 224 is encoded by SEQ ID NO: 113; the polypeptide of SEQ ID NO: 225 is encoded by SEQ ID NO: 114; the polypeptide of SEQ ID NO: 226 is encoded by SEQ ID NO: 115; the polypeptide of SEQ ID NO: 227 is encoded by SEQ ID NO: 116; the polypeptide of SEQ ID NO: 228 is encoded by SEQ ID NO: 117; the polypeptide of SEQ ID NO: 229 is encoded by SEQ ID NO: 118; the polypeptide of SEQ ID NO: 230 is encoded by SEQ ID NO: 119; the polypeptide of SEQ ID NO: 231 is encoded by SEQ ID NO: 120; the polypeptide of SEQ ID NO: 232 is encoded by SEQ ID NO: 121; the polypeptide of SEQ ID NO: 233 is encoded by SEQ ID NO: 122; and the polypeptide of SEQ ID NO: 234 is encoded by SEQ ID NO: 123.

In some embodiments the nucleic acid molecule encoding an IPD121 polypeptide is a polynucleotide having the sequence set forth in any one of SEQ ID NOS: 1-123, and variants, fragments and complements thereof. “Complement” is used herein to refer to a nucleic acid sequence that is sufficiently complementary to a given nucleic acid sequence such that it can hybridize to the given nucleic acid sequence to thereby form a stable duplex. “Polynucleotide sequence variants” is used herein to refer to a nucleic acid sequence that except for the degeneracy of the genetic code encodes the same polypeptide.

In some embodiments the nucleic acid molecule encoding the IPD121 polypeptide is a non-genomic nucleic acid sequence. As used herein a “non-genomic nucleic acid sequence” or “non-genomic nucleic acid molecule” or “non-genomic polynucleotide” refers to a nucleic acid molecule that has one or more change in the nucleic acid sequence compared to a native or genomic nucleic acid sequence. In some embodiments the change to a native or genomic nucleic acid molecule includes but is not limited to: changes in the nucleic acid sequence due to the degeneracy of the genetic code; optimization of the nucleic acid sequence for expression in plants; changes in the nucleic acid sequence to introduce at least one amino acid substitution, insertion, deletion and/or addition compared to the native or genomic sequence; removal of one or more intron associated with the genomic nucleic acid sequence; insertion of one or more heterologous introns; deletion of one or more upstream or downstream regulatory regions associated with the genomic nucleic acid sequence; insertion of one or more heterologous upstream or downstream regulatory regions; deletion of the 5′ and/or 3′ untranslated region associated with the genomic nucleic acid sequence; insertion of a heterologous 5′ and/or 3′ untranslated region; and modification of a polyadenylation site. In some embodiments the non-genomic nucleic acid molecule is a synthetic nucleic acid sequence.

In some embodiments the nucleic acid molecule encoding an IPD121 polypeptide disclosed herein is a non-genomic polynucleotide having a nucleotide sequence having at least 50%, 51%, 52%, 53%, 54%, 55%, 56%, 57%, 58%, 59%, 60%, 61%, 62%, 63%, 64%, 65%, 66%, 67%, 68%, 69%, 70%, 71%, 72%, 73%, 74%, 75%, 76%, 77%, 78%, 79%, 80%, 81%, 82%, 83%, 84%, 85%, 86%, 87%, 88%, 89%, 90%, 91%, 92%, 93%, 94%, 95%, 96%, 97%, 98%, 99% or greater identity, to the nucleic acid sequence of any one of SEQ ID NOS: 1-123, wherein the IPD121 polypeptide has insecticidal activity.

In some embodiments the nucleic acid molecule encodes an IPD121 polypeptide variant comprising one or more amino acid substitutions to the amino acid sequence of any one of SEQ ID NOS: 124-234.

Also provided are nucleic acid molecules that encode transcription and/or translation products that are subsequently spliced to ultimately produce functional IPD121 polypeptides. Splicing can be accomplished in vitro or in vivo, and can involve cis- or trans-splicing. The substrate for splicing can be polynucleotides (e.g., RNA transcripts) or polypeptides. An example of cis-splicing of a polynucleotide is where an intron inserted into a coding sequence is removed and the two flanking exon regions are spliced to generate an IPD121 polypeptide encoding sequence. An example of trans-splicing would be where a polynucleotide is encrypted by separating the coding sequence into two or more fragments that can be separately transcribed and then spliced to form the full-length pesticidal encoding sequence. The use of a splicing enhancer sequence, which can be introduced into a construct, can facilitate splicing either in cis or trans-splicing of polypeptides (U.S. Pat. Nos. 6,365,377 and 6,531,316). Thus, in some embodiments the polynucleotides do not directly encode a full-length IPD121 polypeptide, but rather encode a fragment or fragments of an IPD121 polypeptide. These polynucleotides can be used to express a functional IPD121 polypeptide through a mechanism involving splicing, where splicing can occur at the level of polynucleotide (e.g., intron/exon) and/or polypeptide (e.g., intein/extein). This can be useful, for example, in controlling expression of pesticidal activity, since a functional pesticidal polypeptide will only be expressed if all required fragments are expressed in an environment that permits splicing processes to generate functional product. In another example, introduction of one or more insertion sequences into a polynucleotide can facilitate recombination with a low homology polynucleotide; use of an intron or intein for the insertion sequence facilitates the removal of the intervening sequence, thereby restoring function of the encoded variant.

Nucleic acid molecules that are fragments of these nucleic acid sequences encoding IPD121 polypeptides are also encompassed by the embodiments. “Fragment” as used herein refers to a portion of the nucleic acid sequence encoding an IPD121 polypeptide. A fragment of a nucleic acid sequence may encode a biologically active portion of an IPD121 polypeptide or it may be a fragment that can be used as a hybridization probe or PCR primer using methods disclosed below. Nucleic acid molecules that are fragments of a nucleic acid sequence encoding an IPD121 polypeptide comprise at least about 150, 180, 210, 240, 270, 300, 330, 360, 400, 450, or 500 contiguous nucleotides or up to the number of nucleotides present in a full-length nucleic acid sequence encoding an IPD121 polypeptide disclosed herein, depending upon the intended use. “Contiguous nucleotides” is used herein to refer to nucleotide residues that are immediately adjacent to one another. Fragments of the nucleic acid sequences of the embodiments will encode protein fragments that retain the biological activity of the IPD121 polypeptide and, hence, retain insecticidal activity. “Retains insecticidal activity” is used herein to refer to a polypeptide having at least about 10%, at least about 30%, at least about 50%, at least about 70%, 80%, 90%, 95% or higher of the insecticidal activity of any one of the full-length IPD121 polypeptides set forth in SEQ ID NOS: 124-234. In some embodiments, the insecticidal activity is against a Lepidopteran species. In one embodiment, the insecticidal activity is against a Coleopteran species. In some embodiments, the insecticidal activity is against one or more insect pests of the corn rootworm complex: western corn rootworm, Diabrotica virgifera; northern corn rootworm, D. barberi: Southern corn rootworm or spotted cucumber beetle; Diabrotica undecimpunctata howardi, Diabrotica speciosa, and the Mexican corn rootworm, D. virgifera zeae. In one embodiment, the insecticidal activity is against a Diabrotica species.

In some embodiments the IPD121 polypeptide is encoded by a nucleic acid sequence sufficiently homologous to any one of the nucleic acid sequences of SEQ ID NOS: 1-123.

“Percent (%) sequence identity” with respect to a reference sequence (subject) is determined as the percentage of amino acid residues or nucleotides in a candidate sequence (query) that are identical with the respective amino acid residues or nucleotides in the reference sequence, after aligning the sequences and introducing gaps, if necessary, to achieve the maximum percent sequence identity, and not considering any amino acid conservative substitutions as part of the sequence identity. Alignment for purposes of determining percent sequence identity can be achieved in various ways that are within the skill in the art, for instance, using publicly available computer software such as BLAST, FASTA, and various other implementations of Smith-Waterman or Needleman-Wunsch algorithms within these tools and in other tools. Those skilled in the art can determine appropriate parameters for aligning sequences, including any algorithms needed to achieve maximal alignment over the full length of the sequences being compared. The percent identity between the two sequences is a function of the number of identical positions shared by the sequences (e.g., percent identity of query sequence=number of identical positions between query and subject sequences/total number of positions of query sequence×100).

In some embodiments an IPD121 polynucleotide encodes an IPD121 polypeptide comprising an amino acid sequence having at least about 80%, 81%, 82%, 83%, 84%, 85%, 86%, 87%, 88%, 89%, 90%, 91%, 92%, 93%, 94%, 95%, 96%, 97%, 98%, 99% or greater identity across the entire length of the amino acid sequence of any one of SEQ ID NOS: 124-234.

In some embodiments polynucleotides are provided encoding chimeric polypeptides comprising regions of at least two different IPD121 polypeptides of the disclosure.

In some embodiments polynucleotides are provided encoding chimeric polypeptides comprising an N-terminal Region of a first IPD121 polypeptide of the disclosure operably fused to a C-terminal Region of a second IPD121 polypeptide of the disclosure.

The embodiments also encompass nucleic acid molecules encoding IPD121 polypeptide variants. “Variants” of the IPD121 polypeptide encoding nucleic acid sequences include those sequences that encode the IPD121 polypeptides disclosed herein but that differ conservatively because of the degeneracy of the genetic code as well as those that are sufficiently identical as discussed above. Naturally occurring allelic variants can be identified with the use of well-known molecular biology techniques, such as polymerase chain reaction (PCR) and hybridization techniques as outlined below. Variant nucleic acid sequences also include synthetically derived nucleic acid sequences that have been generated, for example, by using site-directed mutagenesis but which still encode the IPD121 polypeptides disclosed as discussed below.

The present disclosure provides isolated or recombinant polynucleotides that encode any of the IPD121 polypeptides disclosed herein. Those having ordinary skill in the art will readily appreciate that due to the degeneracy of the genetic code, a multitude of nucleotide sequences encoding IPD121 polypeptides of the present disclosure exist.

The skilled artisan will further appreciate that changes can be introduced by mutation of the nucleic acid sequences thereby leading to changes in the amino acid sequence of the encoded IPD121 polypeptides, without altering the biological activity of the proteins. Thus, variant nucleic acid molecules can be created by introducing one or more nucleotide substitutions, additions and/or deletions into the corresponding nucleic acid sequence disclosed herein, such that one or more amino acid substitutions, additions or deletions are introduced into the encoded protein. Mutations can be introduced by standard techniques, such as site-directed mutagenesis and PCR-mediated mutagenesis. Such variant nucleic acid sequences are also encompassed by the present disclosure.

Alternatively, variant nucleic acid sequences can be made by introducing mutations randomly along all or part of the coding sequence, such as by saturation mutagenesis, and the resultant mutants can be screened for ability to confer pesticidal activity to identify mutants that retain activity. Following mutagenesis, the encoded protein can be expressed recombinantly, and the activity of the protein can be determined using standard assay techniques.

The polynucleotides of the disclosure and fragments thereof are optionally used as substrates for a variety of recombination and recursive recombination reactions, in addition to standard cloning methods as set forth in, e.g., Ausubel, Berger and Sambrook, i.e., to produce additional pesticidal polypeptide homologues and fragments thereof with desired properties. A variety of such reactions are known. Methods for producing a variant of any nucleic acid listed herein comprising recursively recombining such polynucleotide with a second (or more) polynucleotide, thus forming a library of variant polynucleotides are also embodiments of the disclosure, as are the libraries produced, the cells comprising the libraries and any recombinant polynucleotide produced by such methods. Additionally, such methods optionally comprise selecting a variant polynucleotide from such libraries based on pesticidal activity, as is wherein such recursive recombination is done in vitro or in vivo.

A variety of diversity generating protocols, including nucleic acid recursive recombination protocols are available and fully described in the art. The procedures can be used separately, and/or in combination to produce one or more variants of a nucleic acid or set of nucleic acids, as well as variants of encoded proteins. Individually and collectively, these procedures provide robust, widely applicable ways of generating diversified nucleic acids and sets of nucleic acids (including, e.g., nucleic acid libraries) useful, e.g., for the engineering or rapid evolution of nucleic acids, proteins, pathways, cells and/or organisms with new and/or improved characteristics.

While distinctions and classifications are made in the course of the ensuing discussion for clarity, it will be appreciated that the techniques are often not mutually exclusive. Indeed, the various methods can be used singly or in combination, in parallel or in series, to access diverse sequence variants.

The result of any of the diversity generating procedures described herein can be the generation of one or more nucleic acids, which can be selected or screened for nucleic acids with or which confer desirable properties or that encode proteins with or which confer desirable properties. Following diversification by one or more of the methods herein or otherwise available to one of skill, any nucleic acids that are produced can be selected for a desired activity or property, e.g. pesticidal activity or, such activity at a desired pH, etc. This can include identifying any activity that can be detected, for example, in an automated or automatable format, by any of the assays in the art, see, e.g., discussion of screening of insecticidal activity, infra. A variety of related (or even unrelated) properties can be evaluated, in serial or in parallel, at the discretion of the practitioner.

Descriptions of a variety of diversity generating procedures for generating modified nucleic acid sequences, e.g., those coding for polypeptides having pesticidal activity or fragments thereof, are found in the following publications and the references cited therein: Soong, et al., (2000) Nat Genet 25(4):436-439; Stemmer, et al., (1999) Tumor Targeting 4:1-4; Ness, et al., (1999) Nat Biotechnol 17:893-896; Chang, et al., (1999) Nat Biotechnol 17:793-797; Minshull and Stemmer, (1999) Curr Opin Chem Biol 3:284-290; Christians, et al., (1999) Nat Biotechnol 17:259-264; Crameri, et al., (1998) Nature 391:288-291; Crameri, et al., (1997) Nat Biotechnol 15:436-438; Zhang, et al., (1997) PNAS USA 94:4504-4509; Patten, et al., (1997) Curr Opin Biotechnol 8:724-733; Crameri, et al., (1996) Nat Med 2:100-103; Crameri, et al., (1996) Nat Biotechnol 14:315-319; Gates, et al., (1996) J Mol Biol 255:373-386; Stemmer, (1996) “Sexual PCR and Assembly PCR” In: The Encyclopedia of Molecular Biology. VCH Publishers, New York. pp. 447-457; Crameri and Stemmer, (1995) BioTechniques 18:194-195; Stemmer, et al., (1995) Gene, 164:49-53; Stemmer, (1995) Science 270: 1510; Stemmer, (1995) Bio/Technology 13:549-553; Stemmer, (1994) Nature 370:389-391 and Stemmer, (1994) PNAS USA 91:10747-10751.

Mutational methods of generating diversity include, for example, site-directed mutagenesis (Ling, et al., (1997) Anal Biochem 254(2):157-178; Dale, et al., (1996) Methods Mol Biol 57:369-374; Smith, (1985) Ann Rev Genet 19:423-462; Botstein and Shortie, (1985) Science 229:1193-1201; Carter, (1986) Biochem J 237:1-7 and Kunkel, (1987) “The efficiency of oligonucleotide directed mutagenesis” in Nucleic Acids & Molecular Biology (Eckstein and Lilley, eds., Springer Verlag, Berlin)); mutagenesis using uracil containing templates (Kunkel, (1985) PNAS USA 82:488-492; Kunkel, et al., (1987) Methods Enzymol 154:367-382 and Bass, et al., (1988) Science 242:240-245); oligonucleotide-directed mutagenesis (Zoller and Smith, (1983) Methods Enzymol 100:468-500; Zoller and Smith, (1987) Methods Enzymol 154:329-350 (1987); Zoller and Smith, (1982) Nucleic Acids Res 10:6487-6500), phosphorothioate-modified DNA mutagenesis (Taylor, et al., (1985) Nucl Acids Res 13:8749-8764; Taylor, et al., (1985) Nucl Acids Res 13:8765-8787 (1985); Nakamaye and Eckstein, (1986) Nucl Acids Res 14:9679-9698; Sayers, et al., (1988) Nucl Acids Res 16:791-802 and Sayers, et al., (1988) Nucl Acids Res 16:803-814); mutagenesis using gapped duplex DNA (Kramer, et al., (1984) Nucl Acids Res 12:9441-9456; Kramer and Fritz, (1987) Methods Enzymol 154:350-367; Kramer, et al., (1988) Nucl Acids Res 16:7207 and Fritz, et al., (1988) Nucl Acids Res 16:6987-6999).

Additional suitable methods include point mismatch repair (Kramer, et al., (1984) Cell 38:879-887), mutagenesis using repair-deficient host strains (Carter, et al., (1985) Nucl Acids Res 13:4431-4443 and Carter, (1987) Methods in Enzymol 154:382-403), deletion mutagenesis (Eghtedarzadeh and Henikoff, (1986) Nucl Acids Res 14:5115), restriction-selection and restriction-purification (Wells, et al., (1986) Phil Trans R Soc Lond A 317:415-423), mutagenesis by total gene synthesis (Nambiar, et al., (1984) Science 223:1299-1301; Sakamar and Khorana, (1988) Nucl Acids Res 14:6361-6372; Wells, et al., (1985) Gene 34:315-323 and Grundström, et al., (1985) Nucl Acids Res 13:3305-3316), double-strand break repair (Mandecki, (1986) PNAS USA, 83:7177-7181 and Arnold, (1993) Curr Opin Biotech 4:450-455). Additional details on many of the above methods can be found in Methods Enzymol Volume 154, which also describes useful controls for trouble-shooting problems with various mutagenesis methods.

Additional details regarding various diversity generating methods can be found in the following US patents, PCT Publications and Applications and EPO publications: U.S. Pat. Nos. 5,723,323, 5,763,192, 5,814,476, 5,817,483, 5,824,514, 5,976,862, 5,605,793, 5,811,238, 5,830,721, 5,834,252, 5,837,458, WO 1995/22625, WO 1996/33207, WO 1997/20078, WO 1997/35966, WO 1999/41402, WO 1999/41383, WO 1999/41369, WO 1999/41368, EP 752008, EP 1012670, WO 1999/23107, WO 1999/21979, WO 1998/31837, WO 1998/27230, WO 1998/27230, WO 2000/00632, WO 2000/09679, WO 1998/42832, WO 1999/29902, WO 1998/41653, WO 1998/41622, WO 1998/42727, WO 2000/18906, WO 2000/04190, WO 2000/42561, WO 2000/42559, WO 2000/42560, WO 2001/23401 and PCT/US01/06775.

The nucleotide sequences of the embodiments can also be used to isolate corresponding sequences from a plant source, including but not limited to a Polystichum, Davallia, Didymochlaena, Humata, Onoclea, and/or Tectaria species. In this manner, methods such as PCR, hybridization, and the like can be used to identify such sequences based on their sequence homology to the sequences set forth herein. Sequences that are selected based on their sequence identity to the entire sequences set forth herein or to fragments thereof are encompassed by the embodiments. Such sequences include sequences that are orthologs of the disclosed sequences. The term “orthologs” refers to genes derived from a common ancestral gene and which are found in different species as a result of speciation. Genes found in different species are considered orthologs when their nucleotide sequences and/or their encoded protein sequences share substantial identity as defined elsewhere herein. Functions of orthologs are often highly conserved among species.

In a PCR approach, oligonucleotide primers can be designed for use in PCR reactions to amplify corresponding DNA sequences from cDNA or genomic DNA extracted from any organism of interest. Methods for designing PCR primers and PCR cloning are generally known in the art and are disclosed in Sambrook, et al., (1989) Molecular Cloning: A Laboratory Manual (2d ed., Cold Spring Harbor Laboratory Press, Plainview, New York), hereinafter “Sambrook”. See also, Innis, et al., eds. (1990) PCR Protocols: A Guide to Methods and Applications (Academic Press, New York); Innis and Gelfand, eds. (1995) PCR Strategies (Academic Press, New York); and Innis and Gelfand, eds. (1999) PCR Methods Manual (Academic Press, New York). Known methods of PCR include, but are not limited to, methods using paired primers, nested primers, single specific primers, degenerate primers, gene-specific primers, vector-specific primers, partially-mismatched primers, and the like.

To identify potential IPD121 polypeptides from plant collections, plant cell extracts can be screened with antibodies generated against IPD121 polypeptides using Western blotting and/or ELISA methods. This type of assay can be performed in a high throughput fashion. Positive samples can be further analyzed by various techniques such as antibody based protein purification and identification. Methods of generating antibodies are well known in the art as discussed infra.

Alternatively, mass spectrometry based protein identification method can be used to identify homologs of IPD121 polypeptides using protocols in the literatures (Scott Patterson, (1998), 10.22, 1-24, Current Protocol in Molecular Biology published by John Wiley & Son Inc). Specifically, LC-MS/MS based protein identification method is used to associate the MS data of given cell lysate or desired molecular weight enriched samples (excised from SDS-PAGE gel of relevant molecular weight bands to IPD121 polypeptides) with sequence information of an IPD121 polypeptide disclosed herein. Any match in peptide sequences indicates the potential of having the homologous proteins in the samples. Additional techniques (protein purification and molecular biology) can be used to isolate the protein and identify the sequences of the homologs.

In hybridization methods, all or part of the pesticidal nucleic acid sequence can be used to screen cDNA or genomic libraries. Methods for construction of such cDNA and genomic libraries are generally known in the art and are disclosed in Sambrook and Russell, (2001), supra. The so-called hybridization probes may be genomic DNA fragments, cDNA fragments, RNA fragments or other oligonucleotides and may be labeled with a detectable group such as 32P or any other detectable marker, such as other radioisotopes, a fluorescent compound, an enzyme or an enzyme co-factor. Probes for hybridization can be made by labeling synthetic oligonucleotides based on the known IPD121 polypeptide-encoding nucleic acid sequences disclosed herein. Degenerate primers designed on the basis of conserved nucleotides or amino acid residues in the nucleic acid sequence or encoded amino acid sequence can additionally be used. The probe typically comprises a region of nucleic acid sequence that hybridizes under stringent conditions to at least about 12, at least about 25, at least about 50, 75, 100, 125, 150, 175 or 200 consecutive nucleotides of nucleic acid sequences encoding IPD121 polypeptides of the disclosure or a fragment or variant thereof. Methods for the preparation of probes for hybridization and stringency conditions are generally known in the art and are disclosed in Sambrook and Russell, (2001), supra, herein incorporated by reference.

For example, an entire nucleic acid sequence, encoding an IPD121 polypeptide, disclosed herein or one or more portions thereof may be used as a probe capable of specifically hybridizing to corresponding nucleic acid sequences encoding IPD121 polypeptide-like sequences and messenger RNAs. To achieve specific hybridization under a variety of conditions, such probes include sequences that are unique and are preferably at least about 10 nucleotides in length or at least about 20 nucleotides in length. Such probes may be used to amplify corresponding pesticidal sequences from a chosen organism by PCR. This technique may be used to isolate additional coding sequences from a desired organism or as a diagnostic assay to determine the presence of coding sequences in an organism. Hybridization techniques include hybridization screening of plated DNA libraries (either plaques or colonies; see, for example, Sambrook, et al., (1989) Molecular Cloning: A Laboratory Manual (2d ed., Cold Spring Harbor Laboratory Press, Cold Spring Harbor, N.Y.).

Hybridization of such sequences may be carried out under stringent conditions. “Stringent conditions” or “stringent hybridization conditions” is used herein to refer to conditions under which a probe will hybridize to its target sequence to a detectably greater degree than to other sequences (e.g., at least 2-fold over background). Stringent conditions are sequence-dependent and will be different in different circumstances. By controlling the stringency of the hybridization and/or washing conditions, target sequences that are 100% complementary to the probe can be identified (homologous probing). Alternatively, stringency conditions can be adjusted to allow some mismatching in sequences so that lower degrees of similarity are detected (heterologous probing). Generally, a probe is less than about 1000 nucleotides in length, preferably less than 500 nucleotides in length

Antibodies

Antibodies to an IPD121 polypeptide of the embodiments or to variants or fragments thereof are also encompassed. The antibodies of the disclosure include polyclonal and monoclonal antibodies as well as fragments thereof which retain their ability to bind to an IPD121 polypeptide. An antibody, monoclonal antibody or fragment thereof is said to be capable of binding a molecule if it is capable of specifically reacting with the molecule to thereby bind the molecule to the antibody, monoclonal antibody or fragment thereof. The term “antibody” (Ab) or “monoclonal antibody” (Mab) is meant to include intact molecules as well as fragments or binding regions or domains thereof (such as, for example, Fab and F(ab).sub.2 fragments) which are capable of binding hapten. Such fragments are typically produced by proteolytic cleavage, such as papain or pepsin. Alternatively, hapten-binding fragments can be produced through the application of recombinant DNA technology or through synthetic chemistry. Methods for the preparation of the antibodies of the present disclosure are generally known in the art. For example, see, Antibodies, A Laboratory Manual, Ed Harlow and David Lane (eds.) Cold Spring Harbor Laboratory, N.Y. (1988), as well as the references cited therein. Standard reference works setting forth the general principles of immunology include: Klein, J. Immunology: The Science of Cell-Noncell Discrimination, John Wiley & Sons, N.Y. (1982); Dennett, et al., Monoclonal Antibodies, Hybridoma: A New Dimension in Biological Analyses, Plenum Press, N.Y. (1980) and Campbell, “Monoclonal Antibody Technology,” In Laboratory Techniques in Biochemistry and Molecular Biology, Vol. 13, Burdon, et al., (eds.), Elsevier, Amsterdam (1984). See also, U.S. Pat. Nos. 4,196,265; 4,609,893; 4,713,325; 4,714,681; 4,716,111; 4,716,117 and 4,720,459. Antibodies against IPD121 polypeptides or antigen-binding portions thereof can be produced by a variety of techniques, including conventional monoclonal antibody methodology, for example the standard somatic cell hybridization technique of Kohler and Milstein, (1975) Nature 256:495. Other techniques for producing monoclonal antibody can also be employed such as viral or oncogenic transformation of B lymphocytes. An animal system for preparing hybridomas is a murine system. Immunization protocols and techniques for isolation of immunized splenocytes for fusion are known in the art. Fusion partners (e.g., murine myeloma cells) and fusion procedures are also known. The antibody and monoclonal antibodies of the disclosure can be prepared by utilizing an IPD121 polypeptide as antigens.

A kit for detecting the presence of an IPD121 polypeptide or detecting the presence of a nucleotide sequence encoding an IPD121 polypeptide in a sample is provided. In one embodiment, the kit provides antibody-based reagents for detecting the presence of an IPD121 polypeptide in a tissue sample. In another embodiment, the kit provides labeled nucleic acid probes useful for detecting the presence of one or more polynucleotides encoding an IPD121 polypeptide. The kit is provided along with appropriate reagents and controls for carrying out a detection method, as well as instructions for use of the kit.

Receptor Identification and Isolation

Receptors to the IPD121 polypeptides of the embodiments or to variants or fragments thereof are also encompassed. Methods for identifying receptors are well known in the art (see, Hofmann, et. al., (1988) Eur. J. Biochem. 173:85-91; Gill, et al., (1995) J. Biol. Chem. 27277-27282) can be employed to identify and isolate the receptor that recognizes the IPD121 polypeptide using the brush-border membrane vesicles from susceptible insects. In addition to the radioactive labeling method listed in the cited literatures, an IPD121 polypeptide can be labeled with fluorescent dye and other common labels such as streptavidin. Brush-border membrane vesicles (BBMV) of susceptible insects such as soybean looper and stink bugs can be prepared according to the protocols listed in the references of Hofmann and Gill above and separated on SDS-PAGE gel and blotted on suitable membrane. Labeled IPD121 polypeptide can be incubated with blotted membrane of BBMV and labeled IPD121 polypeptide can be identified with the labeled reporters. Identification of protein band(s) that interact with the IPD121 polypeptide can be detected by N-terminal amino acid gas phase sequencing or mass spectrometry based protein identification method (Patterson, (1998) 10.22, 1-24, Current Protocol in Molecular Biology published by John Wiley & Son Inc). Once the protein is identified, the corresponding gene can be cloned from genomic DNA or cDNA library of the susceptible insects and binding affinity can be measured directly with the IPD121 polypeptide. Receptor function for insecticidal activity by the IPD121 polypeptide can be verified by RNAi type of gene knock out method (Rajagopal, et al., (2002) J. Biol. Chem. 277:46849-46851).

Nucleotide Constructs, Expression Cassettes and Vectors

The use of the term “nucleotide constructs” herein is not intended to limit the embodiments to nucleotide constructs comprising DNA. Those of ordinary skill in the art will recognize that nucleotide constructs, particularly polynucleotides and oligonucleotides composed of ribonucleotides and combinations of ribonucleotides and deoxyribonucleotides, may also be employed in the methods disclosed herein. The nucleotide constructs, nucleic acids, and nucleotide sequences of the embodiments additionally encompass all complementary forms of such constructs, molecules, and sequences. Further, the nucleotide constructs, nucleotide molecules, and nucleotide sequences of the embodiments encompass all nucleotide constructs, molecules, and sequences which can be employed in the methods of the embodiments for transforming plants including, but not limited to, those comprised of deoxyribonucleotides, ribonucleotides, and combinations thereof. Such deoxyribonucleotides and ribonucleotides include both naturally occurring molecules and synthetic analogues. The nucleotide constructs, nucleic acids, and nucleotide sequences of the embodiments also encompass all forms of nucleotide constructs including, but not limited to, single-stranded forms, double-stranded forms, hairpins, stem-and-loop structures and the like.

A further embodiment relates to a transformed organism such as an organism selected from plant and insect cells, bacteria, yeast, baculovirus, protozoa, nematodes and algae. The transformed organism comprises a DNA molecule of the embodiments, an expression cassette comprising the DNA molecule or a vector comprising the expression cassette, which may be stably incorporated into the genome of the transformed organism.

The sequences of the embodiments are provided in DNA constructs for expression in the organism of interest. The construct will include 5′ and 3′ regulatory sequences operably linked to a sequence of the embodiments. The term “operably linked” as used herein refers to a functional linkage between a promoter and a second sequence, wherein the promoter sequence initiates and mediates transcription of the DNA sequence corresponding to the second sequence. Generally, operably linked means that the nucleic acid sequences being linked are contiguous and where necessary to join two protein coding regions in the same reading frame. The construct may additionally contain at least one additional gene to be cotransformed into the organism. Alternatively, the additional gene(s) can be provided on multiple DNA constructs.

Such a DNA construct is provided with a plurality of restriction sites for insertion of the IPD121 polypeptide gene sequence of the disclosure to be under the transcriptional regulation of the regulatory regions. The DNA construct may additionally contain selectable marker genes.

The DNA construct will generally include in the 5′ to 3′ direction of transcription: a transcriptional and translational initiation region (i.e., a promoter), a DNA sequence of the embodiments, and a transcriptional and translational termination region (i.e., termination region) functional in the organism serving as a host. The transcriptional initiation region (i.e., the promoter) may be native, analogous, foreign or heterologous to the host organism and/or to the sequence of the embodiments. Additionally, the promoter may be the natural sequence or alternatively a synthetic sequence. The term “foreign” as used herein indicates that the promoter is not found in the native organism into which the promoter is introduced. Where the promoter is “foreign” or “heterologous” to the sequence of the embodiments, it is intended that the promoter is not the native or naturally occurring promoter for the operably linked sequence of the embodiments. As used herein, a chimeric gene comprises a coding sequence operably linked to a transcription initiation region that is heterologous to the coding sequence. Where the promoter is a native or natural sequence, the expression of the operably linked sequence is altered from the wild-type expression, which results in an alteration in phenotype.

In some embodiments the DNA construct comprises a polynucleotide encoding an IPD121 polypeptide of the embodiments. In some embodiments the DNA construct comprises a polynucleotide encoding a fusion protein comprising an IPD121 polypeptide of the embodiments.

In some embodiments the DNA construct may also include a transcriptional enhancer sequence. As used herein, the term an “enhancer” refers to a DNA sequence which can stimulate promoter activity, and may be an innate element of the promoter or a heterologous element inserted to enhance the level or tissue-specificity of a promoter. Various enhancers are known in the art including for example, introns with gene expression enhancing properties in plants (US Patent Application Publication Number 2009/0144863, the ubiquitin intron (i.e., the maize ubiquitin intron 1 (see, for example, NCBI sequence S94464)), the omega enhancer or the omega prime enhancer (Gallie, et al., (1989) Molecular Biology of RNA ed. Cech (Liss, New York) 237-256 and Gallie, et al., (1987) Gene 60:217-25), the CaMV 35S enhancer (see, e.g., Benfey, et al., (1990) EMBO J. 9:1685-96) and the enhancers of U.S. Pat. No. 7,803,992 may also be used. The above list of transcriptional enhancers is not meant to be limiting. Any appropriate transcriptional enhancer can be used in the embodiments.

The termination region may be native with the transcriptional initiation region, may be native with the operably linked DNA sequence of interest, may be native with the plant host or may be derived from another source (i.e., foreign or heterologous to the promoter, the sequence of interest, the plant host or any combination thereof).

Convenient termination regions are available from the Ti-plasmid of A. tumefaciens, such as the octopine synthase and nopaline synthase termination regions. See also, Guerineau, et al., (1991) Mol. Gen. Genet. 262:141-144; Proudfoot, (1991) Cell 64:671-674; Sanfacon, et al., (1991) Genes Dev. 5:141-149; Mogen, et al., (1990) Plant Cell 2:1261-1272; Munroe, et al., (1990) Gene 91:151-158; Ballas, et al., (1989) Nucleic Acids Res. 17:7891-7903 and Joshi, et al., (1987) Nucleic Acid Res. 15:9627-9639. Where appropriate, a nucleic acid may be optimized for increased expression in the host organism.

Thus, where the host organism is a plant, the synthetic nucleic acids can be synthesized using plant-preferred codons for improved expression. See, for example, Campbell and Gowri, (1990) Plant Physiol. 92:1-11 for a discussion of host-preferred usage. For example, although nucleic acid sequences of the embodiments may be expressed in both monocotyledonous and dicotyledonous plant species, sequences can be modified to account for the specific preferences and GC content preferences of monocotyledons or dicotyledons as these preferences have been shown to differ (Murray et al. (1989) Nucleic Acids Res. 17:477-498). Thus, the maize-preferred for a particular amino acid may be derived from known gene sequences from maize. Maize usage for 28 genes from maize plants is listed in Table 4 of Murray, et al., supra. Methods are available in the art for synthesizing plant-preferred genes. See, for example, Murray, et al., (1989) Nucleic Acids Res. 17:477-498, and Liu H et al. Mol Bio Rep 37:677-684, 2010, herein incorporated by reference. A Zea maize usage table can be also found at kazusa.or.jp//cgi-bin/show.cgi?species=4577, which can be accessed using the www prefix. A Glycine max usage table can be found at kazusa.or.jp//cgi-bin/show.cgi?species=3847&aa=1&style=N, which can be accessed using the www prefix.

In some embodiments the recombinant nucleic acid molecule encoding an IPD121 polypeptide has maize optimized codons.

Additional sequence modifications are known to enhance gene expression in a cellular host. These include elimination of sequences encoding spurious polyadenylation signals, exon-intron splice site signals, transposon-like repeats, and other well-characterized sequences that may be deleterious to gene expression. The GC content of the sequence may be adjusted to levels average for a given cellular host, as calculated by reference to known genes expressed in the host cell. The term “host cell” as used herein refers to a cell which contains a vector and supports the replication and/or expression of the expression vector is intended. Host cells may be prokaryotic cells such as E. coli or eukaryotic cells such as yeast, insect, amphibian or mammalian cells or monocotyledonous or dicotyledonous plant cells. An example of a monocotyledonous host cell is a maize host cell. When possible, the sequence is modified to avoid predicted hairpin secondary mRNA structures.

The expression cassettes may additionally contain 5′ leader sequences. Such leader sequences can act to enhance translation. Translation leaders are known in the art and include: picornavirus leaders, for example, EMCV leader (Encephalomyocarditis 5′ noncoding region) (Elroy-Stein, et al., (1989) Proc. Natl. Acad. Sci. USA 86:6126-6130); potyvirus leaders, for example, TEV leader (Tobacco Etch Virus) (Gallie, et al., (1995) Gene 165(2):233-238), MDMV leader (Maize Dwarf Mosaic Virus), human immunoglobulin heavy-chain binding protein (BiP) (Macejak, et al., (1991) Nature 353:90-94); untranslated leader from the coat protein mRNA of alfalfa mosaic virus (AMV RNA 4) (Jobling, et al., (1987) Nature 325:622-625); tobacco mosaic virus leader (TMV) (Gallie, et al., (1989) in Molecular Biology of RNA, ed. Cech (Liss, New York), pp. 237-256) and maize chlorotic mottle virus leader (MCMV) (Lommel, et al., (1991) Virology 81:382-385). See also, Della-Cioppa, et al., (1987) Plant Physiol. 84:965-968. Such constructs may also contain a “signal sequence” or “leader sequence” to facilitate co-translational or post-translational transport of the peptide to certain intracellular structures such as the chloroplast (or other plastid), endoplasmic reticulum or Golgi apparatus.

“Signal sequence” as used herein refers to a sequence that is known or suspected to result in cotranslational or post-translational peptide transport across the cell membrane. In eukaryotes, this typically involves secretion into the Golgi apparatus, with some resulting glycosylation. Insecticidal toxins of bacteria are often synthesized as protoxins, which are proteolytically activated in the gut of the target pest (Chang, (1987) Methods Enzymol. 153:507-516). In some embodiments, the signal sequence is located in the native sequence or may be derived from a sequence of the embodiments. “Leader sequence” as used herein refers to any sequence that when translated, results in an amino acid sequence sufficient to trigger co-translational transport of the peptide chain to a subcellular organelle. Thus, this includes leader sequences targeting transport and/or glycosylation by passage into the endoplasmic reticulum, passage to vacuoles, plastids including chloroplasts, mitochondria, and the like. Nuclear-encoded proteins targeted to the chloroplast thylakoid lumen compartment have a characteristic bipartite transit peptide, composed of a stromal targeting signal peptide and a lumen targeting signal peptide. The stromal targeting information is in the amino-proximal portion of the transit peptide. The lumen targeting signal peptide is in the carboxyl-proximal portion of the transit peptide, and contains all the information for targeting to the lumen. Recent research in proteomics of the higher plant chloroplast has achieved in the identification of numerous nuclear-encoded lumen proteins (Kieselbach et al. FEBS LETT 480:271-276, 2000; Peltier et al. Plant Cell 12:319-341, 2000; Bricker et al. Biochim. Biophys Acta 1503:350-356, 2001), the lumen targeting signal peptide of which can potentially be used in accordance with the present disclosure. About 80 proteins from Arabidopsis, as well as homologous proteins from spinach and garden pea, are reported by Kieselbach et al., Photosynthesis Research, 78:249-264, 2003. In particular, Table 2 of this publication, which is incorporated into the description herewith by reference, discloses 85 proteins from the chloroplast lumen, identified by their accession number (see also US Patent Application Publication 2009/09044298).

Suitable chloroplast transit peptides (CTP) are well known to one skilled in the art also include chimeric CT's comprising but not limited to, an N-terminal domain, a central domain or a C-terminal domain from a CTP from Oryza sativa 1-decoy-D xylose-5-Phosphate Synthase Oryza sativa-Superoxide dismutase Oryza sativa-soluble starch synthase Oryza sativa-NADP-dependent Malic acid enzyme Oryza sativa-Phospho-2-dehydro-3-deoxyheptonate Aldolase 2 Oryza sativa-L-Ascorbate peroxidase 5 Oryza sativa-Phosphoglucan water dikinase, Zea mays ssRUBISCO, Zea mays-beta-glucosidase, Zea mays-Malate dehydrogenase, Zea mays Thioredoxin M-type (See US Patent Application Publication 2012/0304336).

The IPD121 polypeptide gene to be targeted to the chloroplast may be optimized for expression in the chloroplast to account for differences in usage between the plant nucleus and this organelle. In this manner, the nucleic acids of interest may be synthesized using chloroplast-preferred sequences.

In preparing the expression cassette, the various DNA fragments may be manipulated so as to provide for the DNA sequences in the proper orientation and, as appropriate, in the proper reading frame. Toward this end, adapters or linkers may be employed to join the DNA fragments or other manipulations may be involved to provide for convenient restriction sites, removal of superfluous DNA, removal of restriction sites or the like. For this purpose, in vitro mutagenesis, primer repair, restriction, annealing, resubstitutions, e.g., transitions and transversions, may be involved.

A number of promoters can be used in the practice of the embodiments. The promoters can be selected based on the desired outcome. The nucleic acids can be combined with constitutive, tissue-preferred, inducible or other promoters for expression in the host organism. Suitable constitutive promoters for use in a plant host cell include, for example, the core promoter of the Rsyn7 promoter and other constitutive promoters disclosed in WO 1999/43838 and U.S. Pat. No. 6,072,050; the core CaMV 35S promoter (Odell, et al., (1985) Nature 313:810-812); rice actin (McElroy, et al., (1990) Plant Cell 2:163-171); ubiquitin (Christensen, et al., (1989) Plant Mol. Biol. 12:619-632 and Christensen, et al., (1992) Plant Mol. Biol. 18:675-689); pEMU (Last, et al., (1991) Theon. Appl. Genet. 81:581-588); MAS (Velten, et al., (1984) EMBO J. 3:2723-2730); ALS promoter (U.S. Pat. No. 5,659,026) and the like. Other constitutive promoters include, for example, those discussed in U.S. Pat. Nos. 5,608,149; 5,608,144; 5,604,121; 5,569,597; 5,466,785; 5,399,680; 5,268,463; 5,608,142 and 6,177,611.

Depending on the desired outcome, it may be beneficial to express the gene from an inducible promoter. Of particular interest for regulating the expression of the nucleotide sequences of the embodiments in plants are wound-inducible promoters. Such wound-inducible promoters, may respond to damage caused by insect feeding, and include potato proteinase inhibitor (pin II) gene (Ryan, (1990) Ann. Rev. Phytopath. 28:425-449; Duan, et al., (1996) Nature Biotechnology 14:494-498); wun1 and wun2, U.S. Pat. No. 5,428,148; win1 and win2 (Stanford, et al., (1989)Mol. Gen. Genet. 215:200-208); systemin (McGurl, et al., (1992) Science 225:1570-1573); WIP1 (Rohmeier, et al., (1993) Plant Mol. Biol. 22:783-792; Eckelkamp, et al., (1993) FEBS Letters 323:73-76); MPI gene (Corderok, et al., (1994) Plant J. 6(2):141-150) and the like.

Additionally, pathogen-inducible promoters may be employed in the methods and nucleotide constructs of the embodiments. Such pathogen-inducible promoters include those from pathogenesis-related proteins (PR proteins), which are induced following infection by a pathogen; e.g., PR proteins, SAR proteins, beta-1,3-glucanase, chitinase, etc. See, for example, Redolfi, et al., (1983) Neth. J. Plant Pathol. 89:245-254; Uknes, et al., (1992) Plant Cell 4: 645-656 and Van Loon, (1985) Plant Mol. Virol. 4:111-116. See also, WO 1999/43819.

Of interest are promoters that are expressed locally at or near the site of pathogen infection. See, for example, Marineau, et al., (1987) Plant Mol. Biol. 9:335-342; Matton, et al., (1989) Molecular Plant-Microbe Interactions 2:325-331; Somsisch, et al., (1986) Proc. Natl. Acad. Sci. USA 83:2427-2430; Somsisch, et al., (1988) Mol. Gen. Genet. 2:93-98 and Yang, (1996) Proc. Natl. Acad. Sci. USA 93:14972-14977. See also, Chen, et al., (1996) Plant J. 10:955-966; Zhang, et al., (1994) Proc. Natl. Acad. Sci. USA 91:2507-2511; Warner, et al., (1993) Plant J. 3:191-201; Siebertz, et al., (1989) Plant Cell 1:961-968; U.S. Pat. No. 5,750,386 (nematode-inducible) and the references cited therein. Of particular interest is the inducible promoter for the maize PRms gene, whose expression is induced by the pathogen Fusarium moniliforme (see, for example, Cordero, et al., (1992) Physiol. Mol. Plant Path. 41:189-200).

Chemical-regulated promoters can be used to modulate the expression of a gene in a plant through the application of an exogenous chemical regulator. Depending upon the objective, the promoter may be a chemical-inducible promoter, where application of the chemical induces gene expression or a chemical-repressible promoter, where application of the chemical represses gene expression. Chemical-inducible promoters are known in the art and include, but are not limited to, the maize In2-2 promoter, which is activated by benzenesulfonamide herbicide safeners, the maize GST promoter, which is activated by hydrophobic electrophilic compounds that are used as pre-emergent herbicides, and the tobacco PR-la promoter, which is activated by salicylic acid. Other chemical-regulated promoters of interest include steroid-responsive promoters (see, for example, the glucocorticoid-inducible promoter in Schena, et al., (1991) Proc. Natl. Acad. Sci. USA 88:10421-10425 and McNellis, et al., (1998) Plant J. 14(2):247-257) and tetracycline-inducible and tetracycline-repressible promoters (see, for example, Gatz, et al., (1991) Mol. Gen. Genet. 227:229-237 and U.S. Pat. Nos. 5,814,618 and 5,789,156).

Tissue-preferred promoters can be utilized to target enhanced IPD121 polypeptide expression within a particular plant tissue. Tissue-preferred promoters include those discussed in Yamamoto, et al., (1997) Plant J. 12(2)255-265; Kawamata, et al., (1997) Plant Cell Physiol. 38(7): 792-803; Hansen, et al., (1997) Mol. Gen Genet. 254(3):337-343; Russell, et al., (1997) Transgenic Res. 6(2):157-168; Rinehart, et al., (1996) Plant Physiol. 112(3):1331-1341; Van Camp, et al., (1996) Plant Physiol. 112(2):525-535; Canevascini, et al., (1996) Plant Physiol. 112(2):513-524; Yamamoto, et al., (1994) Plant Cell Physiol. 35(5):773-778; Lam, (1994) Results Probl. Cell Differ. 20:181-196; Orozco, et al., (1993) Plant Mol Biol. 23(6):1129-1138; Matsuoka, et al., (1993) Proc Natl. Acad. Sci. USA 90(20):9586-9590 and Guevara-Garcia, et al., (1993) Plant J. 4(3):495-505. Such promoters can be modified, if necessary, for weak expression.

Leaf-preferred promoters are known in the art. See, for example, Yamamoto, et al., (1997) Plant J. 12(2):255-265; Kwon, et al., (1994) Plant Physiol. 105:357-67; Yamamoto, et al., (1994) Plant Cell Physiol. 35(5):773-778; Gotor, et al., (1993) Plant J. 3:509-18; Orozco, et al., (1993) Plant Mol. Biol. 23(6):1129-1138 and Matsuoka, et al., (1993) Proc. Natl. Acad. Sci. USA 90(20):9586-9590.

Root-preferred or root-specific promoters are known and can be selected from the many available from the literature or isolated de novo from various compatible species. See, for example, Hire, et al., (1992) Plant Mol. Biol. 20(2):207-218 (soybean root-specific glutamine synthetase gene); Keller and Baumgartner, (1991) Plant Cell 3(10):1051-1061 (root-specific control element in the GRP 1.8 gene of French bean); Sanger, et al., (1990) Plant Mol. Biol. 14(3):433-443 (root-specific promoter of the mannopine synthase (MAS) gene of Agrobacterium tumefaciens) and Miao, et al., (1991) Plant Cell 3(1):11-22 (full-length cDNA clone encoding cytosolic glutamine synthetase (GS), which is expressed in roots and root nodules of soybean). See also, Bogusz, et al., (1990) Plant Cell 2(7):633-641, where two root-specific promoters isolated from hemoglobin genes from the nitrogen-fixing nonlegume Parasponia andersonii and the related non-nitrogen-fixing nonlegume Trema tomentosa are described. The promoters of these genes were linked to a β-glucuronidase reporter gene and introduced into both the nonlegume Nicotiana tabacum and the legume Lotus corniculatus, and in both instances root-specific promoter activity was preserved. Leach and Aoyagi, (1991) describe their analysis of the promoters of the highly expressed rolC and rolD root-inducing genes of Agrobacterium rhizogenes (see, Plant Science (Limerick) 79(1):69-76). They concluded that enhancer and tissue-preferred DNA determinants are dissociated in those promoters. Teeri, et al., (1989) used gene fusion to lacZ to show that the Agrobacterium T-DNA gene encoding octopine synthase is especially active in the epidermis of the root tip and that the TR2′ gene is root specific in the intact plant and stimulated by wounding in leaf tissue, an especially desirable combination of characteristics for use with an insecticidal or larvicidal gene (see, EMBO J. 8(2):343-350). The TR1′ gene fused to nptII (neomycin phosphotransferase II) showed similar characteristics. Additional root-preferred promoters include the VfENOD-GRP3 gene promoter (Kuster, et al., (1995) Plant Mol. Biol. 29(4):759-772) and rolB promoter (Capana, et al., (1994) Plant Mol. Biol. 25(4):681-691. See also, U.S. Pat. Nos. 5,837,876; 5,750,386; 5,633,363; 5,459,252; 5,401,836; 5,110,732 and 5,023,179. Arabidopsis thaliana root-preferred regulatory sequences are disclosed in US20130117883.

“Seed-preferred” promoters include both “seed-specific” promoters (those promoters active during seed development such as promoters of seed storage proteins) as well as “seed-germinating” promoters (those promoters active during seed germination). See, Thompson, et al., (1989) BioEssays 10:108. Such seed-preferred promoters include, but are not limited to, Cim 1 (cytokinin-induced message); cZ19B1 (maize 19 kDa zein); and mi1ps (myo-inositol-1-phosphate synthase) (see, U.S. Pat. No. 6,225,529). Gamma-zein and Glb-1 are endosperm-specific promoters. For dicots, seed-specific promoters include, but are not limited to, Kunitz trypsin inhibitor 3 (KTi3) (Jofuku and Goldberg, (1989) Plant Cell 1:1079-1101), bean β-phaseolin, napin, β-conglycinin, glycinin 1, soybean lectin, cruciferin, and the like. For monocots, seed-specific promoters include, but are not limited to, maize 15 kDa zein, 22 kDa zein, 27 kDa zein, g-zein, waxy, shrunken 1, shrunken 2, globulin 1, etc. See also, WO 2000/12733, where seed-preferred promoters from end1 and end2 genes are disclosed. In dicots, seed specific promoters include but are not limited to seed coat promoter from Arabidopsis, pBAN; and the early seed promoters from Arabidopsis, p26, p63, and p63tr (U.S. Pat. Nos. 7,294,760 and 7,847,153). A promoter that has “preferred” expression in a particular tissue is expressed in that tissue to a greater degree than in at least one other plant tissue. Some tissue-preferred promoters show expression almost exclusively in the particular tissue.

Where low level expression is desired, weak promoters will be used. Generally, the term “weak promoter” as used herein refers to a promoter that drives expression of a coding sequence at a low level. By low level expression at levels of between about 1/1000 transcripts to about 1/100,000 transcripts to about 1/500,000 transcripts is intended. Alternatively, it is recognized that the term “weak promoters” also encompasses promoters that drive expression in only a few cells and not in others to give a total low level of expression. Where a promoter drives expression at unacceptably high levels, portions of the promoter sequence can be deleted or modified to decrease expression levels.

Such weak constitutive promoters include, for example the core promoter of the Rsyn7 promoter (WO 1999/43838 and U.S. Pat. No. 6,072,050), the core 35S CaMV promoter, and the like. Other constitutive promoters include, for example, those disclosed in U.S. Pat. Nos. 5,608,149; 5,608,144; 5,604,121; 5,569,597; 5,466,785; 5,399,680; 5,268,463; 5,608,142 and 6,177,611.

The above list of promoters is not meant to be limiting. Any appropriate promoter can be used in the embodiments.

Generally, the expression cassette will comprise a selectable marker gene for the selection of transformed cells. Selectable marker genes are utilized for the selection of transformed cells or tissues. Marker genes include genes encoding antibiotic resistance, such as those encoding neomycin phosphotransferase II (NEO) and hygromycin phosphotransferase (HPT), as well as genes conferring resistance to herbicidal compounds, such as glufosinate ammonium, bromoxynil, imidazolinones and 2,4-dichlorophenoxyacetate (2,4-D). Additional examples of suitable selectable marker genes include, but are not limited to, genes encoding resistance to chloramphenicol (Herrera Estrella, et al., (1983) EMBO J. 2:987-992); methotrexate (Herrera Estrella, et al., (1983) Nature 303:209-213 and Meijer, et al., (1991) Plant Mol. Biol. 16:807-820); streptomycin (Jones, et al., (1987) Mol. Gen. Genet. 210:86-91); spectinomycin (Bretagne-Sagnard, et al., (1996) Transgenic Res. 5:131-137); bleomycin (Hille, et al., (1990) Plant Mol. Biol. 7:171-176); sulfonamide (Guerineau, et al., (1990) Plant Mol. Biol. 15:127-136); bromoxynil (Stalker, et al., (1988) Science 242:419-423); glyphosate (Shaw, et al., (1986) Science 233:478-481 and U.S. patent application Ser. No. 10/004,357, abandoned and Ser. No. 10/427,692, granted as U.S. Pat. No. 7,462,481); phosphinothricin (DeBlock, et al., (1987) EMBO J. 6:2513-2518). See generally, Yarranton, (1992) Curr. Opin. Biotech. 3:506-511; Christopherson, et al., (1992) Proc. Natl. Acad. Sci. USA 89:6314-6318; Yao, et al., (1992) Cell 71:63-72; Reznikoff, (1992) Mol. Microbiol. 6:2419-2422; Barkley, et al., (1980) in The Operon, pp. 177-220; Hu, et al., (1987) Cell 48:555-566; Brown, et al., (1987) Cell 49:603-612; Figge, et al., (1988) Cell 52:713-722; Deuschle, et al., (1989) Proc. Natl. Acad. Sci. USA 86:5400-5404; Fuerst, et al., (1989) Proc. Natl. Acad. Sci. USA 86:2549-2553; Deuschle, et al., (1990) Science 248:480-483; Gossen, (1993) Ph.D. Thesis, University of Heidelberg; Reines, et al., (1993) Proc. Natl. Acad. Sci. USA 90:1917-1921; Labow, et al., (1990) Mol. Cell. Biol. 10:3343-3356; Zambretti, et al., (1992) Proc. Natl. Acad. Sci. USA 89:3952-3956; Baim, et al., (1991) Proc. Natl. Acad. Sci. USA 88:5072-5076; Wyborski, et al., (1991) Nucleic Acids Res. 19:4647-4653; Hillenand-Wissman, (1989) Topics Mol. Struc. Biol. 10:143-162; Degenkolb, et al., (1991) Antimicrob. Agents Chemother. 35:1591-1595; Kleinschnidt, et al., (1988) Biochemistry 27:1094-1104; Bonin, (1993) Ph.D. Thesis, University of Heidelberg; Gossen, et al., (1992) Proc. Natl. Acad. Sci. USA 89:5547-5551; Oliva, et al., (1992) Antimicrob. Agents Chemother. 36:913-919; Hlavka, et al., (1985) Handbook of Experimental Pharmacology, Vol. 78 (Springer-Verlag, Berlin) and Gill, et al., (1988) Nature 334:721-724.

The above list of selectable marker genes is not meant to be limiting. Any selectable marker gene can be used in the embodiments.

Plant Transformation

The methods of the embodiments involve introducing a polypeptide or polynucleotide into a plant. “Introducing” is as used herein means presenting to the plant the polynucleotide or polypeptide in such a manner that the sequence gains access to the interior of a cell of the plant. The methods of the embodiments do not depend on a particular method for introducing a polynucleotide or polypeptide into a plant, only that the polynucleotide(s) or polypeptide(s) gains access to the interior of at least one cell of the plant. Methods for introducing polynucleotide(s) or polypeptide(s) into plants are known in the art including, but not limited to, stable transformation methods, transient transformation methods, and virus-mediated methods.

“Stable transformation” as used herein means that the nucleotide construct introduced into a plant integrates into the genome of the plant and is capable of being inherited by the progeny thereof. “Transient transformation” as used herein means that a polynucleotide is introduced into the plant and does not integrate into the genome of the plant or a polypeptide is introduced into a plant. “Plant” as used herein refers to whole plants, plant organs (e.g., leaves, stems, roots, etc.), seeds, plant cells, propagules, embryos and progeny of the same. Plant cells can be differentiated or undifferentiated (e.g. callus, suspension culture cells, protoplasts, leaf cells, root cells, phloem cells and pollen).

Transformation protocols as well as protocols for introducing nucleotide sequences into plants may vary depending on the type of plant or plant cell, i.e., monocot or dicot, targeted for transformation. Suitable methods of introducing nucleotide sequences into plant cells and subsequent insertion into the plant genome include microinjection (Crossway, et al., (1986) Biotechniques 4:320-334), electroporation (Riggs, et al., (1986) Proc. Natl. Acad. Sci. USA 83:5602-5606), Agrobacterium-mediated transformation (U.S. Pat. Nos. 5,563,055 and 5,981,840), direct gene transfer (Paszkowski, et al., (1984) EMBO J. 3:2717-2722) and ballistic particle acceleration (see, for example, U.S. Pat. Nos. 4,945,050; 5,879,918; 5,886,244 and 5,932,782; Tomes, et al., (1995) in Plant Cell, Tissue, and Organ Culture: Fundamental Methods, ed. Gamborg and Phillips, (Springer-Verlag, Berlin) and McCabe, et al., (1988) Biotechnology 6:923-926) and Led transformation (WO 00/28058). For potato transformation see, Tu, et al., (1998) Plant Molecular Biology 37:829-838 and Chong, et al., (2000) Transgenic Research 9:71-78. Additional transformation procedures can be found in Weissinger, et al., (1988) Ann. Rev. Genet. 22:421-477; Sanford, et al., (1987) Particulate Science and Technology 5:27-37 (onion); Christou, et al., (1988) Plant Physiol. 87:671-674 (soybean); McCabe, et al., (1988) Bio/Technology 6:923-926 (soybean); Finer and McMullen, (1991) In Vitro Cell Dev. Biol. 27P:175-182 (soybean); Singh, et al., (1998) Theor. Appl. Genet. 96:319-324 (soybean); Datta, et al., (1990) Biotechnology 8:736-740 (rice); Klein, et al., (1988) Proc. Natl. Acad. Sci. USA 85:4305-4309 (maize); Klein, et al., (1988) Biotechnology 6:559-563 (maize); U.S. Pat. Nos. 5,240,855; 5,322,783 and 5,324,646; Klein, et al., (1988) Plant Physiol. 91:440-444 (maize); Fromm, et al., (1990) Biotechnology 8:833-839 (maize); Hooykaas-Van Slogteren, et al., (1984) Nature (London) 311:763-764; U.S. Pat. No. 5,736,369 (cereals); Bytebier, et al., (1987) Proc. Natl. Acad. Sci. USA 84:5345-5349 (Liliaceae); De Wet, et al., (1985) in The Experimental Manipulation of Ovule Tissues, ed. Chapman, et al., (Longman, New York), pp. 197-209 (pollen); Kaeppler, et al., (1990) Plant Cell Reports 9:415-418 and Kaeppler, et al., (1992) Theor. Appl. Genet. 84:560-566 (whisker-mediated transformation); D'Halluin, et al., (1992) Plant Cell 4:1495-1505 (electroporation); Li, et al., (1993) Plant Cell Reports 12:250-255 and Christou and Ford, (1995) Annals of Botany 75:407-413 (rice); Osjoda, et al., (1996) Nature Biotechnology 14:745-750 (maize via Agrobacterium tumefaciens).

In specific embodiments, the sequences of the embodiments can be provided to a plant using a variety of transient transformation methods. Such transient transformation methods include, but are not limited to, the introduction of the IPD121 polynucleotide or variants and fragments thereof directly into the plant or the introduction of the IPD121 polypeptide transcript into the plant. Such methods include, for example, microinjection or particle bombardment. See, for example, Crossway, et al., (1986) Mol Gen. Genet. 202:179-185; Nomura, et al., (1986) Plant Sci. 44:53-58; Hepler, et al., (1994) Proc. Natl. Acad. Sci. 91:2176-2180 and Hush, et al., (1994) The Journal of Cell Science 107:775-784. Alternatively, the IPD121 polynucleotide can be transiently transformed into the plant using techniques known in the art. Such techniques include viral vector system and the precipitation of the polynucleotide in a manner that precludes subsequent release of the DNA. Thus, transcription from the particle-bound DNA can occur, but the frequency with which it is released to become integrated into the genome is greatly reduced. Such methods include the use of particles coated with polyethylimine (PEI; Sigma #P3143).

Methods are known in the art for the targeted insertion of a polynucleotide at a specific location in the plant genome. In one embodiment, the insertion of the polynucleotide at a desired genomic location is achieved using a site-specific recombination system. See, for example, WO 1999/25821, WO 1999/25854, WO 1999/25840, WO 1999/25855 and WO 1999/25853. Briefly, the polynucleotide of the embodiments can be contained in transfer cassette flanked by two non-identical recombination sites. The transfer cassette is introduced into a plant have stably incorporated into its genome a target site which is flanked by two non-identical recombination sites that correspond to the sites of the transfer cassette. An appropriate recombinase is provided and the transfer cassette is integrated at the target site. The polynucleotide of interest is thereby integrated at a specific chromosomal position in the plant genome.

Plant transformation vectors may be comprised of one or more DNA vectors needed for achieving plant transformation. For example, it is a common practice in the art to utilize plant transformation vectors that are comprised of more than one contiguous DNA segment. These vectors are often referred to in the art as “binary vectors”. Binary vectors as well as vectors with helper plasmids are most often used for Agrobacterium-mediated transformation, where the size and complexity of DNA segments needed to achieve efficient transformation is quite large, and it is advantageous to separate functions onto separate DNA molecules. Binary vectors typically contain a plasmid vector that contains the cis-acting sequences required for T-DNA transfer (such as left border and right border), a selectable marker that is engineered to be capable of expression in a plant cell, and a “gene of interest” (a gene engineered to be capable of expression in a plant cell for which generation of transgenic plants is desired). Also present on this plasmid vector are sequences required for bacterial replication. The cis-acting sequences are arranged in a fashion to allow efficient transfer into plant cells and expression therein. For example, the selectable marker gene and the pesticidal gene are located between the left and right borders. Often a second plasmid vector contains the trans-acting factors that mediate T-DNA transfer from Agrobacterium to plant cells. This plasmid often contains the virulence functions (Vir genes) that allow infection of plant cells by Agrobacterium, and transfer of DNA by cleavage at border sequences and vir-mediated DNA transfer, as is understood in the art (Hellens and Mullineaux, (2000) Trends in Plant Science 5:446-451). Several types of Agrobacterium strains (e.g. LBA4404, GV3101, EHA101, EHA105, etc.) can be used for plant transformation. The second plasmid vector is not necessary for transforming the plants by other methods such as microprojection, microinjection, electroporation, polyethylene glycol, etc.

In general, plant transformation methods involve transferring heterologous DNA into target plant cells (e.g., immature or mature embryos, suspension cultures, undifferentiated callus, protoplasts, etc.), followed by applying a maximum threshold level of appropriate selection (depending on the selectable marker gene) to recover the transformed plant cells from a group of untransformed cell mass. Following integration of heterologous foreign DNA into plant cells, one then applies a maximum threshold level of appropriate selection in the medium to kill the untransformed cells and separate and proliferate the putatively transformed cells that survive from this selection treatment by transferring regularly to a fresh medium. By continuous passage and challenge with appropriate selection, one identifies and proliferates the cells that are transformed with the plasmid vector. Molecular and biochemical methods can then be used to confirm the presence of the integrated heterologous gene of interest into the genome of the transgenic plant.

Explants are typically transferred to a fresh supply of the same medium and cultured routinely. Subsequently, the transformed cells are differentiated into shoots after placing on regeneration medium supplemented with a maximum threshold level of selecting agent. The shoots are then transferred to a selective rooting medium for recovering rooted shoot or plantlet. The transgenic plantlet then grows into a mature plant and produces fertile seeds (e.g., Hiei, et al., (1994) The Plant Journal 6:271-282; Ishida, et al., (1996) Nature Biotechnology 14:745-750). Explants are typically transferred to a fresh supply of the same medium and cultured routinely. A general description of the techniques and methods for generating transgenic plants are found in Ayres and Park, (1994) Critical Reviews in Plant Science 13:219-239 and Bommineni and Jauhar, (1997) Maydica 42:107-120. Since the transformed material contains many cells; both transformed and non-transformed cells are present in any piece of subjected target callus or tissue or group of cells. The ability to kill non-transformed cells and allow transformed cells to proliferate results in transformed plant cultures. Often, the ability to remove non-transformed cells is a limitation to rapid recovery of transformed plant cells and successful generation of transgenic plants.

The cells that have been transformed may be grown into plants in accordance with conventional ways. See, for example, McCormick, et al., (1986) Plant Cell Reports 5:81-84. These plants may then be grown, and either pollinated with the same transformed strain or different strains, and the resulting hybrid having constitutive or inducible expression of the desired phenotypic characteristic identified. Two or more generations may be grown to ensure that expression of the desired phenotypic characteristic is stably maintained and inherited and then seeds harvested to ensure that expression of the desired phenotypic characteristic has been achieved.

The nucleotide sequences of the embodiments may be provided to the plant by contacting the plant with a virus or viral nucleic acids. Generally, such methods involve incorporating the nucleotide construct of interest within a viral DNA or RNA molecule. It is recognized that the recombinant proteins of the embodiments may be initially synthesized as part of a viral polyprotein, which later may be processed by proteolysis in vivo or in vitro to produce the desired IPD121 polypeptide. It is also recognized that such a viral polyprotein, comprising at least a portion of the amino acid sequence of an IPD121 polypeptide of the embodiments, may have the desired pesticidal activity. Such viral polyproteins and the nucleotide sequences that encode for them are encompassed by the embodiments. Methods for providing plants with nucleotide constructs and producing the encoded proteins in the plants, which involve viral DNA or RNA molecules, are known in the art. See, for example, U.S. Pat. Nos. 5,889,191; 5,889,190; 5,866,785; 5,589,367 and 5,316,931.

Methods for transformation of chloroplasts are known in the art. See, for example, Svab, et al., (1990) Proc. Natl. Acad. Sci. USA 87:8526-8530; Svab and Maliga, (1993) Proc. Natl. Acad. Sci. USA 90:913-917; Svab and Maliga, (1993) EMBO J. 12:601-606. The method relies on particle gun delivery of DNA containing a selectable marker and targeting of the DNA to the plastid genome through homologous recombination. Additionally, plastid transformation can be accomplished by transactivation of a silent plastid-borne transgene by tissue-preferred expression of a nuclear-encoded and plastid-directed RNA polymerase. Such a system has been reported in McBride, et al., (1994) Proc. Natl. Acad. Sci. USA 91:7301-7305.

The embodiments further relate to plant-propagating material of a transformed plant of the embodiments including, but not limited to, seeds, tubers, corms, bulbs, leaves and cuttings of roots and shoots.

The embodiments may be used for transformation of any plant species, including, but not limited to, monocots and dicots. Examples of plants of interest include, but are not limited to, corn (Zea mays), Brassica sp. (e.g., B. napus, B. rapa, B. juncea), particularly those Brassica species useful as sources of seed oil, alfalfa (Medicago sativa), rice (Oryza sativa), rye (Secale cereale), sorghum (Sorghum bicolor, Sorghum vulgare), millet (e.g., pearl millet (Pennisetum glaucum), proso millet (Panicum miliaceum), foxtail millet (Setaria italica), finger millet (Eleusine coracana)), sunflower (Helianthus annuus), safflower (Carthamus tinctorius), wheat (Triticum aestivum), soybean (Glycine max), tobacco (Nicotiana tabacum), potato (Solanum tuberosum), peanuts (Arachis hypogaea), cotton (Gossypium barbadense, Gossypium hirsutum), sweet potato (Ipomoea batatus), cassava (Manihot esculenta), coffee (Coffea spp.), coconut (Cocos nucifera), pineapple (Ananas comosus), citrus trees (Citrus spp.), cocoa (Theobroma cacao), tea (Camellia sinensis), banana (Musa spp.), avocado (Persea americana), fig (Ficus casica), guava (Psidium guajava), mango (Mangifera indica), olive (Olea europaea), papaya (Carica papaya), cashew (Anacardium occidentale), macadamia (Macadamia integrifolia), almond (Prunus amygdalus), sugar beets (Beta vulgaris), sugarcane (Saccharum spp.), oats, barley, vegetables ornamentals, and conifers.

Vegetables include tomatoes (Lycopersicon esculentum), lettuce (e.g., Lactuca sativa), green beans (Phaseolus vulgaris), lima beans (Phaseolus limensis), peas (Lathyrus spp.), and members of the genus Cucumis such as cucumber (C. sativus), cantaloupe (C. cantalupensis), and musk melon (C. melo). Ornamentals include azalea (Rhododendron spp.), hydrangea (Macrophylla hydrangea), hibiscus (Hibiscus rosasanensis), roses (Rosa spp.), tulips (Tuhpa spp.), daffodils (Narcissus spp.), petunias (Petunia hybrida), carnation (Dianthus caryophyllus), poinsettia (Euphorbia pulcherrima), and chrysanthemum. Conifers that may be employed in practicing the embodiments include, for example, pines such as loblolly pine (Pinus taeda), slash pine (Pinus elliotii), ponderosa pine (Pinus ponderosa), lodgepole pine (Pinus contorta), and Monterey pine (Pinus radiata); Douglas-fir (Pseudotsuga menziesii); Western hemlock (Tsuga canadensis); Sitka spruce (Picea glauca); redwood (Sequoia sempervirens); true firs such as silver fir (Abies amabilis) and balsam fir (Abies balsamea); and cedars such as Western red cedar (Thuja plicata) and Alaska yellow-cedar (Chamaecyparis nootkatensis). Plants of the embodiments include crop plants (for example, corn, alfalfa, sunflower, Brassica, soybean, cotton, safflower, peanut, sorghum, wheat, millet, tobacco, etc.), such as corn and soybean plants.

Turf grasses include, but are not limited to: annual bluegrass (Poa annua); annual ryegrass (Lolium multiflorum); Canada bluegrass (Poa compressa); Chewing's fescue (Festuca rubra); colonial bentgrass (Agrostis tenuis); creeping bentgrass (Agrostis palustris); crested wheatgrass (Agropyron desertorum); fairway wheatgrass (Agropyron cristatum); hard fescue (Festuca longifolia); Kentucky bluegrass (Poa pratensis); orchardgrass (Dactylis glomerata); perennial ryegrass (Lolium perenne); red fescue (Festuca rubra); redtop (Agrostis alba); rough bluegrass (Poa trivialis); sheep fescue (Festuca ovina); smooth bromegrass (Bromus inermis); tall fescue (Festuca arundinacea); timothy (Phleum pratense); velvet bentgrass (Agrostis canina); weeping alkaligrass (Puccinellia distans); western wheatgrass (Agropyron smithii); Bermuda grass (Cynodon spp.); St. Augustine grass (Stenotaphrum secundatum); zoysia grass (Zoysia spp.); Bahia grass (Paspalum notatum); carpet grass (Axonopus affinis); centipede grass (Eremochloa ophiuroides); kikuyu grass (Pennisetum clandesinum); seashore paspalum (Paspalum vaginatum); blue gramma (Bouteloua gracilis); buffalo grass (Buchloe dactyloids); sideoats gramma (Bouteloua curtipendula).

Plants of interest include grain plants that provide seeds of interest, oil-seed plants, and leguminous plants. Seeds of interest include grain seeds, such as corn, wheat, barley, rice, sorghum, rye, millet, etc. Oil-seed plants include cotton, soybean, safflower, sunflower, Brassica, maize, alfalfa, palm, coconut, flax, castor, olive, etc. Leguminous plants include beans and peas. Beans include guar, locust bean, fenugreek, soybean, garden beans, cowpea, mung bean, lima bean, fava bean, lentils, chickpea, etc.

Following introduction of heterologous foreign DNA into plant cells, the transformation or integration of heterologous gene in the plant genome is confirmed by various methods such as analysis of nucleic acids, proteins and metabolites associated with the integrated gene.

PCR analysis is a rapid method to screen transformed cells, tissue or shoots for the presence of incorporated gene at the earlier stage before transplanting into the soil (Sambrook and Russell, (2001) Molecular Cloning: A Laboratory Manual. Cold Spring Harbor Laboratory Press, Cold Spring Harbor, NY). PCR is carried out using oligonucleotide primers specific to the gene of interest or Agrobacterium vector background, etc.

Plant transformation may be confirmed by Southern blot analysis of genomic DNA (Sambrook and Russell, (2001) supra). In Northern blot analysis, RNA is isolated from specific tissues of transformant, fractionated in a formaldehyde agarose gel, and blotted onto a nylon filter according to standard procedures that are routinely used in the art (Sambrook and Russell, (2001) supra). Expression of RNA encoded by the pesticidal gene is then tested by hybridizing the filter to a radioactive probe derived from a pesticidal gene, by methods known in the art (Sambrook and Russell, (2001) supra). Western blot, biochemical assays and the like may be carried out on the transgenic plants to confirm the presence of protein encoded by the pesticidal gene by standard procedures (Sambrook and Russell, 2001, supra) using antibodies that bind to one or more epitopes present on the IPD121 polypeptide.

Methods to Introduce Genome Editing Technologies into Plants

In some embodiments, the disclosed IPD121 polynucleotide compositions can be introduced into the genome of a plant using genome editing technologies, or previously introduced IPD121 polynucleotides in the genome of a plant may be edited using genome editing technologies. For example, the disclosed polynucleotides can be introduced into a desired location in the genome of a plant through the use of double-stranded break technologies such as TALENs, meganucleases, zinc finger nucleases, CRISPR-Cas, and the like. For example, the disclosed polynucleotides can be introduced into a desired location in a genome using a CRISPR-Cas system, for the purpose of site-specific insertion. The desired location in a plant genome can be any desired target site for insertion, such as a genomic region amenable for breeding or may be a target site located in a genomic window with an existing trait of interest. Existing traits of interest could be either an endogenous trait or a previously introduced trait.

In some embodiments, where the disclosed IPD121 polynucleotide has previously been introduced into a genome, genome editing technologies may be used to alter or modify the introduced polynucleotide sequence. Site specific modifications that can be introduced into the disclosed IPD121 polynucleotide compositions include those produced using any method for introducing site specific modification, including, but not limited to, through the use of gene repair oligonucleotides (e.g. US Publication 2013/0019349), or through the use of double-stranded break technologies such as TALENs, meganucleases, zinc finger nucleases, CRISPR-Cas, and the like. Such technologies can be used to modify the previously introduced polynucleotide through the insertion, deletion or substitution of nucleotides within the introduced polynucleotide. Alternatively, double-stranded break technologies can be used to add additional nucleotide sequences to the introduced polynucleotide. Additional sequences that may be added include, additional expression elements, such as enhancer and promoter sequences. In another embodiment, genome editing technologies may be used to position additional insecticidally-active proteins in close proximity to the disclosed IPD121 polynucleotide compositions disclosed herein within the genome of a plant, in order to generate molecular stacks of insecticidally-active proteins.

An “altered target site,” “altered target sequence.” “modified target site,” and “modified target sequence” are used interchangeably herein and refer to a target sequence as disclosed herein that comprises at least one alteration when compared to non-altered target sequence. Such “alterations” include, for example: (i) replacement of at least one nucleotide, (ii) a deletion of at least one nucleotide, (iii) an insertion of at least one nucleotide, or (iv) any combination of (i)-(iii).

Stacking of Traits in Transgenic Plant

Transgenic plants may comprise a stack of one or more insecticidal polynucleotides disclosed herein with one or more additional polynucleotides resulting in the production or suppression of multiple polypeptide sequences. Transgenic plants comprising stacks of polynucleotide sequences can be obtained by either or both of traditional breeding methods or through genetic engineering methods. These methods include, but are not limited to, breeding individual lines each comprising a polynucleotide of interest, transforming a transgenic plant comprising a gene disclosed herein with a subsequent gene and co-transformation of genes into a single plant cell. As used herein, the term “stacked” includes having the multiple traits present in the same plant (i.e., both traits are incorporated into the nuclear genome, one trait is incorporated into the nuclear genome and one trait is incorporated into the genome of a plastid or both traits are incorporated into the genome of a plastid). In one non-limiting example, “stacked traits” comprise a molecular stack where the sequences are physically adjacent to each other. A trait, as used herein, refers to the phenotype derived from a particular sequence or groups of sequences. Co-transformation of genes can be carried out using single transformation vectors comprising multiple genes or genes carried separately on multiple vectors. If the sequences are stacked by genetically transforming the plants, the polynucleotide sequences of interest can be combined at any time and in any order. The traits can be introduced simultaneously in a co-transformation protocol with the polynucleotides of interest provided by any combination of transformation cassettes. For example, if two sequences will be introduced, the two sequences can be contained in separate transformation cassettes (trans) or contained on the same transformation cassette (cis). Expression of the sequences can be driven by the same promoter or by different promoters. In certain cases, it may be desirable to introduce a transformation cassette that will suppress the expression of the polynucleotide of interest. This may be combined with any combination of other suppression cassettes or overexpression cassettes to generate the desired combination of traits in the plant. It is further recognized that polynucleotide sequences can be stacked at a desired genomic location using a site-specific recombination system. See, for example, WO 1999/25821, WO 1999/25854, WO 1999/25840, WO 1999/25855 and WO 1999/25853, all of which are herein incorporated by reference.

In some embodiments, one or more of the polynucleotides encoding the IPD121 polypeptide(s) disclosed herein, alone or stacked with one or more additional insect resistance traits can be stacked with one or more additional input traits (e.g., herbicide resistance, fungal resistance, virus resistance, stress tolerance, disease resistance, male sterility, stalk strength, and the like) or output traits (e.g., increased yield, modified starches, improved oil profile, balanced amino acids, high lysine or methionine, increased digestibility, improved fiber quality, drought resistance, and the like). Thus, the polynucleotide embodiments can be used to provide a complete agronomic package of improved crop quality with the ability to flexibly and cost effectively control any number of agronomic pests.

Transgenes useful for stacking include but are not limited to: transgenes that confer resistance to a herbicide; transgenes that confer or contribute to an altered grain characteristic; genes that control male-sterility; genes that create a site for site specific dna integration; genes that affect abiotic stress resistance; genes that confer increased yield genes that confer plant digestibility; and transgenes that confer resistance to insects or disease.

Examples of transgenes that confer resistance to insects include genes encoding a Bacillus thuringiensis protein, a derivative thereof or a synthetic polypeptide modeled thereon. See, for example, Geiser, et al., (1986) Gene 48:109, who disclose the cloning and nucleotide sequence of a Bt delta-endotoxin gene. Moreover, DNA molecules encoding delta-endotoxin genes can be purchased from American Type Culture Collection (Rockville, Md.), for example, under ATCC® Accession Numbers 40098, 67136, 31995 and 31998. Other non-limiting examples of Bacillus thuringiensis transgenes being genetically engineered are given in the following patents and patent applications: U.S. Pat. Nos. 5,188,960; 5,689,052; 5,880,275; 5,986,177; 6,023,013, 6,060,594, 6,063,597, 6,077,824, 6,620,988, 6,642,030, 6,713,259, 6,893,826, 7,105,332; 7,179,965, 7,208,474; 7,227,056, 7,288,643, 7,323,556, 7,329,736, 7,449,552, 7,468,278, 7,510,878, 7,521,235, 7,544,862, 7,605,304, 7,696,412, 7,629,504, 7,705,216, 7,772,465, 7,790,846, 7,858,849 and WO 1991/14778; WO 1999/31248; WO 2001/12731; WO 1999/24581 and WO 1997/40162.

Genes encoding pesticidal proteins may also be stacked including but are not limited to: insecticidal proteins from Pseudomonas sp. such as PSEEN3174 (Monalysin, (2011) PLoS Pathogens, 7:1-13), from Pseudomonas protegens strain CHA0 and Pf-5 (previously fluorescens) (Pechy-Tarr, (2008) Environmental Microbiology 10:2368-2386: GenBank Accession No. EU400157); from Pseudomonas taiwanensis (Liu, et al., (2010) J. Agric. Food Chem. 58:12343-12349) and from Pseudomonas pseudoalcaligenes (Zhang, et al., (2009) Annals of Microbiology 59:45-50 and Li, et al., (2007) Plant Cell Tiss. Organ Cult. 89:159-168); insecticidal proteins from Photorhabdus sp. and Xenorhabdus sp. (Hinchliffe, et al., (2010) The Open Toxinology Journal 3:101-118 and Morgan, et al., (2001) Applied and Envir. Micro. 67:2062-2069), U.S. Pat. Nos. 6,048,838, and 6,379,946; a PIP-1 polypeptide of US Patent Publication US20140007292; an AFP-1A and/or AFP-1B polypeptide of US Patent Publication US20140033361; a PHI-4 polypeptide of US Patent Publication US20140274885 and US20160040184; a PIP-47 polypeptide of PCT Publication Number WO2015/023846, a PIP-72 polypeptide of PCT Publication Number WO2015/038734; a PtIP-50 polypeptide and a PtIP-65 polypeptide of PCT Publication Number WO2015/120270; a PtIP-83 polypeptide of PCT Publication Number WO2015/120276; a PtIP-96 polypeptide of PCT Serial Number PCT/US15/55502; an IPD079 polypeptide of U.S. Ser. No. 62/201,977; an IPD082 polypeptide of U.S. Ser. No. 62/269,482, and δ-endotoxins including, but not limited to, the Cry1, Cry2, Cry3, Cry4, Cry5, Cry6, Cry7, Cry8, Cry9, Cry10, Cry11, Cry12, Cry13, Cry14, Cry15, Cry16, Cry17, Cry18, Cry19, Cry20, Cry21, Cry22, Cry23, Cry24, Cry25, Cry26, Cry27, Cry 28, Cry 29, Cry 30, Cry31, Cry32, Cry33, Cry34, Cry35, Cry36, Cry37, Cry38, Cry39, Cry40, Cry41, Cry42, Cry43, Cry44, Cry45, Cry 46, Cry47, Cry49, Cry50, Cry51, Cry52, Cry53, Cry 54, Cry55, Cry56, Cry57, Cry58, Cry59, Cry60, Cry61, Cry62, Cry63, Cry64, Cry65, Cry66, Cry67, Cry68, Cry69, Cry70, Cry71, and Cry 72 classes of δ-endotoxin genes and the B. thuringiensis cytolytic Cyt1 and Cyt2 genes. Members of these classes of B. thuringiensis insecticidal proteins well known to one skilled in the art (see, Crickmore, et al., “Bacillus thuringiensis toxin nomenclature” (2011), atlifesci.sussex.ac.uk/home/Neil_Crickmore/Bt/ which can be accessed on the world-wide web using the “www” prefix).

Examples of δ-endotoxins also include but are not limited to Cry1A proteins of U.S. Pat. Nos. 5,880,275 and 7,858,849; a DIG-3 or DIG-11 toxin (N-terminal deletion of α-helix 1 and/or α-helix 2 variants of Cry proteins such as Cry1A) of U.S. Pat. Nos. 8,304,604 and 8,304,605, Cry1B of U.S. patent application Ser. No. 10/525,318, abandoned; Cry1C of U.S. Pat. No. 6,033,874; Cry1F of U.S. Pat. Nos. 5,188,960, 6,218,188; Cry1A/F chimeras of U.S. Pat. Nos. 7,070,982; 6,962,705 and 6,713,063); a Cry2 protein such as Cry2Ab protein of U.S. Pat. No. 7,064,249); a Cry3A protein including but not limited to an engineered hybrid insecticidal protein (eHIP) created by fusing unique combinations of variable regions and conserved blocks of at least two different Cry proteins (US Patent Application Publication Number 2010/0017914); a Cry4 protein; a Cry5 protein; a Cry6 protein; Cry8 proteins of U.S. Pat. Nos. 7,329,736, 7,449,552, 7,803,943, 7,476,781, 7,105,332, 7,378,499 and 7,462,760; a Cry9 protein such as members of the Cry9A, Cry9B, Cry9C, Cry9D, Cry9E, and Cry9F families; a Cry15 protein of Naimov, et al., (2008) Applied and Environmental Microbiology 74:7145-7151; a Cry22, a Cry34Ab1 protein of U.S. Pat. Nos. 6,127,180, 6,624,145 and 6,340,593; a CryET33 and CryET34 protein of U.S. Pat. Nos. 6,248,535, 6,326,351, 6,399,330, 6,949,626, 7,385,107 and 7,504,229; a CryET33 and CryET34 homologs of US Patent Publication Number 2006/0191034, 2012/0278954, and PCT Publication Number WO 2012/139004; a Cry35Ab1 protein of U.S. Pat. Nos. 6,083,499, 6,548,291 and 6,340,593; a Cry46 protein, a Cry 51 protein, a Cry binary toxin; a TIC901 or related toxin; TIC807 of US 2008/0295207; ET29, ET37, TIC809, TIC810, TIC812, TIC127, TIC128 of PCT US 2006/033867; AXMI-027, AXMI-036, and AXMI-038 of U.S. Pat. No. 8,236,757; AXMI-031, AXMI-039, AXMI-040, AXMI-049 of U.S. Pat. No. 7,923,602; AXMI-018, AXMI-020, and AXMI-021 of WO 2006/083891; AXMI-010 of WO 2005/038032; AXMI-003 of WO 2005/021585; AXMI-008 of US 2004/0250311; AXMI-006 of US 2004/0216186; AXMI-007 of US 2004/0210965; AXMI-009 of US 2004/0210964; AXMI-014 of US 2004/0197917; AXMI-004 of US 2004/0197916; AXMI-028 and AXMI-029 of WO 2006/119457; AXMI-007, AXMI-008, AXMI-0080rf2, AXMI-009, AXMI-014 and AXMI-004 of WO 2004/074462; AXMI-150 of U.S. Pat. No. 8,084,416; AXMI-205 of US20110023184; AXMI-011, AXMI-012, AXMI-013, AXMI-015, AXMI-019, AXMI-044, AXMI-037, AXMI-043, AXMI-033, AXMI-034, AXMI-022, AXMI-023, AXMI-041, AXMI-063, and AXMI-064 of US 2011/0263488; AXMI-R1 and related proteins of US 2010/0197592; AXMI221Z, AXMI222z, AXMI223z, AXMI224z and AXMI225z of WO 2011/103248; AXMI218, AXMI219, AXMI220, AXMI226, AXMI227, AXMI228, AXMI229, AXMI230, and AXMI231 of WO11/103247; AXMI-115, AXMI-113, AXMI-005, AXMI-163 and AXMI-184 of U.S. Pat. No. 8,334,431; AXMI-001, AXMI-002, AXMI-030, AXMI-035, and AXMI-045 of US 2010/0298211; AXMI-066 and AXMI-076 of US2009/0144852; AXMI128, AXMI130, AXMI131, AXMI133, AXMI140, AXMI141, AXMI142, AXMI143, AXMI144, AXMI146, AXMI148, AXMI149, AXMI152, AXMI153, AXMI154, AXMI155, AXMI156, AXMI157, AXMI158, AXMI162, AXMI165, AXMI166, AXMI167, AXMI168, AXMI169, AXMI170, AXMI171, AXMI172, AXMI173, AXMI174, AXMI175, AXMI176, AXMI177, AXMI178, AXMI179, AXMI180, AXMI181, AXMI182, AXMI185, AXMI186, AXMI187, AXMI188, AXMI189 of U.S. Pat. No. 8,318,900; AXMI079, AXMI080, AXMI081, AXMI082, AXMI091, AXMI092, AXMI096, AXMI097, AXMI098, AXMI099, AXMI100, AXMI101, AXMI102, AXMI103, AXMI104, AXMI107, AXMI108, AXMI109, AXMI110, AXMI111, AXMI112, AXMI114, AXMI116, AXMI117, AXMI118, AXMI119, AXMI120, AXMI121, AXMI122, AXMI123, AXMI124, AXMI1257, AXMI1268, AXMI127, AXMI129, AXMI164, AXMI151, AXMI161, AXMI183, AXMI132, AXMI138, AXMI137 of US 2010/0005543; and Cry proteins such as Cry1A and Cry3A having modified proteolytic sites of U.S. Pat. No. 8,319,019; and a Cry1Ac, Cry2Aa and Cry1Ca toxin protein from Bacillus thuringiensis strain VBTS 2528 of US Patent Application Publication Number 2011/0064710. Other Cry proteins are well known to one skilled in the art (see, Crickmore, et al., “Bacillus thuringiensis toxin nomenclature” (2011), at lifesci.sussex.ac.uk/home/Neil_Crickmore/Bt/ which can be accessed on the world-wide web using the “www” prefix). The insecticidal activity of Cry proteins is well known to one skilled in the art (for review, see, van Frannkenhuyzen, (2009)1 Invert. Path. 101:1-16). The use of Cry proteins as transgenic plant traits is well known to one skilled in the art and Cry-transgenic plants including but not limited to Cry1Ac, Cry1Ac+Cry2Ab, Cry1Ab, Cry1A.105, Cry1F, Cry1Fa2, Cry1F+Cry1Ac, Cry2Ab, Cry3A, mCry3A, Cry3Bb1, Cry34Ab1, Cry35Ab1, Vip3A, mCry3A, Cry9c and CBI-Bt have received regulatory approval (see, Sanahuja, (2011) Plant Biotech Journal 9:283-300 and the CERA (2010) GM Crop Database Center for Environmental Risk Assessment (CERA), ILSI Research Foundation, Washington D.C. at cera-gmc.org/index.php?action=gm_crop_database which can be accessed on the world-wide web using the “www” prefix). More than one pesticidal proteins well known to one skilled in the art can also be expressed in plants such as Vip3Ab & Cry1Fa (US2012/0317682), Cry 1BE & Cry1F (US2012/0311746), Cry1CA & Cry 1 AB (US2012/0311745), Cry 1F & CryCa (US2012/0317681), Cry1DA & Cry 1BE (US2012/0331590), Cry1DA & Cry1Fa (US2012/0331589), Cry 1 AB & Cry 1BE (US2012/0324606), and Cry1Fa & Cry2Aa, Cry1I or Cry1E (US2012/0324605). Pesticidal proteins also include insecticidal lipases including lipid acyl hydrolases of U.S. Pat. No. 7,491,869, and cholesterol oxidases such as from Streptomyces (Purcell et al. (1993) Biochem Biophys Res Commun 15:1406-1413). Pesticidal proteins also include VIP (vegetative insecticidal proteins) toxins of U.S. Pat. Nos. 5,877,012, 6,107,279, 6,137,033, 7,244,820, 7,615,686, and 8,237,020, and the like. Other VIP proteins are well known to one skilled in the art (see, lifesci.sussex.ac.uk/home/Neil_Crickmore/Bt/vip.html which can be accessed on the world-wide web using the “www” prefix). Pesticidal proteins also include toxin complex (TC) proteins, obtainable from organisms such as Xenorhabdus, Photorhabdus and Paenibacillus (see, U.S. Pat. Nos. 7,491,698 and 8,084,418). Some TC proteins have “stand alone” insecticidal activity and other TC proteins enhance the activity of the stand-alone toxins produced by the same given organism. The toxicity of a “stand-alone” TC protein (from Photorhabdus, Xenorhabdus or Paenibacillus, for example) can be enhanced by one or more TC protein “potentiators” derived from a source organism of a different genus. There are three main types of TC proteins. As referred to herein, Class A proteins (“Protein A”) are stand-alone toxins. Class B proteins (“Protein B”) and Class C proteins (“Protein C”) enhance the toxicity of Class A proteins. Examples of Class A proteins are TcbA, TcdA, XptA1 and XptA2. Examples of Class B proteins are TcaC, TcdB, XptB1Xb and XptC1Wi. Examples of Class C proteins are TccC, XptC1Xb and XptB1Wi. Pesticidal proteins also include spider, snake and scorpion venom proteins. Examples of spider venom peptides include but are not limited to lycotoxin-1 peptides and mutants thereof (U.S. Pat. No. 8,334,366).

Further transgenes that confer resistance to insects may down-regulation of expression of target genes in insect pest species by interfering ribonucleic acid (RNA) molecules through RNA interference. RNA interference refers to the process of sequence-specific post-transcriptional gene silencing in animals mediated by short interfering RNAs (siRNAs) (Fire, et al., (1998) Nature 391:806). RNAi transgenes may include but are not limited to expression of dsRNA, siRNA, miRNA, iRNA, antisense RNA, or sense RNA molecules that down-regulate expression of target genes in insect pests. PCT Publication WO 2007/074405 describes methods of inhibiting expression of target genes in invertebrate pests including Colorado potato beetle. PCT Publication WO 2005/110068 describes methods of inhibiting expression of target genes in invertebrate pests including in particular Western corn rootworm as a means to control insect infestation. Furthermore, PCT Publication WO 2009/091864 describes compositions and methods for the suppression of target genes from insect pest species including pests from the Lygus genus.

RNAi transgenes are provided for targeting the vacuolar ATPase H subunit, useful for controlling a coleopteran pest population and infestation as described in US Patent Application Publication 2012/0198586. PCT Publication WO 2012/055982 describes ribonucleic acid (RNA or double stranded RNA) that inhibits or down regulates the expression of a target gene that encodes: an insect ribosomal protein such as the ribosomal protein L19, the ribosomal protein L40 or the ribosomal protein S27A; an insect proteasome subunit such as the Rpn6 protein, the Pros 25, the Rpn2 protein, the proteasome beta 1 subunit protein or the Pros beta 2 protein; an insect β-coatomer of the COPI vesicle, the γ-coatomer of the COPI vesicle, the β′-coatomer protein or the ζ-coatomer of the COPI vesicle; an insect Tetraspanine 2 A protein which is a putative transmembrane domain protein; an insect protein belonging to the actin family such as Actin 5C; an insect ubiquitin-5E protein; an insect Sec23 protein which is a GTPase activator involved in intracellular protein transport; an insect crinkled protein which is an unconventional myosin which is involved in motor activity; an insect crooked neck protein which is involved in the regulation of nuclear alternative mRNA splicing; an insect vacuolar H+-ATPase G-subunit protein and an insect Tbp-1 such as Tat-binding protein. PCT publication WO 2007/035650 describes ribonucleic acid (RNA or double stranded RNA) that inhibits or down regulates the expression of a target gene that encodes Snf7. US Patent Application publication 2011/0054007 describes polynucleotide silencing elements targeting RPS10. US Patent Application publication 2014/0275208 and US2015/0257389 describes polynucleotide silencing elements targeting RyanR and PAT3. PCT publications WO/2016/138106, WO 2016/060911, WO 2016/060912, WO 2016/060913, and WO 2016/060914 describe polynucleotide silencing elements targeting COPI coatomer subunit nucleic acid molecules that confer resistance to Coleopteran and Hemipteran pests. US Patent Application Publications 2012/029750, US 20120297501, and 2012/0322660 describe interfering ribonucleic acids (RNA or double stranded RNA) that functions upon uptake by an insect pest species to down-regulate expression of a target gene in said insect pest, wherein the RNA comprises at least one silencing element wherein the silencing element is a region of double-stranded RNA comprising annealed complementary strands, one strand of which comprises or consists of a sequence of nucleotides which is at least partially complementary to a target nucleotide sequence within the target gene. US Patent Application Publication 2012/0164205 describe potential targets for interfering double stranded ribonucleic acids for inhibiting invertebrate pests including: a Chd3 Homologous Sequence, a Beta-Tubulin Homologous Sequence, a 40 kDa V-ATPase Homologous Sequence, a EF1α Homologous Sequence, a 26S Proteosome Subunit p28 Homologous Sequence, a Juvenile Hormone Epoxide Hydrolase Homologous Sequence, a Swelling Dependent Chloride Channel Protein Homologous Sequence, a Glucose-6-Phosphate 1-Dehydrogenase Protein Homologous Sequence, an Act42A Protein Homologous Sequence, a ADP-Ribosylation Factor 1 Homologous Sequence, a Transcription Factor IIB Protein Homologous Sequence, a Chitinase Homologous Sequences, a Ubiquitin Conjugating Enzyme Homologous Sequence, a Glyceraldehyde-3-Phosphate Dehydrogenase Homologous Sequence, an Ubiquitin B Homologous Sequence, a Juvenile Hormone Esterase Homolog, and an Alpha Tubuliln Homologous Sequence.

Use in Pesticidal Control

General methods for employing strains comprising a nucleic acid sequence of the embodiments or a variant thereof, in pesticide control or in engineering other organisms as pesticidal agents are known in the art.

Microorganism hosts that are known to occupy the “phytosphere” (phylloplane, phyllosphere, rhizosphere, and/or rhizoplana) of one or more crops of interest may be selected. These microorganisms are selected so as to be capable of successfully competing in the particular environment with the wild-type microorganisms, provide for stable maintenance and expression of the gene(s) expressing one or more of the IPD121 polypeptides and desirably provide for improved protection of the pesticide from environmental degradation and inactivation.

Alternatively, the IPD121 polypeptide is produced by introducing a heterologous gene into a cellular host. Expression of the heterologous gene results, directly or indirectly, in the intracellular production and maintenance of the pesticide. These cells are then treated under conditions that prolong the activity of the toxin produced in the cell when the cell is applied to the environment of target pest(s). The resulting product retains the toxicity of the toxin. These naturally encapsulated IPD121 polypeptides may then be formulated in accordance with conventional techniques for application to the environment hosting a target pest, e.g., soil, water, and foliage of plants. See, for example EPA 0192319, and the references cited therein.

Pesticidal Compositions

In some embodiments the active ingredients can be applied in the form of compositions and can be applied to the crop area or plant to be treated, simultaneously or in succession, with other compounds. These compounds can be fertilizers, weed killers, Cryoprotectants, surfactants, detergents, pesticidal soaps, dormant oils, polymers, and/or time-release or biodegradable carrier formulations that permit long-term dosing of a target area following a single application of the formulation. They can also be selective herbicides, chemical insecticides, virucides, microbicides, amoebicides, pesticides, fungicides, bacteriocides, nematocides, molluscicides or mixtures of several of these preparations, if desired, together with further agriculturally acceptable carriers, surfactants or application-promoting adjuvants customarily employed in the art of formulation. Suitable carriers and adjuvants can be solid or liquid and correspond to the substances ordinarily employed in formulation technology, e.g. natural or regenerated mineral substances, solvents, dispersants, wetting agents, tackifiers, binders or fertilizers. Likewise, the formulations may be prepared into edible “baits” or fashioned into pest “traps” to permit feeding or ingestion by a target pest of the pesticidal formulation.

Methods of applying an active ingredient or an agrochemical composition that contains at least one of the IPD121 polypeptide(s) produced by the bacterial strains include leaf application, seed coating and soil application. The number of applications and the rate of application depend on the intensity of infestation by the corresponding pest.

The composition may be formulated as a powder, dust, pellet, granule, spray, emulsion, colloid, solution or such like, and may be prepared by such conventional means as desiccation, lyophilization, homogenation, extraction, filtration, centrifugation, sedimentation or concentration of a culture of cells comprising the polypeptide. In all such compositions that contain at least one such pesticidal polypeptide, the polypeptide may be present in a concentration of from about 1% to about 99% by weight.

Lepidopteran, Dipteran, Heteropteran, nematode, Hemiptera or Coleopteran pests may be killed or reduced in numbers in a given area by the methods of the disclosure or may be prophylactically applied to an environmental area to prevent infestation by a susceptible pest. Preferably the pest ingests or is contacted with, a pesticidally-effective amount of the polypeptide. “Pesticidally-effective amount” as used herein refers to an amount of the pesticide that is able to bring about death to at least one pest or to noticeably reduce pest growth, feeding or normal physiological development. This amount will vary depending on such factors as, for example, the specific target pests to be controlled, the specific environment, location, plant, crop or agricultural site to be treated, the environmental conditions and the method, rate, concentration, stability, and quantity of application of the pesticidally-effective polypeptide composition. The formulations may also vary with respect to climatic conditions, environmental considerations, and/or frequency of application and/or severity of pest infestation.

The pesticide compositions described may be made by formulating either the bacterial cell, Crystal and/or spore suspension or isolated protein component with the desired agriculturally-acceptable carrier. The compositions may be formulated prior to administration in an appropriate means such as lyophilized, freeze-dried, desiccated or in an aqueous carrier, medium or suitable diluent, such as saline or other buffer. The formulated compositions may be in the form of a dust or granular material or a suspension in oil (vegetable or mineral) or water or oil/water emulsions or as a wettable powder or in combination with any other carrier material suitable for agricultural application. Suitable agricultural carriers can be solid or liquid and are well known in the art. The term “agriculturally-acceptable carrier” covers all adjuvants, inert components, dispersants, surfactants, tackifiers, binders, etc. that are ordinarily used in pesticide formulation technology; these are well known to those skilled in pesticide formulation. The formulations may be mixed with one or more solid or liquid adjuvants and prepared by various means, e.g., by homogeneously mixing, blending and/or grinding the pesticidal composition with suitable adjuvants using conventional formulation techniques. Suitable formulations and application methods are described in U.S. Pat. No. 6,468,523. The plants can also be treated with one or more chemical compositions, including one or more herbicide, insecticides or fungicides. Exemplary chemical compositions include: Fruits/Vegetables Herbicides: Atrazine, Bromacil, Diuron, Glyphosate, Linuron, Metribuzin, Simazine, Trifluralin, Fluazifop, Glufosinate, Halo sulfuron Gowan, Paraquat, Propyzamide, Sethoxydim, Butafenacil, Halosulfuron, Indaziflam; Fruits/Vegetables Insecticides: Aldicarb, Bacillus thuriengiensis, Carbaryl, Carbofuran, Chlorpyrifos, Cypermethrin, Deltamethrin, Diazinon, Malathion, Abamectin, Cyfluthrin/beta-cyfluthrin, Esfenvalerate, Lambda-cyhalothrin, Acequinocyl, Bifenazate, Methoxyfenozide, Novaluron, Chromafenozide, Thiacloprid, Dinotefuran, FluaCrypyrim, Tolfenpyrad, Clothianidin, Spirodiclofen, Gamma-cyhalothrin, Spiromesifen, Spinosad, Rynaxypyr, Cyazypyr, Spinoteram, Triflumuron, Spirotetramat, Imidacloprid, Flubendiamide, Thiodicarb, Metaflumizone, Sulfoxaflor, Cyflumetofen, Cyanopyrafen, Imidacloprid, Clothianidin, Thiamethoxam, Spinotoram, Thiodicarb, Flonicamid, Methiocarb, Emamectin-benzoate, Indoxacarb, Forthiazate, Fenamiphos, Cadusaphos, Pyriproxifen, Fenbutatin-oxid, Hexthiazox, Methomyl, 4-[[(6-Chlorpyridin-3-yl)methyl](2,2-difluorethy)amino]furan-2(5H)-on; Fruits/Vegetables Fungicides: Carbendazim, Chlorothalonil, EBDCs, Sulphur, Thiophanate-methyl, Azoxystrobin, Cymoxanil, Fluazinam, Fosetyl, Iprodione, Kresoxim-methyl, Metalaxyl/mefenoxam, Trifloxystrobin, Ethaboxam, Iprovalicarb, Trifloxystrobin, Fenhexamid, Oxpoconazole fumarate, Cyazofamid, Fenamidone, Zoxamide, Picoxystrobin, Pyraclostrobin, Cyflufenamid, Boscalid; Cereals Herbicides: Isoproturon, Bromoxynil, Ioxynil, Phenoxies, Chlorsulfuron, Clodinafop, Diclofop, Diflufenican, Fenoxaprop, Florasulam, Fluoroxypyr, Metsulfuron, Triasulfuron, Flucarbazone, Iodosulfuron, Propoxycarbazone, Picolinafen, Mesosulfuron, Beflubutamid, Pinoxaden, Amidosulfuron, Thifensulfuron Methyl, Tribenuron, Flupyrsulfuron, Sulfosulfuron, Pyrasulfotole, Pyroxsulam, Flufenacet, Tralkoxydim, Pyroxasulfon; Cereals Fungicides: Carbendazim, Chlorothalonil, Azoxystrobin, Cyproconazole, Cyprodinil, Fenpropimorph, Epoxiconazole, Kresoxim-methyl, Quinoxyfen, Tebuconazole, Trifloxystrobin, Simeconazole, Picoxystrobin, Pyraclostrobin, Dimoxystrobin, Prothioconazole, Fluoxastrobin; Cereals Insecticides: Dimethoate, Lambda-cyhalthrin, Deltamethrin, alpha-Cypermethrin, β-cyfluthrin, Bifenthrin, Imidacloprid, Clothianidin, Thiamethoxam, Thiacloprid, Acetamiprid, Dinetofuran, Clorphyriphos, Metamidophos, Oxidemethon-methyl, Pirimicarb, Methiocarb; Maize Herbicides: Atrazine, Alachlor, Bromoxynil, Acetochlor, Dicamba, Clopyralid, (S-) Dimethenamid, Glufosinate, Glyphosate, Isoxaflutole, (S-)Metolachlor, Mesotrione, Nicosulfuron, Primisulfuron, Rimsulfuron, Sulcotrione, Foramsulfuron, Topramezone, Tembotrione, Saflufenacil, Thiencarbazone, Flufenacet, Pyroxasulfon; Maize Insecticides: Carbofuran, Chlorpyrifos, Bifenthrin, Fipronil, Imidacloprid, Lambda-Cyhalothrin, Tefluthrin, Terbufos, Thiamethoxam, Clothianidin, Spiromesifen, Flubendiamide, Triflumuron, Rynaxypyr, Deltamethrin, Thiodicarb, β-Cyfluthrin, Cypermethrin, Bifenthrin, Lufenuron, Triflumoron, Tefluthrin, Tebupirimphos, Ethiprole, Cyazypyr, Thiacloprid, Acetamiprid, Dinetofuran, Avermectin, Methiocarb, Spirodiclofen, Spirotetramat; Maize Fungicides: Fenitropan, Thiram, Prothioconazole, Tebuconazole, Trifloxystrobin; Rice Herbicides: Butachlor, Propanil, Azimsulfuron, Bensulfuron, Cyhalofop, Daimuron, Fentrazamide, Imazosulfuron, Mefenacet, Oxaziclomefone, Pyrazosulfuron, Pyributicarb, Quinclorac, Thiobencarb, Indanofan, Flufenacet, Fentrazamide, Halosulfuron, Oxaziclomefone, Benzobicyclon, Pyriftalid, Penoxsulam, Bispyribac, Oxadiargyl, Ethoxysulfuron, Pretilachlor, Mesotrione, Tefuryltrione, Oxadiazone, Fenoxaprop, Pyrimisulfan; Rice Insecticides: Diazinon, Fenitrothion, Fenobucarb, Monocrotophos, Benfuracarb, Buprofezin, Dinotefuran, Fipronil, Imidacloprid, Isoprocarb, Thiacloprid, Chromafenozide, Thiacloprid, Dinotefuran, Clothianidin, Ethiprole, Flubendiamide, Rynaxypyr, Deltamethrin, Acetamiprid, Thiamethoxam, Cyazypyr, Spinosad, Spinotoram, Emamectin-Benzoate, Cypermethrin, Chlorpyriphos, Cartap, Methamidophos, Etofenprox, Triazophos, 4-[[(6-Chlorpyridin-3-yl)methyl](2,2-difluorethyl)amino]furan-2(5H)-on, Carbofuran, Benfuracarb; Rice Fungicides: Thiophanate-methyl, Azoxystrobin, Carpropamid, Edifenphos, Ferimzone, Iprobenfos, Isoprothiolane, Pencycuron, Probenazole, Pyroquilon, Tricyclazole, Trifloxystrobin, Diclocymet, Fenoxanil, Simeconazole, Tiadinil; Cotton Herbicides: Diuron, Fluometuron, MSMA, Oxyfluorfen, Prometryn, Trifluralin, Carfentrazone, Clethodim, Fluazifop-butyl, Glyphosate, Norflurazon, Pendimethalin, Pyrithiobac-sodium, Trifloxysulfuron, Tepraloxydim, Glufosinate, Flumioxazin, Thidiazuron; Cotton Insecticides: Acephate, Aldicarb, Chlorpyrifos, Cypermethrin, Deltamethrin, Malathion, Monocrotophos, Abamectin, Acetamiprid, Emamectin Benzoate, Imidacloprid, Indoxacarb, Lambda-Cyhalothrin, Spinosad, Thiodicarb, Gamma-Cyhalothrin, Spiromesifen, Pyridalyl, Flonicamid, Flubendiamide, Triflumuron, Rynaxypyr, Beta-Cyfluthrin, Spirotetramat, Clothianidin, Thiamethoxam, Thiacloprid, Dinetofuran, Flubendiamide, Cyazypyr, Spinosad, Spinotoram, gamma Cyhalothrin, 4-[[(6-Chlorpyridin-3-yl)methyl](2,2-difluorethyl)amino]furan-2(5H)-on, Thiodicarb, Avermectin, Flonicamid, Pyridalyl, Spiromesifen, Sulfoxaflor, Profenophos, Thriazophos, Endosulfan; Cotton Fungicides: Etridiazole, Metalaxyl, Quintozene; Soybean Herbicides: Alachlor, Bentazone, Trifluralin, Chlorimuron-Ethyl, Cloransulam-Methyl, Fenoxaprop, Fomesafen, Fluazifop, Glyphosate, Imazamox, Imazaquin, Imazethapyr, (S-)Metolachlor, Metribuzin, Pendimethalin, Tepraloxydim, Glufosinate; Soybean Insecticides: Lambda-cyhalothrin, Methomyl, Parathion, Thiocarb, Imidacloprid, Clothianidin, Thiamethoxam, Thiacloprid, Acetamiprid, Dinetofuran, Flubendiamide, Rynaxypyr, Cyazypyr, Spinosad, Spinotoram, Emamectin-Benzoate, Fipronil, Ethiprole, Deltamethrin, β-Cyfluthrin, gamma and lambda Cyhalothrin, 4-[[(6-Chlorpyridin-3-yl)methyl](2,2-difluorethyl)amino]furan-2(5H)-on, Spirotetramat, Spinodiclofen, Triflumuron, Flonicamid, Thiodicarb, beta-Cyfluthrin; Soybean Fungicides: Azoxystrobin, Cyproconazole, Epoxiconazole, Flutriafol, Pyraclostrobin, Tebuconazole, Trifloxystrobin, Prothioconazole, Tetraconazole; Sugarbeet Herbicides: Chloridazon, Desmedipham, Ethofumesate, Phenmedipham, Triallate, Clopyralid, Fluazifop, Lenacil, Metamitron, Quinmerac, Cycloxydim, Triflusulfuron, Tepraloxydim, Quizalofop; Sugarbeet Insecticides: Imidacloprid, Clothianidin, Thiamethoxam, Thiacloprid, Acetamiprid, Dinetofuran, Deltamethrin, β-Cyfluthrin, gamma/lambda Cyhalothrin, 4-[[(6-Chlorpyridin-3-yl)methyl](2,2-difluorethyl)amino]furan-2(5H)-on, Tefluthrin, Rynaxypyr, Cyaxypyr, Fipronil, Carbofuran; Canola Herbicides: Clopyralid, Diclofop, Fluazifop, Glufosinate, Glyphosate, Metazachlor, Trifluralin Ethametsulfuron, Quinmerac, Quizalofop, Clethodim, Tepraloxydim; Canola Fungicides: Azoxystrobin, Carbendazim, Fludioxonil, Iprodione, Prochloraz, Vinclozolin; Canola Insecticides: Carbofuran organophosphates, Pyrethroids, Thiacloprid, Deltamethrin, Imidacloprid, Clothianidin, Thiamethoxam, Acetamiprid, Dinetofuran, β-Cyfluthrin, gamma and lambda Cyhalothrin, tau-Fluvaleriate, Ethiprole, Spinosad, Spinotoram, Flubendiamide, Rynaxypyr, Cyazypyr, 4-[[(6-Chlorpyridin-3-yl)methyl](2,2-difluorethyl)amino]furan-2(5H)-on.

In some embodiments the herbicide is Atrazine, Bromacil, Diuron, Chlorsulfuron, Metsulfuron, Thifensulfuron Methyl, Tribenuron, Acetochlor, Dicamba, Isoxaflutole, Nicosulfuron, Rimsulfuron, Pyrithiobac-sodium, Flumioxazin, Chlorimuron-Ethyl, Metribuzin, Quizalofop, S-metolachlor, Hexazinne or combinations thereof.

In some embodiments the insecticide is Esfenvalerate, Chlorantraniliprole, Methomyl, Indoxacarb, Oxamyl or combinations thereof.

Pesticidal and Insecticidal Activity

“Pest” includes but is not limited to, insects, fungi, bacteria, nematodes, mites, ticks and the like. Insect pests include insects selected from the orders Coleoptera, Diptera, Hymenoptera, Lepidoptera, Mallophaga, Homoptera, Hemiptera Orthroptera, Thysanoptera, Dermaptera, Isoptera, Anoplura, Siphonaptera, Trichoptera, etc., particularly Lepidoptera and Coleoptera.

Those skilled in the art will recognize that not all compounds are equally effective against all pests. Compounds of the embodiments display activity against insect pests, which may include economically important agronomic, forest, greenhouse, nursery ornamentals, food and fiber, public and animal health, domestic and commercial structure, household and stored product pests.

Larvae of the order Lepidoptera include, but are not limited to, armyworms, cutworms, loopers and heliothines in the family Noctuidae Spodoptera frupperda JE Smith (fall armyworm); S. exigua Hubner (beet armyworm); S. litura Fabricius (tobacco cutworm, cluster caterpillar); Mamestra configurata Walker (bertha armyworm); M. brassicae Linnaeus (cabbage moth); Agrotis Ipsilon Hufnagel (black cutworm); A. orthogonia Morrison (western cutworm); A. subterranea Fabricius (granulate cutworm); Alabama argillacea Hubner (cotton leaf worm); Trichoplusia ni Hubner (cabbage looper); Pseudoplusia includens Walker (soybean looper); Anticarsia gemmatalis Hubner (velvetbean caterpillar); Hypena scabra Fabricius (green cloverworm); Heliothis virescens Fabricius (tobacco budworm); Pseudaletia unipuncta Haworth (armyworm); Athetis mindara Barnes and Mcdunnough (rough skinned cutworm); Euxoa messoria Harris (darksided cutworm); Earias insulana Boisduval (spiny bollworm); E. vittella Fabricius (spotted bollworm); Helicoverpa armigera Hubner (American bollworm); H. zea Boddie (corn earworm or cotton bollworm); Melanchra picta Harris (zebra caterpillar); Egira (Xylomyges) curialis Grote (citrus cutworm); borers, casebearers, webworms, coneworms, and skeletonizers from the family Pyralidae Ostrinia nubilalis Hubner (European corn borer); Amyelois transitella Walker (naval orangeworm); Anagasta kuehniella Zeller (Mediterranean flour moth); Cadra cautella Walker (almond moth); Chilo suppressalis Walker (rice stem borer); C. partellus, (sorghum borer); Corcyra cephalonica Stainton (rice moth); Crambus caliginosellus Clemens (corn root webworm); C. teterrellus Zincken (bluegrass webworm); Cnaphalocrocis medinalis Guenee (rice leaf roller); Desmia funeralis Hubner (grape leaffolder); Diaphania hyalinata Linnaeus (melon worm); D. nitidalis Stoll (pickleworm); Diatraea grandiosella Dyar (southwestern corn borer), D. saccharalis Fabricius (surgarcane borer); Eoreuma loftini Dyar (Mexican rice borer); Ephestia elutella Hubner (tobacco (cacao) moth); Galleria mellonella Linnaeus (greater wax moth); Herpetogramma licarsisalis Walker (sod webworm); Homoeosoma electellum Hulst (sunflower moth); Elasmopalpus lignosellus Zeller (lesser cornstalk borer); Achroia grisella Fabricius (lesser wax moth); Loxostege sticticalis Linnaeus (beet webworm); Orthaga thyrisalis Walker (tea tree web moth); Maruca testulalis Geyer (bean pod borer); Plodia interpunctella Hubner (Indian meal moth); Scirpophaga incertulas Walker (yellow stem borer); Udea rubigalis Guenee (celery leaftier); and leafrollers, budworms, seed worms and fruit worms in the family Tortricidae Acleris gloverana Walsingham (Western blackheaded budworm); A. variana Fernald (Eastern blackheaded budworm); Archips argyrospila Walker (fruit tree leaf roller); A. rosana Linnaeus (European leaf roller); and other Archips species, Adoxophyes orana Fischer von Rosslerstamm (summer fruit tortrix moth); Cochylis hospes Walsingham (banded sunflower moth); Cydia latiferreana Walsingham (filbertworm); C. pomonella Linnaeus (coding moth); Platynota flavedana Clemens (variegated leafroller); P. stultana Walsingham (omnivorous leafroller); Lobesia botrana Denis & Schiffermüller (European grape vine moth); Spilonota ocellana Denis & Schiffermüller (eyespotted bud moth); Endopiza viteana Clemens (grape berry moth); Eupoecilia ambiguella Hubner (vine moth); Bonagota salubricola Meyrick (Brazilian apple leafroller); Grapholita molesta Busck (oriental fruit moth); Suleima helianthana Riley (sunflower bud moth); Argyrotaenia spp.; Choristoneura spp.

Selected other agronomic pests in the order Lepidoptera include, but are not limited to, Alsophila pometaria Harris (fall cankerworm); Anarsia lineatella Zeller (peach twig borer); Anisota senatoria J. E. Smith (orange striped oakworm); Antheraea pernyi Guérin-Mèneville (Chinese Oak Tussah Moth); Bombyx mori Linnaeus (Silkworm); Bucculatrix thurberiella Busck (cotton leaf perforator); Colias eurytheme Boisduval (alfalfa caterpillar); Datana integerrima Grote & Robinson (walnut caterpillar); Dendrolimus sibiricus Tschetwerikov (Siberian silk moth), Ennomos subsignaria Hubner (elm spanworm); Erannis tiliaria Harris (linden looper); Euproctis chrysorrhoea Linnaeus (browntail moth); Harrisina americana Guerin-Meneville (grapeleaf skeletonizer); Hemileuca oliviae Cockrell (range caterpillar); Hyphantria cunea Drury (fall webworm); Keiferia lycopersicella Walsingham (tomato pinworm); Lambdina fiscellaria fiscellaria Hulst (Eastern hemlock looper); L. fiscellaria lugubrosa Hulst (Western hemlock looper); Leucoma salicis Linnaeus (satin moth); Lymantria dispar Linnaeus (gypsy moth); Manduca quinquemaculata Haworth (five spotted hawk moth, tomato hornworm); M. sexta Haworth (tomato hornworm, tobacco hornworm); Operophtera brumata Linnaeus (winter moth); Paleacrita vernata Peck (spring cankerworm); Papilio cresphontes Cramer (giant swallowtail orange dog); Phryganidia californica Packard (California oakworm); Phyllocnistis citrella Stainton (citrus leafminer); Phyllonorycter blancardella Fabricius (spotted tentiform leafminer); Pieris brassicae Linnaeus (large white butterfly); P. rapae Linnaeus (small white butterfly); P. napi Linnaeus (green veined white butterfly); Platyptilia carduidactyla Riley (artichoke plume moth); Plutella xylostella Linnaeus (diamondback moth); Pectinophora gossypiella Saunders (pink bollworm); Pontia protodice Boisduval and Leconte (Southern cabbageworm); Sabulodes aegrotata Guenee (omnivorous looper); Schizura concinna J. E. Smith (red humped caterpillar); Sitotroga cerealella Olivier (Angoumois grain moth); Thaumetopoea pityocampa Schiffermuller (pine processionary caterpillar); Tineola bisselliella Hummel (webbing clothesmoth); Tuta absoluta Meyrick (tomato leafminer); Yponomeuta padella Linnaeus (ermine moth); Heliothis subflexa Guenée; Malacosoma spp. and Orgyia spp.

Of interest are larvae and adults of the order Coleoptera including weevils from the families Anthribidae, Bruchidae and Curculionidae (including, but not limited to: Anthonomus grandis Boheman (boll weevil); Lissorhoptrus oryzophilus Kuschel (rice water weevil); Sitophilus granarius Linnaeus (granary weevil); S. oryzae Linnaeus (rice weevil); Hypera punctata Fabricius (clover leaf weevil); Cylindrocopturus adspersus LeConte (sunflower stem weevil); Smicronyx fulvus LeConte (red sunflower seed weevil); S. sordidus LeConte (gray sunflower seed weevil); Sphenophorus maidis Chittenden (maize billbug)); flea beetles, cucumber beetles, rootworms, leaf beetles, potato beetles and leafminers in the family Chrysomelidae (including, but not limited to: Leptinotarsa decemlineata Say (Colorado potato beetle); Diabrotica virgifera virgifera LeConte (western corn rootworm); D. barberi Smith and Lawrence (northern corn rootworm); D. undecimpunctata howardi Barber (southern corn rootworm); Chaetocnema pulicaria Melsheimer (corn flea beetle); Phyllotreta cruciferae Goeze (Crucifer flea beetle); Phyllotreta striolata (stripped flea beetle); Colaspis brunnea Fabricius (grape colaspis); Oulema melanopus Linnaeus (cereal leaf beetle); Zygogramma exclamationis Fabricius (sunflower beetle)); beetles from the family Coccinellidae (including, but not limited to: Epilachna varivestis Mulsant (Mexican bean beetle)); chafers and other beetles from the family Scarabaeidae (including, but not limited to: Popillia japonica Newman (Japanese beetle); Cyclocephala borealis Arrow (northern masked chafer, white grub); C. immaculata Olivier (southern masked chafer, white grub); Rhizotrogus majalis Razoumowsky (European chafer); Phyllophaga crinita Burmeister (white grub); Ligyrus gibbosus De Geer (carrot beetle)); carpet beetles from the family Dermestidae; wireworms from the family Elateridae, Eleodes spp., Melanotus spp.; Conoderus spp.; Limonius spp.; Agriotes spp.; Ctenicera spp.; Aeolus spp.; bark beetles from the family Scolytidae and beetles from the family Tenebrionidae.

Adults and immatures of the order Diptera are of interest, including leafminers Agromyza parvicornis Loew (corn blotch leafminer); midges (including, but not limited to: Contarinia sorghicola Coquillett (sorghum midge); Mayetiola destructor Say (Hessian fly); Sitodiplosis mosellana Galin (wheat midge); Neolasioptera murtfeldtiana Felt, (sunflower seed midge)); fruit flies (Tephritidae), Oscinella frit Linnaeus (fruit flies); maggots (including, but not limited to: Delia platura Meigen (seedcorn maggot); D. coarctata Fallen (wheat bulb fly) and other Delia spp., Meromyza americana Fitch (wheat stem maggot); Musca domestica Linnaeus (house flies); Fannia canicularis Linnaeus, F. femoralis Stein (lesser house flies); Stomoxys calcitrans Linnaeus (stable flies)); face flies, horn flies, blow flies, Chrysomya spp.; Phormia spp. and other muscoid fly pests, horse flies Tabanus spp.; bot flies Gastrophilus spp.; Oestrus spp.; cattle grubs Hypoderma spp.; deer flies Chrysops spp.; Melophagus ovinus Linnaeus (keds) and other Brachycera, mosquitoes Aedes spp.; Anopheles spp.; Culex spp.; black flies Prosimulium spp.; Simulium spp.; biting midges, sand flies, sciarids, and other Nematocera.

Included as insects of interest are adults and nymphs of the orders Hemiptera and Homoptera such as, but not limited to, adelgids from the family Adelgidae, plant bugs from the family Miridae, cicadas from the family Cicadidae, leafhoppers, Empoasca spp.; from the family Cicadellidae, planthoppers from the families Cixiidae, Flatidae, Fulgoroidea, Issidae and Delphacidae, treehoppers from the family Membracidae, psyllids from the family Psyllidae, whiteflies from the family Aleyrodidae, aphids from the family Aphididae, phylloxera from the family Phylloxeridae, mealybugs from the family Pseudococcidae, scales from the families Asterolecanidae, Coccidae, Dactylopiidae, Diaspididae, Eriococcidae Ortheziidae, Phoenicococcidae and Margarodidae, lace bugs from the family Tingidae, stink bugs from the family Pentatomidae, cinch bugs, Blissus spp.; and other seed bugs from the family Lygaeidae, spittlebugs from the family Cercopidae squash bugs from the family Coreidae and red bugs and cotton stainers from the family Pyrrhocoridae.

Agronomically important members from the order Homoptera further include, but are not limited to: Acyrthisiphon pisum Harris (pea aphid); Aphis craccivora Koch (cowpea aphid); A. fabae Scopoli (black bean aphid); A. gossypii Glover (cotton aphid, melon aphid); A. maidiradicis Forbes (corn root aphid); A. pomi De Geer (apple aphid); A. spiraecola Patch (spirea aphid); Aulacorthum solani Kaltenbach (foxglove aphid); Chaetosiphon fragaefolii Cockerell (strawberry aphid); Diuraphis noxia Kurdjumov/Mordvilko (Russian wheat aphid); Dysaphis plantaginea Paaserini (rosy apple aphid); Eriosoma lanigerum Hausmann (woolly apple aphid); Brevicoryne brassicae Linnaeus (cabbage aphid); Hyalopterus pruni Geoffroy (mealy plum aphid); Lipaphis erysimi Kaltenbach (turnip aphid); Metopolophium dirrhodum Walker (cereal aphid); Macrosiphum euphorbiae Thomas (potato aphid); Myzus persicae Sulzer (peach-potato aphid, green peach aphid); Nasonovia ribisnigri Mosley (lettuce aphid); Pemphigus spp. (root aphids and gall aphids); Rhopalosiphum maidis Fitch (corn leaf aphid); R. padi Linnaeus (bird cherry-oat aphid); Schizaphis graminum Rondani (greenbug); Sipha flava Forbes (yellow sugarcane aphid); Sitobion avenae Fabricius (English grain aphid); Therioaphis maculata Buckton (spotted alfalfa aphid); Toxoptera aurantii Boyer de Fonscolombe (black citrus aphid) and T. citricida Kirkaldy (brown citrus aphid); Adelges spp. (adelgids); Phylloxera devastatrix Pergande (pecan phylloxera); Bemisia tabaci Gennadius (tobacco whitefly, sweetpotato whitefly); B. argentifolii Bellows & Perring (silverleaf whitefly); Dialeurodes citri Ashmead (citrus whitefly); Trialeurodes abutiloneus (bandedwinged whitefly) and T. vaporariorum Westwood (greenhouse whitefly); Empoasca fabae Harris (potato leafhopper); Laodelphax striatellus Fallen (smaller brown planthopper); Macrolestes quadrilineatus Forbes (aster leafhopper); Nephotettix cinticeps Uhler (green leafhopper); N. nigropictus Stål (rice leafhopper); Nilaparvata lugens Stål (brown planthopper); Peregrinus maidis Ashmead (corn planthopper); Sogatella furcifera Horvath (white-backed planthopper); Sogatodes orizicola Muir (rice delphacid); Typhlocyba pomaria McAtee (white apple leafhopper); Erythroneoura spp. (grape leafhoppers); Magicicada septendecim Linnaeus (periodical cicada); Icerya purchasi Maskell (cottony cushion scale); Quadraspidiotus perniciosus Comstock (San Jose scale); Planococcus citri Risso (citrus mealybug); Pseudococcus spp. (other mealybug complex); Cacopsylla pyricola Foerster (pear psylla); Trioza diospyri Ashmead (persimmon psylla).

Agronomically important species of interest from the order Hemiptera include, but are not limited to: Acrosternum hilare Say (green stink bug); Anasa tristis De Geer (squash bug); Blissus leucopterus leucopterus Say (chinch bug); Corythuca gossypii Fabricius (cotton lace bug); Cyrtopeltis modesta Distant (tomato bug); Dysdercus suturellus Herrich-Schäffer (cotton stainer); Euschistus servus Say (brown stink bug); E. variolarius Palisot de Beauvois (one-spotted stink bug); Graptostethus spp. (complex of seed bugs); Leptoglossus corculus Say (leaf-footed pine seed bug); Lygus lineolaris Palisot de Beauvois (tarnished plant bug); L. hesperus Knight (Western tarnished plant bug); L. pratensis Linnaeus (common meadow bug); L. rugulipennis Poppius (European tarnished plant bug); Lygocoris pabulinus Linnaeus (common green capsid); Nezara viridula Linnaeus (southern green stink bug); Oebalus pugnax Fabricius (rice stink bug); Oncopeltus fasciatus Dallas (large milkweed bug); Pseudatomoscelis seriatus Reuter (cotton fleahopper).

Furthermore, embodiments may be effective against Hemiptera such, Calocoris norvegicus Gmelin (strawberry bug); Orthops campestris Linnaeus; Plesiocoris rugicollis Fallen (apple capsid); Cyrtopeltis modestus Distant (tomato bug); Cyrtopeltis notatus Distant (suckfly); Spanagonicus albofasciatus Reuter (whitemarked fleahopper); Diaphnocoris chlorionis Say (honeylocust plant bug); Labopidicola allii Knight (onion plant bug); Pseudatomoscelis seriatus Reuter (cotton fleahopper); Adelphocoris rapidus Say (rapid plant bug); Poecilocapsus lineatus Fabricius (four-lined plant bug); Nysius ericae Schilling (false chinch bug); Nysius raphanus Howard (false chinch bug); Nezara viridula Linnaeus (Southern green stink bug); Eurygaster spp.; Coreidae spp.; Pyrrhocoridae spp.; Tinidae spp.; Blostomatidae spp.; Reduviidae spp. and Cimicidae spp.

Also included are adults and larvae of the order Acari (mites) such as Aceria tosichella Keifer (wheat curl mite); Petrobia latens Müller (brown wheat mite); spider mites and red mites in the family Tetranychidae, Panonychus ulmi Koch (European red mite); Tetranychus urticae Koch (two spotted spider mite); (T. mcdanieli McGregor (McDaniel mite); T. cinnabarinus Boisduval (carmine spider mite); T. turkestani Ugarov & Nikolski (strawberry spider mite); flat mites in the family Tenuipalpidae, Brevipalpus lewisi McGregor (citrus flat mite); rust and bud mites in the family Eriophyidae and other foliar feeding mites and mites important in human and animal health, i.e., dust mites in the family Epidermoptidae, follicle mites in the family Demodicidae, grain mites in the family Glycyphagidae, ticks in the order Ixodidae. Ixodes scapularis Say (deer tick); I. holocyclus Neumann (Australian paralysis tick); Dermacentor variabilis Say (American dog tick); Amblyomma americanum Linnaeus (lone star tick) and scab and itch mites in the families Psoroptidae, Pyemotidae and Sarcoptidae.

Insect pests of the order Thysanura are of interest, such as Lepisma saccharina Linnaeus (silverfish); Thermobia domestica Packard (firebrat).

Additional arthropod pests covered include: spiders in the order Araneae such as Loxosceles reclusa Gertsch and Mulaik (brown recluse spider) and the Latrodectus mactans Fabricius (black widow spider) and centipedes in the order Scutigeromorpha such as Scutigera coleoptrata Linnaeus (house centipede).

Insect pest of interest include the superfamily of stink bugs and other related insects including but not limited to species belonging to the family Pentatomidae (Nezara viridula, Halyomorpha halys, Piezodorus guildini, Euschistus servus, Acrosternum hilare, Euschistus heros, Euschistus tristigmus, Acrosternum hilare, Dichelops furcatus, Dichelops melacanthus, and Bagrada hilaris (Bagrada Bug)), the family Plataspidae (Megacopta cribraria—Bean plataspid) and the family Cydnidae (Scaptocoris castanea—Root stink bug) and Lepidoptera species including but not limited to: diamond-back moth, e.g., Helicoverpa zea Boddie; soybean looper, e.g., Pseudoplusia includens Walker and velvet bean caterpillar e.g., Anticarsia gemmatalis Hubner.

Methods for measuring pesticidal activity are well known in the art. See, for example, Czapla and Lang, (1990) J. Econ. Entomol. 83:2480-2485; Andrews, et al., (1988) Biochem. J. 252:199-206; Marrone, et al., (1985) J. of Economic Entomology 78:290-293 and U.S. Pat. No. 5,743,477. Generally, the protein is mixed and used in feeding assays. See, for example Marrone, et al., (1985) J. of Economic Entomology 78:290-293. Such assays can include contacting plants with one or more pests and determining the plant's ability to survive and/or cause the death of the pests.

Nematodes include parasitic nematodes such as root-knot, cyst and lesion nematodes, including Heterodera spp., Meloidogyne spp. and Globodera spp.; particularly members of the cyst nematodes, including, but not limited to, Heterodera glycines (soybean cyst nematode); Heterodera schachtii (beet cyst nematode); Heterodera avenae (cereal cyst nematode) and Globodera rostochiensis and Globodera pailida (potato cyst nematodes). Lesion nematodes include Pratylenchus spp.

Seed Treatment

To protect and to enhance yield production and trait technologies, seed treatment options can provide additional crop plan flexibility and cost effective control against insects, weeds and diseases. Seed material can be treated, typically surface treated, with a composition comprising combinations of chemical or biological herbicides, herbicide safeners, insecticides, fungicides, germination inhibitors and enhancers, nutrients, plant growth regulators and activators, bactericides, nematocides, avicides and/or molluscicides. These compounds are typically formulated together with further carriers, surfactants or application-promoting adjuvants customarily employed in the art of formulation. The coatings may be applied by impregnating propagation material with a liquid formulation or by coating with a combined wet or dry formulation. Examples of the various types of compounds that may be used as seed treatments are provided in The Pesticide Manual: A World Compendium, C. D. S. Tomlin Ed., Published by the British Crop Production Council.

Some seed treatments that may be used on crop seed include, but are not limited to, one or more of abscisic acid, acibenzolar-S-methyl, avermectin, amitrol, azaconazole, azospirillum, azadirachtin, azoxystrobin, Bacillus spp. (including one or more of cereus, firmus, megaterium, pumilis, sphaericus, subtilis and/or thuringiensis species), Bradyrhizobium spp. (including one or more of betae, canariense, elkanii, iriomotense, japonicum, liaonigense, pachyrhizi and/or yuanmingense), captan, carboxin, chitosan, clothianidin, copper, cyazypyr, difenoconazole, etidiazole, fipronil, fludioxonil, fluoxastrobin, fluquinconazole, flurazole, fluxofenim, harpin protein, imazalil, imidacloprid, ipconazole, isoflavenoids, lipo-chitooligosaccharide, mancozeb, manganese, maneb, mefenoxam, metalaxyl, metconazole, myclobutanil, PCNB, penflufen, penicillium, penthiopyrad, permethrine, picoxystrobin, prothioconazole, pyraclostrobin, rynaxypyr, S-metolachlor, saponin, sedaxane, TCMTB, tebuconazole, thiabendazole, thiamethoxam, thiocarb, thiram, tolclofos-methyl, triadimenol, trichoderma, trifloxystrobin, triticonazole and/or zinc. PCNB seed coat refers to EPA Registration Number 00293500419, containing quintozen and terrazole. TCMTB refers to 2-(thiocyanomethylthio) benzothiazole.

Seed varieties and seeds with specific transgenic traits may be tested to determine which seed treatment options and application rates may complement such varieties and transgenic traits in order to enhance yield. For example, a variety with good yield potential but head smut susceptibility may benefit from the use of a seed treatment that provides protection against head smut, a variety with good yield potential but cyst nematode susceptibility may benefit from the use of a seed treatment that provides protection against cyst nematode, and so on. Likewise, a variety encompassing a transgenic trait conferring insect resistance may benefit from the second mode of action conferred by the seed treatment, a variety encompassing a transgenic trait conferring herbicide resistance may benefit from a seed treatment with a safener that enhances the plants resistance to that herbicide, etc. Further, the good root establishment and early emergence that results from the proper use of a seed treatment may result in more efficient nitrogen use, a better ability to withstand drought and an overall increase in yield potential of a variety or varieties containing a certain trait when combined with a seed treatment.

Methods for Killing an Insect Pest and Controlling an Insect Population

In some embodiments methods are provided for killing an insect pest, comprising contacting the insect pest, either simultaneously or sequentially, with an insecticidally-effective amount of a recombinant IPD121 polypeptide of the disclosure. In some embodiments methods are provided for killing an insect pest, comprising contacting the insect pest with an insecticidally-effective amount of one or more of a recombinant pesticidal protein of SEQ ID NOS: 124-234, or a variant or insecticidally active fragment thereof.

In some embodiments methods are provided for controlling an insect pest population, comprising contacting the insect pest population, either simultaneously or sequentially, with an insecticidally-effective amount of one or more of a recombinant IPD121 polypeptide of the disclosure. In some embodiments, methods are provided for controlling an insect pest population, comprising contacting the insect pest population with an insecticidally-effective amount of one or more of a recombinant IPD121 polypeptide of SEQ ID NOS: 124-234, or a variant or insecticidally active fragment thereof. As used herein, “controlling a pest population” or “controls a pest” refers to any effect on a pest that results in limiting the damage that the pest causes. Controlling a pest includes, but is not limited to, killing the pest, inhibiting development of the pest, altering fertility or growth of the pest in such a manner that the pest provides less damage to the plant, decreasing the number of offspring produced, producing less fit pests, producing pests more susceptible to predator attack or deterring the pests from eating the plant.

In some embodiments methods are provided for controlling an insect pest population resistant to a pesticidal protein, comprising contacting the insect pest population, either simultaneously or sequentially, with an insecticidally-effective amount of one or more of a recombinant IPD121 polypeptide of the disclosure. In some embodiments, methods are provided for controlling an insect pest population resistant to a pesticidal protein, comprising contacting the insect pest population with an insecticidally-effective amount of one or more of a recombinant IPD121 polypeptide of SEQ ID NOS: 124-234, or a variant or insecticidally active fragment thereof.

In some embodiments methods are provided for protecting a plant from an insect pest, comprising expressing in the plant or cell thereof at least one recombinant polynucleotide encoding an IPD121 polypeptide of the disclosure. In some embodiments methods are provided for protecting a plant from an insect pest, comprising expressing in the plant or cell thereof a recombinant polynucleotide encoding one or more IPD121 polypeptides of SEQ ID NOS: 124-234, or variants or insecticidally active fragments thereof.

Insect Resistance Management (IRM) Strategies

Expression of B. thuringiensis δ-endotoxins in transgenic corn plants has proven to be an effective means of controlling agriculturally important insect pests (Perlak, et al., 1990; 1993). However, in certain instances insects have evolved that are resistant to B. thuringiensis δ-endotoxins expressed in transgenic plants. Such resistance, should it become widespread, would clearly limit the commercial value of germplasm containing genes encoding such B. thuringiensis δ-endotoxins.

One way of increasing the effectiveness of the transgenic insecticides against target pests and contemporaneously reducing the development of insecticide-resistant pests is to use provide non-transgenic (i.e., non-insecticidal protein) refuges (a section of non-insecticidal crops/corn) for use with transgenic crops producing a single insecticidal protein active against target pests. The United States Environmental Protection Agency (epa.gov/oppbppdl/biopesticides/pips/bt_corn_refuge_2006.htm, which can be accessed using the www prefix) publishes the requirements for use with transgenic crops producing a single Bt protein active against target pests. In addition, the National Corn Growers Association, on their website: (ncga.com/insect-resistance-management-fact-sheet-bt-corn, which can be accessed using the www prefix) also provides similar guidance regarding refuge requirements. Due to losses to insects within the refuge area, larger refuges may reduce overall yield.

Another way of increasing the effectiveness of the transgenic insecticides against target pests and contemporaneously reducing the development of insecticide-resistant pests would be to have a repository of insecticidal genes that are effective against groups of insect pests and which manifest their effects through different modes of action.

Expression in a plant of two or more insecticidal compositions toxic to the same insect species, each insecticide being expressed at efficacious levels would be another way to achieve control of the development of resistance. This is based on the principle that evolution of resistance against two separate modes of action is far more unlikely than only one. Roush, for example, outlines two-toxin strategies, also called “pyramiding” or “stacking,” for management of insecticidal transgenic crops. (The Royal Society. Phil. Trans. R. Soc. Lond. B. (1998) 353:1777-1786). Stacking or pyramiding of two different proteins each effective against the target pests and with little or no cross-resistance can allow for use of a smaller refuge. The US Environmental Protection Agency requires significantly less (generally 5%) structured refuge of non-Bt corn be planted than for single trait products (generally 20%). There are various ways of providing the IRM effects of a refuge, including various geometric planting patterns in the fields and in-bag seed mixtures, as discussed further by Roush.

In some embodiments the IPD121 polypeptides of the disclosure are useful as an insect resistance management strategy in combination (i.e., pyramided) with other pesticidal proteins or other transgenes (i.e., an RNAi trait) including but not limited to Bt toxins, Xenorhabdus sp. or Photorhabdus sp. insecticidal proteins, other insecticidally active proteins, and the like.

Provided are methods of controlling Lepidoptera and/or Coleoptera insect infestation(s) in a transgenic plant that promote insect resistance management, comprising expressing in the plant at least two different insecticidal proteins having different modes of action.

In some embodiments the methods of controlling Lepidoptera and/or Coleoptera insect infestation in a transgenic plant and promoting insect resistance management comprises the presentation of at least one of the IPD121 polypeptide insecticidal proteins to insects in the order Lepidoptera and/or Coleoptera.

In some embodiments the methods of controlling Lepidoptera and/or Coleoptera insect infestation in a transgenic plant and promoting insect resistance management comprises the presentation of at least one of the IPD121 polypeptides of SEQ ID NOS: 124-234, or variants or insecticidally active fragments thereof, insecticidal to insects in the order Lepidoptera and/or Coleoptera.

In some embodiments the methods of controlling Lepidoptera and/or Coleoptera insect infestation in a transgenic plant and promoting insect resistance management comprise expressing in the transgenic plant an IPD121 polypeptide and a Cry protein or other insecticidal protein to insects in the order Lepidoptera and/or Coleoptera having different modes of action.

In some embodiments the methods of controlling Lepidoptera and/or Coleoptera insect infestation in a transgenic plant and promoting insect resistance management comprise expression in the transgenic plant of at least one of an IPD121 polypeptide of SEQ ID NOS: 124-234, or variants or insecticidally active fragments thereof and a Cry protein or other insecticidal protein to insects in the order Lepidoptera and/or Coleoptera, where the IPD121 polypeptide and Cry protein have different modes of action.

Also provided are methods of reducing likelihood of emergence of Lepidoptera and/or Coleoptera insect resistance to transgenic plants expressing in the plants insecticidal proteins to control the insect species, comprising expression of at least one of an IPD121 polypeptide insecticidal to the insect species in combination with a second insecticidal protein to the insect species having different modes of action.

Also provided are means for effective Lepidoptera and/or Coleoptera insect resistance management of transgenic plants, comprising co-expressing at high levels in the plants two or more insecticidal proteins or other insecticidal transgenes (e.g., an RNAi trait) toxic to Lepidoptera and/or Coleoptera insects but each exhibiting a different mode of effectuating its killing activity, wherein two or more of the insecticidal proteins or other insecticidal transgenes comprise an IPD121 polypeptide and a Cry protein. Also provided are means for effective Lepidoptera and/or Coleoptera insect resistance management of transgenic plants, comprising co-expressing at high levels in the plants two or more insecticidal proteins or other insecticidal transgenes (e.g., an RNAi trait) toxic to Lepidoptera and/or Coleoptera insects but each exhibiting a different mode of effectuating its killing activity, wherein two or more insecticidal proteins or other insecticidal transgenes comprise at least one of an IPD121 polypeptide of SEQ ID NOS: 124-234, or variants or insecticidally active fragments thereof and a Cry protein or other insecticidally active protein.

In addition, methods are provided for obtaining regulatory approval for planting or commercialization of plants expressing proteins insecticidal to insects in the order Lepidoptera and/or Coleoptera, comprising the step of referring to, submitting or relying on insect assay binding data showing that the IPD121 polypeptide does not compete with binding sites for Cry proteins in such insects. In addition, methods are provided for obtaining regulatory approval for planting or commercialization of plants expressing proteins insecticidal to insects in the order Lepidoptera and/or Coleoptera, comprising the step of referring to, submitting or relying on insect assay binding data showing that one or more of the IPD121 polypeptides of SEQ ID NOS: 124-234, or variant or insecticidally active fragment thereof does not compete with binding sites for Cry proteins in such insects.

An embodiment of the invention contemplates a recombinant polynucleotide encoding an insecticidal polypeptide having at least 76% sequence identity to a polypeptide selected from SEQ ID NOS: 124-234. In an embodiment, the recombinant polynucleotide encodes a polypeptide having at least 90% sequence identity to a polypeptide selected from SEQ ID NOS: 124-234. In an embodiment, the insecticidal polypeptide is joined to a heterologous signal sequence or a transit sequence. In an embodiment, the recombinant polynucleotide has at least 80% or at least 90% sequence identity to a polynucleotide selected from any one of SEQ ID NOS: 1-123, wherein the polynucleotide is operably linked to a heterologous regulatory element. In an embodiment, the recombinant polynucleotide has codons optimized for expression in an agriculturally important crop. A DNA construct comprising these recombinant polynucleotides is contemplated, as are transgenic plants comprising the recombinant polynucleotides or DNA constructs.

Some embodiments of the invention relate to a method of inhibiting growth or killing an insect pest or pest population, comprising contacting the insect pest with an insecticidal polypeptide having at least 76% sequence identity to a polypeptide selected from SEQ ID NOS: 124-234. An embodiment relates to a method of inhibiting growth or killing an insect pest or pest population comprising expressing in a plant a recombinant polynucleotide encoding an insecticidal polypeptide having at least 76% sequence identity to a polypeptide selected from SEQ ID NOS: 124-234. A method for controlling pest infestation comprising providing in the diet of the pest the transgenic plant expressing a recombinant polynucleotide encoding an insecticidal polypeptide having at least 76% sequence identity to a polypeptide selected from SEQ ID NOS: 124-234 is also contemplated.

Methods for Increasing Plant Yield

Methods for increasing plant yield are provided. The methods comprise providing a plant or plant cell expressing a polynucleotide encoding the pesticidal polypeptide sequence disclosed herein and growing the plant or a seed thereof in a field infested with a pest against which the polypeptide has pesticidal activity. In some embodiments, the polypeptide has pesticidal activity against a Lepidopteran, Coleopteran, Dipteran, Hemipteran or nematode pest, and the field is infested with a Lepidopteran, Hemipteran, Coleopteran, Dipteran or nematode pest.

As defined herein, the “yield” of the plant refers to the quality and/or quantity of biomass produced by the plant. “Biomass” as used herein refers to any measured plant product. An increase in biomass production is any improvement in the yield of the measured plant product. Increasing plant yield has several commercial applications. For example, increasing plant leaf biomass may increase the yield of leafy vegetables for human or animal consumption. Additionally, increasing leaf biomass can be used to increase production of plant-derived pharmaceutical or industrial products. An increase in yield can comprise any statistically significant increase including, but not limited to, at least a 1% increase, at least a 3% increase, at least a 5% increase, at least a 10% increase, at least a 20% increase, at least a 30%, at least a 50%, at least a 70%, at least a 100% or a greater increase in yield compared to a plant not expressing the pesticidal sequence.

In specific methods, plant yield is increased as a result of improved pest resistance of a plant expressing at least one IPD121 polypeptide disclosed herein. Expression of the IPD121 polypeptide(s) results in a reduced ability of a pest to infest or feed on the plant, thus improving plant yield.

Methods of Processing

Further provided are methods of processing a plant, plant part or seed to obtain a food or feed product from a plant, plant part or seed comprising at least one IPD121 polynucleotide. The plants, plant parts or seeds provided herein, can be processed to yield oil, protein products and/or by-products that are derivatives obtained by processing that have commercial value. Non-limiting examples include transgenic seeds comprising a nucleic acid molecule encoding one or more IPD121 polypeptides which can be processed to yield soy oil, soy products and/or soy by-products.

“Processing” refers to any physical and chemical methods used to obtain any soy product and includes, but is not limited to, heat conditioning, flaking and grinding, extrusion, solvent extraction or aqueous soaking and extraction of whole or partial seeds

The following examples are offered by way of illustration and not by way of limitation.

Transcriptomes for various plant samples were prepared as follows. Total RNA was isolated from frozen tissues with an RNeasy® kit (Qiagen®). Sequencing libraries from the resulting total RNAs were prepared using the TruSeq™ mRNA-Seq kit and protocol from Illumina®, Inc. (San Diego, CA). Briefly, mRNAs were isolated via attachment to oligo(dT) beads, fragmented to a mean size of 180 nt, reverse transcribed into cDNA by random hexamer primers, end repaired, 3′ A-tailed, and ligated with Illumina® indexed TruSeq™ adapters. Ligated cDNA fragments were PCR amplified using Illumina® TruSeq™ primers and purified PCR products were checked for quality and quantity on the Agilent Bioanalyzer® DNA 7500 chip. Post quality and quantity assessment, 100 ng of the transcript library was normalized by treatment with Duplex Specific Nuclease (DSN) (Evrogen®, Moscow, Russia). Normalization was accomplished by addition of 200 mM Hepes buffer, followed by heat denaturation and five hour anneal at 68° C. Annealed library was treated with 2 μL of DSN enzyme for 25 minutes, purified by Qiagen® MinElute® columns according to manufacturer protocols, and amplified twelve cycles using Illumina® adapter specific primers. Final products were purified with Ampure® XP beads (Beckman Genomics, Danvers, MA) and checked for quality and quantity on the Agilent Bioanalyzer® DNA 7500 chip.

Normalized transcript libraries were sequenced according to manufacturer protocols on the Illumina® HiSeq® 2500. Libraries were pooled, hybridized and sequenced three per flowcell lane using onboard clustering methods followed by sequencing to a target depth of sixty million 75 bp paired end reads per normalized library.

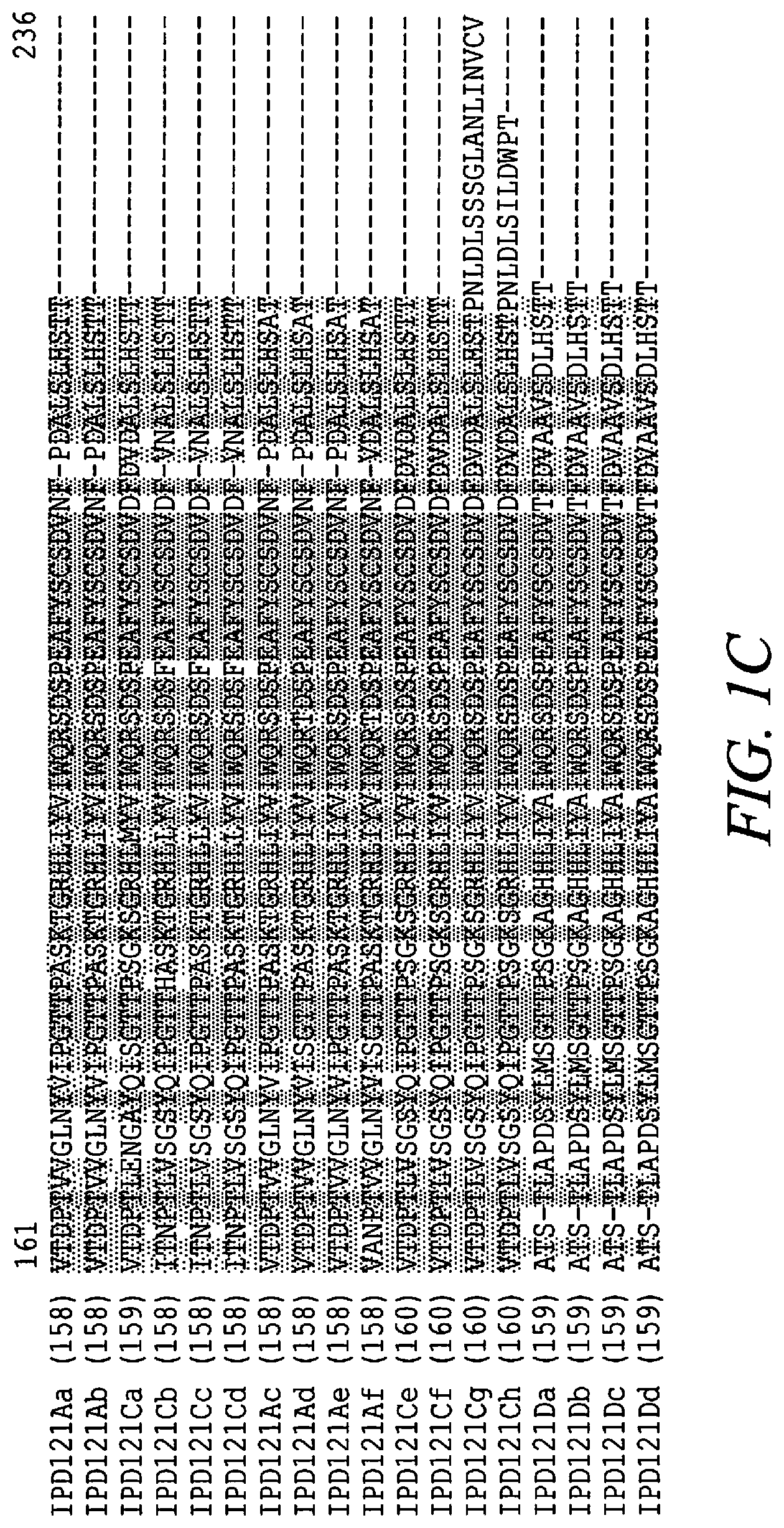

Candidate transcriptome DNA assembly sequences harboring the predicted coding sequences for IPD121Aa, IPD121Ab, IPD121Ca, IPD121Cb, IPD121Cc, and IPD121Cd were identified in proprietary sequence databases. The corresponding predicted coding sequences (SEQ ID NOS 1, 2, 3, 4, 5, and 6, respectively) were used to design the primers listed in Table 1. These were used for cloning by polymerase chain reaction using the Kappa HiFi™ polymerase (Kapa Bioscience, Wilmington, MA) and the cDNA prepared from the total RNA from the plants using the SuperScript® II kit (Thermo Fischer Scientific, Waltham, MA) as the template. PCR products were gel purified, digested with NdeI and XhoI restriction enzymes (New England Biolabs) and ligated into pET14b (Novagen®) also digested with the same enzymes. Colonies were sequenced to confirm the clones. The SEQ ID numbers of cloned polynucleotide sequences and their corresponding polypeptide sequences are listed in Table 2.

Gene identities were determined by conducting BLAST™ (Basic Local Alignment Search Tool; Altschul, et al., (1993) J. Mol. Biol. 215:403-410; see also ncbi.nlm.nih.gov/BLAST/, which can be accessed using the www prefix) searches under default parameters for similarity to sequences. The polynucleotide sequence for IPD121Aa (SEQ ID NO: 1) was analyzed. Gene identities conducted by BLAST™ in a DUPONT PIONEER internal proprietary database identified multiple homologs of the IPD121Aa protein, as represented by the polynucleotide sequences of SEQ ID NOs 2-123 and the corresponding polypeptide sequences of SEQ ID NOs 125-234.

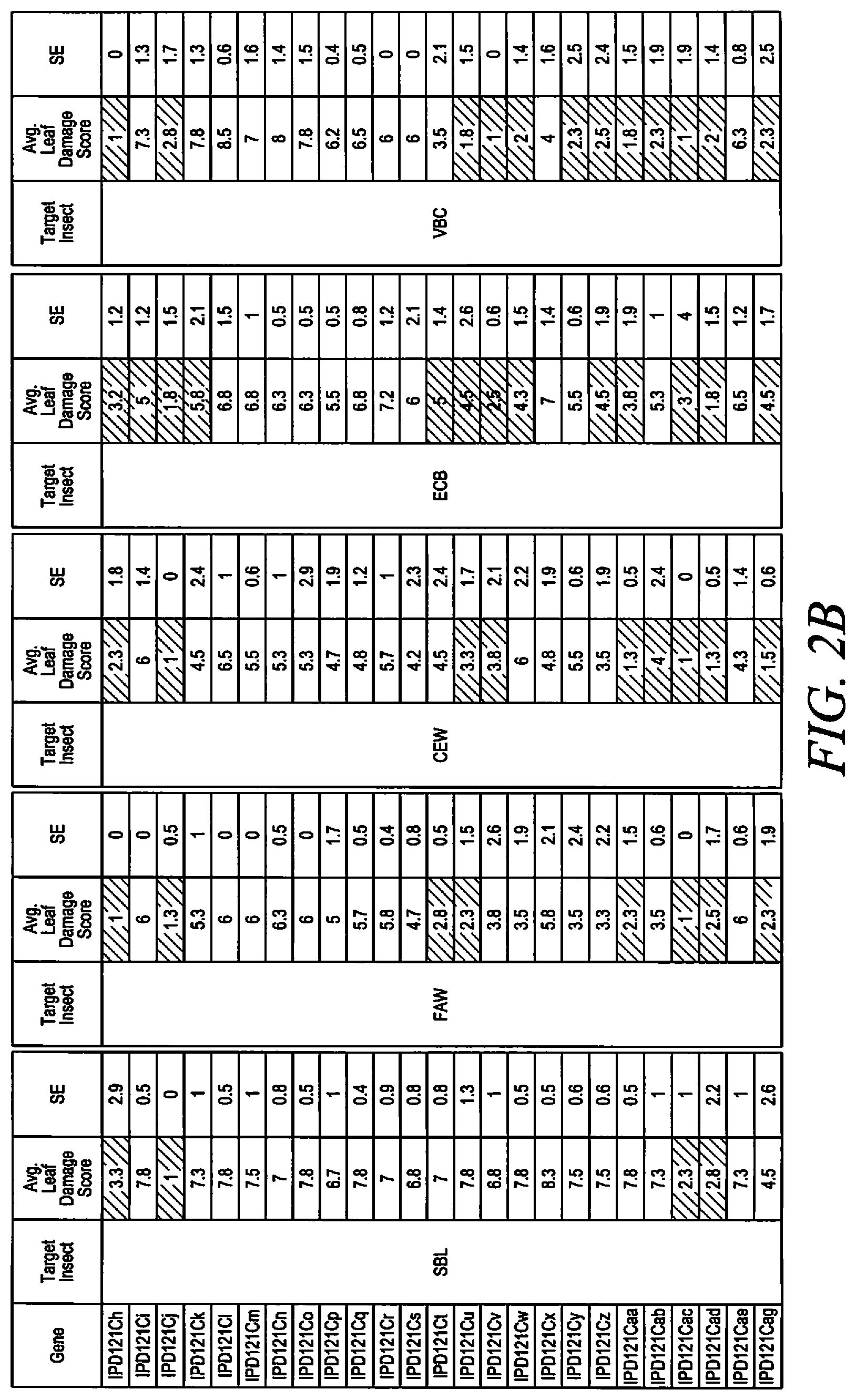

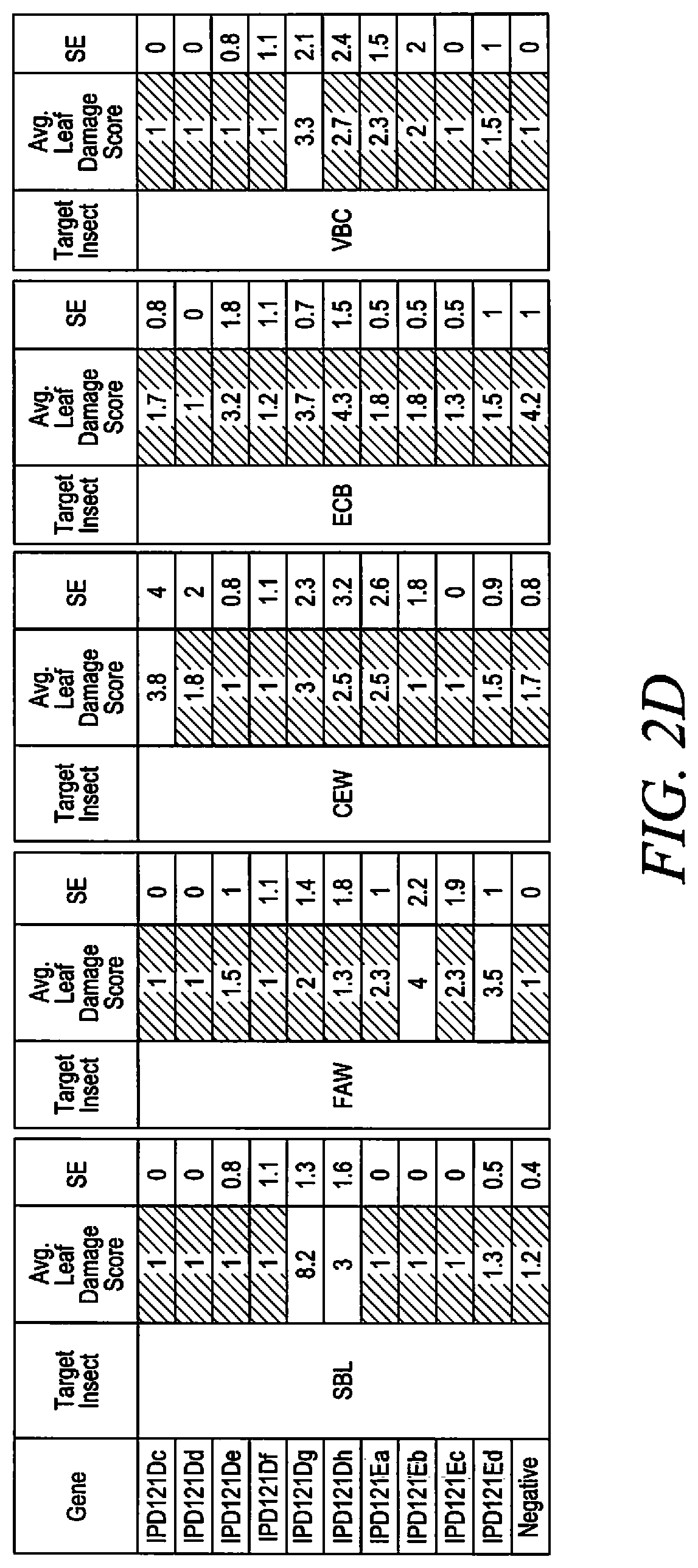

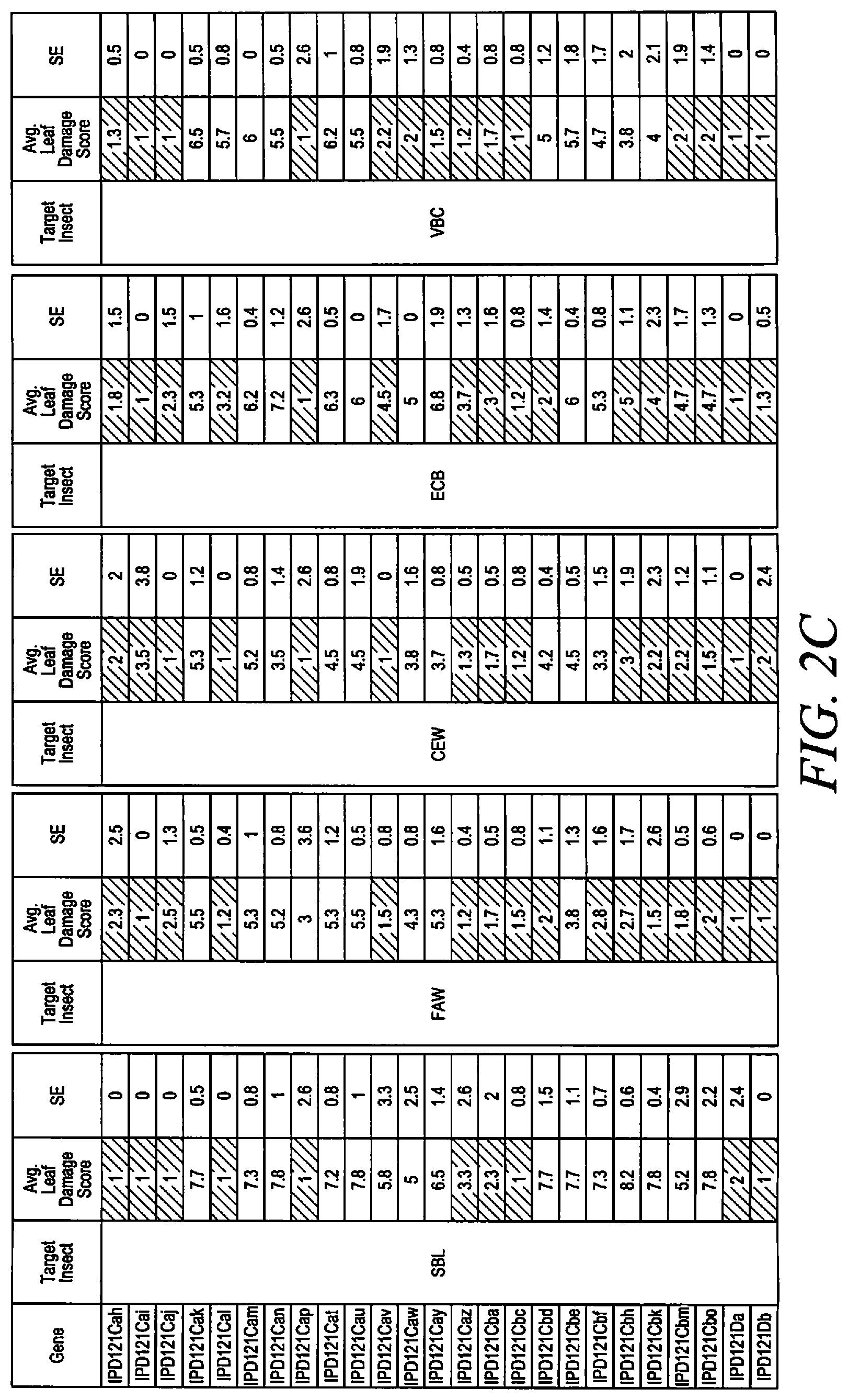

To confirm activity of IPD121Aa (SEQ ID NO: 124) and the homologs IPD121Ab, IPD121Ac, IPD121Ad, IPD121Ae, IPD121Af, IPD121Ca, IPD121Cb, IPD121Cc, IPD121Cd, IPD121Ce, IPD121Cf, IPD121Cg, IPD121Ch, IPD121 Da, IPD121db, IPD121Dc, and IPD121Dd, the corresponding genes were cloned into a transient expression system under control of the viral promoter dMMV promoter (Dey, et. al., (1999) Plant Mol. Biol. 40:771-782; PCT Patent Publication WO2011133387). The expression plasmids were transformed into Agrobacterium tumefaciens AGL1, and the resulting strains were used for transient expression in bush bean (common bean, Phaseolus vulgaris). The agro-infiltration method of introducing an Agrobacterium cell suspension to plant cells of intact tissues so that reproducible infection and subsequent plant derived transgene expression may be measured or studied is well known in the art (Kapila, et. al., (1997) Plant Science 122:101-108). Briefly, the unifoliate stage of bush bean (common bean, Phaseolus vulgaris) were agro-infiltrated with normalized bacterial cell suspensions of test and control strains. Leaf discs were excised from each plantlet and infested with neonates of Soy Bean Looper (SBL) (Pseudoplusia includens), Corn Earworm, (CEW) (Helicoverpa zea), (FAW), Velvet Bean Caterpillar (VBC) (Anticarsia gemmatalis) or European Corn Borer (ECB) (Ostrinia nubialis). Leaf discs from a control were generated with Agrobacterium containing only empty expression vector. Leaf discs from a non-infiltrated plant were used as a second control. The consumption of green leaf tissue was scored three days after infestation and given scores of 0 to 9 as indicated by Table 3. The transiently expressed IPD121Aa (SEQ ID NO: 124) and several homologs protected bush bean leaf discs from consumption by the infested insects while total green tissue consumption was observed for the negative control and untreated tissue. Transient protein expression of IPD121Aa (SEQ ID NO: 124) and IPD121Ab (SEQ ID NO: 125) was confirmed by a mass spectrometry-based protein identification method using extracted protein lysates from infiltrated leave tissues (Patterson, (1998) 10(22):1-24, Current Protocol in Molecular Biology published by John Wiley & Son Inc). As shown in FIGS. 2A-2D, transient protein expression of IPD121Aa (SEQ ID NO: 124), IPD121Ca (SEQ ID NO: 126), IPD121Cb (SEQ ID NO: 127), IPD121Cc (SEQ ID NO:128), IPD121Cd (SEQ ID NO:129), and IPD121Ce (SEQ ID NO: 139) resulted in protection of bush bean against leaf feeding damage from a diversity of Lepidoptera.

The above description of various illustrated embodiments of the disclosure is not intended to be exhaustive or to limit the scope to the precise form disclosed. While specific embodiments of and examples are described herein for illustrative purposes, various equivalent modifications are possible within the scope of the disclosure, as those skilled in the relevant art will recognize. The teachings provided herein can be applied to other purposes, other than the examples described above. Numerous modifications and variations are possible in light of the above teachings and, therefore, are within the scope of the appended claims.

These and other changes may be made in light of the above detailed description. In general, in the following claims, the terms used should not be construed to limit the scope to the specific embodiments disclosed in the specification and the claims.

The entire disclosure of each document cited (including patents, patent applications, journal articles, abstracts, manuals, books or other disclosures) in the Background, Detailed Description, and Examples is herein incorporated by reference in their entireties.

Efforts have been made to ensure accuracy with respect to the numbers used (e.g. amounts, temperature, concentrations, etc.) but some experimental errors and deviations should be allowed for. Unless otherwise indicated, parts are parts by weight, molecular weight is average molecular weight; temperature is in degrees centigrade; and pressure is at or near atmospheric.
