FIELD OF THE INVENTION
[0001]The invention relates to optical lenses, and more particularly to F-theta lenses.
BACKGROUND OF THE INVENTION
[0002]Off axis light beam refraction through a focusing lens system will produce distorted images in a curved plane as opposed to a more desirable flat surface. A flat field scanning lens is a specialized lens system in which the focal plane is a flat surface.
[0003]For a typical flat field lens, in the absence of distortion, the beam of light enters the lens at an angle θ compared with the axis of the lens, the position of the spot focused by the lens will be dependent on the product of the focal length (F) of the lens and the tangent of the angle (θ). However, when the lens is designed with built-in barrel distortion, the position of the focused spot can then be made dependent on the product of F and θ, thereby simplifying positioning and image correction algorithms. Lenses designed in this way are called “F-theta” lenses. F-theta lenses are widely used in scanning applications such as laser marking, engraving, and cutting systems.
[0004]F-theta lenses are also used for surveillance and reconnaissance applications for precise mapping of an observed target. For these applications, the lens must meet several requirements which do not necessarily apply to other applications. It must provide acceptable images over a wide field of view and must have high resolution and high light sensitivity (i.e. have a low F#). In addition, the lens must be compact, and must provide acceptable images over a wide range of light frequencies, being at least achromatic (able to bring two frequencies to a common focal point) and preferably apochromatic (able to bring three frequencies to a common focal point). In addition, F-theta lenses used for surveillance and reconnaissance should be at least near-telecentric, so that it will produce images that are insensitive to the distance between the lens and the focal plane. If the lens is to be used over a range of temperatures, for example mounted to the exterior of an aircraft, then the lens must be athermal, i.e. invariant over a wide range of temperatures.
[0005]U.S. Pat. No. 4,401,362 (Aug. 30, 1983) discloses an F-theta lens for use in optical scanning devices. In such scanning devices the spot from a light beam should move at a constant velocity across the scanning surface. The '362 lens includes three elements and provides a field of view up to 58.2° and an F# of 50. However, the '362 lens would not be suitable for surveillance and reconnaissance applications, since it transmits a very limited amount of light because of its high F# and it has a low resolution. In addition, the '362 lens is suitable only for monochromatic applications, and cannot be used for applications requiring a wide spectrum.
[0006]Another example of a prior art F-theta lens is disclosed in U.S. Pat. No. 4,436,383 (Mar. 13, 1984). The '383 lens includes four components and can only be used for monochromatic applications. Its field of view is up to 60.8° and its F# is 19.7. Its resolution is low. For all of these reasons, the '383 lens is only suitable for laser systems applications, and not for surveillance and reconnaissance.
[0007]Yet another F-theta lens is disclosed in U.S. Pat. No. 5,835,280 (Nov. 10, 1998). The '280 lens is achromatic having the lateral color compensated electronically, but it is not apochromatic. Its field of view is 54° and its F# is not more than 20. In addition, the '280 lens is too large to be used for reconnaissance and surveillance applications.
[0008]Yet another F-theta lens is disclosed in U.S. Pat. No. 6,388,817 (May 14, 2002). The '817 lens is achromatic, has a field of view of 63°, and has an F# of 50. This lens is not apochromatic and its F# is very large, so it cannot be used in low F# reconnaissance and surveillance systems.
[0009]The contribution of the optical element to the axial color is the reciprocal of the Abbe number of lens material.
[0010]The Abbe number Vdis given by
Vd=(nd−1)/(nF′−nC′) (1)
where Ndis the index of refraction of the glass at the wavelength of the helium line e (587.6 nm), nF′is the index of refraction at the blue cadmium line F′ (479.99 nm), and nC′is the index of refraction at the red cadmium line C′ (643.85 nm).
[0011]Accordingly, the smaller the value of Vd, the greater the chromatic dispersion of the glass.
[0012]The characterization of optical glass through refractive index and Abbe number alone is not sufficient for high quality optical systems. A more accurate description of the glass properties can be provided by including relative partial dispersions.
[0013]The relative partial dispersion Px,y for the wavelengths x and y is defined by the equation:
(nx−ny)/(nF−nc) (2)
[0014]The following relationship will approximately apply to the majority of glasses, the so-called “normal glasses”
Pxy≈axy+bxyVd (3)
where axyand bxyare specific constants for the given relative partial dispersion Pxy. So as to correct the secondary spectrum and provide an apochromatic lens (i.e. color correction for more than two wavelengths), glasses are required which do not conform to this rule. Therefore glass types having partial dispersions which deviate from Abbe's empirical rule are needed. The ordinate difference ΔP can be used to measure the deviation of the partial dispersion from Abbe's rule. The ordinate difference is given by the following generally valid equation:
Pxy=axy+bxy·νd+ΔPxy. (4)
The term ΔPxytherefore quantitatively describes a dispersion behavior that deviates from that of “normal” glasses.
[0015]Optical materials expand with rising temperature. The Opto-thermal expansion coefficient β of an optical element is a property of the glass material, and it does not depend on the focal length or shape factor of the individual optics. For a single optical element:
β=α+(dn/dT)/(n−1) (5)
- where
- α=the thermal expansion coefficient of the glass
- n=the refractive index of the glass at the current wave length
- T=temperature
[0020]The refractive index of an optical material is also affected by changes in glass temperature. This can be characterized by the temperature coefficient of the refractive index. The temperature coefficient of the refractive index is defined as dn/dt, and varies with wavelength and temperature.
[0021]There are two ways of expressing the temperature coefficient of refractive index. One is the absolute coefficient (dn/dt absolute) measured under vacuum, and the other is the relative coefficient (dn/dt relative) measured in ambient air (101.3 kPa {760 torr} dry air).
[0022]The absolute temperature coefficient of refractive index (dn/dt absolute) can be calculated using the following formula:
dn/dTabsolute=dn/dTrelative+n·dnair/dT (6)
where dnair/dT is the temperature coefficient of refractive index of air listed in the table below.
[0023] |
| Temperature | dnair/dt (10−6/° C.) |
| Range(° C.) | t | C′ | He—Ne | D | e | F′ | g |
|
| −40 to −20 | −1.34 | −1.35 | −1.36 | −1.36 | −1.36 | −1.37 | −1.38 |
| −20 to 0 | −1.15 | −1.16 | −1.16 | −1.16 | −1.16 | −1.17 | −1.17 |
| 0 to +20 | −0.99 | −1.00 | −1.00 | −1.00 | −1.00 | −1.01 | −1.01 |
| +20 to +40 | −0.86 | −0.87 | −0.87 | −0.87 | −0.87 | −0.88 | −0.88 |
| +40 to +60 | −0.76 | −0.77 | −0.77 | −0.77 | −0.77 | −0.77 | −0.78 |
| +60 to +80 | −0.67 | −0.68 | −0.68 | −0.68 | −0.68 | −0.69 | −0.69 |
|
The refractive index of optical glass change with the temperature is given by:
[0024]ⅆnabs(λ,T)ⅆT=n2(λ,T0)2·n(λ,T0)·(D0+2·D1·ΔT+3·D2·ΔT2+E0+2·E1·ΔTλ2-λTK2)(7)
where
- T0: Reference temperature (20° C.)
- T: Temperature (° C.)
- ΔT: Temperature difference versus T0
- λ: Wavelength of the electromagnetic wave in a vacuum (μm)
- D0, D1, D2, E0, E1and λTK: constants depending on glass type.
[0030]The change in the refractive index with temperature usually has the largest impact on the lens performance and thermal focus range.
[0031]To make a lens apochromatic a special combination of glasses, Abbe numbers, and partial dispersions is needed. To make a lens athermal, a special combination of glass refractive indices that change with temperature has to be selected. The solution space is dependent on the configuration of the lens, the number of components, and the component shapes.
[0032]What is needed, therefore, is a compact F-theta lens having a low F# and a high resolution over a wide field of view, the lens being apochromatic, temperature stable, and near-telecentric over a wide range of light frequencies.
SUMMARY OF THE INVENTION
[0033]A compact F-theta lens has an F# of not more than 4.5 and a full field of view of 60° with a high quality performance field of view of over 53°. The lens is near-telecentric to less than 6°, apochromatic over a light frequency range of at least 450 nm-650 nm, and is athermal over a temperature range from −15° C. to +40° C.
[0034]Embodiments have a focal plane diameter of 104 mm and are compatible for use with a CMOS 1.8 gigapixel multiple FPA (focal plane array) having a 2×2 Bayer filter geometry and a pixel size of 2.2 μm×2.2 μm, wherein each CMOS image sensor pixel includes a series of dielectric layers above the photo detector, with a micro lens on top of each pixel to focus light onto the active area of the pixel floor, thereby minimizing both the amount of light lost and the amount of light incident on adjacent photodiodes. In various embodiments, secondary color is corrected so as to take full advantage of a high resolution FPA.
[0035]In some embodiments, the lens is athermal over the specified temperature range, so that there is no need for a special stage to move lens components or the focal plane to compensate for environmental temperature variations. In some embodiments the focal length is 101 mm and the back working distance is more than 10 mm.
[0036]In various embodiments, the lens comprises three groups of optical elements, and the aperture is located between the first and second groups (i.e. the two groups furthest from the FPA). In some of these embodiments, the first two groups can be contained within a housing having an outer diameter of 65 mm. In certain of these embodiments the first group includes at least three optical elements, the second group includes exactly four optical elements, and the third group includes exactly three optical elements.
[0037]In some of these embodiments, one of the first two groups of optical elements corrects the lens for spherical aberration and astigmatism across the field and corrects axial chromatism, spherochromatism, coma and astigmatism without causing distortion, while satisfying relationships required to achieve high resolution of the lens. The other of the first two groups corrects residual chromatic aberration, spherical aberration, coma and astigmatism across the field, while achieving athermalization of the lens through the desired spectrum. And the third optical group corrects field curvature, astigmatism and distortion.
[0038]The present invention is an F-theta lens that includes a first optical group including a plurality of optical elements, a second optical group, including a plurality of optical elements, an aperture located between the first and second optical groups, and a third optical group, including a plurality of optical elements. The F-number of the lens is not more than 4.5. The lens has a full field of view of at least 60°, with a quality performance field of 53°. The lens is telecentric to less than 6°, apochromatic over a range of at least 450 nm to 650 nm, and is functionally insensitive to temperature over a range of at least −15° C. to +40° C.
[0039]In embodiments, the second optical group includes exactly four optical elements, and the third optical group includes exactly three optical elements. In some of these embodiments the first optical group includes exactly five optical elements. In other of these embodiments, the first optical group includes exactly three optical elements, one of the optical elements being made of sapphire.
[0040]In various embodiments, the lens is athermal over the temperature range of at least −15° C. to +40° C.
[0041]In certain embodiments, the lens has a focal plane of at least 104 mm. In some of these embodiments the lens is compatible for use with a CMOS 1.8 gigapixel multiple FPA (focal plane array) having a 2×2 Bayer filter geometry and a pixel size of 2.2 μm×2.2 μm, wherein each CMOS image sensor pixel includes a series of dielectric layers above the photo detector, with a micro lens on top of each pixel to focus light onto the active area of the pixel floor, thereby minimizing both the amount of light lost and the amount of light incident on adjacent photodiodes.
[0042]In some embodiments the lens is secondary color corrected. In other embodiments the first two optical groups can be contained within a housing having an outer diameter of 65 mm. And in certain embodiments at least one surface of one of the optical elements in the first optical group is aspherical, and at least one surface of one of the optical elements in the third optical group is aspherical.
[0043]In various embodiments one of the first two optical groups corrects the lens for spherical aberration, axial chromatism, spherochromatism, coma, and astigmatism without causing distortion, the other of the first two optical groups corrects the lens for residual chromatic aberration, spherical aberration, coma, and astigmatism while achieving athermalization of the lens through the range of at least 450 nm to 650 nm, and the third optical group corrects field curvature, astigmatism and distortion.
[0044]In certain embodiments, all three optical groups have positive powers, whereby:
[0045]the first optical group includes five optical elements, having, in order, a negative optical power, a positive optical power, a negative optical power, a positive optical power and a positive optical power, the first optical group being arranged to converge light received from an object and to direct the converged light onto the second optical group;
[0046]the second optical group includes four optical elements, having, in order, a negative optical power, a positive optical power, a positive optical power and a negative optical power, the second optical group being arranged to further converge light received from the first optical group and to direct the converged light onto the third optical group;
[0047]the third optical group includes three optical elements having, in order, a negative optical power, a positive optical power and a positive optical power, the third optical group being arranged to focus the light from the second optical group onto the imaging surface; and
[0048]the optical groups and optical elements satisfy the relationships described in paragraph [0087] below.
[0049]In some of these embodiments, the first optical element of the first optical group is a double concave lens, the second optical element of the first optical group is a double convex lens, the third optical element of the first optical group is a double concave lens, the fourth optical element of the first optical group is a double convex lens, and the fifth optical element of the first optical group is shaped as a meniscus whose concave surface faces toward the image.
[0050]In some of these embodiments the second surface of the first element of the first optical group is aspherical. In other of these embodiments the first surface of the fifth element of the first optical group is aspherical.
[0051]In other of these embodiments the first optical element of the second optical group is shaped as a meniscus whose concave surface faces toward the image, the second optical element is a double convex lens, the third optical element is a double convex lens, and the fourth optical element is a double concave lens.
[0052]In still other of these embodiments the first optical element of the third optical group is shaped as a negative meniscus lens whose concave surface faces toward the object, the second optical element of the third optical group is shaped as a positive meniscus whose concave surface faces toward the object, and the third optical element is a double convex lens.
[0053]In various of these embodiments the second surface of the first element of the third optical group is aspherical. And in other of these embodiments the first surface of the third element of the third optical group is aspherical.
[0054]In certain embodiments:
[0055]the first optical group has a negative optical power, and the second and third optical groups have positive optical powers, the first optical group includes five optical elements, having, in order a negative optical power, a positive optical power, a positive optical power, a negative optical power and a positive optical power, the first optical group being arranged to diverge light received from an object and to direct the diverged light onto the second optical group;
[0056]the second optical group includes four optical elements, having, in order, a positive optical power, a positive optical power, a positive optical power and a negative optical power, the second optical group being arranged to converge light received from the first optical group and to direct the converged light onto the third optical group;
[0057]the third optical group includes three optical elements having, in order, a negative optical power, a positive optical power and a positive optical power, the third optical group being arranged to focus light from the second optical group onto an imaging surface;
[0058]the aperture stop is positioned between the first and the second optical groups; and
[0059]the optical groups and elements satisfy the relations give in paragraph below.
[0060]In some of these embodiments, the first optical element of the first optical group is a double concave lens, the second optical element of the first optical group is shaped as a meniscus whose concave surface faces toward the object, the third optical element of the first optical group is shaped as a meniscus whose concave surface faces toward the object, the fourth optical element of the first optical group is shaped as a meniscus whose concave surface faces toward the object, and the fifth optical element of the first optical group is shaped as a meniscus whose concave surface faces toward the object.
[0061]In some of these embodiments, the second surface of the first element of the first optical group is aspherical. In other of these embodiments, the second surface of the second element of the first optical group is aspherical.
[0062]In certain of these embodiments the first optical element of the second optical group is shaped as a positive meniscus whose concave surface faces toward the image, the second optical element is a double convex lens, the third optical element is in a double convex lens, and the fourth optical is a double concave lens.
[0063]In other of these embodiments the first optical element of the third optical group is shaped as a negative meniscus lens whose concave surface faces toward the object, the second optical element of the third optical group a double convex lens, and the third optical element of the third optical group is a double convex lens. In some of these embodiments the second surface of the first element of the third optical group is aspherical. In other of these embodiments the first surface of the third element of the third optical group is aspherical.
[0064]In yet other embodiments:
[0065]the first optical group has a negative optical power, and the second and third optical groups have positive optical powers;
[0066]the first optical group includes three optical elements, having, in order, a negative optical power, a positive optical power and a negative optical power, the first optical group being arranged to diverge light received from an object and to direct the diverged light onto the second optical group;
[0067]the second optical group includes four optical elements, having, in order, a negative optical power, a positive optical power, a positive optical power and a negative optical power, the second optical group being arranged to converge light received from the first optical group and to direct the converged light onto the third optical group;
[0068]the third optical group comprises three optical elements having, in order, a negative optical power, a positive optical power and a positive optical power, the third optical group being arranged to focus the light from the second optical group onto the imaging surface;
[0069]the aperture stop is positioned between the first and the second optical groups; and
[0070]the optical groups and the optical elements satisfy the third embodiment relations described below.
[0071]In yet other embodiments, the first optical element of the first optical group is a double concave lens, the second optical element of the first optical group is a double convex lens, and the third optical element of the first optical group is shaped as a meniscus whose concave surface faces toward the object. In some of these embodiments the first surface of the first element of the first optical group is aspherical, and in other of these embodiments the second surface of the second element of the first optical group is aspherical.
[0072]In various of these embodiments the first optical element of the second optical group is shaped as a meniscus whose concave surface faces toward the image, the second optical element of the second optical group is a double convex lens, the third optical element of the second optical group is in a form of a double convex lens, and the fourth optical element of the second optical group is a double concave lens.
[0073]In other of these embodiments, the first optical element of the third optical group is shaped as a negative meniscus lens whose concave surface faces toward the object, the second optical element of the third optical group a double convex lens, and the third optical element of the third optical group is a double convex lens. In some of these embodiments the second surface of the first element of the third optical group is aspherical. And in some of these embodiments the first surface of the third element of the third optical group is aspherical.
[0074]And in certain of these embodiments the second optical element of the second optical group is made from sapphire.
[0075]The features and advantages described herein are not all-inclusive and, in particular, many additional features and advantages will be apparent to one of ordinary skill in the art in view of the drawings, specification, and claims. Moreover, it should be noted that the language used in the specification has been principally selected for readability and instructional purposes, and not to limit the scope of the inventive subject matter.
BRIEF DESCRIPTION OF THE DRAWINGS
[0076]FIG. 1 is a cross sectional side view illustrating a first embodiment of the present invention;
[0077]FIG. 2 presents a wave front analysis of the embodiment of FIG. 1;
[0078]FIG. 3A is a graph presenting MTF data for the embodiment of FIG. 1;
[0079]FIG. 3B is a graph presenting additional MTF data for the embodiment of FIG. 1;
[0080]FIG. 4A includes a plurality of graphs presenting RIM RAY curves for the embodiment of FIG. 1;
[0081]FIG. 4B includes additional graphs presenting RIM RAY curves for the embodiment of FIG. 1;

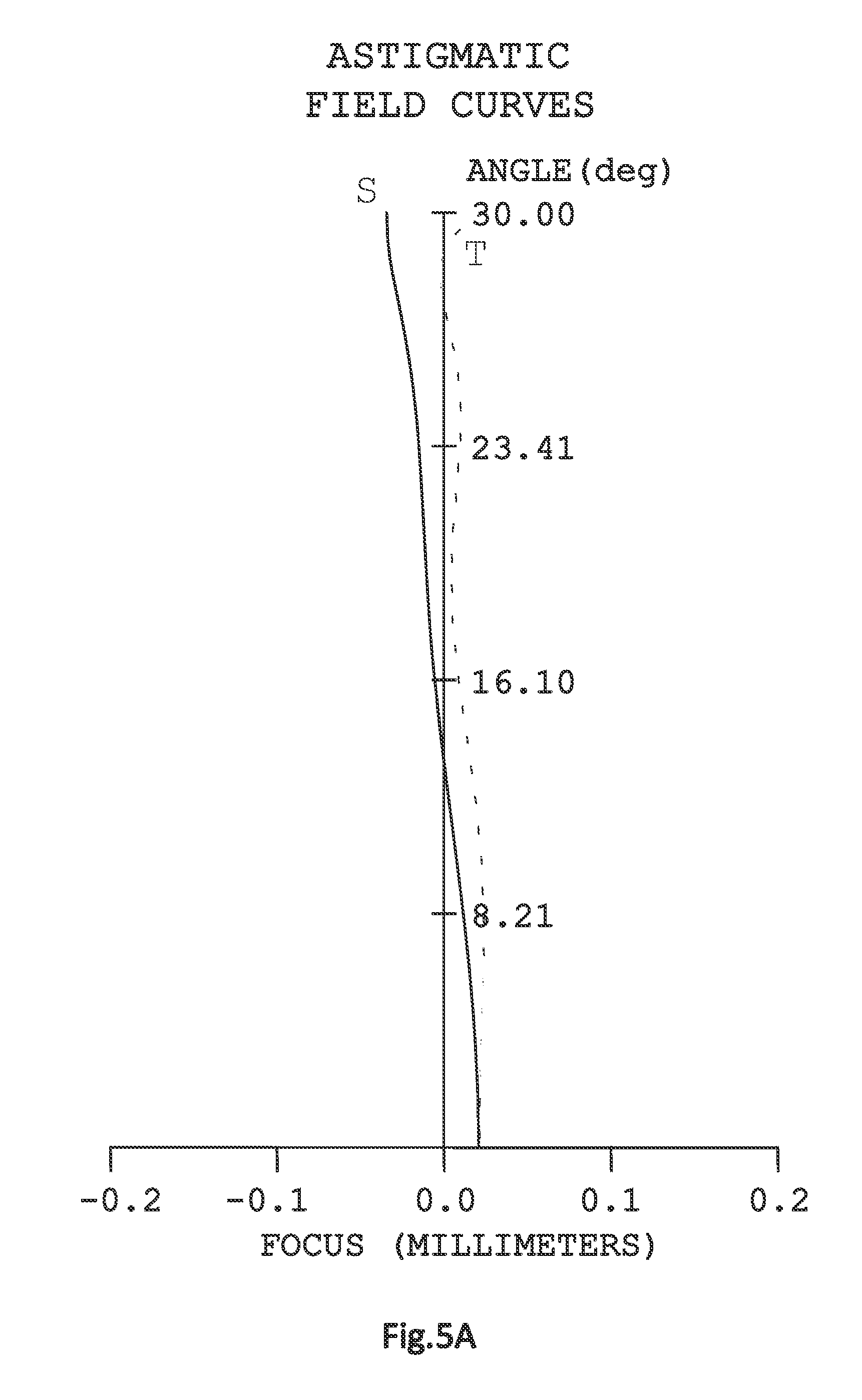

[0082]FIG. 5A presents a graph of field aberration data for the embodiment of FIG. 1;

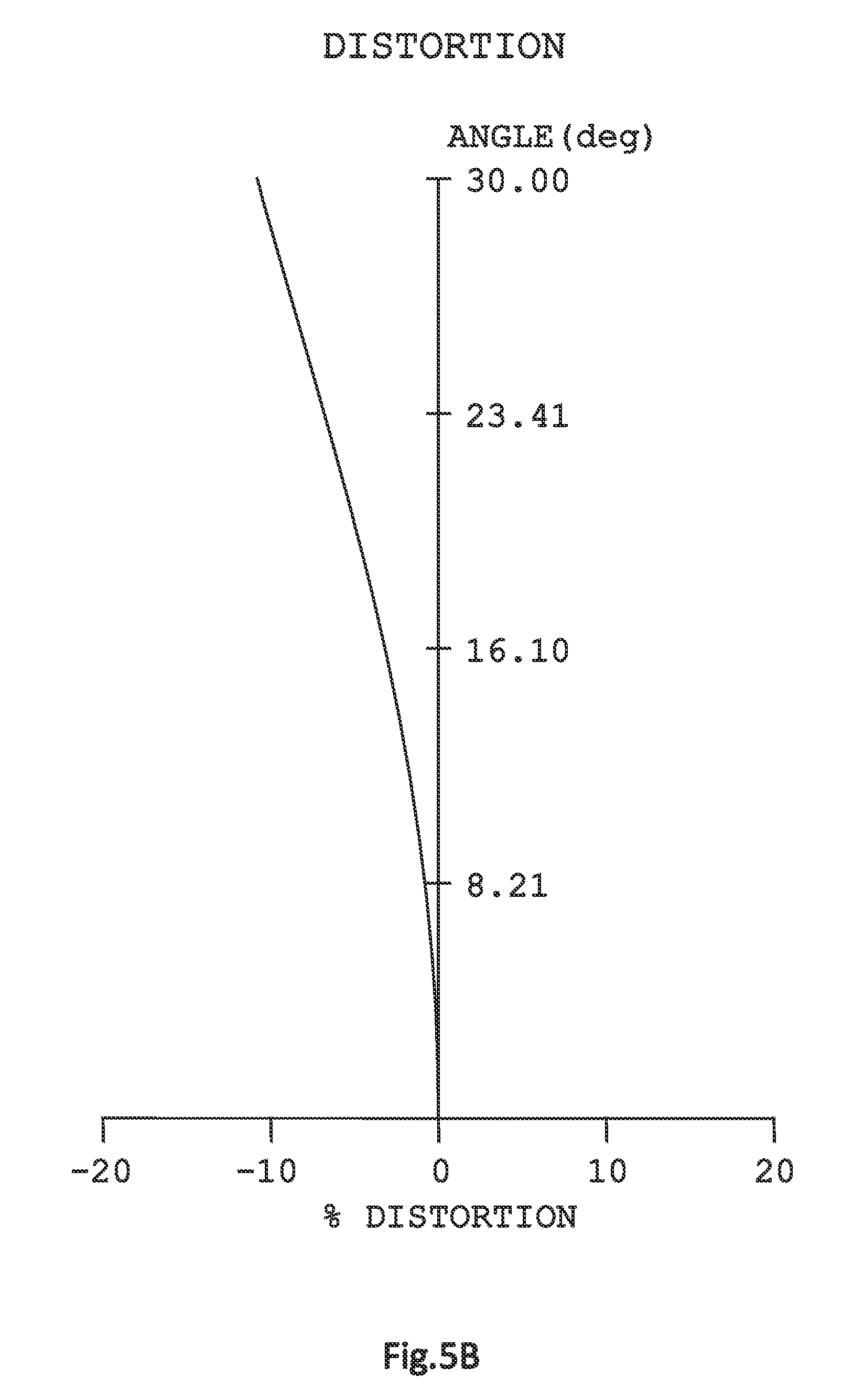

[0083]FIG. 5B presents a graph of distortion data for the embodiment of FIG. 1;
[0084]FIG. 6 is a graph presenting environmental analysis for the embodiment of FIG. 1;

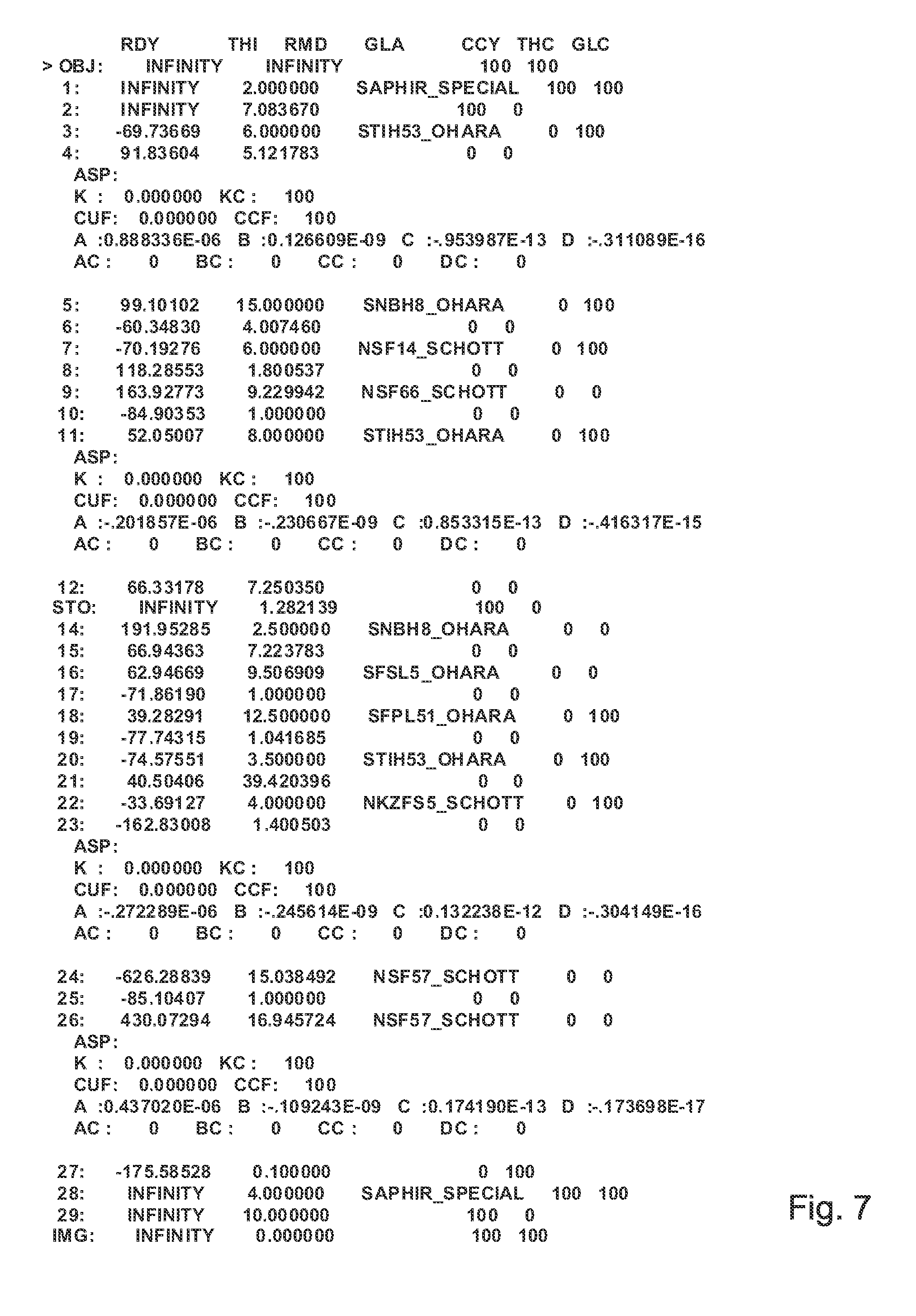

[0085]FIG. 7 is a listing of properties of optical elements for the embodiment of FIG. 1;
[0086]FIG. 8 is a cross sectional side view illustrating a second embodiment of the present invention;
[0087]FIG. 9 presents a wave front analysis of the embodiment of FIG. 8;
[0088]FIG. 10A is a graph presenting MTF data for the embodiment of FIG. 8;
[0089]FIG. 10B is a graph presenting additional MTF data for the embodiment of FIG. 8;
[0090]FIG. 11A includes a plurality of graphs presenting RIM RAY curves for the embodiment of FIG. 8;
[0091]FIG. 11B includes additional graphs presenting RIM RAY curves for the embodiment of FIG. 8;
[0092]FIG. 12A presents a graph of field aberration data for the embodiment of FIG. 8;
[0093]FIG. 12B presents a graph of distortion data for the embodiment of FIG. 8;
[0094]FIG. 13 is a graph presenting environmental analysis for the embodiment of FIG. 8;
[0095]FIG. 14 is a listing of properties of optical elements for the embodiment of FIG. 8;
[0096]FIG. 15 is a cross sectional side view illustrating a third embodiment of the present invention;
[0097]FIG. 16 presents a wave front analysis of the embodiment of FIG. 15;
[0098]FIG. 17 is a graph presenting MTF data for the embodiment of FIG. 15;
[0099]FIG. 18 includes a plurality of graphs presenting RIM RAY curves for the embodiment of FIG. 15;
[0100]FIG. 19A presents a graph of field aberration data for the embodiment of FIG. 15;
[0101]FIG. 19B presents a graph of distortion data for the embodiment of FIG. 15;
[0102]FIG. 20 is a graph presenting environmental analysis for the embodiment of FIG. 15; and
[0103]FIG. 21 is a listing of properties of optical elements for the embodiment of FIG. 15.
DETAILED DESCRIPTION
[0104]FIG. 1 is a cross section of a first embodiment of the F-theta athermal lens 10 of the present invention. The lens includes a front window 21, a first optical group 20, a second optical group 30, a third optical group 40, and a back window 44 in order from the object to the image plane. An aperture stop 12 is located between the first and the second optical groups. An image of a target is formed on a focal plane array 60. In embodiments, the focal plane array incorporates CMOS with micro lenses, 2×2 Bayer filter geometry, and 1.8 Giga pixels. In other embodiments the image surface 60 incorporates CCD or a direct viewing screen.
[0105]The first optical group 20 has an overall positive optical power and is configured to receive light from the remote object and to direct the converged light onto the second optical group 30. The first optical group 20 includes five optical elements 22, 23, 24, 25 and 26, having, in order from the object to the image plane, a negative optical power, a positive optical power, a negative optical power, a positive optical power and a positive optical power. As can be seen in FIG. 1 the first optical element 22 of the first optical group 20 has a negative optical power and is a double concave lens. The second surface 22a of the element 22 is aspherical so as to correct oblique spherical aberration and to provide the low F# of the lens 10. The second optical element 23 has a positive optical power and is a double convex lens. The third optical element 24 has a negative optical power and is a double concave lens. The fourth optical element 25 has a positive optical power and is a double convex lens. The fifth optical element 26 has a positive optical power and is shaped as a meniscus whose concave surface faces toward the image. The first surface 26a of the fifth optical element is aspherical so as to correct spherical aberration and astigmatism across the field of view.
[0106]The mutual configuration of the five optical elements 22, 23, 24, 25 and 26 of the first optical group 20 provides correction of axial chromatism, spherochromatism, coma, and astigmatism without introducting a distortion, while satisfying relationships required among the optical elements to achieve high resolution of the lens 10.
[0107]The second optical group 30 has a positive overall optical power and is configured to further converge light from the first optical group 20 and to direct the converged light onto the third optical group 40. The second optical group includes four optical elements 31, 32, 33 and 34, having in order from the object to the image plane a negative optical power, a positive optical power, a positive optical power, and a negative optical power. The first optical element 31 of the second optical group 30 is shaped as a meniscus whose concave surface faces toward the image, the second optical element 32 is a double convex lens, the third optical element 33 is a double convex lens, and the fourth optical element 34 is a double concave lens.
[0108]The mutual configuration and choice of glasses of the elements in the second optical group 30 provides correction of residual chromatic aberration, spherical aberration, coma, and astigmatism across the field of view, while achieving athermalization of the lens 10 through the wavelength range of 450 nm-650 nm.
[0109]The third optical group 40 has a positive overall power and is configured to further converge the light from the second optical group 30 and to focus the light onto the focal plane array 15. The third optical group 40 includes three optical elements 41, 42 and 43, having, in order from the object to the image plane, a negative optical power, a positive optical power, and a positive optical power, respectively. The first optical element 41 of the third optical group 40 has a negative optical power and is shaped as a negative meniscus lens whose concave surface faces toward the object. The second surface 41a of the first element 41 is aspherical so as to correct residual astigmatism across the field of view. The second optical element 42 of the third optical group is shaped as a positive meniscus lens whose concave surface faces toward the object. The third optical element 43 is a double convex lens. The first surface 43a of the third optical element 43 is aspherical so as to correct residual coma and distortion shape across the field of view, and to provide telecentricity for the beam at the focal plane.
[0110]The mutual configuration of the third optical group elements provides correction of field curvature, astigmatism and distortion.
[0111]The mutual combination of glass refractive indices and Abbe numbers of the optical elements in the three optical groups 20, 30 and 40 provides apochromatic correction of the lens 10. The axial color and lateral color are corrected as well. The mutual combination changes of refractive indes with temperature provides athermalization of the lens 10 over the temperature range −15° C. to +40° C.
[0112]In the embodiment of FIG. 1 the optical groups 20, 30, 40 and their constituent optical elements satisfy the following relations:
0.8<F′10/F′20<1.1
0.04<F′10/F′30<0.07
0.3<F′10/F′40<0.5
0.85<n22/n26=n22/n34=n22/n42=n22/n43<1.15
0.95<n22/n23=n22/n24=n22/n31=<1.25
0.80<n22/n25<1.1
1.05<n22/n32=n22/n33=n22/n41<1.35
0.8<V22/V24=V22/V25=V22/V26=V22/V34=V22/V42=V22/V43<1.2
1.45<V22/V23=V22/V31=V22/V41<0.8
0.25<V22/V32<0.45
0.2<V22/V33<0.4
0.0055<P32/V32=P33/V33<<0.0085
0.85<dn/dT22/dn/dT26=dn/dT22/dn/dT34<1.2
0.07<dn/dT22/dn/dT23=dn/dT21/dn/dT31<0.1
−0.5<dn/dT22/dn/dT24<−0.3
0.2<dn/dT22/dn/dT25<0.35
−0.12<dn/dT22/dn/dT32<−0.07
dn/dT22/dn/dT42=dn/dT22/dn/dT43<0.5
−0.04<dn/dT22/dn/dT33′<−0.02
0.035<dn/dT22/dn/dT41′<0.07
where:
F′10is the focal length of the lens 10;
F′20, F′30and F′40are the focal lengths of the first, the second and the third optical groups 20, 30 and 40;
n22, n23, n24, n25and n26are the refractive indices for the optical elements 22, 23, 24, 25 and 26 of the first optical group 20;
n31, n32, n33and n34are the refractive indices for the optical elements 31, 32, 33, and 34 of the second optical group 30;
n41, n42and n43are the refractive indices for the optical elements 41, 42 and 43 of the third optical group 40;
V22, V23, V24, V25and V26are Abbe numbers for the optical elements 22, 23, 24, 25 and 26 of the first optical group 20;
V31, V32, V33and V34are Abbe numbers for the optical elements 31, 32, 33 and 34 of the second optical group 30;
V41, V42, and V43are Abbe numbers for the optical elements 41, 42, and 43 of the third optical group 40;
P32is the relative partial dispersion for F′-e spectrum for the second optical element 32 of the second optical group 30;
P33is the relative partial dispersion for F′-e spectrum for the third optical element 33 of the second optical group 30;
dn/dT22is the refractive index change with temperature for the first optical element 22 of the first optical group 20;
dn/dT23is the refractive index change with temperature for the second optical element 23 of the first optical group 20;
dn/dT24is the refractive index change with temperature for the third optical element 24 of the first optical group 20;
dn/dT25is the refractive index change with temperature for the second optical element 25 of the first optical group 20;
dn/dT26is the refractive index change with temperature for the second optical element 26 of the first optical group 20;
dn/dT31is the refractive index change with temperature for the first optical element 31 of the second optical group 30;
dn/dT32is the refractive index change with temperature for the second optical element 32 of the second optical group 30;
dn/dT33is the refractive index change with temperature for the third optical element 33 of the second optical group 30;
dn/dT34is the refractive index change with temperature for the fourth optical element 34 of the second optical group 30;
dn/dT41is the refractive index change with temperature for the first optical element 41 of the third optical group 40;
dn/dT42is the refractive index change with temperature for the second optical element 42 of the third optical group 40; and
dn/dT43is the refractive index change with temperature for the third optical element 43 of the third optical group 40.
[0113]Selection of optical powers of optical groups and elements, selection of glass refractive indices, Abbe numbers and partial dispersions along with dn/dT values provides a high resolution imaging lens with chromatic and apochromatic correction while the defocus caused by changes in temperature is less than the depth of focus of the lens.
[0114]The wave front for the embodiment of FIG. 1 is presented in FIG. 2, and MTF data for the first embodiment is presented in FIG. 3A and FIG. 3B respectively. The wave front is well corrected over the whole spectrum and polychromatic, and the MTF shows good resolution and contract over the entire field of view. The RIM RAY curves in FIG. 4A and FIG. 4B show the spherical aberration, coma, and chromatic and apochromatic correction over the wavelength range of 450 nm-650 nm. Astigmatism data is presented in FIG. 5A and distortion data is presented in FIG. 5B. The field is flat and the distortion corresponds to the F-theta law. Data regarding the change of the focus with temperature is presented in FIG. 6. The defocus over the temperature range of −15° to 45° is 4 μm, which is much less than the depth of focus. The lack of telecentricity is less than 6° across the field of view. The prescription of the lens of FIG. 1 is presented in FIG. 7. The optical materials used in making the lens of FIG. 1 include optical glasses that are common and widely available commercially.
[0115]FIG. 8 is a cross sectional illustration of a second embodiment of the F-theta athermal lens 100 of the present invention. The lens includes a front window 210, a first optical group 200, a second optical group 300, a third optical group 400 and a back window 440 in order from the object to the image plane 150. The aperture stop 110 is located between the first 200 and the third optical groups. An image of the target is formed on a focal plane array 150. In embodiments, the focal plane array 150 incorporates CMOS with micro lenses, 2×2 Bayer filter geometry, and 1.8 Giga pixels. In other embodiments, the image surface 150 may include CCD elements or a direct viewing screen.
[0116]In the embodiment of FIG. 8, the first optical group 200 has an overall negative optical power and is configured to receive light from a remote object and to direct the diverged light onto the second optical group 300. The first optical group 200 includes five optical elements 220, 230, 240, 250 and 260, having, in order from the object to the image plane, a negative optical power, a positive optical power, a positive optical power, a negative optical power and a positive optical power. As can be seen in FIG. 8, the first optical element 220 of the first optical group 200 has a negative optical power and is a double concave lens. The second surface 220a of the element 220 is aspherical so as to correct the spherical aberration and coma for the low F#4.5 of the lens 100. The second optical element 230 has a positive optical power and is shaped as a meniscus whose concave surface faces toward the object. The second surface of the second optical element 230 is aspherical for residual coma and astigmatism correction. The third optical element 240 has a positive optical power and is shaped as a meniscus whose concave surface faces toward the object. The fourth optical element 250 has a negative optical power and is shaped as a meniscus whose concave surface faces toward the object. The fifth optical element 260 has a positive optical power and is shaped as a meniscus whose concave surface faces toward the object. The mutual configuration of the five optical elements 220, 230, 240, 250 and 260 of the first optical group 200 and the choice of glasses combination provides correction of axial chromatism, spherical chromatic aberration, coma, and astigmatism, while satisfying relationships required among the optical elements to achieve high resolution of the lens 100.
[0117]The second optical group 300 has a positive overall optical power and is configured to converge light from the first optical group 200 and to direct the converged light onto the third optical group 400. The second optical group 300 includes four optical elements 310, 320, 330 and 340, having in order from the object to the image plane a positive optical power, a positive optical power, a positive optical power and a negative optical power. The first optical element 310 of the second optical group 300 is shaped as a positive meniscus whose concave surface faces toward the image, the second optical element 320 is a double convex lens, the third optical element 330 is a double convex lens, and the fourth optical element 340 is a double concave lens.
[0118]The mutual configuration and choice of glasses of the optical elements 310, 320, 330 and 340 in the second optical group 300 provides correction of residual chromatic aberration, residual spherical aberration, coma, and astigmatism across the field of view, while achieving athermalization of the lens 100 through the desired range of temperatures and through a wavelength range of 450 nm to 650 nm.
[0119]The third optical group 400 has a positive overall power and is configured to further converge the light from the second optical group 300 and to focus the converged light onto the focal plane array 150. The third optical group 400 includes three optical elements 410, 420 and 430, having, in order from the object to the image plane, a negative optical power, a positive optical power and a positive optical power respectively. The first optical element 410 of the third optical group 400 has a negative optical power and is shaped as a negative meniscus lens whose concave surface faces toward the object. The second surface 410a of the first element 410 is aspherical so as to correct a residual saggital astigmatism across the field of view. The second 420 and third 430 optical elements of the third optical group 400 are both double convex lenses. The first surface 430a of the third optical element 430 is aspherical so as to correct residual coma and distortion shape across the field of view, and to achieve telecentricity for the beam at the image space.
[0120]The mutual configuration of the third optical group elements provides correction of field curvature, astigmatism and distortion. The mutual combination of glass refractive indices and Abbe numbers of the optical elements in the optical groups 20, 30 and 40 provides apochromatic correction of the lens 100. The axial color and lateral color are also corrected. The mutual combination of changes of refractive index with temperature provides athermalization of the lens 100 over the temperature range from −15° C. to 40° C.
[0121]The embodiment of FIG. 8 satisfies the following relations among the optical groups 200, 300, 400 and their constituent optical elements:
−0.08<F′100/F′200<−0.06
0.8<F′100/F′300<0.9
0.2<F′100/F′400<0.4
0.8<n220/n230=n220/n240=n220/n310=n220/n340=n220/n420=n220/n430<1.1
1.1<n220/n260=n220/n320=n220/n330=n220/n410=<1.35
0.9<n220/n250<1.2
0.9<V220/V230=V220/V240=V220/V310=V220/V340=V220/V420=V220/V430<1.3
0.8<V220/V250<1.1
0.3<V220/V260=V220/V320<0.5
0.2<V220/V330<0.4
0.5<V220/V410<0.7
0.0055<P320/V320=P330/V330<<0.0085
0.2<dn/dT220/dn/dT230=dn/dT220/dn/dT240=dn/dT220/dn/dT430<0.4
−0.55<dn/dT220/dn/dT250<−0.35
0.08<dn/dT220/dn/dT260<0.1
0.1<dn/dT220/dn/dT310=dn/dT220/dn/dT420<0.3
−0.3<dn/dT220/dn/dT320<−0.08
−0.04<dn/dT220/dn/dT330<−0.02
0.9<dn/dT220/dn/dT340<1.1
0.35<dn/dT220/dn/dT410<0.55
where:
F′100is the focal length of the lens 100;
F′200, F′300and F′400are the focal lengths of the first, the second and the third optical groups 200, 300 and 400;
n220, n230, n240, n250and n260are the refractive indices for the optical elements 220, 230, 240, 250 and 206 of the first optical group 200;
n310, n320, n330and n340are the refractive indices for the optical elements 310, 320, 330 and 340 of the second optical group 300;
n410, n420and n430are the refractive indices for the optical elements 410, 420 and 430 of the third optical group 400;
V220, V230, V240, V250and V260are the Abbe numbers for the optical elements 220, 230, 240, 250 and 260 of the first optical group 200;
V310, V320, V330and V340are the Abbe numbers for the optical elements 310, 320, 330 and 340 of the second optical group 300;
V410, V420, and V430are the Abbe numbers for the optical elements 410, 420, and 430 of the third optical group 400;
P320is the relative partial dispersion for F′-e spectrum for the second optical element 320 of the second optical group 300;
P330is the relative partial dispersion for F′-e spectrum for the third optical element 330 of the second optical group 300;
dn/dT220is the refractive index change with temperature for the first optical element 220 of the first optical group 200;
dn/dT230is the refractive index change with temperature for the second optical element 230 of the first optical group 200;
dn/dT240is the refractive index change with temperature for the third optical element 240 of the first optical group 200;
dn/dT250is the refractive index change with temperature for the second optical element 250 of the first optical group 200;
dn/dT260is the refractive index change with temperature for the second optical element 260 of the first optical group 200;
dn/dT310is the refractive index change with temperature for the first optical element 310 of the second optical group 300;
dn/dT320is the refractive index change with temperature for the second optical element 320 of the second optical group 300;
dn/dT330is the refractive index change with temperature for the third optical element 330 of the second optical group 300;
dn/dT340is the refractive index change with temperature for the fourth optical element 340 of the second optical group 300;
dn/dT410is the refractive index change with temperature for the first optical element 410 of the third optical group 400;
dn/dT420is the refractive index change with temperature for the second optical element 420 of the third optical group 400; and
dn/dT430is the refractive index change with temperature for the third optical element 430 of the third optical group 400.
[0122]The selection of optical powers of the optical groups, the selection of glass refractive indices, Abbe numbers, and partial dispersions, and the selection of dn/dT values provides a high resolution imaging lens with chromatic and apochromatic correction while the defocus caused by changes in temperature is less than the depth of focus of the lens.
[0123]Wave front data for the embodiment of FIG. 8 is presented in FIG. 9, and MTF data for the second embodiment is presented in FIG. 10A and FIG. 10B. The wave front is well corrected over the whole spectrum, and the polychromatic MTF shows good resolution and contract over the entire field of view. The RIM RAY curves in FIG. 11A and FIG. 11B show the spherical aberration, coma and chromatic and apochromatic correction over a wavelength range of 450 nm to 650 nm. Astigmatism data is presented in FIG. 12A and distortion data is presented in FIG. 12B. The distortion corresponds to the F-theta law. Data regarding the change of the focus with temperature is presented in FIG. 13. The defocus over the temperature range of −15° to 45° is 9 μm, which is much less than depth of focus. Lack of telecentricity is less than 6° across the field of view. The prescription of the lens of FIG. 8 is presented in FIG. 14. The optical materials of the embodiment include optical glasses that are common and widely available commercially.
[0124]FIG. 15 is a cross-sectional illustration of a third embodiment of the F-theta athermal lens 1000 of the present invention. The lens 1000 includes a front window 2100, a first optical group 2000, a second optical group 3000, a third optical group 4000 and a back window 4400 in the stated order from the object to the image plane. The aperture stop 1100 is located between the first 2000 and second 3000 optical groups. An image of a remote object is formed on a focal plane array 1500. In embodiments, the focal plane array 1500 incorporates CMOS with micro lenses, 2×2 Bayer filter geometry, and 1.8 Giga pixels. In other embodiments, the image surface 1500 may incorporate CCD devices or a direct viewing screen.
[0125]The first optical group 2000 has an overall negative optical power and is configured to receive light from the remote object and to direct the diverged light onto the second optical group 3000. The first optical group 2000 includes three optical elements 2200, 2300 and 2400, having, in order from the remote object to the image plane, a negative optical power, a positive optical power and a negative optical power. As can be seen in FIG. 15, the first optical element 2200 of the first optical group 2000 has a negative optical power and is a double concave lens. The first surface 2200a of the first optical element 2200 is aspherical so as to correct the spherical aberration and to achieve the low F# of the lens 1000. The second optical element 2300 of the first optical group 2000 has a positive optical power and is a double convex lens. The second surface 2300a of the second optical element 2300 is aspherical so as to correct pupil spherical aberration and coma. The third optical element 2400 of the first optical group 2000 has a negative optical power and is shaped as a meniscus whose concave surface faces toward the object. The mutual configuration and choice of glasses of the three optical elements 2200, 2300, 2400 in the first optical group 2000 provide athermalization of the lens 1000.
[0126]The second optical group 3000 has a positive overall optical power and is configured to converge light from the first optical group 2000 and to direct the converged light onto the third optical group 4000. The second optical group 3000 includes four optical elements 3100, 3200, 3300 and 3400, having in order from the object to the image plane 1500 a negative optical power, a positive optical power, a positive optical power and a negative optical power. The first optical element 3100 of the second optical group 3000 is shaped as a meniscus whose concave surface faces toward the image. The second optical element 3200 of the second optical group 3000 is a double convex lens. The third 3300 and fourth 3400 optical elements of the second optical group are both double convex lenses.
[0127]The mutual configuration of the four optical elements 3100, 3200, 3300 and 3400 in the second optical group 3000 provides correction of axial chromatic aberration and spherochromatism through the wavelength range of 450 nm to 650 nm, while satisfying relationships among the optical elements required to achieve high resolution of the lens 1000.
[0128]The third optical group 4000 has a positive overall power and is configured to further converge the light from the second optical group 3000 and to focus the converged light onto the focal plane array 1500. The third optical group 4000 includes three optical elements 4100, 4200 lnd 4300, having, in order from the object to the image plane a negative optical power, a positive optical power and a positive optical power respectively. The first optical element 4100 of the third optical group 4000 has a negative optical power and is shaped as a negative meniscus lens whose concave surface faces toward the object. The second surface 4100a of the first element 4100 is aspherical so as to correct a residual astigmatism across the field of view. The second optical element 4200 of the third optical group is a double convex lens. The third optical element 4300 of the third optical group is a double convex lens. The first surface 4300a of the third optical element 4300 is aspherical so as to correct residual coma and distortion shape across the field of view, and to achieve telecentricity for the beam at the image space.
[0129]The mutual configuration of the third optical group elements provides correction of field curvature, astigmatism and distortion.
[0130]The mutual combination of glass refractive indices and Abbe numbers of the optical elements in the three optical groups 2000, 3000 and 4000 provides apochromatic correction of the lens 1000. Axial color and lateral color are also corrected. The mutual combination of changes of refractive index with temperature provides athermalization of the lens 1000 over the temperature range −15° C. to +40° C.
[0131]The embodiment of FIG. 15 satisfies the following relations among the optical groups 2000, 3000, 4000 and their constituent optical elements:
−0.8<F1000/F′2000<−0.6
1.45<F′1000/F′3000<1.75
0.25<F′1000/F′4000<0.45
0.85<n2200/n2400=n2200/n3400=n2200/n4100=n2200/n4200<1.1
0.75<n2200/n2300=n2200/n3200=n2200/n4300=<0.95
0.8<n2200/n3100<0.9
0.9<n2200/n3300<1.15
1.15<V2200/V2300=V2200/V2400=V2200/V3400=V2200/V4100<1.45
2.1<V2200/V3100=V2200/V4300<2.4
0.65<V2200/V3200<0.85
0.5<V2200/V3300<0.7
0.8<V2200/V4200<1.1
0.005<P3200/V3200<0.007
0.2<dn/dT2200/dn/dT2300=dn/dT2200/dn/dT2400=dn/dT2200/dn/dT3400<0.4
3<dn/dT2200/dn/dT3100<4
0.9<dn/dT2200/dn/dT4200<1.1
0.09<dn/dT2200/dn/dT4100<0.15
0.04<dn/dT2200/dn/dT3200=dn/dT2200/dn/dT4300<0.06
−0.09<dn/dT2200/dn/dT3300<−0.06
Where:
F′10is the focal length of the lens 1000;
F′2000, F′3000and F′4000are the focal lengths of the first, the second and the third optical groups 2000, 3000 and 4000;
n2200, n2300and n2400are the refractive indices for the optical elements 2200, 2300 and 2400 of the first optical group 2000;
n3100, n3200, n3300and n3400are the refractive indices for the optical elements 3100, 3200, 3300 and 3400 of the second optical group 3000;
n4100, n4200and n4300are the refractive indices for the optical elements 4100, 4200 and 4300 of the third optical group 4000;
V2200, V2300and V2400are the Abbe numbers for the optical elements 2200, 2300 and 2400 of the first optical group 2000;
V3100, V3200, V3300and V3400are the Abbe numbers for the optical elements 3100, 3200, 3300 and 3400 of the second optical group 3000;
V4100, V4200, and V4300are the Abbe numbers for the optical elements 4100, 4200, and 4300 of the third optical group 4000;
P3200is the relative partial dispersion for F′-e spectrum for the second optical element 3200 of the second optical group 3000;
dn/dT2200is the refractive index change with temperature for the first optical element 2200 of the first optical group 2000;
dn/dT2300is the refractive index change with temperature for the second optical element 2300 of the first optical group 2000;
dn/dT2400is the refractive index change with temperature for the third optical element 2400 of the first optical group 2000;
dn/dT3100is the refractive index change with temperature for the first optical element 3100 of the second optical group 3000;
dn/dT3200is the refractive index change with temperature for the second optical element 3200 of the second optical group 3000;
dn/dT3300is the refractive index change with temperature for the third optical element 3300 of the second optical group 3000;
dn/dT3400is the refractive index change with temperature for the fourth optical element 3400 of the second optical group 3000;
dn/dT4100is the refractive index change with temperature for the first optical element 4100 of the third optical group 4000;
dn/dT4200is the refractive index change with temperature for the second optical element 4200 of the third optical group 4000; and
dn/dT4300is the refractive index change with temperature for the third optical element 4300 of the third optical group 4000.
[0132]The selection of optical powers of optical groups and elements, the selection of glass refractive indices, Abbe numbers and partial dispersions, and the selection of dn/dT values provides a high resolution imaging lens with chromatic and apochromatic correction while the defocus caused by changes in temperature is less than the depth of focus of the lens.
[0133]Wave front and MTF data for the embodiment of FIG. 15 is presented in FIG. 16 and FIG. 17 respectively. The wave front is well corrected over the whole wavelength range and is polychromatic. The MTF shows good resolution and contract over the entire field. The RIM RAY curves in FIG. 18 show the spherical aberration, coma and chromatic and apochromatic corrections over the wavelength range of 450 nm to 650 nm. Astigmatism data is presented in FIG. 19A and distortion data is presented in FIG. 19B. The field is flat and the distortion corresponds to the F-theta law. Data regarding the change of the focus with temperature is presented in FIG. 20. The defocus over the temperature range of −15° to 40° is 5 μm, which is much less than the depth of focus. The lack of telecentricity is less than 6° across the field of view. The prescription of the lens of FIG. 15 is presented in FIG. 21. The optical materials of the embodiment include optical glasses that are common and widely available commercially.
[0134]The foregoing description of the embodiments of the invention has been presented for the purposes of illustration and description. It is not intended to be exhaustive or to limit the invention to the precise form disclosed. Many modifications and variations are possible in light of this disclosure. It is intended that the scope of the invention be limited not by this detailed description, but rather by the claims appended hereto.
