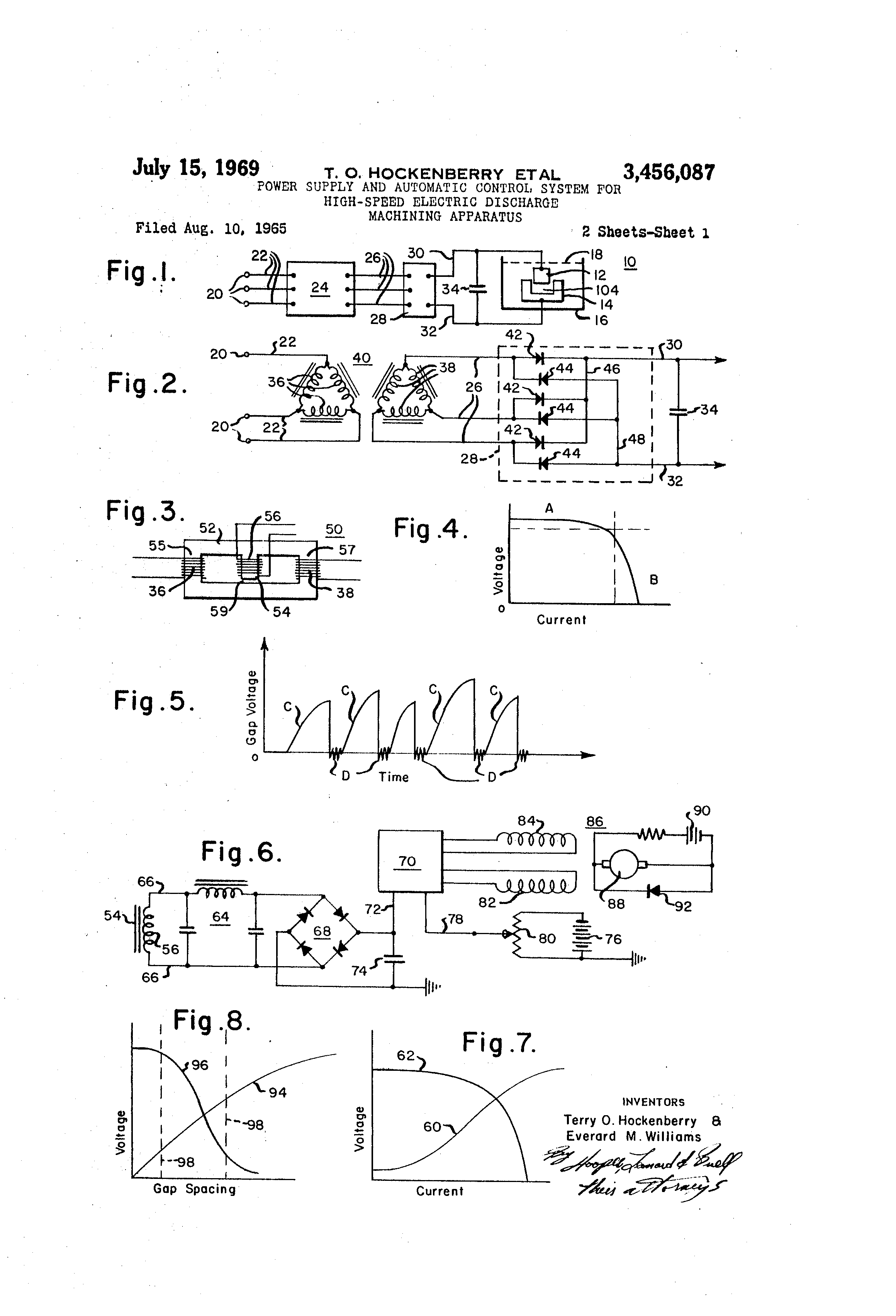

[1]United States Patent Office 31456@087 3,456,087 POWER SUPPLY AND AUTOMATIC @CONTROL SYSTE,M FOR HIGH-SPEED ELECTRIC DISCHARGE MACHINING APPARATUS Terry 0. liockenberry, Pittsburgh, and Everard M. Williams, Edgewood, Pa., assignors to Siltronics, Inc., Pitcairn, Pa., a corporation of Pennsylvania Filed Aug. 10, 1965, Ser. No. 478,563 Int. Cf. B23k 9116 U.S. Cl. 219-69 8 Claims 10 ABSTRACT OF THE DISCLOSURE Electric discharge machining apparatus having energy storing structure including a capacitor. An electrode tool 15 is connected to one terminal of the capacitor and a workpiece is connected to the other terminal thereof. The electrode is mounted for gap controlled movement toward and away from the workpiece. When charged the capacitor discharges through a dielectric fluid in the gap. The 20 capacitor is charged by a rectifying circuit powered by a transformer having a core including a flux leakage leg. The electrode positioning mechanism is controlled by a control winding on the leakage leg. 25 Th e present invention relates to systems for energizin@ an d controlling the electrode tool of electric dischar-,e o@r spa rk machining (EDM) apparatus for cutting extremely har d materials such as the metal carbides, hardened steels 30 an d certiin alloys of titanium, zirconium, and vanadium , by the repetitivc spark cutting method. In EDM operations, it has been found that crater depth de pends upon the ma@nitude of discharge current while cra ter area is very nearly proportional to the discharge 35 du ration. The material removed by sparks of varying am plitude and fixed duration is roughly proportional to the three halves power of capacitor discharge current. Me asureme.nts show that gap width (corresponding to vol tage with which the capacitor is charged at the instant 40 dis charge takes place) has little effect on crater depth an d area, but is significant in that the crater location with res pect to electrode positioning becomes increasingl@' errati c as gap width is increased. Proper control of operating voltage, therefore, has an important effect on -ma- 4,r) chinin@ accuracy for this reason, in addition to its effect on the variations in the critical gap previously noted. The ispark machining or EDM process in which the er<)sion is greatest at the positive electrode, is evidently quite different from arc-cuttina systems in which the 50 greater erosion takes place at the ne@ative electrode. Are erosion is accompanied by high temperatures and meltin,@, whereas in the spark erosion process microscopic examination (>f the workpiece surface often gives evidence of fracture by mechanical forces. Spark machined surfaces fre- 55 quently exhibit no alteration in temperature related properties such as stirface hardness. Crystallographic studies of spark inachined surfaces of material with transformation temperatui,es slightly above ambient have shown that machined surface temperature rises are insufficient to pro- 60 duce such crystal transformations. Therefore, in many eases material is removed from the workpiece with little or no melting. Ideally, the spark macbining process is conducted with as high a discharge recurrence rate as is feasible without 65 developing sustained arcing. The closest approach to this ideal condition is obtained by the invention by the provision of a power supply for the capacitor which ensures eveness of char,@ing thereof and mininiizes the possibilities 70 of sustained arc discharge. In addition, the electrode tool is careftilly advanced by the atitomatic advance control Patented July 15, 1969 2 system of the invention. By controlling the advance rate of the tool with the regulatory characteristic of the power supply, the position of the electrode tool can be precisely placed with respect to the critical confines of the gap width. The rapidity with which a spark machining process proceeds is dependant also upon properly spacing the recurrent discharges or sparkovers and also upon the use of charging waveforms having as steep a wave front as feasible with the slope of the wave fronts beina initially and ideally at zero. This latter ideal condition is closely approached by the invention by provision of a power supply for the capacitor which causes the capacitor to discharge at more nearly regular intervals and to recharge qtiickly to produce the necessarily rapid voltage rise of very small initial slope. The automatic tool advance portion of the control circuit of the invention cooperates in this objective by nulifying as far as possible the effects of residual debris between the tool and the workpiece. The invention greatly simplifies the design of electrode drive mechanism which thus is adaptable for operation over a wide range of machining speeds and finishes and with a wide variety of tool sizes and conflgtirations; more particularly @the automatic advance control of the invention eliminatp-s difficulty which -mi.- ht be caused, for example, by improper adjustment of prior balance type controls by an operator. Previous power supplies fc>r EDM apparatus fall into one of the following categoriesIn the simplest and earliest arrangenient, a relaxation type power supply was utilized which included a D.-C. source and a capacitance in parallel with the electric tool and the workpiece, and a resistance in series therewith. The frequency of the recurrent discharges depends upon the valties of the resistance and capacitance, and the sparkover characterislics of th-. gap between the workpiece and tool. The smaller the resistance, the more freqtient the discharges, and the greater the removal rate of the material from the workpiece. However, if the resistance is made too small, a long-duration sustained or continuous arc can form between the tool and the work, which destroys the accuracy of the process and damages both the electrode tool and the workpiece. The tendency ?f this form of power supply to produce sustained arcing is aggravated by a rapid rate of rise of gap volta,@e immediately followiti.@ the capacitor discharges. However, as noted previously an overall steep voltage curve is necessary during the charging interval for optimum speed of material removal from the workpiece. In practice, moreover, debris from the electrode tool and the workpiece collects in the @ap and the behavior of this form of power supply is still more erratic for this reason. Independently timed power supplies have been used wherein a uniform discharge rectirrence rate is maintained by separate keying apparatus either for capacitor discharges or f-or direct supply of dischar.ce energy. TJnfortunately, independently timed power units can be very expensive, particularly when a wide variety of machinin.a conditions are encountered which can range from low recurrence-rate, very high eneray discharges for rapid machining, to very high recurrence rate, low ener,@y discharges for fine finishing and high accuracies. An attempt has been made to improve the relaxation type power supply with the insertion of an inductor in series with a resistor and capacitor and energized @from a D C. source. Ideally, this would permit a higher dischar',-e recurrence rate, by permittin@ a lower required value of resistance to be used, with@out causing serious sustained arcing. This would be achieved because the inductor limits the rate of change in current in the chargin,@ circuit, and theoretically, the capacitor should be ftilly char,-Cd for e,,ich spark over with an indtictorciirrent
[2]3 of zero at the instance the rise of capacitor voltage commences. In practice, however, the incidence of transient short circuits in the gap isanpreciable so that the inductor is always carrying some currel'it at the instant the gap is ready to recover. The result is an approximately coristant curr,-nt charge in the capacitor, with the current obtaining a level in dependence upon the duration of the prec-.ding gap short and the exteit to which the capacitor has charged before sparkover occurs. Thus, much of the advantage of the inductor is lost since sparkover takes place before the capacitor is 'Ully charge@d and since a certain amount of -ap short circuitin,-, as by the presence of debris, is inevitable. The fore,-Oiiia and other objects, features and advanta-es of the invention will be elaborated upon durin@ the forthcoming description of illustrative embodiments thereof, when taken in conjunction with the accompanying drawin-s whereiii: FIGURE I is a block diagram of one form of power supply circuit arranged in accordance with the invention; FIGURE 2 is a schematic circuit diagram of portions of the power supply circuit illustrated in FIGURE 1; FIGURE 3 is a semi-pictorial view of one form of transformer means whi-.h can be utilized with the invention; FIGURE 4 is a graphical representation of the voltagecurrent characteristics of the transformer arrangement of FIGURE 3; FIGURE 5 is a graphical representation of the voltagetime characteristic of a recuirent discharge or sparkover output of the power supply circuit of the invention; FIGURE 6 is a scheinatic representation of one form of automatic electrode tool advaiice circuit of the invention; FIGURE 7 is a graphical comparison of voltage-current characteristics of the DoNver outptit and control si.-nal output of the transformer of FIGURE 3, when provided with a gap control winding in accordance with another feature of the invention; FIGURE 8 is a -raphical representation of the output control voltage of the control circuit of FIGURE 6 together with a typical output voltage attained from prior control circuits; FIGURE 9 is a complete schematic circuit diagram of a cooperatively re-ulated power supply and automatic advance control circuit arran,-ed in accordance with the invention; FIGURE 10 is a grapbical Tepresentation of varying voltage-current rati@o associated with the power output of an adjustable form of the power supply arranaed in accordance with the invention; and FIGURE It is a fragmentary view of another form of control means of the invention for effectin-. changes in volta.-e-current ratios. Referring now to FIGURES I and 2 of the drawings, an illustrative form of power supply for use with spark machining apparatlis designated generally by the reference character 10 is illustrated therein. The spark machininapparatus 10 which is shown schematically in FIGURE I of the drawings includes an electrode tool 12 having a desired confl.-Uration formed on the lower end thereof and a workpiece 14. The tool and the workpiece 12-14 are immersed in a tank 16 containing a dielectric liquid 18, which for example, can be k-,rosene. In the following example of the invention, the power supply thereof is described in a polyphase arrangement which enhances the re-ulatory and control characteristics thereof. It is to be understood, however, that the power supply can be arranged in an obvious manner for single phase overation and used to advanta,-e in this fashion. The pc)wer stipply for the spark macbining apparatus 10, in this arrangement, is arranged for connection to a source of polyphase potential (not shown) by means of terminals 20. When so connected, such potential is applied through conductors 22 to a polyphase transformer 3)456;087 4 bank of unique structure, but designated generally in FIGURE 1 by reference cbaracter 24. Secondary output of the transformer bank 24 is fed through conductors 26 to a co.,iventio@ial polyphase rectifier bank 28. The potential output of the rectifier bank 28 in turn is applied to th.- electro-de tool 12 and the workpiece 14 of the spark machining apparatt,,s throu,@h conductors 30 and 32 respectively. A recurrently chargeable-dischargeable capacitor 34 is connected across the conductors 30-32 in 10 the electrical parallel with the tool and workpiece 12-14, to form a d;schar.@e path therefor throu.-h the tool workpiece and a charging path throu,-h the rectifier bank and transformer secondaries. As shown better in FIGURE 2 of the drawiii,-s, both 15 Iroups of primary windings 36 and of s,-condary windill's 38 of the transformer bank 24 are connected respectively in delta relation for purposes of illustration. It has be-.n found, however, that either Y-Y, (1-.Ita-Y, or Y-del'a network, can be titilized in this arrangement. 20 Frorn the conductors 26, the secondary output of the delta arran,@ement 40 is fed to respective pairs of forward and reverse rectifiers 42 and 44 respectively of the rectifier bank 28. The operation of this form of rectifier bank is well-understood and will not be further elaborated 25 upon save to mention that the respective outputs of the rectifiers 42 and 44 are collected through conductors 46 and 48 which in turn are connected to the aforementioned conductors 30 and 32 respectively, whereby the rectified voltage is applied to both the condenser 34 and the tool 30 and workpiece of the spark machining apparatus 10. In accordance with the inventiod, to provide the current-loadin-, characteristics, a specialized form of transformer is employed, which isillustrated in FIGURE 3 of the drawings. A transformer 50 shown schematically 35 therein includes a laminated core structtire 52 upon which are wound on each of the aforementioned primary and secotidary windin.-s 36 and 38. Spaced intermediately between the primary and secondary portions of the transformer core 52 is a leakage leg 54 which desirably is 40 formed inlegrally wilh the remainder of the transformer core structure 52. It is not necessary to th-, operation of the power supply that the leaka.-c leg be disposed between the primary and secondary windin.- le.-s 55 and 57 respectively, but may 45 be extended outwardly of either of the legs 55 and 57 in a known manner (not shown). The leakage leg 54, independently of a control windin.56 placed thereon and described below in -reater detail, imparts a re.-ulatory characteristic or balancing function 50 to the transformer as evident from its typical currentvoltage curve in FIGURE 4 of the drawin.-s. In FIGURE 4 the reference characters A and B designate constant voltage and constant current regiops of the transf6rmer voltage-current characteristic. 55 The voltage curve of FIGURE 4 also denotes the voltage drop which charges the capacitor 34 after each discharge. This follows from the fact that the leakage leg 54 in effect serves as a flux shunt so that wben a load is applied to the secondary winding 38, the flux is forced 60 into the lower impedance patli across the air gap 59. As a result the seco@-idary voltage drops very nearly to zero, when the capacitor 34 b.-gins to charge and thereafter rises as th@ magnetic reluctance decreases. - Accordingly, the ohmic resistance of the conventional D.C. relaxation 65 power supply is not neede.d, and in this example, the transformers are to be designed to minimize ohmic losses, which thus serve no useful ptirpose in the relaxation type power supply of the invention. In this example of the invention, it is contemplated -o that the transformer bank 24 (FIGURE 1) shall include three of the transformers 50 whose primary -and secondary windings 36 and 38 can be electr-ically interconnected in one of the polyphase arran.-emen@'s noted above. The SLImmatiDii of [lie inclividLI@il blisting or re.-Lllatory cbar- r, acteristics of the transformers 50 comprising the trans-
[3]3)456,087 5 former bank 24 operates to, according to the present understanding of the invention, uniformly steepen the volta,-e rise characteristic of eacti capacitor charge cycle and to minimize or to eliminate altogether the presence of sustained arcing between individual discharges. The initial slope of the voltage curve of each charge across the spark gap 104 is very nearly the same regardless of sparkover voltage or the presence of debris in the eap. As pointed out above, the initial slope of the voltage rise curve initially is very low to promote the most rapid spark rnachining. The iiniform spacing of the recurrent discharges is evident from an inspection of the gap voltage-time graph of FIGURE 5 wherein the reference letter C denotes the uniform slopes of the gap charge curves irrespective of voltage amplitude. The reference letter D denotes the comparative absence of sustained arcing between the individual discharges. Consequently, higher recurrent dischar,-e rates are possible with the power supply circuit of the invention, which, therefore, permits a higher machining speed than that possible with conventional power supply circuits for spark-machining apparattis. The leaka,-e transformer 50 can be utilized for an additional function with reference to an automatic. control system for the electrode tool drive apparatus illustrated semipictorially in FIGURE 9 of the drawings and desi.-nated by reference character 58. In the past, the drive apparatus 58 bas been operated by comparing a standard voltage,with the sparkover voltage of the machining gap, as indicated either by the average gap voltage or by the voltage drop across the charging resistor, to produce the correspondi,ig forward or reverse movements of the drive apparatus and attendant decrease and increase of spark gap width. However, such arrangements do not produce a sufficiently high degree of control over gap width to permit the coptinuous attainment of optimum sparkover conditions. The extent of this deficiency will be elaborated upon below with reference to FIGURE 8 of thedrawings. With reference row to FIGURE 6 of the drawings, an exemplary form of the automatic control circuit of the inventio@-i for use with the drive apparatus 58 is illustrated. In this form of the invention, the circuit utilizes an auxiliary secondary winding 56 wound upon at least one of the leakage legs 54 of the transformer bank 24. The auxiliary secondary voltage, as denoted by voltagecurrent curve 60 of the graph of FIGURE 7 is generally opposite to the principal secondary voltage curve 62. The secondary oiitput of the windin-, 56 is fed through a lowpass filter of conventional design and denoted generally by reference character 64. The purpose of a filter 64 is to eliminate high-frequency components which are coupled by the transformer 50 from the hi,-h @frequency components in the oscillatory discharges of the capacitor through the spark macbining gap 104 (FIGURE 9). The conductors 66 then apply the aiixiliary secondary output or control si.-nal to a conventional rectifier bank 68 whose output in turn is applied to a voltage amplifier 70 through cbndtictor 72. A smoothing capacitor 74 is connected across the output terminals to the rectifier bank 68. The oiitput of a standard DC voltage source, denoted in FIGURE 6 by battery 76 is also applied to the amplifier 70 in electrical bucking relation to the control signal through conductor 78. The output voltage of the standard source 78 is made adjustable through the use of a variable resistor 80 to meet the varying operating conditions of the spark machining apparatus. It may be noted at this point that where DC sources are represented in the drawings by batteries, these sources may be derived ftom rectified line voltage which are suitably filtered. The output of the amplifier 70 is fed to dual field windings 82 and 84 of a reversible drive motor 86 forming part of the drive apparatus 58. The armature 88 of the drive motor 86 is independently energized from a suitable DC source 90. A rectifier 92 is coupled across the armature terminals in electrical parallel with the source 90 6 which rectifier greatly accelerates motor reversals and is particularly useful when a sudden reversal is needed as when a short circuit occurs at the spark gap. This also eliminates the possibility of driving the tool into the workpiece and resulting in tool and workpiece darnage. In this arrangement, the drive motor 86 is driven in the forward direction to decrease the gap width when the control signal is below the reference or standard voltage and in this instance the amplifier 70 supplies operatin- potential 10 to the forward motor field winding 84. On the other hand, the reverse field winding 82 is energized by the amplifier 70 when the voltage of the control signal rises above that of the reference source. The improvements effected by this form of automatic 15 control circuit is demonstrated in FIGURE 8 of the drawings. In this graphical representation, a curve 94 indicates a variation in control volta.-e of prior automatic control systems @with respect to variation in gap spacing while ctirve 96 shows the much wider variation in control volt20 age @with respect to gap spacing attained by the control circuit of the invention. Furthermore, the steepest portions of the control voltage curve 96 fall withiii the desired control region of -ap spacing as embraced by the vertical dashed lines 98. Thus, the much greater variatio.1 25 in the control signal of the invention ensures a finer degree of control over the operation of the drive motor 86 and over the resultant positioning of the electrode tool 12 with respect to the workpiece @14 (F@IGURE 1). Referring now more particularly to FIGURE 9 of the 30 drawings, a combination power supply and automatic control cireiiit arranged in accord with the invention, is illustrated therein. Both the power stipply portion of the circuit and the control portion are modified i-@l accordance with additional features of the invention to produce flexi35 bility in the output voltage and the regulatory feature of the former and to attain a finer degree of control in the latter. In I-IGURE 9, those components which are sabstantially similar to related components described above are identified by similar reference characters with primed 40 accents. In the arrangement of FIGURE 9 then, a bank of three polypbase transformers 50' are utilized whose primary winding 36' are connected through conductgrs 100 into a Y network, and through conductors 22' to the poly45 pbase input terminals 20'. Their secoridary windings 38' are likewise connected in Y relationship through conductor 102 and throtigh conductors 26' to the polyphase rectifier bank 28'. The interconnections of the rectifier elements 42' and 44' and connections to the spark gap 50 capacitors 34' are as set forth previously with respect to similar components of FIGURE 2. The outputs of ttie rectifier bank 28' and the gap capacitor 34' are applied across the spark gap 104 normally existing between the electrode tool 12' and the workpiece 14'. As noted above, 55 the electrode tool and workpiece are immersed in a dielectric bath il6'-18' resting upon a siiitable suppoi-t 106. The drive apparatus 58 mentioned briefly above for the electrode tool 12' includes a chuck 108 in wbich the electrode tool 12' is inserted and tightly held. The cbuck 60 108 is formed in the squared lower end of a screw shaft 110 which is vertically slidable but non-rotatable in a guide sleeve 112 mounted on a suitable support such as an arm 114 overhanging the workpiece 14'. An interiorly threaded bushing or nut 116 is rotatable in a bearing 118 65 on top of the sleeve 112, and sbaft 110 is tbreaded therethrougb. A bevel gear 120 rotatable on the bearing 118 is secured to the nut 116 for driving the latter to cause vertical movement of the sbaft 110. The gear 120 is driven by a bevel pinion 122 on the low speed shaft of 70 a speed reduction gear 124 the high speed shaft of which is coupled to the drive motor 86'. The operation of the power supply circuit thus far described is essentially similar to that described above with reference to FIGURES I and 2 of the drawings. In the automatic control por75 tion of the circuit, however, an auxiliary secondary wind-
[4]7 in- 56' is wound upon the leakage leg 54' of each of the transformers 50'. The use of auxiliary secondary winding 56' on two or more of the transformcrs 50' is advantageous, of course, inasmuch as the amplitude of the auxiliary secondary output voltage or signal increases with the addition of each -winding 56' and therefore, affords a correspondingly finer degree of control. The outplit of each auxiliary secondary or control 56' is fed through a pair of conductors 66' to a low pass filter 64'. The outputs of the low pass filters 64' are combined in Y relation by conductor 126 and fed through conductors 128 to a polyphase rectifier bank 130. The construction of the rectifier bank 130 is essentially the same as that of the aforedescribed rectifier bank 28 of FIGURE 2. The rectified output of the rectifier bank 130 is fed through conductors 132 ,ind 134 to the input terminals of the voltage amplifier 70', in series with the standard source 76'. A smoothing condenser 74' is connected across the conductors, 132 and 134 substantially to remove the ripple of the rectified DC. The voltage amplifier 70' consists essentially of a pair of power transistors 136 and 138, whose emitter-collector circuits are connected respectively to the forward and reverse field windings 82' and 84' of the drive motor 86' in series with DC potential sources 140 and 142. Wlien the control signal or voltage falls below that of the standard source, electronic current flows from the standard source 76' through conductor 134 in the direction noted by arrow 144 to the transistor base 146, thereby rendering the transistor 136 conductive. This permits the application of potential from the DC field source 140 to the forward field winding 82' of the drive motor 86' to advance the electrode tool 12' toward a workpiece 14'. On the other hand, when the spark gap 104 is too narrow, the control signal voltage rises above that of the standard source 76' so that electronic current flows through conductors 132 and 148 in bucking relation to the source 76', as denoted by arrows 150, to the transistor base 152. This in turn renders the emittercollector circuit of the transistor 138 conductive to connect the reverse field winding 84' to its potential source 142. As a result, the electrode tool 12' is withdrawn or moved upwardly, as viewed in FIGURE 9 of the drawings away from the workpiece 14' to widen slightly the spark gap 104. As pointed out previously in connection with FIGURE 6 of the drawings, the drive motor 86' is provided in its armature circuit with rectifier element 92' to decrease considerably the time required for each reversal of the drive motor. In order to permit the spark machining apparatus illustrated in FIGURE 9 to operate satisfactorily over a wide range of operating conditions and with a wide range of conductive materials, circuit means are associated with the power circuit of FIGURE 9 to vary the voltage-current ratio of the power output from the transformer bank. For wide changes in voltage-current ratio the power secondary windings 38' are tapped as denoted by reference character 154, which in cooperation with tap switches 156 vary substantially the output voltage of the transformer bank. Desirably, the tap switches 156 are tied together for simultaneous operation as denoted by dashed line 158. Similarly, the capacitance 34' can be furnished as a switchable bank of capacitors 160 which can be variously coupled across the conductors 32' and 30' by tap switch 162. If desired, tap switch 162 can be tied to,-ether with the tap switches 156 of the tapped secondary windings 38' for simultaneously operation therewith, or depending upon the respective values of the capacitors 160 and the tapped windings 38', the switches 156 and 162 can be operated independently. Desirably, the primary windings 36' are also tapped, as denoted by reference character 163, so that by changing both the primary and secondary taps, the transformers 50' can accommodate differing values of capacitors 34'. For smaller changes in voltage-current ratio, of a more 3)456,087 8 or less vemier nature, a second tapped winding 164 is wound upon the leakage leg 54' of each transformer 50'. The taps 166 of each of the last-mentioned tapped windings are tied respectively to,-ether through the branched conductor system denoted generally by the reference character 168 to an external tap switch 170. The ends of the tapped leakage leg windibgs 164 are similarly tied together through branched conductor 172 to which are joined in electrical parallel, a capacitance 174, and an 10 inductance 176. The inductance 176 and the capacitance 174 are then connected through a selector switch 178 and conductor 180 to the movable switch element 182 of the tap switch 170. It will be understood, of course, that the banks of capacitors and inductors can be used respec15 tively as the capacitance 174 and inductance 176. With the last-described circuit arrangement, it is apparent that either the capacitance 174 or the inductance 176 can be coupled inelectrical series with any one of the interconnected groups of similarly tapped portions of 20 the leakage leg windings 164 by operation of tap switch 170 and the selector switch 178. It has been found that with the capacitance 174 connected in this manner that the voltage-current ratio of the transformer power output is increased with the amount of increase depending upon 25 which of the leakage leg winding taps 166 are bein., utilized. In a similar manner, a switching in of the inductance 176 operates to decrease the voltage-current ratio of the power output. It will be apparent that, depending upon operating conditions, the numbers of either or both of the 30 secondary taps 154 and the leakage leg winding taps 166 can be increased or decreased. This reference also applies to the number of the spark capacitors 160, mentioned previously. Referring now to the graphical representation of FIG35 URE 10, this variation in voltage-current ratio is clearly shown by the family of voltage-current curves shown therein. The central curve 184 denotes the normal voltagecurrent ratio of the secondary power output, i.e., when the switch 178 is in its neutral position 186 to open-circuit 40 the leakage leg Windings 164. The adjacent curve 188 denotes the voltage-current ratio which attains when the capacitance 174 is connected to the first taps of the leakage leg wind.ings 164 as denoted by contact 190 of the tap switch 170. In a similar manner, voltage-current curves 192, 194 and 196 correspond to the winding por45 tions connected by taps 198, 200 and 202 of the tap switch 170. On the other hand, the connection of the inductance 176 to the tap switch 170 produces a group of curves 204-210 corresponding respectively to energization of tap switch contacts 190 and 198-202. Referring now to FIGURE 11 of the drawings another form of control means for effecting the more or less vernier changes in voltage-current ratio is shown therein. In its latter form, the control means includes a tapered slug 212 fabricated from a magnetic material and arranged for varying insertion into the air gap 55' of the transformers 50'. The slug 212 desirably is tapered, as by forming from laminae 214 of different lengths, and is slidably mounted on a suitable supporting bracket 216, 60 which in tum is secured to the transformer core structure 52'. For inserting and withdrawing the slug 212 relative to the gap 55' a thumb screw 218 is threaded through an upright end portion 220 of the bracket 216, and the end 222 of the screw in rotatably retained in the adjacent end 65 of the slug 212 in a known manner (not shown). Varying insertion of the slug 212 into the gap 55' induces corresponding variation in the flux-shunting characteristic of the leakage leg 54' and produces changes in voltage-current ratio more or less in accordance with FIGURE 10 of 70 the drawings. Thus, insertion of the slua 212 moves the voltage-current curve to the left as deno'ted by reference arrow 226, in FIGURE 10, while withdrawal moves the curve to the right as denoted by arrow 224. From the foregoing it will be apparent that novel and 75 efficient fornis of a power supply and automatic control
[5]3,456,087 9 circuit for spark machining or EDM apparatus have been disclosed herein. The descriptive and illustrative materials herein have been employed to exemplify the invention an.d not in limitation thereof. Accordingly, numerous modifications of the various forms of the inventio.n described herein will occur to those skilled in the art without departing from the spirit and scope with the invention. It is to be understood, of course, that certain features of the invention can be employed without a corresponding use of other features thereof. We
