[1]0 3 @ 4 5 1 @ 1 7 5 Utlited States Patetit Office Patented June 24, 1969 2 cating motion between the work engaging elements and -the work to cause the work engaging elements to operate longer periods of time on areas of the work where greater torque is sensed. By this means the subject device is able to equalize the cbaracteristics of all portions of the work surface to make the work surface have the same diameter and other @desired characteristics. It is therefore a principal object of the present invention to provide means for producing more nearly perfectly cylindrical surfaces. Another object is to provide improved means for honing and finishing cylindrical surfaces. Another object is to provide means capable of continuously, accurately and instantaneously sensing the load or torque on a work member. Another object is to provide means to modify the motion of a work member relative to a work surface in response to the load on the - working member. Another object is to provide means to equalize the load on a working device in all operating positions thereof. Another @object is to provide means in a honing device for automatically eliminating irregularities in cylindricalsurfaces. Another object is to provide means which will enable even relatively unskilled persons to hone extremely accurate cylindrical surfaces. Another object is to provide relatively simple inexpensive means to improve the operating characteristics and accuracy of honing and like devices. These and -other objects and advantages @of the present invention will become apparent after considering the following detailed idescription of a preferred embodiment of the subject device in conjunction with the accompanying drawings, wherein: FIG. 1 is a block diagram of control means constructed according to the teachings -of the present invention; FIG. 2 is a side elevational view, partly diagrammatic, of a machine constructed according to the present invention; FIGS. 3a, 3b, and 3c are diagrammatic representations illustrating in exaggerated form three different operating conditions encountered by the subject machine; FIG. 4 is an enlarged fragmentary view showing a portion of the operating linkages included in the subject control means; FIG. 5 is a schematic wiring diagram of a typical circuit for the subject device; and F@1G. 6 is a view similar to F-IG. 1 but showing the Clutch means in the rotational instead of in the reciprocating drive of the work engaging means. Referring to the drawings more particularly by reference numbers, number 10 in FIGS. I and 2 refers to a drive motor which has a shaft 12. A clutch assembly 14 including a pulley 16 is mounted on the shaft 12. The pulley 16 is operatively connected by belt IS to another pulley assembly 20. Another belt 22 engages a different groove on the assembly 20 and extends therefrom for engagement with still another pulley assembly 24. In like manner, power is transmitted from the pulley assembly 24 by another belt 26 to a spindle assembly 28. The spindle assembly 28 is connected to the upper end of a rotating drive tube assembly 30 by means of universal connection means 32. The lower end of the tube assembly 30 is connected to another universal conne(;tion 34 which in tum is connected to a honing head assembly 36. Many different forms of honing heads can be used, including, for examples, the heads disclosed in Sunnen Patent No. 3,216,155 and in copending Sunnen application Ser. No. 349,892 now Patent No. 3,378,962, dated Apr. 23, 1968. Expansion of the work engaging elements on the honing head 36 is controlled by feed tip and other means in3,451,175 HONING MACHINES Joseph Sunnen, 400 S. Warson Road, Clayton, Mo. 63105, and August Sunnen, Jr., La,due, Mo.; said August Sunnen, Jr., assignor to said Joseph Sunnen 5 Filed Feb. 9, 1966, Ser. No. 526,223 Int. Cl. B24b 49100, 51100, 7100 U.S. Cf. 51-165 10 Claims 10 ABSTRACT OF THE DISCLOSURE An improvement for use on honing and other devices and machines which have work engaging members which travel rotationally and axially re-lative to a work surface such as a cylindrical work surface to bring the work @ur- 15 face to a desired condition including means to contmu<)usly sense and respond to the energy required to be applied to the work engaging member during operation thereof, and other means operatively connected to the energy sensitive means to vary the amountdf work done 20 on various parts of the work surface by the work engag'ng member in a way that varies with the energy sensedl in order to equalize the energy sensed at all places of the work engaging member on the work surface. 25 This invention relates genera:lly to improvements in machines of a type that employ work engaging members and more particularly to improvements in honing and 30 grindin.- machines and devices such as are used for honing and grinding machines and devices such as are used for honing, finishing and grinding cylindrical surfaces. Many devices are known and available for honing and grinding surfaces which operations are stock removal o9 5 processes in - which a bonded abrasive is rubbed over a sufa ce until the surface has obtained an accurate size and geometry and a smooth and consistent surface finish. and grinding is usually perf<)rmed by an instr-ument havin@ one or more abrasive elements or a combination of 40 abra sive elements and guide members. In the honing of cylin drical surfaces the abrasive elements engage the sufa ce being honed and are moved radially as well as axial ly to continuously bear against the surface and to hon e all portions of the surface substantially the same 45 amo unt. Various means have been develaped to control expa nsion of the abrasive elements during honing and the pres sure applied thereby against the work. In the past, how ever, difficulty has been experienced in correcting surfa ce irregularities such as diameter variations in order 50 to obtain cylindrical accuracy and straightness. The kno wn devices have also reqiiired considerable skill and traini ng to operate and considerable operator attention. The present improved machine overcomes these and othe r shortcomings and limitations of the known devices 55 by providing means which automatically and continuousl y sense the load on the operating elements, and mea ns responsive to said load sensing rneans to modify earl y the machine operation in a way to produce more n 60 perf ectly straigbt holes. This eqiializes the hole diameter over the len.-th of the hole and has the effect of equalizing the load on the work engaging elements in all operating 4 posit ions @thereof. This is done so that all portions oi a surfa ce being operated on o-r honed 'will have exactly the 65 same diameter and other characteristics and so that cylindr ical surfaces honed by the present device will be mor e nearly perfectly straight. To this end, the subject inve ntion includes means sensitive to the torque transmitte d to a honing or other work engaging device for its 70 rotati on, and other means operatively connecting said torque sensitive means which control the relative recipro-

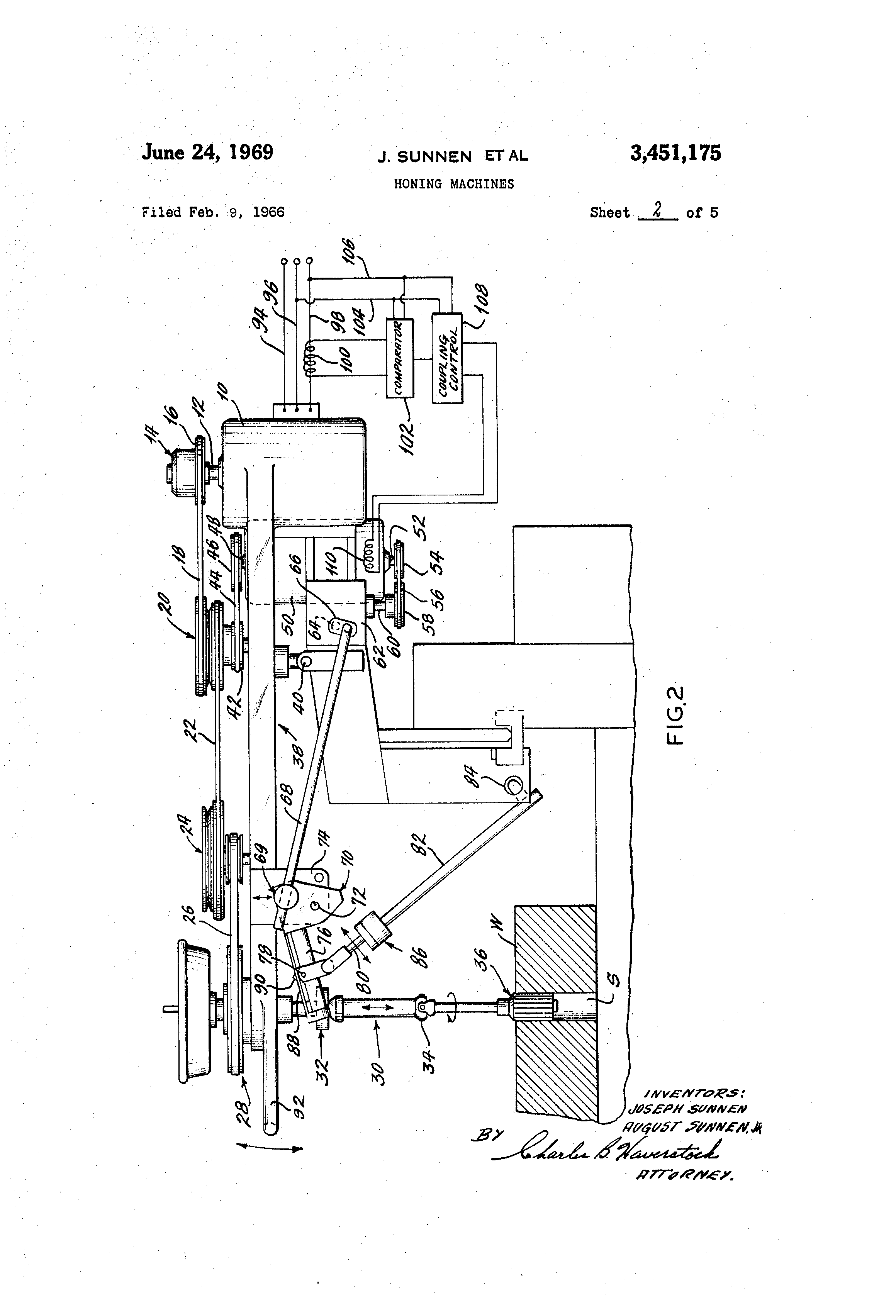

[2]32451; 175 3 eluding the means disclosed in copending Sunnen patent application Ser. No. 466,535 now Patent No. 3,393,472, dated July 23, 1968. During operation of the subject honing machine the motor 10 imparts rotating motion to the head 36 so that the work engaging elements move on the work surface S of the work W. The device is disclosed in conjunction with means for honing an internal cylindrical surface but is not to be so limited since it can also be used in other operations as well including honing extemal cylindrical surfaces and so forth. In addition to the rotary motion imparted to the head 36, the head is also reciprocated axially in order to hone all parts of the surface S to make the surface cylindrical and of a desired diameter. The reciprocating motion is produced by other means also driven by the motor 10 although a second motor could be used for this purpose, if desired. A simplified form of reciprocating motion producing means are shown in FIG. 2 and include a pivotal arm assembly 38 on which the motor 10 and the connections thereto are mounted. The arm assembly 38 is pivotally supported on the base of a honing machine (not shown) by means of shaft 40. During operation of the machine the arm assembly 38 is reciprocated on the shaft 40 and in so doing causes the head 36 to move up and down in the work W. The reciprocating motion of the arm assembly 38 is produced by means which are driven by the motor 10 including a pulley 42 on the pulley asseinbly 20, belt 44, and another pulley 46 mounted on an input shaft 48 of an electromagnetic coupling device 50. The opposite end of the coupling device 50 has an output shaft 52 which carries a pulley 54 which cooperates with another belt 56 that extends around another pulley 58. The pulley 53 is mounted on an input shaft 60 to a gear reducer 62, and the gear reducer 62 has an output shaft 64 which rotates a crank 66. One end of a rod 68 is pivotally connected to the crank 66, and the opposite end of the rod 68 is pivotally connected by means of member 69 to a rocker assembly 70. The assembly 70 is in turn pivotally attached to the arm assembly 38 by shaft 72, which shaft is mounted on a plate 74 fixedly attached to the arm assembly 38. When the crank 66 rotates about the shaft 64, the rod 68 moves and causes the rocker assembly 70 to move. In the simplified embodiment shown in FIG. 2 the rocker assembly 70 includes a rod member 76 on which an adjustable slide member 78 is positioned. The slide member 78 can be locked in any desired position on the rod member 76, and the slide member is pivotally connected to one end of another rod 80. The rod 80 telescopes into a tubular member 82, and the lower end of the tubular riaember 82 is pivotally connected at 84 to the base of the machine. During operation of the subject machine the rod 80 is fixedly connected to the tube 82 by means of a releasable coupling assembly 86, When the coupling assembly 86 is locked as shown in FIG. 2 movements of the rod 68 due to rotating of the crank arm 66 will pivot the rocker assembly 70 on the arm assembly 38 about the shaft 72 and will cause the arm assembly 38 to move up and down a distance determined by the location of the slide 78 on the rod member 76. A scale member 88 is positioned adjacent to the rod member 76 and a pointer 90 attached to the slide 78 may be included to provide means for accurately adjusting the position of the slide 78 and hence preset the distance the arm assembly moves. When the assembly 86 is uncoupled from the rod 80, the arm assembly 38 and the head 36 can be raised to an inoperative position above the work during which the rod 80 telescopes upwardly in the tube 82. Movement of the arm assembly 38 under these cond't'ons is facilitated by means of handle bar 92. When the adjustable slide member 78 is positioned near the right end of the rod member 76 (FIGS. 2 and 4) relatively short reciprocating strokes will be imparted to 4 pivot 72 and the slide 78 is relatively short. Therefore the head 36 will move correspondingly short distances during stroking. On the other hand, when the slide 78 is located near the left end of the rod 76 the same regular displacement of the assembly 70 will act over a much longer lever arm and the stroke movements will be relatively long. One of the main features of the present device has to do with the construction and operation of the coupling 10 device 50 connected between the output of the drive motor 10 and the input to the gear reducer 62. The coupling device 50 is preferably an electromagnetic device such as an eddy current coupling device, and includes means by which the speed of its output shaft 52 can be 15 made to vary relative to the speed of its input shaft 48. The means for changing the speed of the output shaft 52 includes means which respond to the load or torque on the head 36. In the preferred form of the subject device the load on the head 36 is sensed by means which sense 20 the input power or current required to drive the motor 10. The input current thus sensed is fed to a control circuit such as the circuit shown in FIG. 5 and an output is produced which is applied to a control winding 110 in the coupling 50 to vary the speed of the output shaft 52. 25 The coupling device 50 can be energized to produce asubstantially I to I ratio between the input and output shafts 48 and 52, or it can be energized to produce slippage whereby the output shaft 52 is driven at a slower speed than the input shaft or made to almost stop. Fur30 thermore, the changes that take place in the speed of the output shaft 52 must take place relatively rapidly so that the stroking motion of the head 36 is niodified to correct irregularities at the time they are sensed. This means that when the torque on the head increases the speed of the 35 coupling output shaft 52 must be substantially instantaneously reduced so that the speed of the gear reducer 62 and the crank 66 is also redticed to cause the stroking motion to slow down. This is manifested by a reduction in the speed of the up-down motion of the arm assembly 40 38 and the head 36. The rotational speed of the head 36, however, will remain substantially constant. On the other hand, if the work surface S is substantially cylindrical as illustrated in FIG. 3a, the load on the head will remain relatively constant in all operating positions and the head 45 will be stroked at a substantially uniform rate. This is also illustrated in FIG. 3a. If a surface S being honed has a shape like that illustrated in exaggerated form in FIG. 3b, the head 36 will be under greater load when honing the smaller diameter 5o lower end than when it is honing the larger diameter upper end. Under these conditions greater load will be sensed by the sensing means when honing the lower end than when honing the upper end. The increased load sensed in the lower head position will therefore be used to reduce the exciting current of the eddy current coupling device 50 in a manner to slow down the stroking motion so that the head 36 will hone for a longer time at the lower end of its stroke. This will cause the lower end of the hole to be enlarged more than the upper end 60 and will equalize the hole diameter over the length of the surface S. The modified stroke pattem is illustrated graphically in FIG. 3b. FIG. 3c shows a third possible hole condition in which the center portion of the hole has a smaller diameter than the end portions. In this condition, the head 36 will be caused to be slowed while moving in the mid range of its stroking motions. Various means can be used to sense the instantaneous load on the head 36 and to control the coupling device 70 50. The particular means disclosed include current or wettage sensing means connected or coupled to leads 94, 96 and 98 which supply power to the motor 10. In the disclosed ernbodiment a transformer winding 100 is coupled to the input lead 98 and is also connected to a comtho arm assembly 38 because the distance between the 7r) parator circuit 102. The comparator 102 is also connected

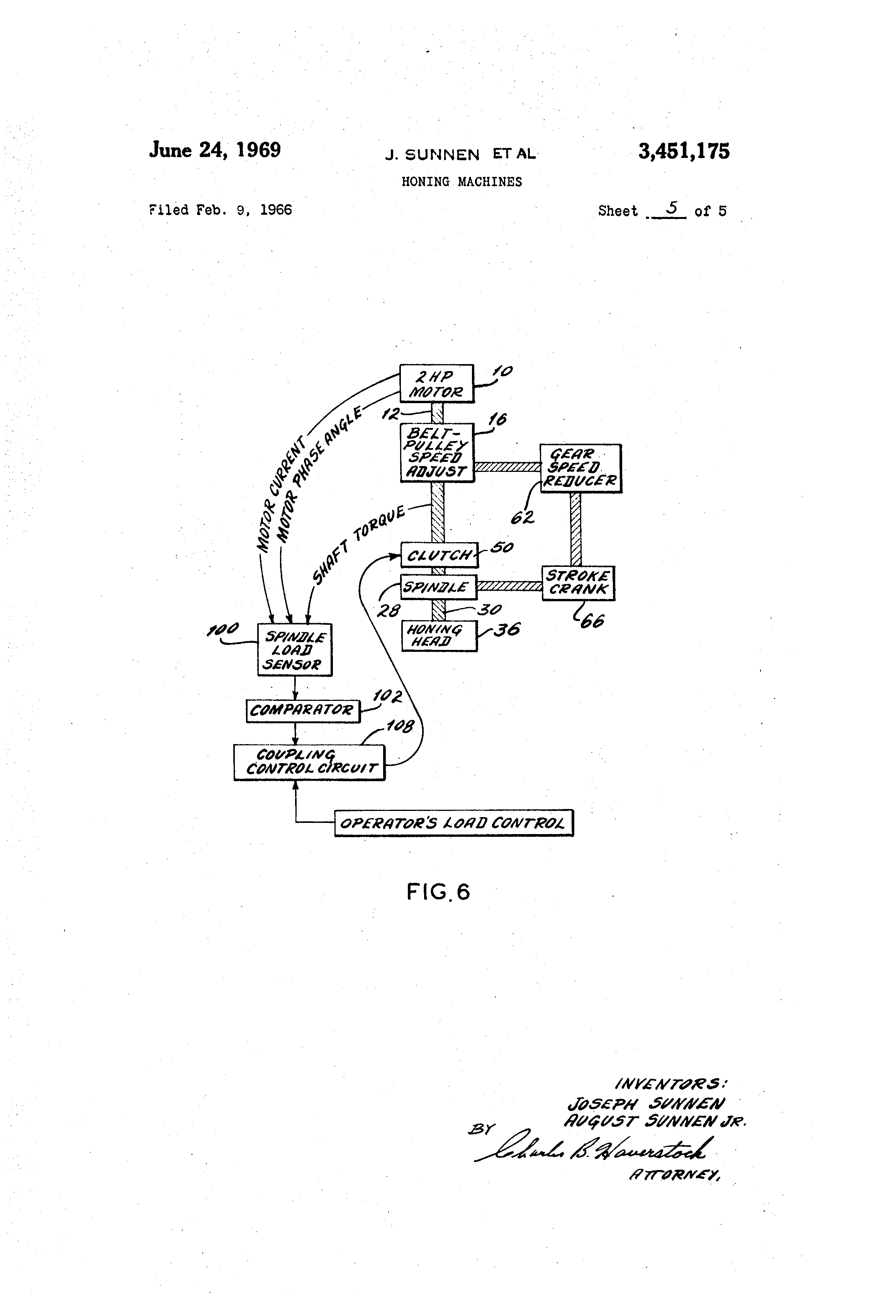

[3]15 by other leads 104 and 106 across the input leads 96 and 98. The leads 104 and 106 are also connected to the input of a coupling control circuit 108 which is connected to the cornparator 102 and has its output connected to a control winding 110 in the eddy current coupling 50. 5 When the input power (current) to the motor 10 increases the current on the control winding 110 decreases and this slows down the speed of movement of the head 36. It can therefore be seen that the subject cotipling 50 is provided to cause the head 36 to stall or to move more 10 slowly when in portions of the surface S having smaller diameters to equalize the diameter in all portions thereof . This is done automatically and continuously during a honing operation to correct f or any irreglitarity and to straighten the surface being honed. The subject device 15 is preferably very fast acting and can be made as sensitive as desired. Factors other than surface irregularities can also effect the torqtie required to rotate the head 36 and these are likewise taken into account by the subject control. EXELln- 20 ples of other factors which may effect the torque include the torque required to rotate the head 36 and these are work and the construction of the work, the finish of the work surface, whether t@he work has different hardness portions, and the type of lubricant that is used. The type 25 of feed up mechanism employed to maintain the stones engaged with the work may also cause changes in the torque. It would also be possible to modify the subject device so as to vary the speed of rotation of the head 36 as illustrated in FIG. 6 rather than the stroking speed to 3( correct for errors although it is usually more desirable to vary the stroking and maintain the rotational speed relatively constant. FIG. 6 shows a structure that is substantially the same as the structure of FIG. I except that it is modified to cover the situation just described in which 35 the rotational speed instead of the stroking motion is inade to vary in a controlled way. T-he components in FIG. 6 are identified by the same numbers as the corresponding components in FIG. 1. The difference between the structures of FIGS. 1 and,6 is that in the structure of 40 FIG. 6 the clutch is positioned between the drive motor 10 and the spindle 28 rather than being in the drive that produces the stroking motion. It is also possible to use mechanical load sensing devices instead of electrical means as disclosed. Many such devices are known in the 45 art. For economy and accuracy, however, it is usually preferred to employ current detecting means. Current detectin- means such as are shown in FIG. 2, for example, can also be made to operate with single phase or multiple phase systems. 50 In the circuit diagram of FIG. 5 current transformer 100 is coupled to the input phase lead 98 and is connected iiito a circuit which includes ot-her transformers 112 and 114, This circuit is balanced by means of a nulling potentiometer 115 which is used to establish a particular 55 operating relationship between the signal produced in the windina 100 and the reference on the secondary of transformer 112. This adjustment also minimizes the noload current so that essentially only load current signals ,-reater than no-load are available at the control circuit 60 input. The output of the load current circuit is taken from the secondary of the transformer 114 which couples the control signal to the grid circuit of a thyratron tube 116. When the thyratron fires current flows through t@he clutch coil 110 of the eddy current coupling 50. A control poten- 65 tiometer 118 with an adjustable contact is connected in the grid circuit of the thyratron 116. One side of the potentiometer 118, marked "slow," is supplied with halfwave rectified negative voltage from a circuit which includes resistors 120, 122 and 124, capacitor 126 and a 70 rectified 128, and the other side of the potentiometer 118, marked "fast," is supplied -with half-wave rectified positive voltage from a circuit which includes resistors 130 and 132 and rectifier 134. The grid circuit of the thyratron 116 is also provided with a circuit which includes ca3)451)175 6 pacitors 136 and 138, rectifier 140, and resistors 142 and 144. Under normal operating conditions the potentiometer 118 is adjusted to produce a positive potential on the grid which is somew-hat greater than the minimum necessary for conductivity of the thyratron. Thereafter, when a loan increase is detected by the current transformer 100, an increasing negative potential is produced by the sensor circuit. The magnitude of the current surge that is produced and the setting of the control potentiometer 118 establishes the degree of conductivity or non-conductivity and hence t-he power delivered to the clutch winding 110 of the eddy current device 50, The eddy current coupling device 50 receives input power from its belt connection with the drive n-iotor 10 and it delivers controlled output torque to the gear reducer 62 depending on the field excitation applied to the clutch control winding 110. The output of the coupling 50 can be varied from a normal pre-established stroking rate to a condition wherein the stroke rate is very slow or almost stopped. When the motor input current rises as a result of the head 36 moving into a small diameter portion of a hole, a negative signal will be applied to the grid of the thyratron 116 to throttle its plate current and in turn reduce the clutch field strength and ultimately the stroke rate. With the reduced stroke rate, the h--ad, which rotates at a constant speed, will be slowed so as to rernain for a longer period in the area of reduced diameter. This will cause the reduced diameter portion of the hole to be honed more than other portions to bring it up to substantially the same diameter as the rest of the hole. As the sinaller diameter portions of the hole are enlarged the load on the head will reduce and the stroke speed will increase. The operation continues repeatedly and autornatically until all the tight spots have been removed and the surface has a uniform strai,@,ht diameter throughout. It is possible with the present control that the desired final hole diameter will be reached at a tinle when the clutch is operating so as to produce a very slow stroke motion. Under these conditions it may be desirable to end the operation by prodiicing a normal stroke pattern for a predetermined time. This can be done by changing the load adjustfnent control or by providing a finish cycle at the conclusion of the honin@ operation. This can be done regardless of the motor c@tirrent by providing full clutch excitation for a predetermined time just before the honing operation is ove-r. It is also possible to introduce cycles of short duration of full excitation between periods of controlled honing for the purpose of truing or dressnig the stoiie. These are optional features which can be accomplished by means of simple conventional mechanical and/or electrical time-r and/or switch means such as the optional timer means 150 and the switch @means 152 shown in FIG. 5. Nurnerous other variations are also possible with the subject,control. It is also possible to sense load by means other than the motor current or power sensing means disr-losed hcrein. For example, known and available mechanical sensors could be used to sense the motor torque, as well as known niechanical or electrical transducers or strain detectors could be used, known means could be used to sense the tension on one or more of the drive belts as an indication of torque, and known bare sensin.- means such as fingers or other devices which move on the surface being honed could also be used without changing the nature of the invention. Other means could also be used to correct a surface irregularity when one is sensed in place of slowing down the stroking rnovement. These include the possibility of changing the speed Of Totation of the head as described above and show-n in FIG. 6, moving the work relative to the head instead of vice versus and so on. Any one of these corrective measures can be controlled by sensing means of the types described above. Over stroking of a portion of the hole which is also well known in the honing art can also be used, and 75 it is possible to include means for making corrections
[4]7 in steps particularly in cases where the work is constructed of several different hardness materials. The circuit shgwn in FIG. 5 is included for illustrative purposes to illust-rate one of many possible ways to construct the subject device. Many other forms of control circuits can also be used without departing from the novel concept of the invention including other forms of tube circuits, solid state circuits and magnetic circuits. The coupling device can also be of several diffe-rent constructions including bein.- an eddy current coupling device, a magnetic particle type clutch, an hydraulic couplin,@ device or any other variable slip electrical or mechanical device. Thus there has been shown and described novel means for producing MOTE nearly perfect honed surfaces which means fulfill all of the objects and advantag@es soli,@ht therefor. Many changes, variations, modifications, and other uses and applications of the subject device will, however, become apparent to those skilled in the art after consideration of this disclosure in conjunction with the accompanying drawings. All such changes, alterations, modifications and othet uses and appl@ications which do not depart from the spirit and scope of the invention are deemed to be covered by the invention which is limited only by the claims which follow. What is
