[1]United States Patetit Office 3,423@146 3,423,146 VARIABLE POWER TELESCOPE SIGHT WITH ELONGATED OPTICAL PLASTIC LENSES HAVING GUIDES THEREON William R. Weaver, El Paso, Tex., assignor to W. R. Weaver Company, El Paso, Tex., a corporation of Texas Filed Mar. 3, 1965, Ser. No. 437,932 U.S. Cl. 350-44 13 Claims Ent. Cl. G02b 7104 10 ABSTRACT OF THE DISCLOSURE A power adjustable erectc)r system with collar stop which includes a lens support and erector leiises of optical 15 plastic, material havin- -uide runners thereon and coaxially slidable therewith. Each erector lens operates with a separate radial lens biasing tog-le means operated by helicoidal cam surface in the collar rotatable on a barrel. 20 This invention relates to improvements in variable power telescope sights for firearms. In variable power scopes, means are conventionally 2 5 employed for axially adjusting the relative positions of the erector lens elements Telative to a field or collector lens and to each other in order to change the magnification of the telescope to increase or decrease its power as may be desired, usually within limits as determined by - ,, 0 the range of variation desired. Since variable power scopes necessarily involve the employment of a number of moving parts in effecting the adjustments, numerous opportuiiities occur in more conventional desi-ns for lost-motion, looseness or maladjustment, which will disturb the si,-hted image relative to the 35 si,@hting mark or reticle and change the adjustment of the parts, particularly by reason of handling and recoil of the firearm during use. Changes in the power of the scope frequently must be made in the field rapidly and with positiveness in effectin.- the change while maintaining the 40 scope in focus throughout the changes and under conditions of use. It is a principal obj@ct of this invention to provide a variable power scope which is smooth-operating, has excellent optical qli,,ilities and is relatively simple in con- 45 struction in requiring a reduced number of moving parts and thereby minimizing the opportunities for misalignment of parts and resulting disttirbance in the optical properties of the scope. An important object is to provide an improved means 50 for varying the power of the scope while maintaining the scope in focus throu.-hout its range of adjustment under field handling conditions and under recoil of the firearm. In more conventional variable power scopes the erector 55 lenses, which must move axially relative to each other and to the field lens, are ordinarily mounted in separate cylindrical housings or cells which usually are telescopically connected. Co-operating helicoidal slots or cams and co-operating pins or cam followers on the respective cells are employed to effect the desired relative axial 60 movement of the lenses in response to a rotary drive naeans mounted on the scope. An important object of the present invention is to reduce the number of parts required to effect the lens movements while maintaining the lens supports or housings in 65 snug, smooth operation relative to each other and to the field lens. A more specific object is to provide a power adjusting stib-assembly comprising a power adjusting collar carry- 70 ing both lens-adjusting slots and connected to the respective erector lenses by actuating bars which move both Patented Jan. 21, 1969 2 lenses simtiltaneously in response to the rotation of the siii,@le actuating collar. A more specific object is to provide a po,wer adjtisting subassembly in which the actuating bars function as resilient thrust means for the lens housin@s in a manner to effectively prevent lateral movement of'the lenses, which might otherwise produce a disturbance in the target image relative to the sighting mark or reticle. Still another object is the provision of a pair of erector lenses which are inte-rally formed with their supporting housings or cells from suitable optical plastic material, thereby further reducinthe number of parts required and eliminating additional sources of possible disturbance of the important elements of the scope. Other and more specific objects and advantages of this invention will become more readily apparent from the following detailed description when read in conjunction with the accompanyindrawin.- which illustrates a useful I diment in accor ' emc)o dance with this invention. In the drawing: FIG. 1 is a longitudinal cross-sectional view of the scope in accordance with this invention, the section being taken generally alon.- line 1-1 of FIG. 2; FIG. 2 is a cross-sectional view taken alon- line 2-2 of FIG. 1; FIG. 3 is a perspective view of the power adjusting sub-assembly; FIG. 4 is a fragmentary view generally similar to FIG. 1, showing another position of the erector lenses; and FIG. 5 is an exploded perspective view of the scope in accordance with this invention showidg all the parts thereof. Referring to the drawing, the scope comprises a tubular casing or barrel 10, a threaded bushing 11 at the forward e nd of the barrel which houses the objective lens system 12, and an eye-piece or ocular portion, designated generally by the numeral 13, which houses the ocular lens system 14, of generally conventional form. An erector system, desi,-ned generally by the numeral 15 is mounted in the bore of barrel 10 and comprises a tubular erector support or housing 16 which may be reduced somewhat in diameter at its forward end portion 16a to provide support in the bore thereof for a field or collector lens 117 of conventional design. Front and rear erector lenses 18 and 19, respectively, are mounted in the opposite ends of cylindrical cells or supports 20 and 21, respectively. As illustrated, cells 20 and 21 and their respective erector lenses 18 and 19 may be integrally formed from a stiitable and known optical plastic material, the lens portions 18 and 19 being suitably formed to provide the required shape and optical properties. The erector lens elements are coaxially mounted in the bore of housing 16 in axially spaced relation for coaxial movement therein relative to each other and to field lens 17, the erector lenses bein.mounted at points intermediate the ends of housing 16. Ease of coaxial movement is provided by a close, slidable fit for the cells and the cells bave sufficient length that their optical surfaces are maintained substantially transverse of housing 16. A reticle 22, which may be of any conventional form such as a crosshair mounted in a supporting ring 23, is positioned in the rearward end of housing 16 at the second or rearward image plane of the scope, the center of the reticle being positioned on the optical axis of the scope which extends through the centers of the several lenses mounted in the scope. If desired, the reticle may be positioned in barrel 10 at the second image plane, as disclosed in my earlier U.S. Patent No.- 2,949,816. Also, as disclosed in the latter patent an annular diaphragm 23a having an axial aperture 23h may be mounted in lens cell 21, as shown, or in any other suitable location in housing 16 or barrel 10 to place

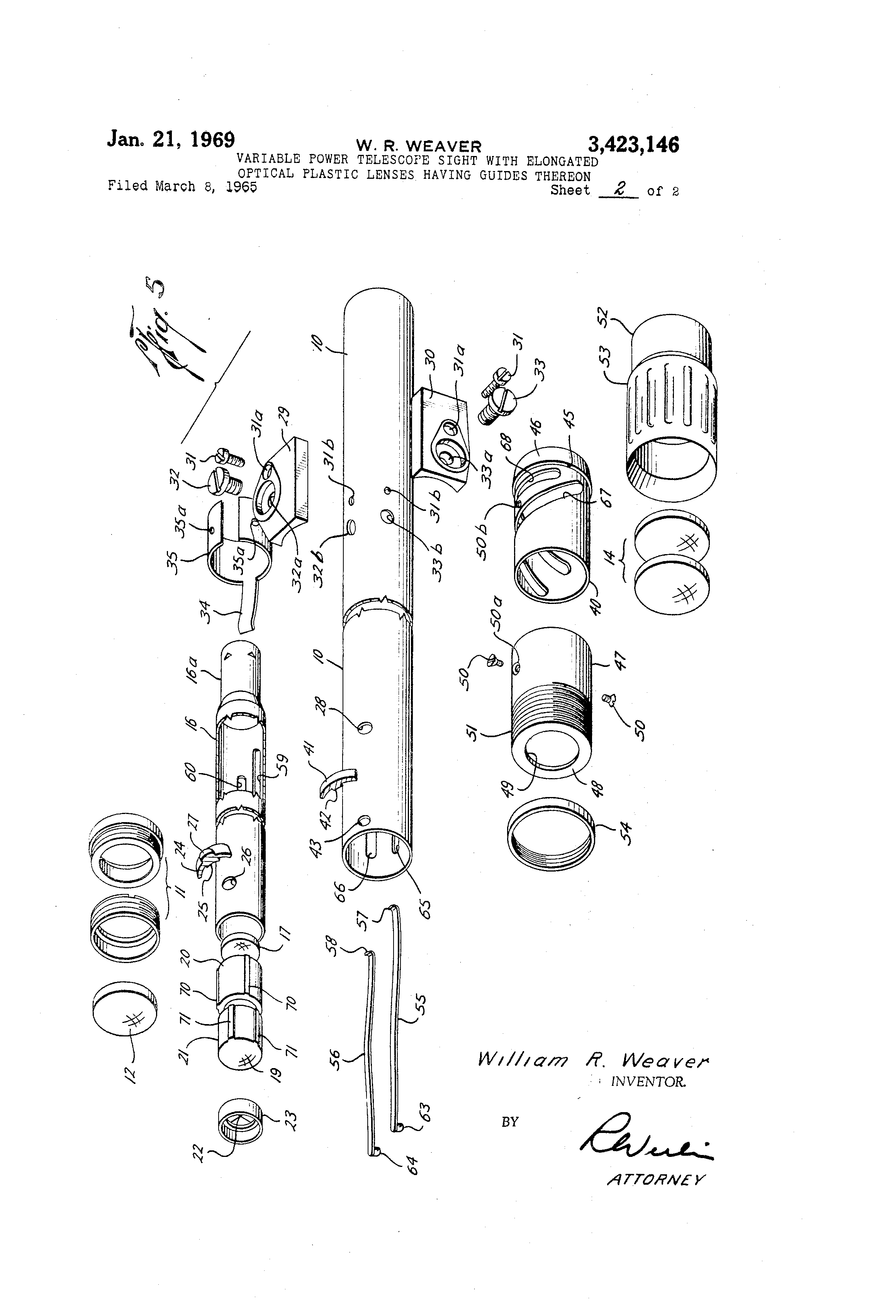

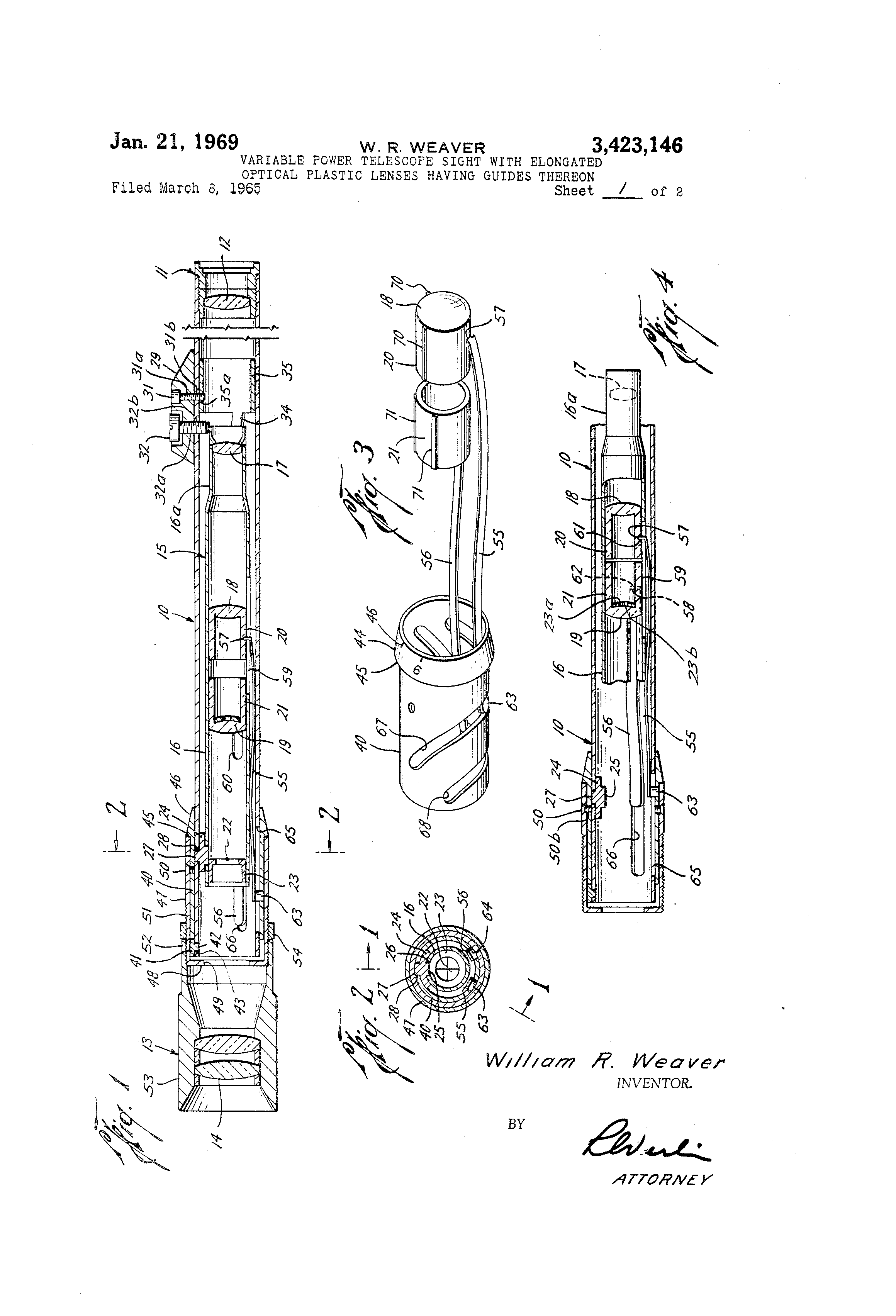

[2]3 aperture 23b on the optical axis of the scope, whereby to exclude random or divergent light rays from the ocular and concentrate the light to thereby improve the sharpress of the images viewed through the si.aht. The rearward end of housing 16 is mounted for limited pivotal movement both vertically and laterally within barrel 10 by means of a pivot element 24 comprisingan arcuate plate adapted to fit snugly between the inner wall of barrel 10 and the outer wall of housing 16, and provided with a downwardly projecting cylindrical pivot pin 25 which is received in an opening 26 in the wall of housing 16, and an upwardly projecting cyliiidrical pin 27 which extends into an opening 28 provided in the wall of barrel 10, as can best be seen in FIGS. 1, 2, and 4. Other known fo@rms of pivot means may be employed, as for example, a rubber ring or sleeve connecting the erector support to the barrel, a ball-and-socket connection, and the like. Turret -members 29 and 30 are mounted at 90' to each other on the extcrior of barrel 10, generally opposite the forward end of reduced portion 16a of the erector housing, the turret members being secured to the barrel by means of screws 31 which extend through holes 31a in the turret members and are screwed into and through openings 31b in barrel 10. Elevation and windage adjusting screws 32 and 33 extend radially through respective openings 32a and 33a in the respective turret members :and are screwed through registering openings 32b and 33b in baitel 10 into engagement with the forward end portion 16a of the erector housing. This will be recognized as a generally conventional arrangement, by means of which the forward end of the erector housing may be adjusted vertically or laterally about the pivot member 24 to correct for elevation and windage in sighting-in the scope. A leaf spring 34 integral with a spring metal supporting sleeve 35 is mounted in barrel 10 just forwardly of the forward end of erector portion 16a, and positioned so that leaf spring 34 will bear latei-ally against forward end portion 16a of erector housing 16 at a point diametrically opposite the center line of the angle between the windage and elevation adjtisting screws so as to, constantly resiliently urge the forward end of the erector housin.- against the ends of both the elevational and windage screws to thereby eliminate any looseness or play in this part of the structure under all operating conditions. Supporting sleeve 35 is secured against Ion.-itudina.I movement in barrel 10 by means of screws 31 which are run through the turret members and the wall of barrel 10 and into openings 35a provided in sleeve 35. The power adjusting sub-assembly comprises a power adjusting collar 40 rotatably mounted and dimensioned to fit snugly about the rearward end of barrel 10 and held thereon against rearward movement by means of an -arcuate retainer plate 41 seated on the rearward end of barrel 10 in abutting relation to the rearward end of collor 40 and provided on its lower face, with a pin 42 receivable in a hole 43 f<)rmed in the rearward end of barrel 10. The forward end of adjusting collar 40 is provided with an annular flange 44 defining an annular shoulder 45 about the forwa@rd end portion of collar 40 and sloping f,orwardly. The sloping face of flange 44 is provided with suitably spaced calibrati<)n marks 46 which are rotated with the adjusting collar relative to an index mark, not shown, on barrel 10 to indicate the power to which the scope has been adjusted. A tubular shroud 47 is mounted about adjusting collar 40 with its forward end abutting shoulder 45 and its rearward end provided with an inwardly turned flange 48 which extends over the rearward end of barrel 10 having opening 49 therein coaxial with the bore of the barrel. Shroud 47 is fixedly secured to adjusting collar 40 by means of screws 50 extending through openings 50a into openings 50b in collar 40 so that rotation of shroud 47 will correspondingly rotate the adjusting collar. The rearward end portion of shroud 47 is provided with a section 423,146 4 of external threads 51 adapted to be threadedly received in an internally threaded s<)cket 52 on the forward end of the ocular housing 53. A lock nut 54 is mounted on threads 51 and when run up against the end of socket 52 of the ocular housing, serves to lock the latter to the shroud. With this arrangerr@ent, it will be seen that by turning ocular housing 53, rotation will be imparted to shroud 47 and thence to power-adjusting collar 40 in order to rotate the latter as required to change the power of 10 the scope. The power-adjusting sub-assembly also includes a pair of toggle links or actuating bars 55 and 56 which extend longitudinally within barrel 10 between power-adjusting collar 40 and the erector lens cells 20 and 21, respectively. 15 The forward ends of the actuating bars are provided with upwardly (inwardly with respect to the axis of the scope) turned lips or flanges 57 and 58, respectively, which project through anglilarly spaced longitudinal slots 59 and 60 pr-ovided through the wall of erector housing 16 into 2o recesses 61 and 62, respectively, in the outer walls of erector cells 20 and 21, respectively. With this arrangement, it will be seen that movement of the actuating bars forwardly or rearwardly will correspondingly move the erector lenses coaxially of the erector housing. The rear25 ward ends (>f the actuating bars carry radially extending cylindrical pins 63 and 64, respectively, which project butwardly (relative to the scope axis) through longitudinal slots 65 and 66, respectively, in the rearward portion of the wall of barrel 10 and extend therefrom into respec30 tive helicoidal cam slots 67 and 68 cut through the wall of adjusting collar 40. The shapes of the individual slots 67, 68 and their relative shapes are cut to provide the desired amounts of relative longitudinal movement between the erector lenses and of the latter relative to the 35 field lens to provide the desired degree of power adjustment. For instance as t<) alternate cuts and shapes of slots 67 and 68 from that illustrated, these slots may not necessarily be cut all the way througli collar 40 or, alternately, the slots may be formed by having the material 40 of collar 40 inwardly raised away from the normal internal collar surface. Relative longitudinal movement of the erector lenses may be effected by having the surfaces of the helicoidal slots at different curvilinear angles with respect to one another. With this arrangement, it will be 45 seen that by providing both cam slots in the adjusting coliar, the necessity for separate telescoping sle--ves as employed in more conventional designs, is obviated. Actuating bars 55 and 56 are preferably made of flat spring steel bent in such a manner as to provide spring 50 pressure between barrel 10 and erector housing 16, whereby to obviate any looseness or play in the movements of the erector housing during adjustment of the lenses for power change, for windage or elevation, or by reason of handling or recoil. 55 It will be understood that the actuating bars may be made straight and other forms of generally conventional, but separate, spring elements em@ployed to provide the necessary pressure between the barrel and the erector housing to maintain the desired tight engagement with 60 pivot plate 24. To further reduce the possibility of play or looseness during the movement of the power-adjusting elements, erector cells 20 and 21 may be provided with externally projecting pairs of longitudinal ribs spaced from about 90' 65 to about 120' apart on each of the lens cells. In the case of front erector lens 20, these ribs are designated by the numerals 70, 70, and in the case of rear cell 21 by the numerals 71, 71. The lens cells will preferably,be oriented angularly to stagger the ribs on the respective cells and 70 the points of engagement of flanges 57 and 58 in therespective cells will be disposed along a line opposite the ribs and bisecting the an.-le between the ribs on the respective cells. The spring pressure thus applied by the respective actuating bars to the erector cells will assure snug 75 sliding movement of the erector lens cells in housing 16,
[3]thereby further rfiinimizing any unwanted play between the erector cells and the erector housing. Ribs 70 and 71 will normally be extremely short, radially, as the cells will ordinarily have been dimensioned to fit quite snugly inside the bore of erector housing 16. The snugness of the fit is enhanced by the runners, however, which also provide bearin- surfaces between the cells and the bore of hotising 16. It will be understood that instead of havin.- the ribs 70 and 71 on the erector cells, the latter may be made smooth and appropriately spaced ribs provided in the bore of erector housing 16, In still another variation, the actuating bars and flan,-es 57-58 may be so formed as to exert a resilient downwai-d pull on the erector lens cells. In such a modification, ribs 70 and 71, if employed, will be positioned on the lower se-ments of the cells on opposite sides of the respective actuatin.- bars. In operation of the device, it will be seen that when ocular housing 53 is rotated, the resulting rotation of adjusting collar 40, acting through the en.-agement of cam followers 63 and 64 with the helicoidal walls of slots 67 and 68, will produce correst)onding relative axial movement between erector lenses 18 and 19, moving them toward or away from each other in accordance with the direction of rotation, and simultaneously moving both lenses appropriate axial distances relative to field lens 17, thereby accomplishing the desired degree of increase or decrease in the power of the scope. Althoi.igh the illustrative embodiment shows the reticle positioned in the ercctor tube in the second image plane, it will be understood that the reticle may be mounted in the first ima,-e plane. Alternatively, the reticle may be fixedly mounted in the birrel in either image plane. Also, the field or collector lens may be included or omitted, all these variations in more conventional sights being well known in the art of telescope sights. Tt will be understood that various other changes and modifications may be made in the details of the illustrative embodiment within the scope of the appended claims but without departing from the spirit of this invention. What I claim and desire to secure by
