[1]United States Patent Office 3,242,779- 3,242,779 RECIPROCAL MULTIPLE SANV FOR CELLULAR RESINOUS BODIES William F. Mona, Mineola, N.Y., assignor to Allied Chemical Corporation, New York, N.Y., a corporation of New York Filed Nov. 27, 1964, Ser. No. 414,142 17 Claims. (Cl. 83-4) This invention relates to cutting of cellular bodies, and more particularly to improved apparatus for cutting a plurality of slabs from large blocks of expanded cellular resinous materials such as polyurethane foam. Cellular products obtained by expansion of resinous materials are of increasing importance. Slabs or boards of a number of foamed materials such as polyurethane have been in constantly increasin.- demand for use in a variety of applications, includin@ particularly insulatin.@ apphcations in a number of areas of the construction industry. In the production of such slabs or boards it is conventional to produce a large block or bun of the cellular material and then divide the block into a number of individ.ual slabs. One method employed in the past involves the use of electrically heated wires which are drawn throu.-h the foamed material to cause severing of the cellular material. Not only is this approach undesirably slow in operation but also limited in application as cer-tain foams are burned or charred by the hot wire. Another method of producing slabs or boards of cellular material involves the use of blade cuttina equipment. Conventional cuttin.- apparatus similar to the well-known bandsanvs have been e@nployed but are limited in capability to the making of only a single cut in the large cellular blocks. A particularly preferred apparatus for cuttin- of large cellular blocks is a multiple blade machine cap'able of sawing or slabbing the block into a plurality of boards during a single pass through the machine. Generally, the provision of such multiple blade cuttin.- apparatus for large cellular resinous materials is not a simple matter and involves a number of considerations and problems includina maintenance and ability to readily change blades a,d blade settings with a minimum of down time. The influence of lateral forces caused by the blade cuttin-, action is an important factor affecting efficient practical operation and product quality. It is also desirable to have a multiple-blade machine capable of cutting the cellular blocks into various desired thicknesses and particularly a machine capable of cutting the large cellular blocks into the thinner boards. An object of the present invention is to provide for improved cuttin@. of cellular blocks of resinous material into amultiplicity of slabs or boards. Another object of the invention is to provide apparatus for cutting large blocks of cellular material simultaneously in a sin,-le pass into a multiplicity of slabs. Another object is to provide a foam cutting apparatus capable of readily cutting cellular blocks of substantial len,-th at hi.-h speeds into a multiplicity of slabs of required thicknesses in a single pass of the block through the apparatus. A fur-ther object is to provide cutting apparatus for converting a cellular block into slab units of desi.-ed thickness and particularly an apparatus for efficiently and effectively cuttina such blocks into the thinner slab units. A further object is to provide a foam cuttin@ apparatus havin.- a multiplicity of spaced cutting blades and readily chanaeable with respect to blade setting to simultaneously produce slabs of most any desired thickness on a sin.-le pass of a block of cellular material through the machine. A stir further object of the invention is to provide a cutting machine of compact construction and low capiPatented Mar. 29, 1966 2 tal investment capable of operation at low cost and requirin, - little maintenance whereby blocks of cellular material may be rapidly and efficiently cut into a multiplicity of slabs d-urin@@ a single pass throu@-h the apparatus. Still further objects includ-c the provision of bladeassemblies and interchangeable blade carriers permitting rapid chan-e of blades and changeover of the apparatus to most any desired blade setting adapted to cut a multiplicity of slabs from blocks of cellular material. 10 Other objects and advantages will be evident from the followin@ description of the invention and accompanying drawings, in which: FIG. I is a perspective view of the cutting apparatus of the present invention. 15 @FIG. 2 is -a ver-ti-cal -s-@ction taken along line 2-2 of FIG. I showin- blaide,assembly,and,supporting members. FIG. 3 is a horizontal section taken along line 3-3 of FIG. 2 and showina preferred construction and arran,@ement of cutting blades. 20 FIG. 4 is a fragmentary view in perspective showing detail of blade assembly and arrangement as mounted on blade support carriers. FIG. 5 is a plan view showing in detail a preferred blade holder and its mounting as employed in the appara25 tus of the invention. FICT. 6 is a vertical section taken along line 6-6 of FIG. 4 showing in detail a preferred blade holder and its mounting on a preferred blade holder carrier. FIG. 7 is a fragmentary and partially exploded view in 30 perspective showina detail of a preferred altemative blade slipporting assen-ibly. FIG. 8 is a horizontal section taken along line 8-8 ol. FIG. 7 and showing in detail the preferred blade holdin,- ass.-mbly !em@loyad wit-h the alterna-tive preferred 35 blade support assembly of FIG. 7. Referring to the drawings, FIG. I shows the improved cutting apparatus of the invention to inelude a conveyor belt 20 which is supported during movement on a bedplate 21. Conveyor belt 20 has a slip-resistant surface 40 desirably of corru-ated rubber and is preferably an endless belt driven between rollers 22 and 23 which are supported on a conveyor frame assembly designated generally as 24 and including a plurality of upright legs 26 and a suitable bedplate stippbrt frame (not shown). The 45 conveyor belt is driven through roll 23 by a gear train and drive chain assembly 28 attached to a variable speed gear box 29 which is driven by a suitable motor (not shown). Conveyor belt 20 advances a large cellular body 30 50 into a multiple blade cutting assembly designated generally as 31 and including a plurality of spaced parallel blades 32 and a blade-supporting main siw frame 33 which is desirably normal with respect to the path of the advancing cellular body. In operation, the mwtiple blade 55 cutting assembly is reciprocated laterally with respect to the path of the cellular body on lineal bearing assemblies designated generally as 34, 35, 36 and 37. The main saw frame 33 is detachably secured to the lineal bearing assemblies by bolts 38 to permit the cutting assembly to 60 be easily replaced by a second or reserve assembly when a change in blade setting is to be made. The lineal bearing assemblies also serve to support the multiple blade cutting assembly 31 on the main stationary supportin.@ frame desi,- nated generally as 40 and including 65 an overhead frame member 41, ver-tical supporting frames 42 and 43, base frame members 44 and 45, and bearing assembly supporting beam members 46 and 47. The main stationary supporting frame 40 is desirably rigidly 70 secured to the floor or other supporting surface by base frame supports 48 and 49 to avoid any undesirable vibration effects. Rollers 50 are supported on arms 51 and
[2]3 are pivotally mounted on overhead frame member 41 so that the rollers 50 exert a'moderate pressure on the advancing cellular body to assure steady movement of the body along a generally fixed path. Protrusions 52 on arms 51 maintain the rollers at a height sufficient to permit the rollers to automatically mount the advancing cellular body and also prevenl the rollers from moving into the cuttin.- assembly 31 when not in use. Guide assemblies 53 are constructed preferably of plywood sides 55 and steel supporting members 56 which are secured to the conveyor frame assembly 24. The guide assemblies have height approximately the same as the cutting assembly 31 and are suitably supported at the upper regions, as by horizontal support frames 57 and 58 (shown in FIG. 3). The guide assemblies are located on each side of the cellular material and on both the upstream and downstream sides of the cutting assembly to guide the cellular body into the assembly on the upstream side and prevent dislocation or scattering of the many relatively light weight boards discharged on the dowiastream side. To insure full control over the cut boards the guide assemblies on the upstream and downstream sides are preferably made substantially contiguous by a plurality of slots made in the upright plywood sides in number and size sufficient to extend the ends of the guides without interference between the blades of the multiple blades cutting assembly. The cellular body is moved steadily along on conveyor 20 and cut into a number of slabs or boards by the plurality of saw-toothed blades 32 which are moimted under tensio.n and in criss-cross arrangement on the laterally reciprocating multiple blade cutting assembly. The crisscross blade arrangement is an important factor in effectively cutting a moving large cellular body into boards and particularly with a plurality of blades whose cutting action is in the same direction at any given instant. In a sense, the criss-cross blade arrangement simulates the action of a person sawing. More particularly, the crisscross blade arran-,ement divides the resultin.- blade assembly into two distinctive cutting sections as defined by an ima-inary vertical line at the center of the main saw frame 33 and through the common points where the blades are crossed. The two cutting sections which are on each side of the vertical centerline of the saw frame are essentially separate cutting sections which engage the cellular body at different times yet cooperatively cut the block into slabs or boards as required. Hence, the multiple blade cutting assembly moves laterally and one of the sections engages the cellular body in a cutting action while the other section is withdrawing from the cellular body or cut made therein during the opposite stroke of the reciprocation cycle. The criss-cross blade arrangement therefore permits substantially only a positive cutting action to be exerted on the cellular body and avoids harmful or destructive contact of the cellular resinous material with the blade teeth on the return stroke whereby good product quality and efficient operation are insured. The criss-cross arrangement also aids in offsetting lateral forces which are also a cause of inefficient operation and production of boards ol@' inferior qualityGenerally, the criss-cross arrangement-is obtained by offsetting the individual blades at a -slight or moderate angle with respect to the vertical plane of the main saw frame or direction of lateral reciprocation. Effective results may be obtained when the angle of off set or cant is as little as l' although a disposition of the blades at an angle up to about 20' from the vertical plane may also be employed. Best results are -encrally obtained when the angle of offset is between aboout 2' to 10'. In cutting of rigid or semi-rigid cellular bodies of resinous material a saw-toothed blade is required for efficient operation, The apparatus of the inventio-n is especially suited to give best results with hael@- saw type blades in whiph the leading cutting edge of the individual teeth is set above a longitudinal linc at the base of the teeth 3,242,779 4 by an angle of about 30' or more. It is generally preferred to ernploy the hack saw type blades having 5 to 25 teeth per inch with the individ-ual teeth having the leading cutting edge above the longitudinal base line of the blade by an angle between about 40' to 85'. The iitimber and thickness of the boards produced is determined respectively by the number of blades and spacing between adjacent blades. Generally, any desired board thicknes,, may be obtained, usually between 1/4 to 4 inches, with 10 the apparatus being especially suited for cutting the large cellular bodies into the thinner boards baving thickness less than about I inch. The number of blades employed ranges between about 10 to 40 although most any number may be employed depending on the size of the ma15 chine and purpose of the operation. The main saw frame 33 may be any structure rigidly constructed to support the blades 32 and is suitably formed by opposing vertical saw frame and blade support members 60 and 61 and opposing horizontal frame 20 members 62 and 63. Saw frame members 60, 61, 62 and 63 are rigidly joined by corner blocks 65 and are spac from each other sufficient to form a frame opening which permits the saw frame to reciprocate laterally with only the saw blades in the path of the cellular body. The saw 25 blades 32 may be mounted directly on suitable vertical saw frame and blade support members 60 and 61 but are preferably mounted on blade holder carriers 66 and 67 which in tum are secured to the vertical saw frarne and support members 60 and 61. For this purpose, the verti30 cal saw frame members 60 and 61 are preferably 14beams, as shown, or other suitable type members adapted to support the blade holder carriers securely on the main saw frame. The blade holder carriers 66 and 67 determine the blade setting and are detachably secured to the 35 saw frame 33 by tap screws 68 to permit the blade holdet, carriers to be readily removed and replaced by other blade holder carriers having different blade settings. Chan.-e of the blade setting and blade holder carrier may be readily accomplished off the machine without excessive down time and requires only a single spacc main saw frame. The blade holder carriers may take various formg but are preferably elongated rectangular plates which aie wider than the immediately adjacent or abutting leg of the 4,5 supporting H-means so that the length or longittidinal sides of each blade holder carrier extend a substantial distance beyond the corresponding length edge of the Hbearn legto provide space for the blade motinting. Generally, widtb of the blade holder carriers determine the, .50 cant or offset of the blade from the vertical plane of thle saw frame and is set accordingly. In a preferred enl4 bodiment shown in FIGS. 1-4, inclusive, the blade holder carriers 66 and 67 have a plurality of spaced notches or ch-annels 69 along both length @ides which for purpose of 55 reference may be herein designated -the upstream length side and downstream length side with tespect to the direction of travel of the advancing celltilar body. The! channels 69 are adapted to receive blade holders 70 which form a part of the blade assemblies to be mounted on th.4 60 blade holder carriers. To obtain @the desired criss-cross blade arrangement the cbannels on each length side of each blade holder carrier are staggered with respect to the channels on the other length side of the carrier with the channels on one length side of each blade holder car65 rier being in horizontal alignment with the channels on the opposite stream length side of the opposing blade holder carrier. As shown particularly in FIGS. 4, 5, and 6, the channels 69 extend inwardly from each length side of the blade holder carrier and through thi@ entire thick70 ness of the holder carrier'. Channels 69 have two inner and opposing pararel surfaces 11 And 72 which are machined smooth or planar -to slidably or closely fit the blade@ holders 70 inserted therein. The base surface 73 of eachi channel 69 is preferably slightly incline@@ in the directioni 75 of gen6ral aligjime@nt with th@ cant@d sa@av 4t4ol2A tq ig, @,ur4@
[3]proper aligmnent of the blade assemblies. The blade holder carriers have recesses 75 in the surface of the carrier opposite the path of the advancing cellular body. The recesses 75 are associated with the end of the channels 69 and are adapted to receive and hold a small cOmplementary shaped member or pin carried by the blade holder. The recesses 75 may be individtial conical recesses, as shown, or provided by a continuous V-shaped recess extending longitudinally along the surface of the holder carrier. The opposing parallel channel surfaces 71 and 72 together with the recesses 75 cooperate to fix the blade holders 70 securely against movement on the blade holder carriers. As shown particularly in FIGS. 4, 5 and 6, the individual blade holders 70 are preferably C-shaped and have upper and lower surfaces 76 and 77 which are machined smooth to slidably fit the channels 69. The blade holder has an additional planar surface 78 stepped down from the upper surface 76. The end of the saw blades are securely held on the surfaces 78 by small bolts 80 which are fitted into correspondingly threaded tap holes 81 in the blade holder and are secured by nuts 82. The tensioning screw 83 fits a correspondin.- size threaded tap hole 85 in the end of blade holder opposite the blade supporting surface 78. The end of the tensioning screw is adapted to be held in the recesses 75 of the blade holder carrier and construction of the blade holder itself is desirably such that the longitudinal centerline of the tensioning screw 83 intersects the centerline of the tap hole 81 and also preferably lies in the same horizontal plane as the saw blade 32 to insure optimum alignment of the tensioned blade on the blade holder carriers. The tensioning screw 83 is fitted with a correspondingly threaded nut 86 which to.@ether with the tensioning screw enable the blades to be readily mounted, adjusted and locked under the desired tension. In FIGS. 7 and 8 there is shown an alternate preferred embodiment of the blade holder carriers and blade mountings thereon especially adapted to provide a multiple blade cutting assembly on which a number of different blade spacings may be readily obtained without chan.-e or removal of the blade holder carriers. In this embodiment the blade holders 90 and 91 are also preferably elongated rectangular plate members detachably secured by suitable bolts 92 to the vertical saw frame and blade support members 60 and 61 of the main saw frame 33. The relative width and positioninblade holder carriers 90 and 91 with respect to the opposing vertical members 60 and 611 is similar to that of the blade holder carriers 66 and 67 as hereinbefore described. Each of the blade holder carriers 90 and 91 have two parallel grooves or channels 93 extending longitudinally in the surface of the carriers opposite the path of the advancing cellular body and located respectively near the upstream and downstream length side edges of the holder carriers. The channels 93 preferably have opposing parallel and planar side surfaces 95 and 96. In this embodiment the blade assemblies are held on the blade holder carriers 90 and 91 by a plurality of blade mounting blocks 100 which are adapted to be readily adjustable with respect to their position along the length sides of the holder carriers to permit change of blade spacing without change of the holder carriers. As shown, the blade mounting blocks may be held in their desired lateral position by the forces exerted by the tensioning of the blades. Wben so held the mounting blocks 100 are equipped with means to restrain the blocks from twisting in their established position. For this purpose, the mounting blocks have preferably two threaded tap holes 102 extending tbrougb the blocks and adapted to receive correspondingly threaded retainin- pins 103 havin- terminal portions which fit the width of the channels 93. The blade mounting blocks 100 are adapted to receive and securely retain a blade holder which forms a part of the blade assemblies to be mounted thereon. As shown, the preferred blade mount3,242,779 6 ing blocks are generally C-shaped and have an opening 105 extending through the body of the block. The opening 105 preferably has a centerline normal to the longitudinal centerline of the blade holder carrier on which it is secured and parallel to the vertical plane of the main saw fraine. The opening 105 is preferably a square broached hole adapted to receive and retain a blade holder 106 against any tendency to twist or otherwise cause dislocation of the blade assemblies. As shown, the 10 blade holders 106 are preferably integral bodies having a squared shaped body portion 107 adapted to slidably fit the opening 105. From one end of the square body portion 107 there is a threaded extension 108 while the opposite end forms a blade holding platform 110 having a 15 planar blade supporting surface Ill and a threaded tap hole 112. Cap screws 113 fit the threaded holes 112 and secure the saw blades 32 on the blade holders with the aid of lock washers 115. The blade assemblies including saw blades 32 and blade holders 106 are easily se20 cured on the blade mounting blocks 100 by a tensioning nut 116 and lock washer 117 which are adapted to fit the threaded extension 108 of the blade holders 106. Refeming again to the preferi-ed embodi@ment of the invention shown particulaxly in FIGS. 1, 2 @and 3, the 25 multiple blade <)utting @assembly 31 is reciprocated laterally on the lineal bearing assemblies 34, 35, 36 and 37 which include a be,aring bushing or bearin,- pillow block 120 havin@g;a substantial solid and p-reforably blocklike body portion with -a threaded opening (not shown) 30 to receive the bolts 38 which,detachably secure the main saw frame 33 to the lineal bearingasse@mblies. The bearing pillgw blocks 120 a-re conventional, commercially available units such,as those obtainable under the designation Ball Bushings, series A, part No. A-406080 from 35 Thompson Industries, Inc. Stir-h suitable bearin.- pillow blocks 120 :also have an elongated cylind@rical portion adapted to -receive,and retain the ball bearings preferably in sepaxate continiious bearin- iraces or channels which each have elongated ohannel' portions parallel to the 40 bearing shaft 121, substantially -as illustrated by the cutaway section shown in FIG. 3. T-he bearing pillow blocks 120 Tide on the bearing shafts 121 between two bearing shaft support blocks 122 which are spaced sufficiently apa@rt to iallow for tany desired lateral movement or 45 utting stroke by the blade ciittin-,m assembly 31. The bealing shafts 121 are securely @held on the shaft support blocks 122 by threaded pins 123. The shaft support blocks 122 are -Tigidly secu.-red by suitable means (not shown) to the bearing assembly supporting bearn mem50 bers 46 an-d 47. The bearing shafts and working parts of the li-neal bearing assemblies are desiirably protected from sawdust and other foreign miatter by bellows 125 which -are preferably of -rubber or other suitable material capable of expansion and compression. Each bearing 55 assembly is equipped with two such bellows connectedrespectively -at one end @neat or at each bearing shaft support block 122 -and ;at t-he other end over the closest end of the cylindrical portion of the bearing pillow block 120. The ml-iltiple blade assembly 31 is connected to suit60 able means for driving the assembly in short stroke latoral reciprocation on the lineal-bearing:assemblies 32, 33, 34:and 35. As shown particularly in FIGS. 1, 2 - and 3, the beairing assemblies on each sid-. of the path of move-ment are preferably vertically aligned and joined 65 together by vertical members 129 and 130 which are secured at thei,@r ends by suitable means suoh as angles to the bearing pillow blocks. A connecting Tod 131 is attached at one end to the vertical member 130 by pivot pin 70 block 132 and flanges 133. The other end of the connecting rod 131 is attache@d to an eccentric or -adjustable th-.row r-rank disc 135 whioh rotates on one end of the drive shaft 136 to effect reciprocation of the multiple blade cutting,assembly. T-be drive shaft 136 is held by 75 pillow beanng blocks 137 which are secured on -a support

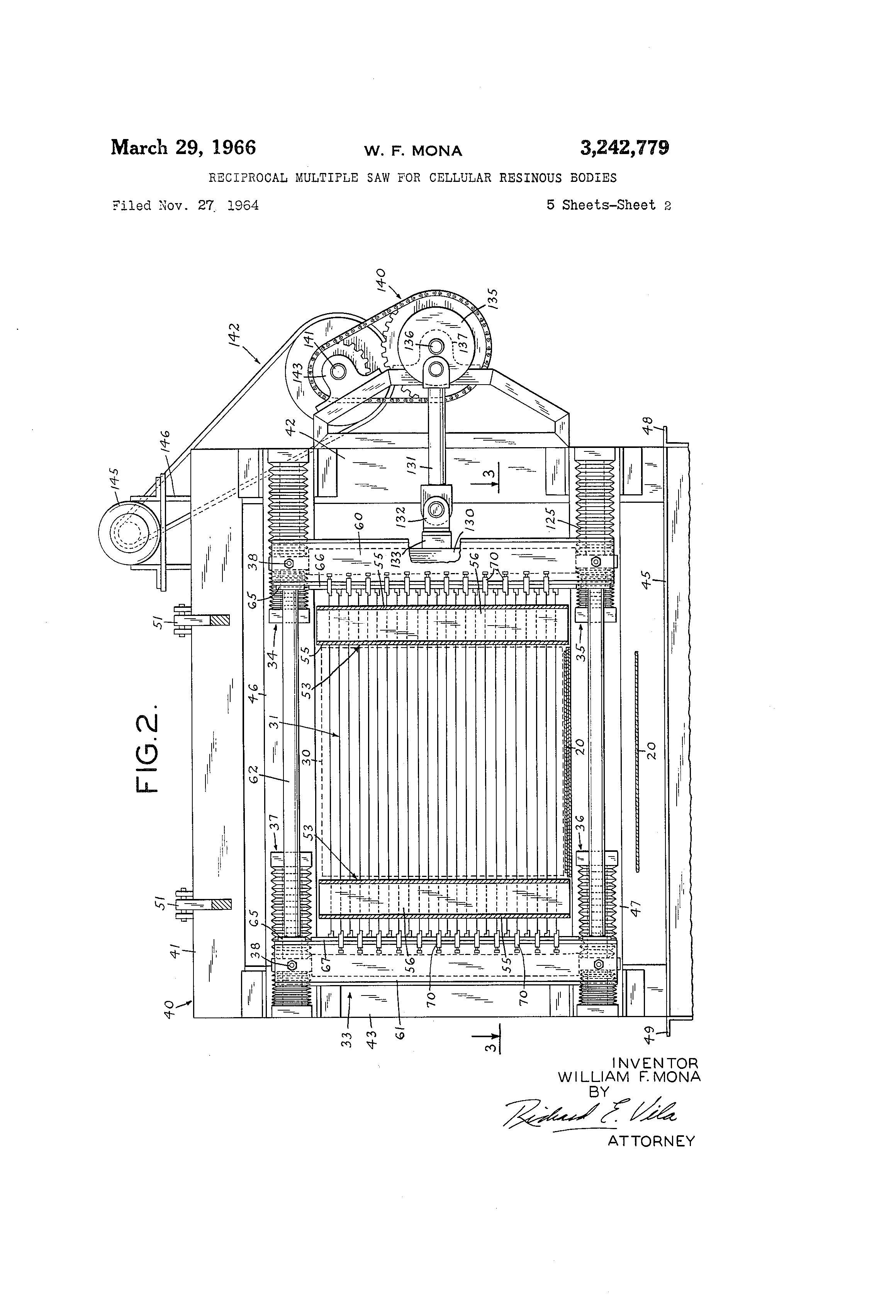

[4]7 block 138 whioh in turn is se@cu.,red to t-he main siationar@ supporti.ng frame 40. The shaft 136 is rotated by a gear train iand drive chain assembly 140 which in tum is connected on a -common shaft 141 to dnve belts an-d pulleys assembly 142. Pillow bearing blocks 143 hold the sha.ft 141 on the support block 138. The drive belts a@nd pulleys assembly 142 is driven by a vatiable speed motor 1145 which is securely @held on the inain stationary f.r,ame 40 by t@he support platform 146. The,catti,n,g apparat@us of the present invention provides ,an efficient an@d rapid method of dividing laxge cellulax bodies of resi.-nous materials into a plu@rality of slabs or boards. In operation, t@he cellulaT body is steadily advanced on theconveyor 20 at a speed adjusted to t-he cutting capacity of the multiple blade cuttingassembly 31. Gener-ally, the cutting capacity of the @blade --utting ,assembly is dependent largely on the particula,,r cellulat material being cut, size of the cellular bodies, nu-mber and type of saw blades 7and of course the speed or -nu-mber of reciprocation per minute of the,cutting assembly. Operating speeds are typirally of a -high order within t-he ran,ge of tabout 100 to 1,000 strokes per min-ute equivalent to about 50 to 500 Teciprocations peir nunute, the apparatus of the invention being very effective at the lowor Tan,ge speed between about 100 to 500 strokes por niinute equivalent to 50 to 250 @reciprocations per minute. The IL-.ngth of a single stroke -as measured by the lateral travel of the -multiple blade cutting assembly may be typically bi@tween about 2 to 15 inches, more usually 6 to 10 inches, depending on the desired cutting i-ate and type of product being produced. The speed OT Tate of advanceme,nt of the cellular body is set at a r-ate suffi4--ient to continuously m-aintain at least some portion of the cellular body in contact with the blades but of c(>tirse below ,a Tate which unduly force the cellular body into the bla,des. Preferably, the speed of the advancing body is sucb that the blades on one side of the blade assembly come into sawin- contact with the cellular body after the multiple blade icutti@ng assembly has travelled between about 0 to 40%, more preferably 5% to 30%, of its later.al stroke dista@nce. The cuttina appa-ratus is particularly adapted for the cutting of rigid or semi--rigid type cellular (resinous materials. Flexible or soft bodies of resinous cellular matetials may be sliced usin,,@ the apparat-us by employing scalloped or serrated edge blades. Typical exainples of such -cellular resinous m-aterials include foams of polyuret-ha-ne, polystytrene, polyvinyl chloride, polyethylene and synthetic and natural rubbers. A - number of such cellulat materials prepared patticularly by open mold expa,nsion have chaxacteristic cell stmetuxes which ptoduce slabs of widely varying ceH structiire and properties depe,n,ding upon the direction of cutting into t-he cellular block. Slabs of such widely vaxying -characteristics may be ptoduced on t-he appa-ratus of the present invention by positioning t-he cellulat block on the conveyor belt in the desired positign i@n relation to the direction of expansion of the block as required to produce the slabs of the desired p-roperties. In sitli@ations where t-he cellulat blocks have substantial width compared to thickness and positioning on the relatively narrow ends may be inconvenient, the apparatus of the present invention asdescribed,and shown on the drawings may be constructed in a position equivalent to a -rotation of 90' of t@he cutting @assembly with the blades set in parallel vertical spaced @relatio,nship path of movement on the co-nveyor belt to permit the desired cutting of t-he cellular body. Although certain preferre@d embodiments of the 'mvention have been disclosed for purpose of illustration, it will be evident that various changes and modifications may be made the-rein without del3artin.- from the scope and spirit of t-he invention. I
