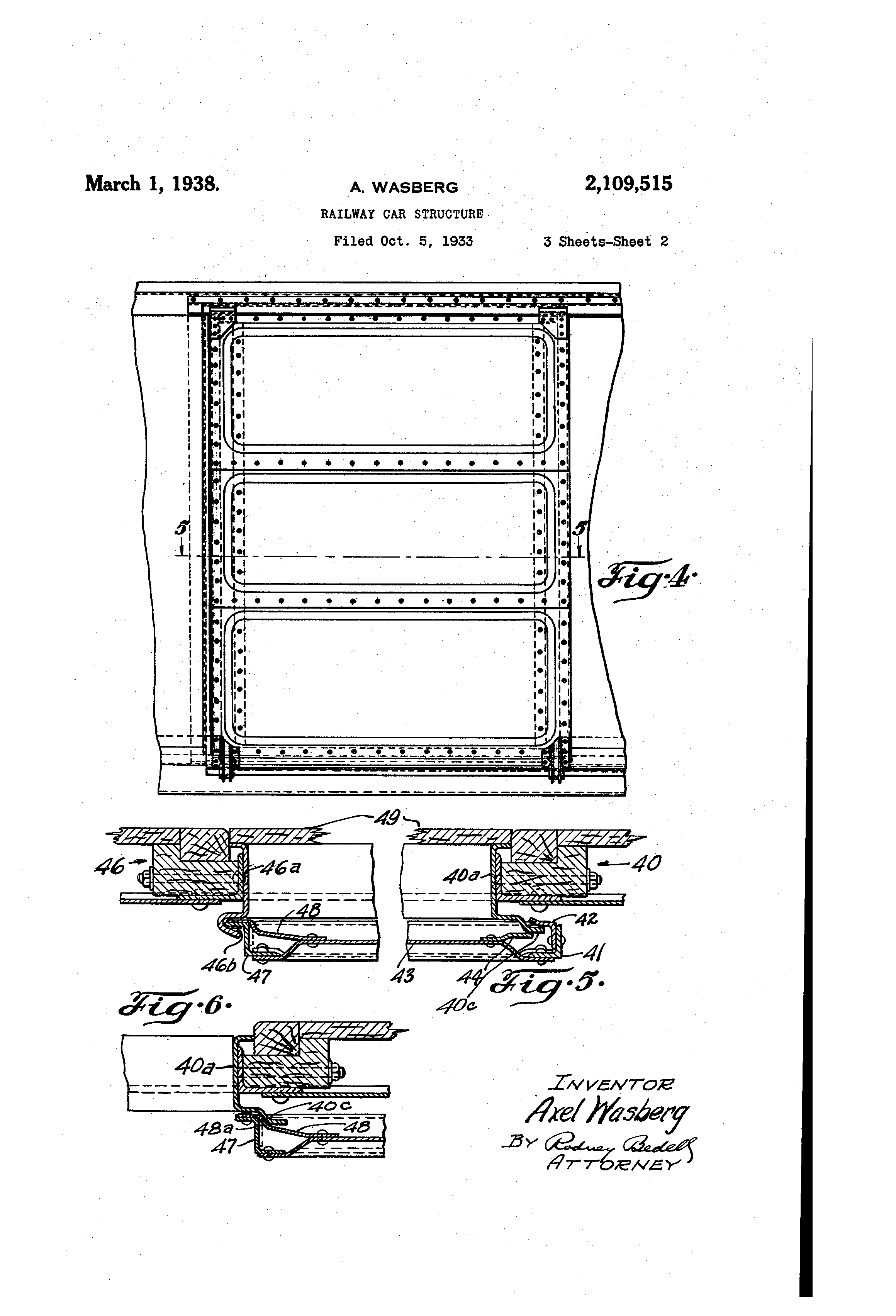

2,iO9,515 3 of the rear post plate which forms a stop for the door as previously described. Figure 5 illustrates the application of a grain door 49 to the post structures, the latter being recessed at their innet corners to accommodate the grain door with the inner face of the latter flush vp'-th the inner side wall of the car. In the modiflcation illustrated in Fig-ure 71 door posts 50 and 51 are of Z-section with portions 10 of the flanges nearest the outer face of the car bent inwardly, as at 52, the wooden portions 53 of the posts being recessed at their outer opposing comers to'receive flanges 52. The door comprises flat body panel plates 54 15 having a W-shaped front edging 55 and a zshaped rear edging 56 and transverse reinforcements 57. The inwardly extending lip 58 on the front edging 55 projects inwardly of the inside plane of the door proper so as to abut against 20 the inturned flange 52 of the front post to Iiinit the closing movement of the door and to abut against the inturned flange 52 of the rear post to limit the opening movement of the door. A spark strip 59 on the front door post 5 I co25 operates with the forward portion of edging 55 to form a front seal, and cooperating strips 60 and 61 on the rear post 50 and the rear door edging 56 cooper4te to form a rear seal. The recesses in the outer opposing corners of the posts so permit the forward portion of edging 55 to move beyond the hmits of the door opening X so that the latter i.s in nG ways restricted by the interengaging door and post parts. In Figure 8, the front door post plate 65 cor-. 35 responds to the plate 46a in Mgure 5 but its stop forming element 65a is modifled tG accommodate the transversely disposed flange 66 of the angle forn-i.ing part of the front door edging 67 to form the stop element on the door. The rear post 40 plate 68 includes an offset portion 69 acting as a spark strip member and also as a stop for the projecting element 66 on the front of the door when the latter is opened. Figure 9 illustrates a modification in which the 45 spark and weather seal is rendered more effective by utilizing strips of rubber or like packing rnaterial 70 and 71 between metal portions of the door and post. This need not interfere with the use of the door rear post as a door stop and the 50 provision of a stop engaging element on the door. In this modification a stop element 72 on the rear door post Z-bar 73 projects outwardly from the side wall into the general plane of the door framing so as to be engaged by the plate 74 corre55 sponding to the plate 48 previously described. Other modifications in different details of construction may be made witbout departing from the spirit of the invention and I conteml)late the exclusive use of those variations which come 60 within the scope of my claims. claim, 1. In a railway car, a wall having a door opening and a door post at the rear of said opening, a qliding door having front and rear edge fram65 ing members, there being elements on said door and post alined longitudinally of the door movement in the general plane of said members disposed to interengage to limit thL@, opening movement of said door. 70 2. In a railway car, a waU having a, door opening and a door post, a sliding door, said door and po@t having interengageable elements to limit opening movement of the door, the element on the door post being spaced rearwardly from the 75 face of the post defining the side. of the door opening and the element on the door being Adjacent the front edge of the door so that the door when opened may move to a position to fully clear the door opening. 3. A construction as specified in claiin 1 in which theinterengaging elements extend substantially throughout the height of the door whereby the shock of arresting the door movement Is distributed over substantially the entire doo r structure. "lo 4. In a railway car, a wall having a door opening and a post at the rear of said opening, a door havi ng frbut and rear edgings, there being a me mber on said post cooperating with said door rear edging to form therewith 9, spark and 15 wea ther seal when the door is closed and coope rating with said front edging to limit the ope ning movement of the door. 5. In a railway car, a wall having a door opening and door posts at the front and rear of said 20 opening, each post Including a weather seal element, a sl@lding door including a body panel overlying the outer faces of said door posts and also i.neluding an inwardprojection arianged to abut agai nst said elements as the door is closed or 25 ope ned respectively to limit the movements of the dob r. 6. In a railway car, a wall having a door opening and door Posts at the front and rear of said ope ning, each of said posts including a Z-bar with 30 its web disposed transversely of the wall and with the edge portion of its outer flange turned Inwar dly froni the outer face of the car wall, a slidi ng door including a body panel overlying at leas t one of said outer flanges and also Including 35 an inward projection arranged to abut against said inturned flange edge portioiis upon closing or bpening movement of the door to positively limit such movemerit 7. In a railway cai, a wall including a door 4 0 ope ning and posts defining the sides of said opening, the opposing outer comers of said posts having opposing recesses extending away from the doo r opening longitudinauy bf the waU, a sliding doo r overlapping the outer faces 6f said posts 45 and provided with a member projecting inwardly and airanged to engage the post element at the inne r end of either of said recesses to limit the mov ement of the door into the open or closed Posi tion respectively. 50 8. In a railway car, a wall with a door opening and including a post at the reox of said opening havi ng a plate element extending transversely of the wall beyond the outer face thereof and with a flange extending along said face and away from 55 said opening, and a door having a rear edging incl uding means for yieldingly gripping opposite side s of said flange to form a spark and weather seal and having a front edging for positively engagi ng the outwardly extending portion of said 00 plat e to liniit the opening movement of the door. 9. In a railway car, a, wall having a door opening and a body post at the rear of said opening, a sliding door of composite structure including a main door portion and an auxiliary door por- 6 tion, an auxiliary post carried on said auxiliary doo r portion and arranged to be secured to the car franiing when said auxiliary door portion is in projected position or to be moved towards said post when said auxiliary door portion is re@@racted, 70 and means mounted on said auxiliary door portion independently of said auxiliary post for engagi ng said body post to liniit the retracting movement of the door with said auxiliary door post spaced from said wall post. 75

4 2,109,515 10. A railway car door including a body pgnel, and a front edging including a member projectIng inwardly beyond the plane of the inner face of said panel and including a portion facing toward the rear edge of the door to engage a stop on the car body when the door is opened and a part extending forwardly from said portion to enter a weather seal pocket on the car body. 11. A railway car door including a body panel, 10 and a front edging comprising an angular bar having one flange secured to said panel and having another flange projecting inwardly from the general plane of said panel and arranged to engage front and rear door post elements to limit I @-) the opening and closing movements of the door. 12. In a railway car, a side wall having a door opening, a suding door therefor, and a door post in sWd wall having a body portion projecting laterafly of said wall Into the general plane of t) said door. 13. In a railway car, a body wall having a door opening, a sliding door therefor comprising an angular structural upright framing and panel sheets secured to said framing, and a body door "3 post having a portion extending transversely of said wall beyond the inner face of said fran-iing whereby the over all distance from the inner face of said wall to the outer face of said door is less than the thickness of said framing plus the thick30 ness of said post. 14. In a railway car, a body wall having a door opening, a sliding door therefor comprising an angular structural uprlght framing and panel sheets secured to said franiing, and a b6dy door '5 post having a portion extending transversely of sWd waR beyond the inner face of said framing, portions of said framing and post overlapping each -other transversely of said wall having substantiauy parallel flanges extending longitudi4o nally of said wall and yieldingly engaging each other to form a weather and spark seal. 15. In a railway car, a wall having a door opening and a door post, a door slidable along said wall and over the exterior face of said post, and 45 a member on said post projecting into the general plane of said door and serving as a stop for said door when the latter Is opened and as a weather seal element when said door is closed. 16. In a railway cai,-& wall having a door open50 ing and a door post,- a door slidable along said wall and over the exterior face of sal-d post, and a member on said post projecting iiito the general plane of said door, and elements on the rear and front edges of said door, respectively, co55 operating with said member to seal the rear of the opening when the door Is closed and to stop the door movement when the door is open. 17. Structure as set forth in claim 13 in which the door post member is spaced from the door so opening and the element at the front (jf the door is spaced relative to the door opening so that when the door is opened and said member and element are engaged the door opening is unobstructed throughout its fuu-width. 43 18. In a railway car, a wall having a door opening with front and rear door posts, a door slidable along said wall and past said rear post, and a member on said rear post serving as a stop for said door when the latter is opened and as a i-o weather seal element when said door is ' closed, there being a cooperating weather seal element on said door. 19. In a railway house car having a door opening and atransversely extending fl=ge adjacent said opening, a sliding door for closing said opening mounted upon the outside of said car, a reinforcing member secured to said door adjacent the forward edge thereof, said member being provided with a vertical transversely ex- 6 tending flange adapted to engage said first merltioned flange In the opening movement of said door to limit said movement. 20. In a railway house car having a door opening and a transversely extending flange adja- 10 cent said opening, means embodying a sliding auxiliary door mounted upon the outside of said car for closing said opening, a post secured to the forward margin of said door for movement therewith, a reinforcing member sedured to said 15 door and said movable post, said member comprising a vertical transversely extending flange adapted to engage said first mentioned flange iii the opening movement of 'said door to limit said movement. 2( 21. In a railway house car having a door opening and a transversely extending flange adjacent said opening, a sliding door for closing said opening mounted upon the outside of said cgx, a reinforcing member secured to said door ad- 2 jacent the forward edge thereof, said member being provided with a vertical transversely extending flange, approximating in length the height of said door, said flange being engageable with said first mentioned flange in the 30 opening movement of said door for the purpose set forth. 22. In a railway house car, a relatively stationaiy member, gn outside sliding door for closing a door opening provided in said car, an 35 nward y directed flange carried upon the forward margin of said door, said flange lying in proximity to said relatively stationary member In the closed.position of said door,-whereby to coopemte there-w-ith to provide weather protec- 40 tion for said door. 23. In a railway house car, a relatively stetionary member, an outside sliding door for closing a door opening provided in said car, a vertical outwardly directed flange secured to said car 45 adjacent the rear vertical edge of said opening, an inwardly directed flange carried upon the forward margin of said door, said door flange lying in proxiniity to said relatively stationary member in the closed position of said door where- ro by to cooperate therewith to provide weather Protection for said door, and said door flange engaging said outwardly directed flange in the opening movement of said door for the purpose set forth. 55 24. In a railway car, a side frame including a side sill, a side plate and a side frame post between said sill and plate, a car side wall mounted thereon, a sliding door comprising a body with framing and paneling, there being an aux- 60 lliary post on said door body arranged to be detachably secured to said sill and plate, and elements carried on said side frame post and on the forward portion of said door body, respectively, and located between the inner and 65 outer planes of said door framing paralleling said car side wall and opposing each other for limiting the opening movement of said door before said auxiliary post or an element carried thereby contacts with said side frame post and 70 before any elements on said side wall interrupt the opening movement of the door. AXEL WA.SBERG.

Patented Mar. 1, 19W 2tlO9t5l5 UNITED STATES PATENT OFFICE 2,109,515 RAIILWAY CAR STRUCTURE Axel Wasberg, Chicago, IH., assignor to Chicagb Rallvvay Equipment. Company, Chleaco, ID., a corporation of IDinois Application October 5, 24 Claims. The invention relates to railway rolling stock and moreparticularly to box r-ar sliding doors and associated structure, although not limited exclusively to the same. It is a common practice to attach a relatively small door stop to a car side wall for the rear edge of the door to strike when it is opened. The railroads have considerable difficulty in maintaining these backstops. If the door Is not 10 properly secured in the closed position, especially if it is of the free rolling type, door movement during switching operations, for example, willfrequently tear off or badly batter the door back stop and sometimes damage the car walls to which is the stop is secured. If the stop is secured to the door track, the batteri@ of the door may bend the track out of alignment. F'requently the door itself is injured where the same contacts with the back stop due largely to the fact that the 20 blow from the back stop is concentrated on a small 'area of the door edge. In connection with extra wide doors of the type commonly used in "automobile" cars, it is customary to provide an auxiliary door in addi25 tion to the ordinary door, the auxiliary door having a post mounted thereon which may be locked to the car framing when the auxiliary door is in closed position. This auxiliary door post then becomes the front door post for the 30 ordinary door which may be-shut to close the remainder of the door opening. When the auxiliary door is opened, the objectionable fea tures referred to in the preceding paragraph ar; not only present but are likely to be accentuated 35 because of the increased weight of the door due to its carrying the auxiliary post. Frequently the auxiliary post locking mechanism is so located that when the auxiliary door is opened the mechanism is positioned to be injured by 40 the auxiliary door rear post on the body framing if the door stops referred to faU to function as intended. Also such location of the auxiliary door post mechanism tends to reduce the effective length of the door opening which can be obtained. 45 one object of the present invention is to provide a door and stop arrangement which will avoid the above mentioned difficulties. Briefly, this object is attained by utilizing the body post at the rear of the door opening as a stop and pror,o viding a member on the door for engaging the same to limit the moveinent of the door. In the usual car construction, the door unit, whether single or auxiliary door, including its front and rear edging members, overlies the door ..5 posts, the inner face of the door body being outside of the outer face of the post although the door and post may have supplementary spark and weather sealing elements overlapping each other transversely of the car. Since the over all Go width of the car, i. e., through the doors, can1933, Serial No. 692,229 (Cl. 20-22) not be exceeded because of clearance liinitations, the inside width of the car Is reduced by the thicknes s of the door unit and the thickness of the post and sometimes the sheathing thereon. It is another object of the present invention to 5 so form the door post and door body that they overlap each other transversely of the car, thereby making it possible to Increase the inside width of the car. Anoth er object of the invention is to provide 10 coacting door and post main elements of substantial thickness which will cooperate to form a secure spark and weather seal. It is further desired to maintain the maximum door opening irrespect ive of door and post parts provided for 1.5 the general purposes mentioned above. An additional object of the invention is to provide a novel mounting of the latching mechanism for an auxiliary door post so that the same will be protected from the auxiliary door rear post 20 and from shifting lading or other objects movable relative to the door and likely to injure the latching mechanism in its usual exposed location. Anoth er object is the provision of an improved latching device having a limited number of parts 25 and serving to lock the post at top and bottom independ ently but in which the operation of unlocking one latch will also unlock the other latch. Other incidental objects will be referred to in the following description of the structure shown 30 on the accompanying drawings, in whichMgur e 1 Is a vertical transverse section through the side sill, floor and side plate of a car at the door opening and showing the front edge of an auxiliary door and post, the section being taken 35 on the line 1-1 of Figure 3. Flgure 2 is an elevation of the structure shown in Flgure I looking from the inside of the car. Flgure 3 is a horizontal section through the door and door post construction and is taken sub- 40 stantially on the line 3-3 of Mgure 2. Mgur e 4 is an outside elevation of a portion of a car side structure including a single door. Figure 5 is a horizontal section on the line 5-5 of Mgure 4. 45 Mgur e 6 is a section through the 'right hand or rear door post in Figure 4 and showing the adjacent portion of the door when in open position. Mgur es 7, 8 and 9 are sections corresponding to Mgure 5 but Illustrating modified forms of 50 the invention. Fligur es I to 3 inclusive include the upper por- tion of a car side sill channel 1, a car floor 2, a door track Z-bar 3, a threshold plate 4, a side cornice plate Z-bar 5, and a door upper retainer 55 S. The main door is indicated at 7 and the auxiliary door at S. Fach of these doors is of st@el construction including Z-bar front and rear edging members 9, 10, 11 and 12 and panel sheets- 13 and 14 dished between the planes of (10

2 2,109,515 the Z-bar flanges which define the outer and Inner faces of the door bodies. The car franiing Includes the right hand door post 15 and the left band door post I S. Post 15 comprises an angle member I 5a, a plate I Sb and a wooden fuler I Se. The left hand post comprises a similar angle 16a, plate 16b and filler 16c. 'Me wall outer sheet 17 and the inner sheating I 8 are of ordinary construction and are secured to the framing in the 10 usual manrier. The auxiliary door post i 9 comprises a channel or U-shaped plate i 9a, riveted to the front edging I I of the auxiliary door, and a wooden fwer 19b whieb Is bolted to the longer leg of the plate 19a jr, and fllls but a part of the space between the legs of the plate 19a, leaving a substantial space withIn which the latching and uniatclilng bar 20 may be mounted. Plate 15b of the main door post extends out20 wardly beyond the outer face of the side wall . of the car to the inner face of the door and then is bent to parallel the car side and terminates l.n an offset flange 15d which projects Into the space between the inner and outer faces of the 26 door body. When the door Is closed, as indicated in full lines in Flgure 3, the rear edge of flange 15d is spaced from the web of the Z-bar 9 and a plat,e 21 secured to Z-bar 9 overlaps the inner face of flange I Sd to forin a sliding and yielding 30 contact of greater or less extent depending upon variations in the manufacture of the door and post and wall structure. Irrespective of such variations, the contact will be sufficient to insure 9, seal against weather, sparks, dirt, etc., and 35 without limiting the closing movement of the door. When the door is opened, as indicated In dotted lines In Flgure 3, the forward edging I 0 str4kes the offset flange 15d and the latter serves as a 40 stop fbr the door extending substantially throughout the, height of the latter and transmitting the blow from the door directly through the remainder of the post structure and through the latter to the car sill and plate. This elizni4r) nates the necessity of providing the usual car stops with possible damage to the car wall or door structure due to the bumping of such stops by the sliding door or to the failure of such stops altogether. It will be noted that the construc50 tion described does not reduce the effective width of the main door opening as the front edging 10 moves completely to the rear of the door opening as determined by plate i5b. The overlapping of the door 'and post strlic,5,5 ture, transversely of the car, makes it possible to reduce the over all distance, from the inside of the car to the outside of the door, below the minimum which could exist If similar post and door dimensions were used with the door framing over60 lying the outer face of the post in the usual manner. Hence, the Inside width of the car may be increased proportionat6ly. ' The above described construction and fimetion of the right hand post 15 and associated 6,5 main door structure applies also to the left hand door post 16 and the associated auxiliary door structure. The front edging I I of the auxiliary door It Is provided with a stop plate between Z-bar flange 70 and the U-plate 19a. The outer offset flange 22 on this stop plate cooperates with the auxiliary ,post plate 19a to forin a pocket for receiving and stopping the forward edging ID of the main door 7. 'Me inner flange 23 of the plate on edging I I 75 is spaced a short distance from the auxfliary door past and is disposed so as to abut against offset 16d of the main post when the auxiliary door is bpened, as indicated In dotted lines, thereby transmitting the blow of the door directly to the door post throughout It& length and through the latter to the car framihg. 'Mis eliniinates the necessity of providing a door stop on the side wall for the auxiliary door and the disadvantages arising from the use of the ordinary door stop. Also the stop flange 23 prevents the abutment of 1( posts 19 and 16 and the resulting tendency to twist the auxiliary post on the door, Injuring the latter and damaging the latching mechanism. The auxihary post is secured In door closing position at toP and bottom. A hook 24 is pivoted 15 to a housing and stop casting 25 secured to the side plate 5 and drops Into a hollow casting 26 @eated in the auxuiary door post and projecting above the top of the latter and engaging stop casting 25 to Iiinit the movement of the door. 20 The latching bolt 20 heis a squared lower portion 27 which fits Into a socket In a stop and latching -casting 28 seated in the car floor. A casting 29 in the auxillary door post guides the - lower portion of the latching shaft. Casting 29 also forms 26 a housing for and journals the post supporting roller 3 1. When the door ig moved to closed position, the lower end of shaft 20 will ride over the threshold !)late 4 until the socket -casting 28 is reached, 30 when it wili automatically drop into position, being supported by the shoulder S on the casting 29 and by the engagement of its upper offset portion 20a with the -ledge 26a on casting 26. At the same time the forward end of hook 24 35 will ride over the upper Guter edge of casting 26 and automatically drop into i3osition. When the door is to be opened, the latching shaft 20 may be dislodged by the handle 30. This'will free the interengaging elements at, the floor and at 40 the same time dislodge hook 24 to release the upper end of the post. This construction provides independent latchIng of the upper and lower ends of the post although retaining the desirable feature of a single 45 operation for unlatching both ends of the post when the door is to be opened. The construction described above provides a simple, economical and effective arrangement of door and post structure for extra wide openings in the car walls and 50 possesses the advantages Indicated by the statement of objects at the beginning of the speciflcation. However, many of the desirable features may be embodied in a single door construction as illustrated on the other drawings, and the post 55 and door constructiorl may be otherwise modified. In Flgures 4 to 6 the right hand door post 40 corresponds to post 15 previously described but the cooperating rear edging of the door consists 60 of an angle Iron 41 and a supplementary sealing element 42. Me door panel sheets 43 mount a rear plate 44 which cooperates with element 42 to yieldingly receive the flange 40c of the post plate 40a thus forming a sealing structure wlilch 65 may be more desirable. The front or left hand post 46 includes a plate 46a termihating in a pocket 46b facing towards the door opening and adapted to receive the flange of the door front 70 edging 47. A front reinforcing plate 48 extends from the door sheets 43 tG the outer flange of the front edging 47 and when the door is opened, as indicated In Figure 6, the offset portion 48a of this plate strikes against the offset portion 40c 75
